SuperServer E100-9AP

  Products  Systems   Embedded/IoT   [ E100-9AP ]






Integrated Board
Super A2SAN-E

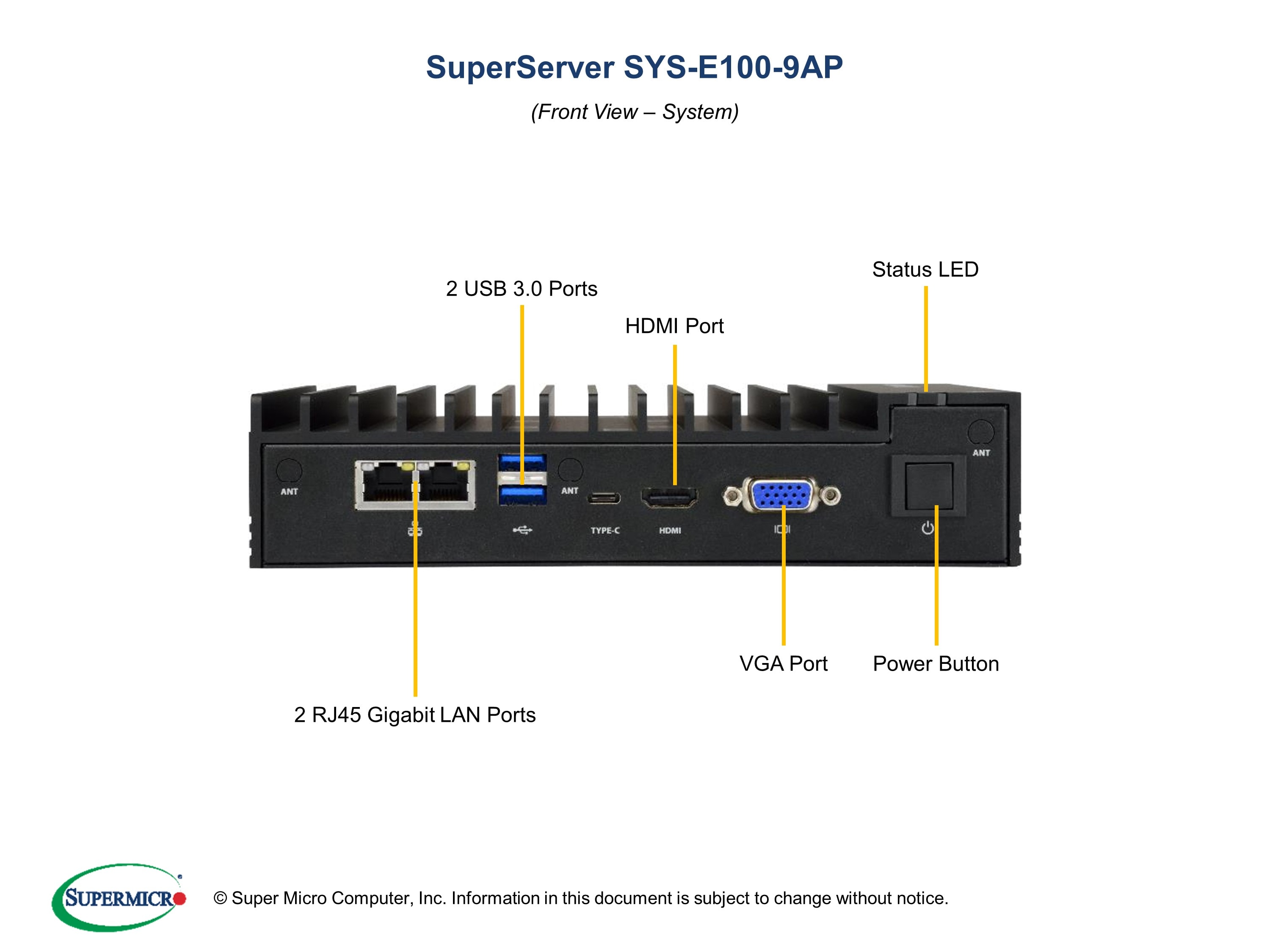

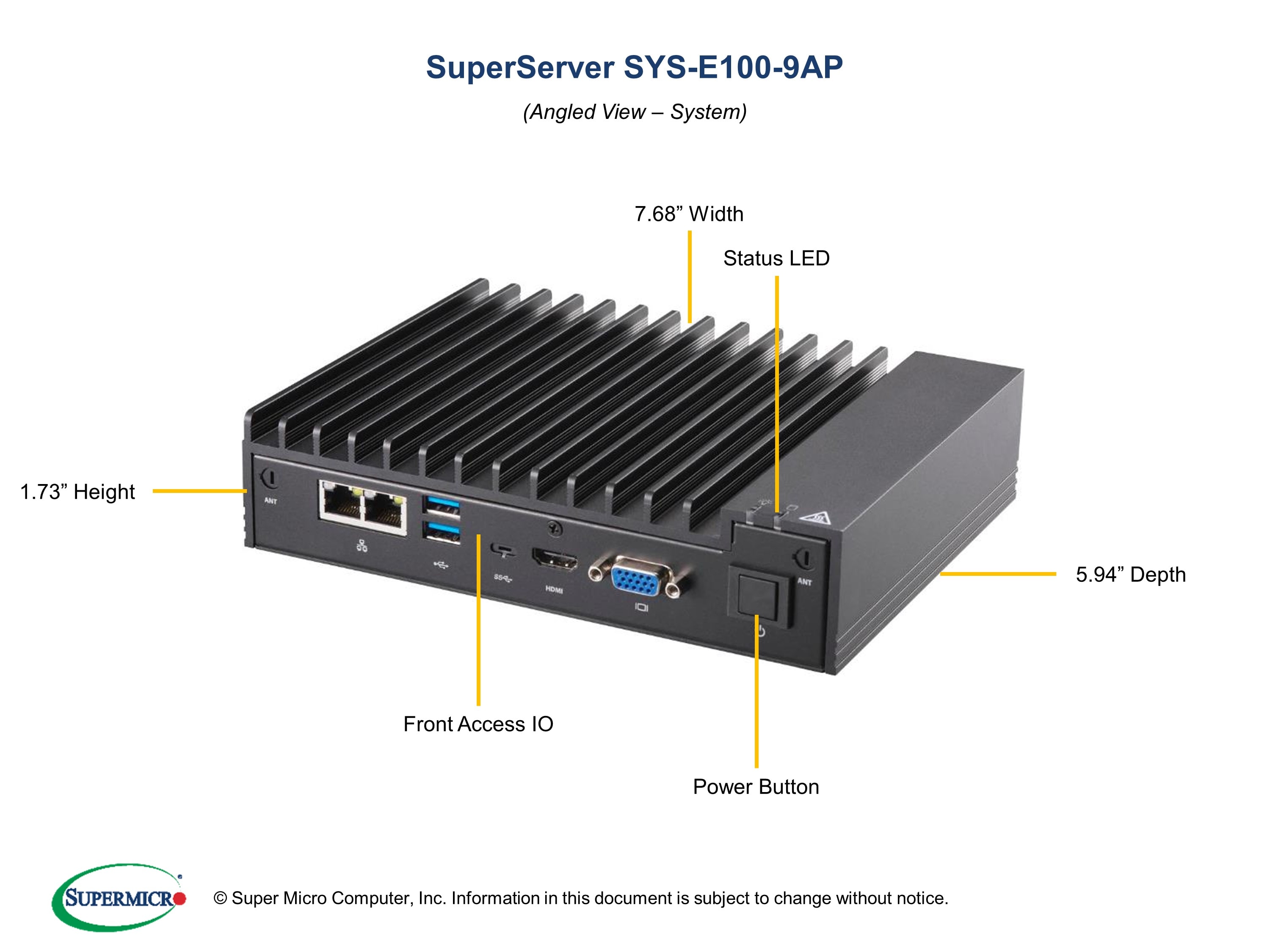

Views: | Angled View | Front View |

Key Features
  - IoT Gateway for Smart
    Factory/Building/Home
  - Kiosk, Interactive info system
  - Environmental Monitor

1. Intel® Atom® Processor E3940,
    Single Socket FCBGA 1296
2. System-on-Chip
3. 1 Full size Mini-PCIe,
    1 M.2 2280 B-Key for SATA or PCIe SSD
4. 1 non-ECC DDR3L SODIMM; up to 8GB
5. Dual GbE LAN ports via Intel I210-IT
6. 4 COM, 2 USB 3.0, 4 USB 2.0
7. 1 VGA, 1 HDMI
8. Fanless design
9. Lockable 12V DC 40W power adapter

 Drivers & Utilities   BIOS   IPMI   Tested Memory  Tested M.2 List   Manuals    OS Certification Matrix

Product SKUs
SYS-E100-9AP
  • SuperServer E100-9AP (Black)

Motherboard

Super A2SAN-E

Processor/Cache
CPU
  • Intel® Atom® Processor E3940
  • FCBGA 1296
  • System-on-Chip
  • CPU TDP support 9W

System Memory
Memory Capacity
  • 1x 204-pin DDR3L SO-DIMM socket
Memory Type
  • 1866/1600/1333MHz Unbuffered non-ECC SO-DIMM DDR3L, 204-pin gold-plated DIMMs
DIMM Sizes
  • 8GB, 4GB, 2GB
Memory Voltage
  • 1.35 V

On-Board Devices
Network Controllers
  • Dual GbE LAN with Intel i210-IT controller

Input / Output
LAN
  • 2 RJ45 Gigabit Ethernet LAN ports
USB
  • 2 USB 3.0 (front)
  • 4 USB 2.0 (rear)
COM Port
  • 4 COM ports (4 headers); 2 RS232, 2 RS232/422/485, RS-485 supports auto flow control
Video
  • 1 VGA, 1 HDMI
Others
  • 8-bit configurable GPIO via DB9
Chassis
Form Factor
  • 3.5" SBC
Model
  • CSE-E101

Dimensions
Width
  • 7.68" (195mm) / 11.81" (300mm) - pkg.
Height
  • 1.73" (44mm) / 5.12" (130mm) - pkg.
Depth
  • 5.94" (151mm) / 11" (279mm) - pkg.
Available Colors
  • Black

Front Panel
Buttons
  • Power On/Off button
LEDs
  • Power LED and Hard drive activity LED

Expansion Slots
PCI-Express
  • 1 Full size Mini-PCIe (1 USB 2.0, 1 PCIe Gen2)

Drive Bays
Internal
  • 1 M.2 2280 B-Key for SATA or PCIe SSD (2242 can be supported with bracket)

System Cooling
Fans
  • Fan-less design

Power Supply
Lockable 12V DC 40W power adapter

System BIOS
BIOS Type
  • 64Mb SPI Flash EEPROM with AMI UEFI BIOS
BIOS Features
  • Plug and Play (PnP)
  • DMI 2.3
  • ACPI 5.0
  • USB Keyboard support
  • SMBIOS 2.7.1
  • UEFI

Management
Software
Power Configurations
  • ACPI Power Management
  • ATX Power connector
  • Control of power-on for recovery from AC power loss
  • CPU thermal trip support for processor protection

Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       -20°C to 60°C (-4°F to 140°F) with 0.7 m/s air flow
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)
  • Operational Vibration, IEC 60068-2-64, 5 Grms, random, 5~500 Hz, 1hr/axis
  • Operational Shock, IEC 60068-2-27, 30G, half sine, 11ms

    The use of industrial grade wide-temperature peripherals is required to meet 60°C operating temperature.
See Parts List

Parts List - (Items Included)
  Part Number Qty Description
Motherboard / Chassis MBD-A2SAN-E
CSE-E101
1
1
Super A2SAN-E Motherboard
Chassis for Embedded 3.5" SBC
Power Adapter MCP-250-10135-0N 1 40W 12V 3.33A, AC to DC lockable power adapter (0-40°C)
Hide Parts List
