A+ Server 2123BT-HNC0R (Complete System Only)

Super Micro Computer, Inc.
Contact Us

Search

MySupermicro

  A+ Products   Systems   2U   [ 2123BT-HNC0R ]





Integrated Board
Super H11DST-B

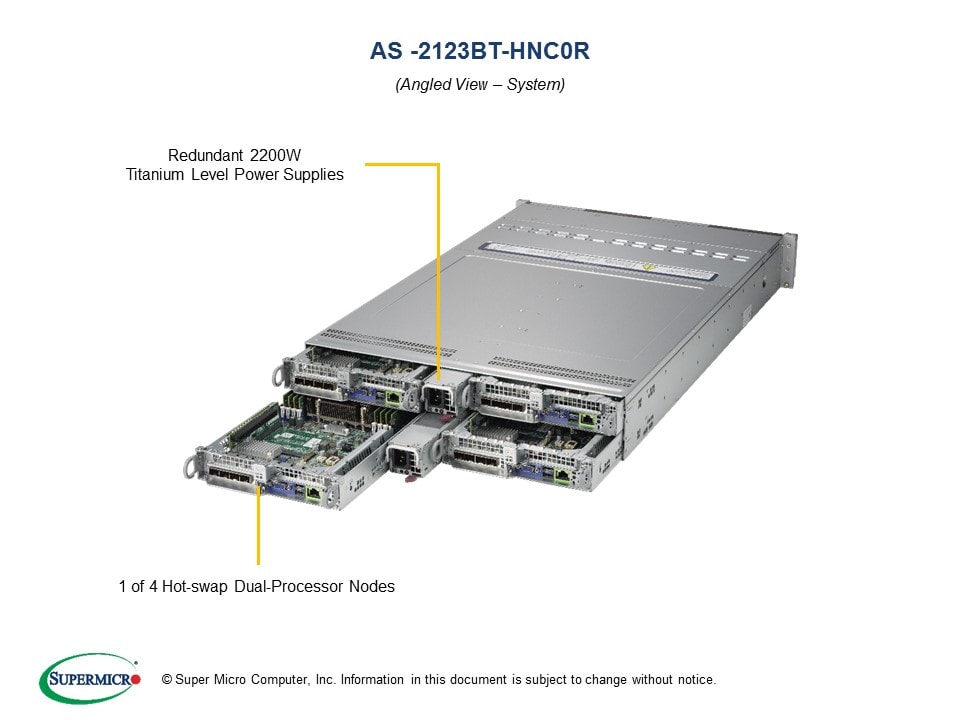

Views: | Angled View | Node View |

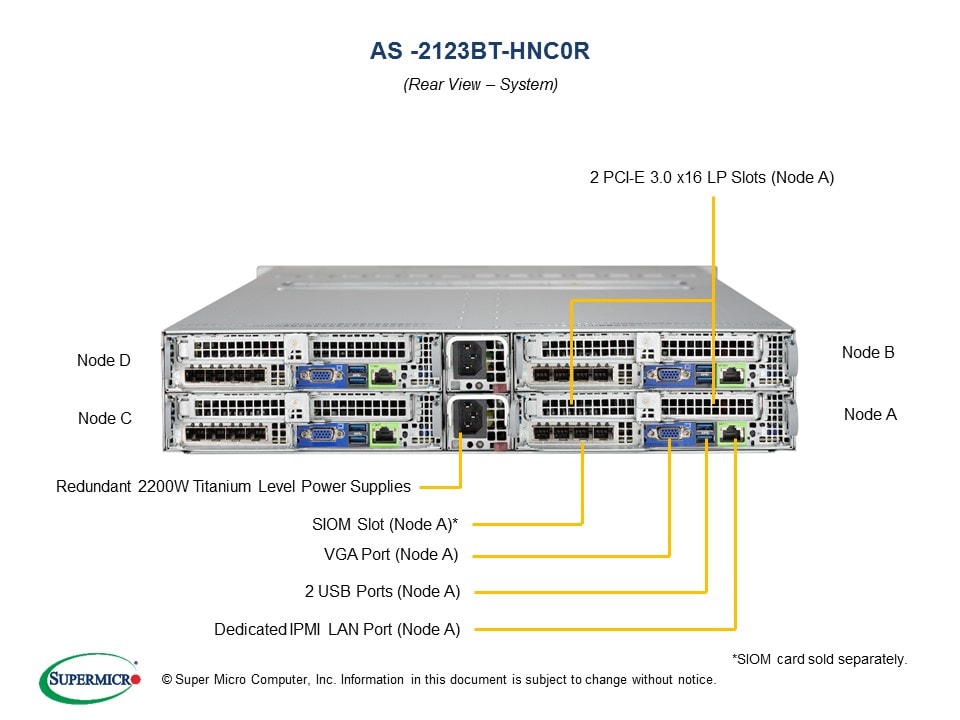

| Front View | Rear View |

Key Features
  - Compute Intensive Application
  - HPC, Data Center, Enterprise
    Server
  - Hyperscale / Hyperconverged

Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
1. Dual AMD EPYC™ 7000-Series     Processors
2. Up to 2TB ECC 3DS LRDIMM, up to
    DDR4-2666MHz; 16 DIMM slots
3. 2 PCI-E 3.0 x16 (LP) slot; 1 SIOM
    card support (flexible networking)
    Note: must bundle with Network card
4. IPMI 2.0 + KVM with dedicated LAN
5. 6 SAS3 or 4 NVMe + 2 SAS3
      Hot-swap 2.5" drive bays
    M.2 Interface: 1 SATA/PCI-E 3.0 x4
    M.2 Form Factor: 2280, 22110
    M.2 Key: M-key
6. SAS3 support via Broadcom 3008;
    IT mode
7. Video via Aspeed AST2500 BMC
8. 2200W Redundant Power Supplies
    Titanium Level (96%)
  (Full redundancy based on configuration
  and application load)

Due to the complexity of integration, this product is sold as a completely assembled system only (with minimum 2 CPUs, 8 DIMMs, 1 HDD/NVMe and 1 SIOM card per node). Please contact your Supermicro sales rep for special requirements.

 Drivers & Utilities   BIOS   IPMI   Tested Memory
 Tested M.2 List   NVMe Options   Manuals    OS Certification Matrix    Quick-References Guide  Drive Options   Tested Network Card (AOC)

Product SKUs
AS -2123BT-HNC0R
  • A+ Server 2123BT-HNC0R (Black)

Motherboard (per Node)

Super H11DST-B

Processor/Chipset (per Node)
CPU
  • Dual AMD EPYC™ 7000-series Processors
  • Socket SP3
Cores
  • Up to 32 Cores

System Memory (per Node)
Memory Capacity
  • 16 DIMM slots
  • Supports up to 2TB Registered ECC DDR4 2666MHz SDRAM in 16 DIMMs
  • 8-channel memory bus
  • For Dual CPUs: Recommended that memory be populated equally in adjacent memory banks
Memory Type
  • DDR4 2666 MHz Registered ECC, 288-pin gold-plated DIMMs
Memory Sizes
  • 8GB, 16GB, 32GB, 64GB, 128GB
Memory Voltage
  • 1.2V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)

On-Board Devices (per Node)
Chipset
  • System on Chip
SAS
  • SAS3 (12Gbps) via Broadcom 3008; IT mode
Network
  • 1 PCI-E 3.0 x16 SIOM LAN Networking Slot for flexible networking, see SIOM LAN options support matrix (Must bundle with at least one SIOM network card)
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Video
  • ASPEED AST2500 BMC

Input / Output (per Node)
LAN
  • Provided via SIOM (optional)
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 2 USB 3.0 ports (rear)
Video
  • 1 VGA port
DOM
  • 1 SuperDOM (Disk on Module) port
Others
  • 1 COM port (header)
  • 1 TPM 2.0 header

System BIOS (per Node)
BIOS Type
  • AMI 128Mb SPI Flash ROM

Management (per Node)
Software
Power Configurations
  • ACPI / APM Power Management
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-217BHQ+-R2K22BP2

Dimensions and Weight
Width
  • 17.25" (438mm)
Height
  • 3.47" (88mm)
Depth
  • 28.5" (724mm)
Package
  • 26.4" (H) x 11.2" (W) x 39.8" (D)
Weight
  • Gross Weight: 85 lbs (38.6 kg)
  • Net Weight: 54.5 lbs (24.7 kg)
Available Colors
  • Black

Front Panel (per Node)
Buttons
  • Power On/Off button
  • UID button
LEDs
  • Power status LED
  • HDD activity LED
  • Network activity LEDs
  • Universal Information (UID) LED

Expansion Slots (per Node)
PCI-Express
  • 2 PCI-E 3.0 (x16) Low-profile slots
  • 1 SIOM card support
    (must bundle with network card)
M.2
  • Interface: 1 SATA/PCI-E 3.0 x4
  • Form Factor: 2280, 22110
  • Key: M-key

Drive Bays (per Node)
Hot-swap
  • 6 Hot-swap 2.5" SAS3 drive bays or
    4 NVMe + 2 SAS3 Hot-swap 2.5"

System Cooling
Fans
  • 4 Heavy duty 8cm PWM fans

Power Supply
2200W Redundant Power Supplies with PMBus
Total Output Power
  • 1200W/1800W/1980W/2090/2200W
Dimension
(W x H x L)
  • 45 x 40 x 480 mm
Input
  • 1200W: 100-127Vac / 50-60Hz
  • 1800W: 200-220Vac / 50-60Hz
  • 1980W: 220-230Vac / 50-60Hz
  • 2090W: 230-240Vac / 50-60Hz
  • 2090W: 180-220Vac (for UL/cUL only)
  • 2200W: 220-240Vac (for UL/cUL only)
  • 2090W: 230-240Vdc (for CCC only)
+12V
  • Max: 100A / Min: 0A (100-127Vac)
  • Max: 150A / Min: 0A (200-220Vac)
  • Max: 165A / Min: 0A (220-230Vac)
  • Max: 174.17A / Min: 0A (230-240Vac)
  • Max: 174.17A / Min: 0A (180-220Vac, UL/cUL only)
  • Max: 183.33A / Min: 0A (220-240Vac, UL/cUL only)
  • Max: 174.17A / Min: 0A (230-240Vdc, CCC only)
12Vsb
  • Max: 2.1A / Min: 0A
Output Type
  • Gold Finger
Certification Titanium Level96%  UL/cUL/CB/BSMI/CE/CCC
  Titanium Level
  [ Cert. in progress ]

Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C ~ 30°C (50°F ~ 85°F)
  • Non-operating Temperature:
       -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)

See Parts List

Information in this document is subject to change without notice.
Other products and companies referred to herein are trademarks or registered trademarks of their respective companies or mark holders.
