New Generation AMD EPYC™ Processor-based Solutions

A+ Servers are Your Best Choice!

Supermicro's latest range of AMD EPYC™ 7000 Series SoC-based server and storage solutions offer new levels of optimized performance per watt per dollar, and deliver outstanding core density, superior memory bandwidth, and unparalleled I/O capacity.

Supporting up to 32 "Zen" cores and 64 threads per socket, these Supermicro solutions are tightly coupled with high-throughput, low-latency, hot-swappable NVMe storage, up to 4TB of DDR4 memory over 8 memory channels per socket, and up to 128 PCI-E 3.0 lanes on a dual- or single-socket system.

Supermicro's new generation A+ solutions supporting AMD EPYC™ enable a new range of powerful and energy-efficient server options to radically lower data center TCO through an optimized balance of compute, memory, I/O, and storage resources.

A+ Servers Benefits:

  • Most Comprehensive Line of AMD-based Rackmount/Tower Servers
  • Redundant Components (virtually eliminating system downtime)
  • Best Price/Performance Ratio
  • Superior Product Design (all under one roof)
  • Consistently First-to-Market
  • Maximized Performance
  • Reduced Total Cost of Ownership (TCO)
  • Top-Notch Finishing Materials
  • 3-Year Limited Warranty
  • 24-Hour Server Support
  • Uncompromising Quality Control

Resources

AMD EPYC™ logoTitanium Level96% Efficiency

2U 4 Nodes; Each node:

  • Dual AMD EPYC™ 7000-series processors supported (Socket SP3)
  • Supports up to 2TB Registered ECC DDR4 2666MHz SDRAM in 16 DIMMs
  • 1 M.2; 6 SAS3 or 4 NVMe + 2 SAS3 hot-swap 2.5" drive bays
  • 2 PCI-E 3.0 x16 Low-profile slots, 1 Networking SIOM card support  (optional; must bundle with at least one SIOM network card)
  • IPMI 2.0 + KVM with dedicated LAN support, 1 VGA, 2 USB 3.0, 1 SuperDOM
  • 2200W Titanium level Redundant Power Supplies with PMBus

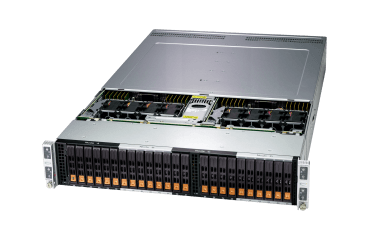

AS -2123BT-HNR (Coming Soon)

2U 4 Nodes; Each node:

  • Dual AMD EPYC™ 7000-series processors supported (Socket SP3)
  • Supports up to 2TB Registered ECC DDR4 2666MHz SDRAM in  16 DIMMs
  • 1 M.2, 6 hot-swap 2.5" NVMe drive bays
  • 2 PCI-E 3.0 x16 Low-profile slots, 1 Networking SIOM card support  (optional; must bundle with at least one SIOM network card)
  • IPMI 2.0 + KVM with dedicated LAN support, 1 VGA, 2 USB 3.0, 1 SuperDOM
  • 2600W Titanium level Redundant Power Supplies with PMBus

2U 4 Nodes; Each node:

  • Dual AMD EPYC™ 7000-series processors supported (Socket SP3)
  • Supports up to 2TB Registered ECC DDR4 2666MHz SDRAM in 16 DIMMs
  • 1 M.2, 6 hot-swap 2.5" SATA3 drive bays
  • 2 PCI-E 3.0 x16 Low-profile slots, 1 Networking SIOM card support (optional; must bundle with at least one SIOM network card)
  • IPMI 2.0 + KVM with dedicated LAN support, 1 VGA, 2 USB 3.0, 1 SuperDOM
  • 2200W Titanium level Redundant Power Supplies with PMBus
  • Dual AMD EPYC™ 7000-series processors supported (Socket SP3)
  • Supports up to 4TB Registered ECC DDR4 2666MHz SDRAM in 32 DIMMs
  • 2 PCI-E x16 (FH/HL 9.5") slots, 1 PCI-E x8 (LP) slot
  • Four hot-swap 3.5" SATA3 drive bays (optional 4NVMe supported)
  • SATA3 (6 Gbps)
  • IPMI 2.0 + KVM with dedicated LAN support
  • 1000W Titanium level Redundant Power Supplies with PMBus
  • Dual AMD EPYC™ 7000-series processors supported (Socket SP3)
  • Supports up to 4TB Registered ECC DDR4 2666MHz SDRAM in 32 DIMMs
  • 2 PCI-E x16 (FH/HL 9.5") slots, 1 PCI-E x8 (LP) slot
  • 10 hot-swap 2.5" drive bays, or 8 SATA3 + 2 NVMe drive bays (optional)
  • SATA3 (6 Gbps)
  • IPMI 2.0 + KVM with dedicated LAN support
  • 1000W Titanium level Redundant Power Supplies with PMBus
AS -1123US-TN10RT
AS -1123US-TN10RT (Coming Soon)
  • Dual AMD EPYC™ 7000-series processors supported (Socket SP3)
  • Supports up to 4TB Registered ECC DDR4 2666MHz SDRAM in 32 DIMMs
  • 2 PCI-E x16 (FH/HL 9.5") slots, 1 PCI-E x8 (LP) slot
  • 10 hot-swap U.2 NVMe drive bays
  • SATA3 (6 Gbps)
  • IPMI 2.0 + KVM with dedicated LAN support
  • 1000W Titanium level Redundant Power Supplies with PMBus
  • Dual AMD EPYC™ 7000-series processors supported (Socket SP3)
  • Supports up to 4TB Registered ECC DDR4 2666MHz SDRAM in 32 DIMMs
  • 12 hot-swap 3.5" drive bays
  • SATA3 (6 Gbps)
  • IPMI 2.0 + KVM with dedicated LAN support
  • 1600W Titanium level Redundant Power Supplies with PMBus

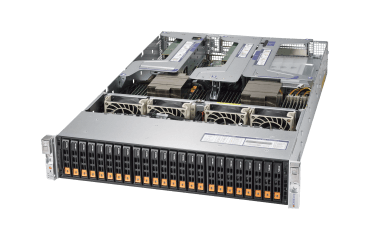

AS -2123US-TN24R25M
AS -2123US-TN24R25M (Coming Soon)
  • Dual AMD EPYC™ 7000-series processors supported (Socket SP3)
  • Supports up to 4TB Registered ECC DDR4 2666MHz SDRAM in 32 DIMMs
  • 24 hot-swap U.2 NVMe drive bays
  • SATA3 (6 Gbps)
  • IPMI 2.0 + KVM with dedicated LAN support
  • 1600W Titanium level Redundant Power Supplies with PMBus
  • Dual AMD EPYC™ 7000-series processors supported (Socket SP3)
  • Supports up to 2TB Registered ECC DDR4 2666MHz SDRAM in 16 DIMMs
  • 8 hot-swap SATA3 drive bays, optional SAS3 via AOC
    3 peripheral 5.25" drive bays, 1 M.2 NVMe SSD supported
  • SATA3 (6 Gbps)
  • IPMI 2.0 + KVM with dedicated LAN support
  • 1280W Platinum level Redundant Power Supplies with PMBus
  • Single AMD EPYC™ 7000-series processor supported (Socket SP3)
  • Supports up to 1TB Registered ECC DDR4 2666MHz SDRAM in 8 DIMMs
  • 4 hot-swap 3.5" SATA3 drive bays, 1 M.2 NVMe SSD supported
  • SATA3 (6 Gbps)
  • IPMI 2.0 + KVM with dedicated LAN support
  • 400W Platinum level Redundant Power Supplies with PMBus
  • Single AMD EPYC™ 7000-series processor supported (Socket SP3)
  • Supports up to 1TB Registered ECC DDR4 2666MHz SDRAM in 8 DIMMs
  • 8 hot-swap 3.5" SATA3/SAS3 drive bays, 1 M.2 NVMe SSD supported
  • SATA3 (6 Gbps) / SAS (Broadcom 3008)
  • IPMI 2.0 + KVM with dedicated LAN support
  • 720W Platinum level Redundant Power Supplies with PMBus
AS -1113S-WN10RT (Coming Soon)
  • Single AMD EPYC™ 7000-series processor supported (Socket SP3)
  • Supports up to 2TB Registered ECC DDR4 2666MHz SDRAM in 16 DIMMs
  • 2 PCI-E 3.0 x16 slots (FH/HL), 1 PCI-E 3.0 slot (LP)
  • 10 hot-swap 2.5" U.2 NVMe drive bays, optional 4 SATA3 drive support with additional cables
  • IPMI 2.0 + KVM with dedicated LAN support
  • 2x 10GBase-T LAN ports  via Broadcom BCM57416
  • 750W Platinum level Redundant Power Supplies with PMBus
AS -2113S-WN24RT (Coming Soon)
  • Single AMD EPYC™ 7000-series processor supported (Socket SP3)
  • Supports up to 2TB Registered ECC DDR4 2666MHz SDRAM in 16 DIMMs
  • 1 PCI-E 3.0 x16 slot (FH/HL)
  • 24 hot-swap 2.5" U.2 NVMe drive bays, optional 4 SATA3 drive support with additional cables
  • IPMI 2.0 + KVM with dedicated LAN support
  • 2x 10GBase-T LAN ports  via Broadcom BCM57416
  • 1200W Titanium level Redundant Power Supplies with PMBus

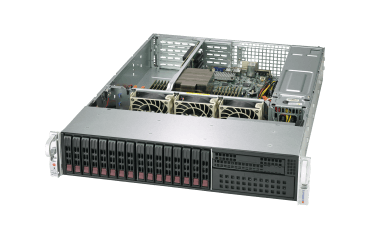

AS- 2113S-WTRT (Coming Soon)
  • Single AMD EPYC™ 7000-series processor supported (Socket SP3)
  • Supports up to 2TB Registered ECC DDR4 2666MHz SDRAM in 16 DIMMs
  • 1 PCI-E 3.0 x16 (FH/HL) slot, 2 PCI-E 3.0 x8 (FH/HL) slots, 2 PCI-E 3.0 x8 (LP) slots
  • 16 hot-swap 2.5" SATA3 drive bays, optional 8 U.2 NVMe drive support with additional cables, optional slim DVD-ROM drive
  • IPMI 2.0 + KVM with dedicated LAN support
  • 2x 10GBase-T LAN ports  via Broadcom BCM57416
  • 1200W Titanium level Redundant Power Supplies with PMBus
