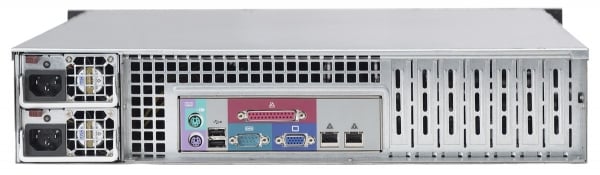

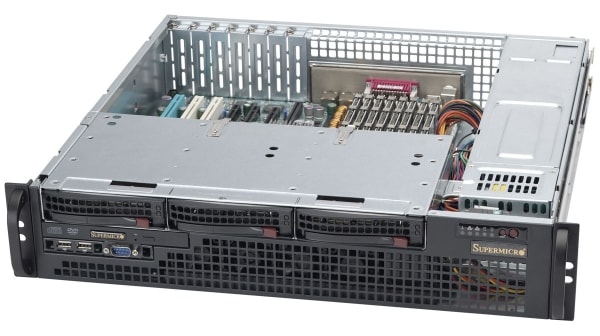

Note: Image above may show a varied configuration of optional parts. Please refer to parts list for standard parts included.
Key Features
  1. 2U chassis supports for maximum motherboard sizes - 13.68" x 13", E-ATX 12" x 13", ATX 12" x 10" motherboards
  2. 3 x 3.5" hot-swap SAS/SATA
  3. 3-port SC825M TQ (W/ AMI 9071) backplane, support up to 3x 3.5-inch SAS/SATA HDD
  4. 7 low-profile expansion slot(s)
  5. 4 x 40x56mm counter-rotation PWM fan(s)
Specifications
Product SKUs - Discontinued SKU. Please contact sales-rep for possible OEM production quantities. MOQ may apply
CSE-825MTQ-R700LPB
  • SuperChassis 825MTQ-R700LPB

Form Factor
  • 2U chassis supports for maximum motherboard sizes - 13.68" x 13", E-ATX 12" x 13", ATX 12" x 10" motherboards
  •
    Processor Support
  • Dual and Single Intel® and AMD processors
  •
    Dimensions
    Height
    • 3.5" (89 mm)
    Width
    • 17.2" (437 mm)
    Depth
    • 17.7" (450 mm)
    Gross Weight
    • 43 lbs (19.5 kg)
    Packaging (W x H x L)
    • 26.7" (678 mm) x 11.4" (290 mm) x 34.5" (876 mm)
    Available Color
    • Black

    Expansion Slots
    • 7 low-profile expansion slot(s)

    Drive Bays
    • 3 x 3.5" hot-swap SAS/SATA

    Backplane
    • 3-port SC825M TQ (W/ AMI 9071) backplane, support up to 3x 3.5-inch SAS/SATA HDD

    Peripheral Drives
    • 1 x slim DVD-ROM drive bay
    • 2 x USB 2.0 ports
    • 1 x COM port tray

    Front Panel
    Buttons
    • Power On/Off button
    • System Reset Button
    LEDs
    • 2 Network Activity LEDs
    • HDD activity LED
    • Power Status LED
    • Power Fail LED
    • System Information LED
    Systems Cooling
    Fans
    • 4 x 40x56mm counter-rotation PWM fan(s)

    Operating Environment (System)
    Operating Temperature Range
    • 5°C - 35°C (41°F - 95°F)
    Non-Operating Temperature Range
    • -40°C - 70°C (-40°F - 158°F)
    Operating Relative Humidity Range
    • 8% - 90% (non-condensing)
    Non-Operating Relative Humidity Range
    • 5% - 95% (non-condensing)

    Power Supply
    Dimensions (L x W x H)
    • x x mm
    Power Distributor
    • PDB-PT825-8824
    • O/P: 12V/75
    • +5V Max: 30
    • +3.3V Max: 24
    • -12V Max: 0.6
    Certification
    • N/A
    Components
    Standard Parts List
      Part Number Qty Description
    Air ShroudMCP-310-29019-0N1SC823M Intel DP X10 Universal Mylar Air Shroud, 12x13MB
    HD BackplaneBPN-SAS-825MTQ13-port SC825M TQ (W/ AMI 9071) backplane, support up to 3x 3.5-inch SAS/SATA HDD
    Cable(s)CBL-0044L3SATA,INT,FLAT,57.7CM,26AWG
    Cable(s)CBL-0071L1CBL,FRONT CNTL,16 TO 16 PIN,RA,RND TUBE,75CM,28AWG
    Cable(s)CBL-00991Power extension cable; one HDD to two HDD and two FDD. 35/25/12cm. 22AWG
    Cable(s)CBL-0160L2NEMA5-15P to C13 US power cord 16AWG 6ft, PBF (default for high watt)
    CD-ROM & AccessoryDVM-HLDS-DVD-SBT11BLACK HLDS SLIM DVD ROM SATA DRIVE,HF,RoHS
    Fan(s)FAN-0102L4440x56,4 Pin,PWM, Primary for SC818,825M, Secondary for SC815
    Front PanelFPB-FP836-D1Front control board Dual color LED(FP836-D)forSC823M,825,825M,828,829,835,836
    Cooling Fan & AccessoryMCP-320-82502-0B1Fan Tray for Five 4056 Fans, for 825M
    Cooling Fan & AccessoryMCP-340-00035-0B1Dummy fan 40x56mm for 40x56 counter-rotating fan (cost-effective)
    Drive Tray(s)MCP-220-00075-0B3Black gen 5.5 hot-swap 3.5"; HDD tray
    Drive Tray(s)MCP-220-82501-0N1HDD cage housing 3 trays for SC825M
    Power DistributorPDB-PT825-88241SC825 24PIN REDUNDANT POWER DISTRIBUTOR
    Part(s)MCP-290-82502-0B1USB Tray For 825M
    Mounting Rail(s)MCP-290-00053-0N1 setRail set, quick/quick, default for 2,3U 17.2";W
    Rear WindowMCP-240-82506-0N1LP Rear Window for SC825,825M,826,213,216
    Optional Parts List
      Part Number Qty Description
    Tray(s) MCP-220-83601-0B - Black FDD dummy tray support 1x 2.5
    Tray(s) MCP-220-00023-01 - Black USB dummy tray support 1x 2.5" slim HDD for SC825, 836
    Rail MCP-290-00058-0N - Short rail set, quick release, 19.6"~26.9" Extendable Length
    HDD Tray Converter MCP-220-00043-0N - Black hot-swap gen 4 3.5 to 2.5 HDD tray
    Front Tray MCP-220-81506-0N - 12G 2.5-in Hot-swap Slim DVD Size Drive Kit with Status LED
    Front Tray MCP-220-81504-0N - 12G 2.5-in Hot-swap Slim Floppy Size Drive Kit w/Status LED
    Front Tray MCP-290-00036-0B - Black DVD dummy tray support 1x2.5 HDD for SC113,815,825,836
    Rail MCP-290-82503-0N - INNER RAIL SET FOR SC825M
    Rail MCP-290-82504-0N - Optional outer rail set for short rack 19"~25" for SC825,825M
    DVD-ROM / DVD-RW DVM-TEAC-DVD-SBT - Black slim SATA DVD, TEAC
    Cable CBL-0157L - 8 pin to 8 pin ribbon SGPIO cable with tube , 40cm, PBF
    Motherboard (for CSE- 825MTQ-R700LPB)
    X8DTH-6 X8DTH-6FX8DTH-i X8DTH-iF
    X8DT6X8DT6-FX8DTEX8DTE-F
    X8DT3 X8DT3-F X8DTi X8DTi-F
    X8DTi-LN4F X8DT3-LN4FX8DTL-3X8DTL-3F
    X8DTL-IX8DTL-IFX8DTL-6FX8DTL-6L
    X8DTL-LX8DA6X8DAEX8DA3
    X8DAiX8DAL-3X8DAL-iX8ST3-F
    X8SILX8SIL-FX8SIEX8SIE-F
    X8SI6-FX10SL7-F X10SLM+-LN4F X10SLM+-F
    X10SLH-F X10SLM-F X10SLL-F X10SLA-F
    X10SLL+-F X11SSQ X11SSZ-TLN4F X11SSZ-F
    X11SSZ-QF X10SRM-TF X10SRM-F X11SSQ-L
    = Most optimized Chassis for SuperServer Configuration
    Blue color = Compatible
    Green color = Global SKU & Compatible
    Red dot & green color = Optimized + Global SKU
