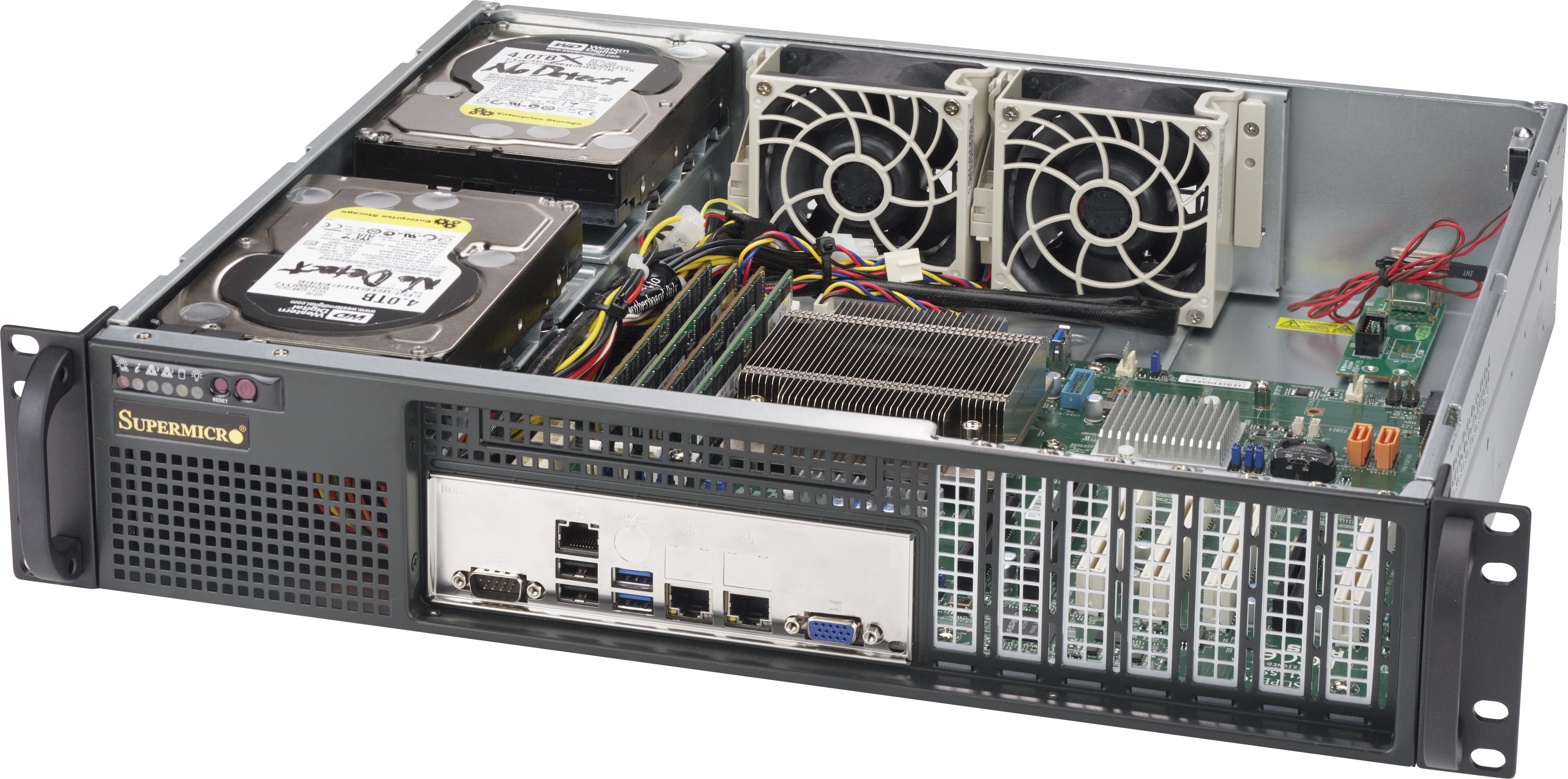

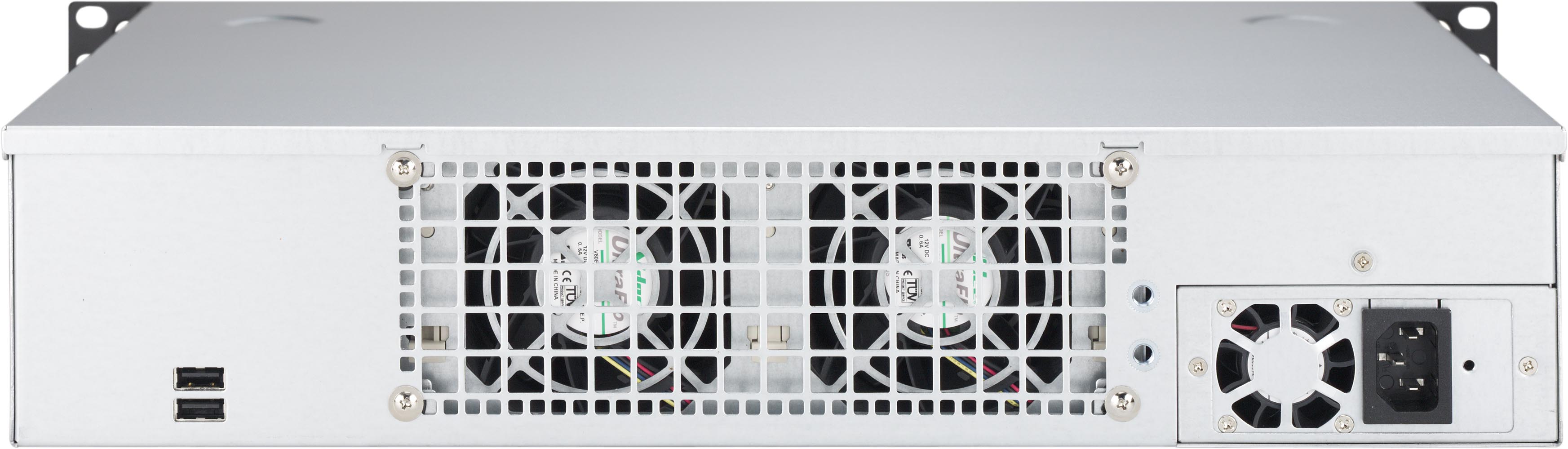

SuperChassis 523L-505BSuperChassis 523L-505B

Key Features


  1. 2U Chassis - supports for maximum motherboard sizes of 12" x 10" ATX
  2. 2 x 3.5" fixed drive bay, optional Up to 4 x 2.5" fixed drive bay
  3. 1U 500W Multi-output power supply w/ PMbus, 80Plus Platinum
  4. 7 low-profile expansion slot(s)
  5. 2 x 8cm hot-swap exhaust fan(s) & air shroud
Specifications Resources Parts List
Specifications
Product SKUs
SuperChassis 523L-505B
Form Factor
  • 2U Chassis - supports for maximum motherboard sizes of 12" x 10" ATX
Processor Support
  • Dual and Single Intel® and AMD processors
Dimensions
Height
  • 3.5" (89 mm)
Width
  • 16.8" (426 mm)
Depth
  • 14.5" (368 mm)
Gross Weight
  • 28 lbs (12.7 kg)
Packaging (W x H x L)
  • 23" (584 mm) x 10" (254 mm) x 20" (508 mm)
Available Color
  • Black
Expansion Slots
  • 7x Low-profile expansion slot(s)
Drive Bays
  • 2x 3.5" fixed drive bay
  • Optional up to 4x 2.5" fixed drive bay
Peripheral Drives
  • Optional 1x slim DVD-ROM drive bay
Front Panel
Button
  • Power On/Off button
  • System Reset button
LED
  • Power status LED
  • HDD activity LED
  • System Information LED
  • Power Fail LED
  • 2 Network Activity LEDs
Systems Cooling
Fans
  • 2x 8cm hot-swap exhaust fan(s) & air shroud
Operating Environment (System)
Operating Temperature Range
  • 5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range
  • -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non Operating Relative Humidity Range
  • 5% - 95% (non-condensing)
Power Supply
1U 500W Multi-output power supply w/ PMbus, 80Plus Platinum
Power Efficiency
  • 93%
Total Output Power and Input
  • 500W with Input 100 - 240Vac
AC Input Frequency
  • 50-60Hz
Dimensions (L x W x H)
  • 180 x 100 x 40 mm
Output Type
  • 24pin ATX
-12V
  • Max: 0.2A / Min: 0A
+12V
  • Max: 41A / Min: 0.5A (100Vac - 240Vac)
+5V
  • Max: 15A / Min: 0.2A
+3.3V
  • Max: 12A / Min: 0.2A
+5Vsb
  • Max: 3A / Min: 0A
Certification
  • Platinum Certified  Platinum Certified
Regulatory (Power Supply)
Power Supply Safety / EMC
  • BSMI
  • CCC
  • CE/EMC
  • FCC class A
  • UL/CB
  • UL/CUL
Resources
Motherboard (for CSE-523L-505B)
Motherboard Name
= Most optimized Chassis for SuperServer Configuration
Blue color = Compatible
Green color = Global SKU & Compatible
Red dot & green color = Optimized + Global SKU
Documentation
Components

SuperChassis 523L-505B
