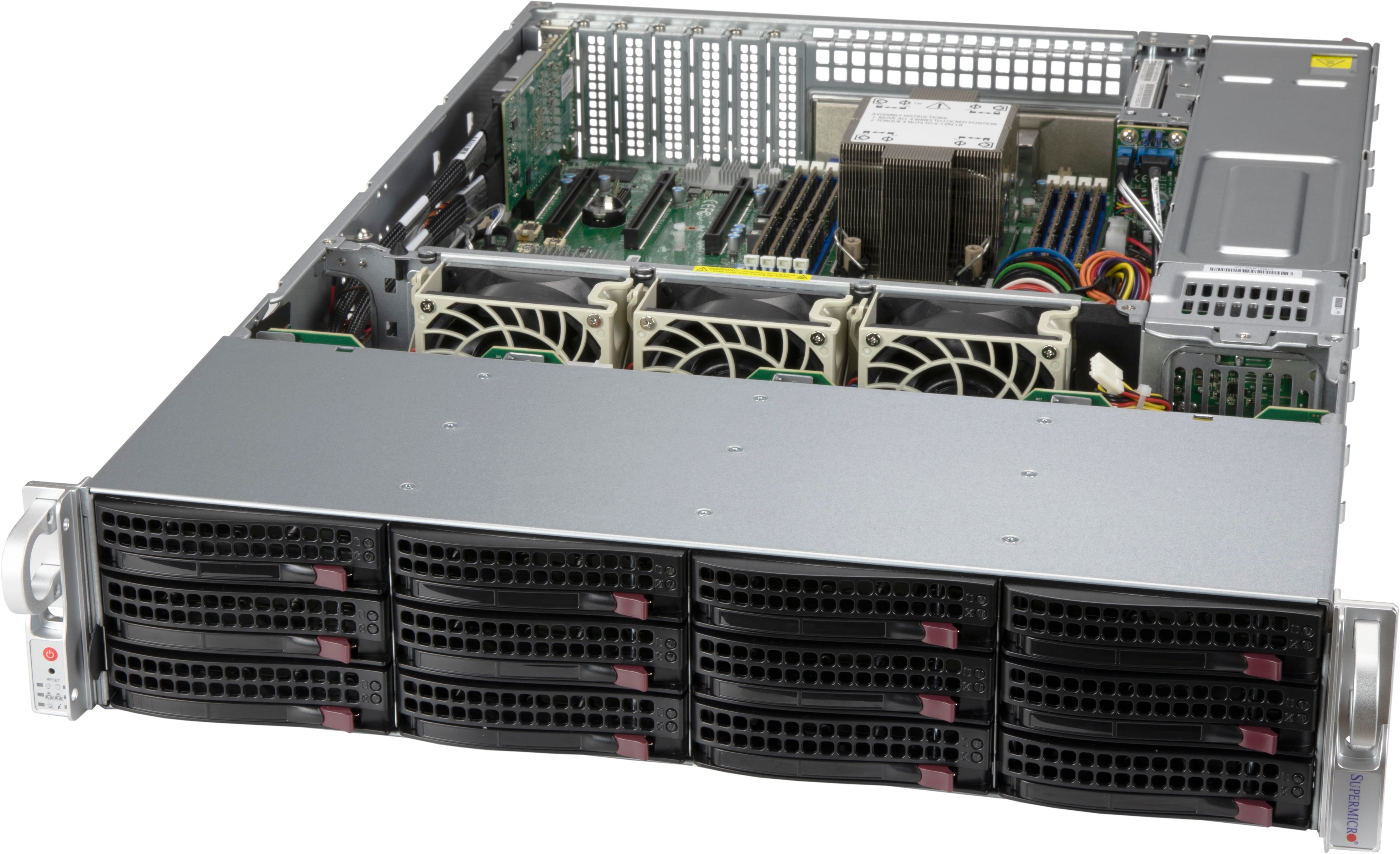

SuperChassis 826BAC12-R802LPBSuperChassis 826BAC12-R802LPB

Key Features


  1. 800W high-efficiency AC-DC Redundant power supplies
  2. Direct attached Storage Rackmount chassis
  3. Support 12x SAS3/SATA3/NVMe4 storage devices
  4. 3 high-performance fans with adjustable air shroud

Specifications Resources Parts List
Specifications
Product SKUs
SuperChassis 826BAC12-R802LPB
Form Factor
  • 2U chassis support max. motherboard size - ATX 12" x 10", E-ATX 12" x 13", EE-ATX 13" x 13.68" with rear 2.5" HDD option installed
Processor Support
  • Dual and Single Intel® and AMD processors
Dimensions
Height
  • 3.5" (89 mm)
Width
  • 17.2" (437 mm)
Depth
  • 25.5" (647 mm)
Gross Weight
  • 55 lbs (24.95 kg)
Net Weight
  • 40 lbs (18.14 kg)
Packaging (W x H x L)
  • 26.7" (678 mm) x 11.4" (290 mm) x 34.5" (876 mm)
Available Color
  • Black
Expansion Slots
  • 7x Low-profile expansion slot(s)
Drive Bays
  • Optional 2x 2.5" hot-swap drive bay
  • 12x 3.5" hot-swap drive bay
  • 12x SAS3/SATA3/NVMe4 storage devices
Backplane
  • 12-Port 2U LFF Backplane Supports 12 x SAS3/SATA3/NVMe4 Storage Devices with 1x(2x4) + 4x(1x4) power connectors, co-lay with BPN-SAS3-LA26A-N12,HF,RoHS
Front Panel
Button
  • Power On/Off button
  • System Reset button
LED
  • Power status LED
  • HDD activity LED
  • 2 Network Activity LEDs
  • Unit Identification (UID) LED
  • Fan Fail/System Over Heat LED
Systems Cooling
Fans
  • 3x 8cm high-performance PWM fan(s)
System Monitoring
  • Chassis intrusion switch
Operating Environment (System)
Operating Temperature Range
  • 5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range
  • -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non Operating Relative Humidity Range
  • 5% - 95% (non-condensing)
Power Supply
1U 800W Redundant Power Supply 76mm width, W/PMbus, Titanium
Power Efficiency
  • 96%
Total Output Power and Input
  • 800W with Input 200 - 240Vdc
  • 800W with Input 100 - 240Vac
AC Input Frequency
  • 50-60Hz
Dimensions (L x W x H)
  • 336 x 76 x 40 mm
Output Type
  • Backplanes (gold finger)
+12V
  • Max: 66A / Min: 0A (100Vac - 240Vac)
  • Max: 66A / Min: 0A (200Vdc - 240Vdc)
+5Vsb
  • Max: 4A / Min: 0A
Power Distributor
  • PDB-PT826-8824
  • O/P: 12V/135
  • +5V Max: 40A
  • +3.3V Max: 24A
  • -12V Max: 0.6A
Certification
  • Titanium Certified  Titanium Certified
Regulatory (Power Supply)
Power Supply Safety / EMC
  • BSMI
  • CCC
  • CE/EMC
  • FCC class A
  • TUV/CB
  • UL/CUL
Resources
Motherboard (for CSE-826BAC12-R802LPB)
Motherboard Name
= Most optimized Chassis for SuperServer Configuration
Blue color = Compatible
Green color = Global SKU & Compatible
Red dot & green color = Optimized + Global SKU
Documentation
Components

SuperChassis 826BAC12-R802LPB
