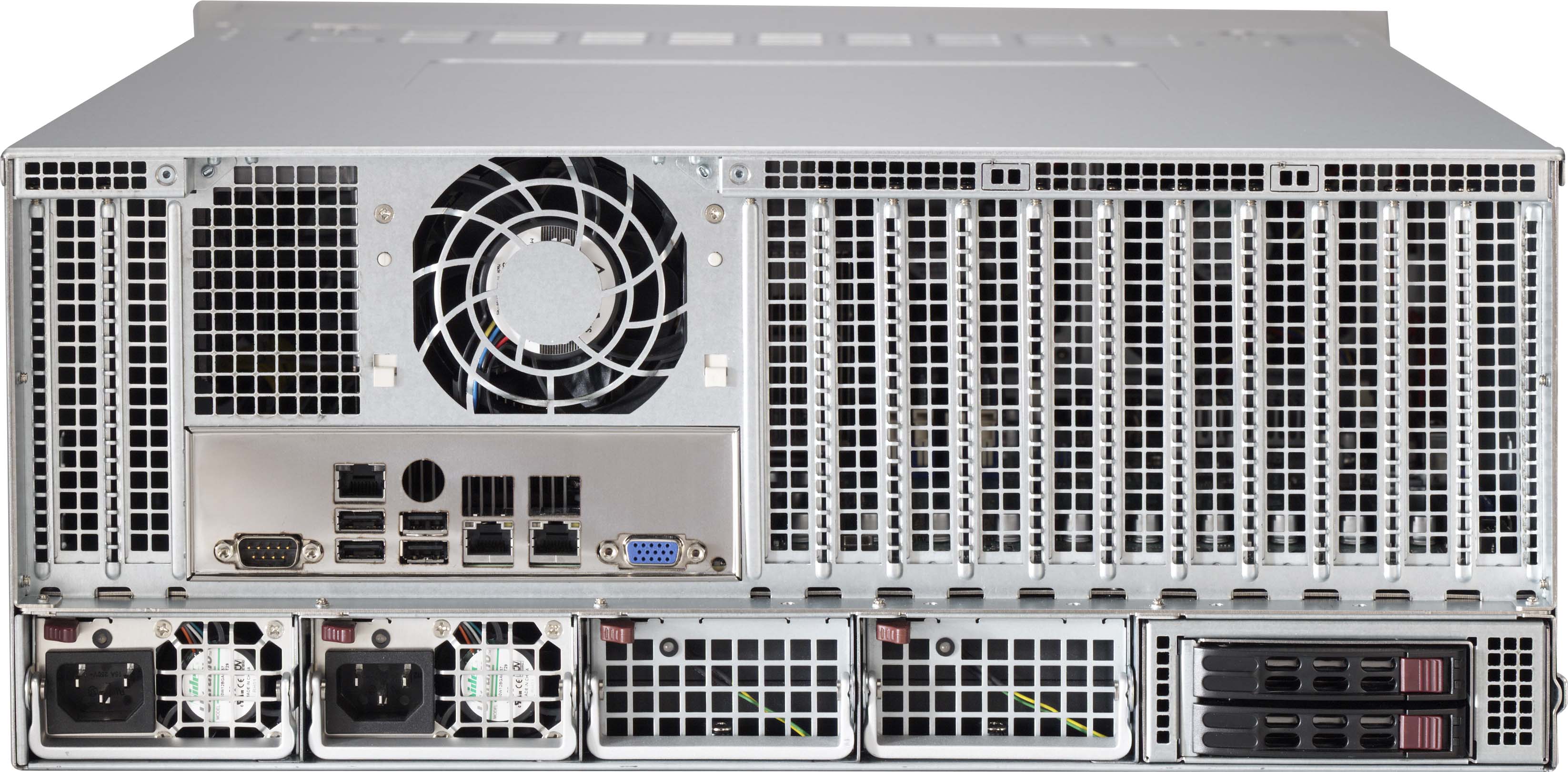

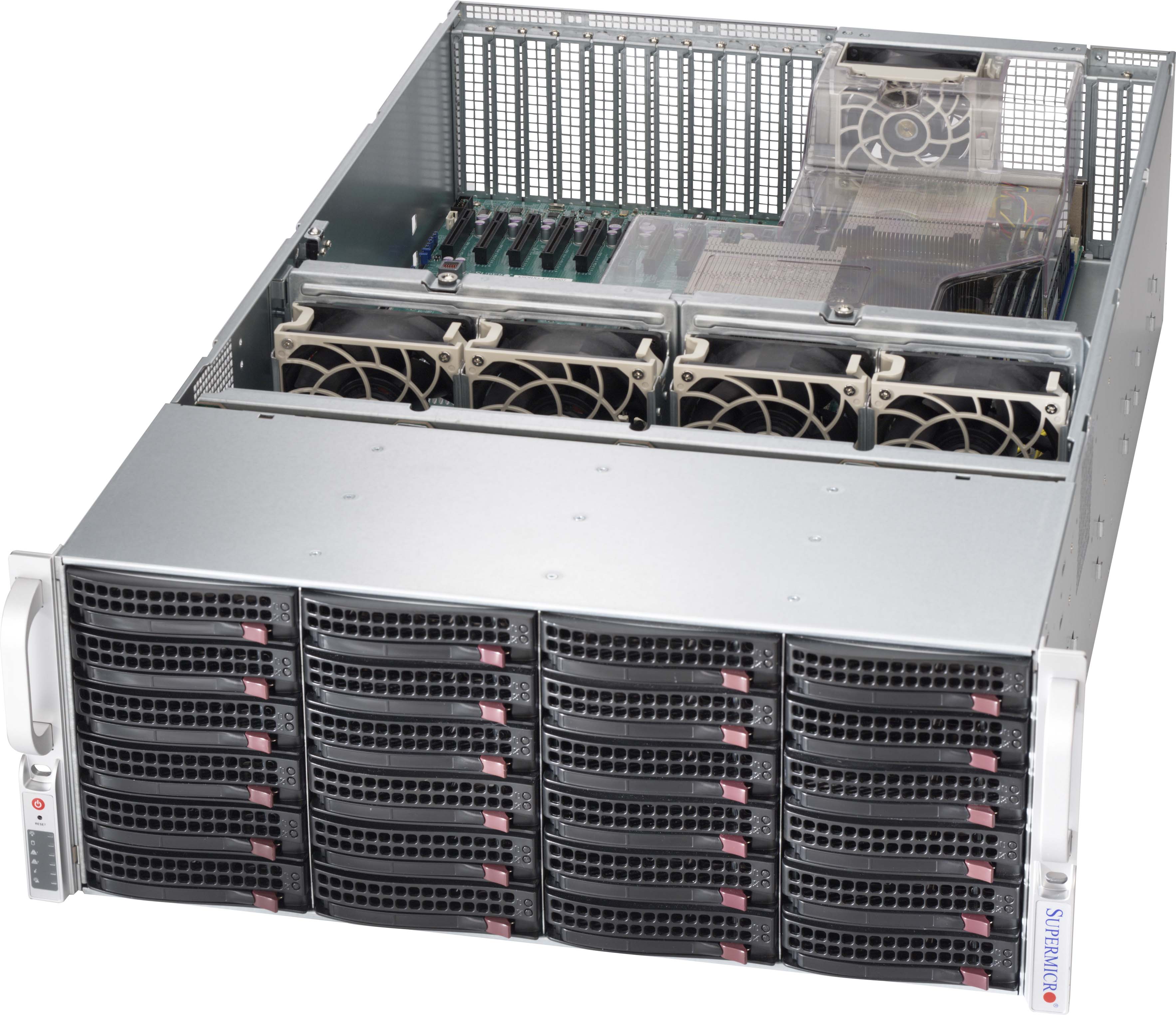

SuperChassis 846XE1C-R1K23BSuperChassis 846XE1C-R1K23B

Key Features


  1. 100% cooling redundancy, 24x 3.5" Hot-swap SAS2/SATA3 Drive Bays
  2. Redundant 1200W Titanium Level high efficiency power supply & 5 hot-plug redundant cooling fans w/adjustable air shroud
  3. Single SAS3 (12Gbps) expander backplane
  4. Mini SAS HD (SFF8643) connectivity;
  5. Support two 1000W BBP
  6. Support up to 13 FH FL expansion slots
  7. High Availability PS, Storage Capacity, and numerous I/O slots
Specifications Resources Parts List
Specifications
Product SKUs
SuperChassis 846XE1C-R1K23B
Form Factor
  • 4U chassis support for max. motherboard size - 13.68" x 13" E-ATX, 12" x 10" ATX and and 15.2" x 13.2"
Processor Support
  • Dual and Single Intel® and AMD processors
Dimensions
Height
  • 7" (178 mm)
Width
  • 17.2" (437 mm)
Depth
  • 29" (736 mm)
Gross Weight
  • 118 lbs (53.52 kg)
Net Weight
  • 86 lbs (39 kg)
Packaging (W x H x L)
  • 28" (711 mm) x 18" (457 mm) x 42" (1067 mm)
Available Color
  • Black
Expansion Slots
  • 7x Full-height, Full-length expansion slot(s)
  • 4x Full-height, Half-length expansion slot(s)
Drive Bays
  • 24x 3.5" hot-swap drive bay
Backplane
  • 24-Port 4U SAS3 12Gbps single-expander backplane, support up to 24x 3.5-inch SAS3/SATA3 HDD/SSD
Peripheral Drives
  • Optional 4x 2.5" internal fixed drive bay
  • Optional 2x 3.5" internal fixed drive bay
  • 2x 2.5" hot-swap drive bay
Front Panel
Button
  • Power On/Off button
  • System Reset button
LED
  • Power status LED
  • HDD activity LED
  • Power Fail LED
  • 2 Network Activity LEDs
  • Fan Fail/System Over Heat LED
Systems Cooling
Fans
  • 1x 8cm hot-swap exhaust fan(s) & air shroud
  • 4x 92x38mm Hot-Swap Cooling Fans
System Monitoring
  • Chassis intrusion switch
Operating Environment (System)
Operating Temperature Range
  • 5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range
  • -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non Operating Relative Humidity Range
  • 5% - 95% (non-condensing)
Power Supply
1U 1200W/1000W Titanium Power Supply W/PMbus W76xL336xH40mm
Power Efficiency
  • 96%
Total Output Power and Input
  • 1200W with Input 200 - 240Vac
  • 1000W with Input 100 - 127Vac
  • 1200W with Input 200 - 240Vdc
AC Input Frequency
  • 50-60Hz
Dimensions (L x W x H)
  • 336 x 76 x 40 mm
Output Type
  • Backplanes (gold finger)
+12V
  • Max: 100A / Min: 0A (200Vdc - 240Vdc)
  • Max: 100A / Min: 0A (200Vac - 240Vac)
  • Max: 83A / Min: 0A (100Vac - 127Vac)
+5Vsb
  • Max: 4A / Min: 0A
Power Distributor
  • PDB-PT418-B6824
  • O/P: 12V/256
  • +5V Max: 50A
  • +3.3V Max: 30A
  • -12V Max: 0.6A
Certification
  • Titanium Certified  Titanium Certified
Regulatory (Power Supply)
Power Supply Safety / EMC
  • BSMI
  • CCC
  • CE/EMC
  • FCC class A
  • UL/CB
  • UL/CUL
Resources
Motherboard (for CSE-846XE1C-R1K23B)
Motherboard Name
X9DRX+-FX11DPX-TX10DRX
= Most optimized Chassis for SuperServer Configuration
Blue color = Compatible
Green color = Global SKU & Compatible
Red dot & green color = Optimized + Global SKU
