Maximum Acceleration and Cost Efficiency for High Performance Applications

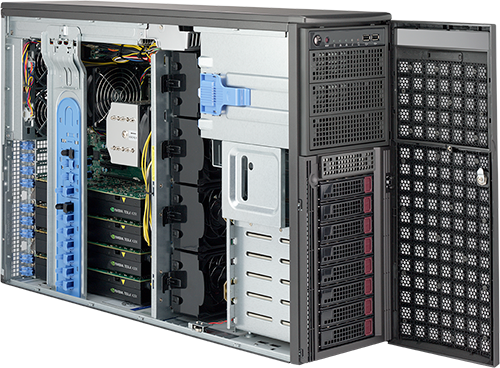

4U 4 GPU/Coprocessor Server
4U 8 GPU Server

GPU/Coprocessor Solutions

Supermicro's powerful GPU/Coprocessor systems will catapult the most compute intensive workloads to new heights of performance, and deliver the highest quality with extreme optimization. Generating massively parallel processing power and unrivaled networking flexibility with support for up to 8/4 GPU/Coprocessor, PCI-E 3.0 expansion slots, 10GBase-T Ethernet, and QDR/FDR InfiniBand ports, these systems are equipped with the latest and most advanced technologies.

The Supermicro GPU/Coprocessor SuperServer® systems support up to: 6TB DDR4-2933MHz memory in 24 DIMM slots with support for Intel® Optane™ DC Persistent Memory, 4/6 GPU/Coprocessor cards in 1U/2U/4U, 24 SATA 3.0 (6Gbps) ports with Intel® C622 controller, up to 2x 10GBase-T ports, redundant Platinum Level (95%) power supplies, integrated Redfish dedicated LAN, and dual or single 2nd generation Intel® Xeon® Scalable Processors up to 28 cores and 255W TDP.

Supermicro's powerful GPU/Coprocessor SuperServer® systems are available in 1U, 2U, 4U and Tower form factors, and optimized for HPC, AI/Deep Learning, Oil and Gas simulation, Computational Finance, Science and Engineering, and Media/Entertainment.


Compatible Coprocessor support matrix

New Generation of Computing Excellence
2nd generation Intel® Xeon® Scalable processors supported.
Intel, the Intel logo, Xeon, and Xeon Inside are trademarks of Intel Corporation or its subsidiaries in the U.S. and/or other countries.
SYS-1029U-TN12RV (Coming Soon)
12 NVMe support • 24 DDR4 DIMM • Flexible Networking
  • Virtualization, Cloud Computing, High End Enterprise Server
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 24 DIMMs; up to 6TB 3DS ECC DDR4 2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 12 Hot-swap 2.5" NVMe/SATA3 drive bays
  • 1 PCI-E 3.0 x16 (FH, 10.5"L), 1 PCI-E 3.0 x8 (LP) slots
  • Flexible networking options, up to 25GbE via Ultra Riser card, 1 Dedicated IPMI port
  • 1 VGA (rear), 1 Serial, 2 USB 3.0 (rear)
  • 8 heavy duty fans w/ optimal fan speed control
  • 1200W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

20 NVMe support • 24 DDR4 DIMM • 2x 25G SFP28
  • Virtualization, Cloud Computing, High End Enterprise Server, SDS
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 20 Hot-swap 2.5" 7mm drive bays; up to 20 NVMe (CPU1: 8 NVMe + 2 NVMe/SAS/SATA3 hybrid, CPU2: 10 NVMe)
  • Up to 2 PCI-E 3.0 x8 (FH, FL)
  • 2x 25G SFP28 Ethernet ports, 1 Dedicated IPMI port
  • 1 VGA, 1 Serial, 3 USB 3.0 (2 rear, 1 Type A), 2 USB 2.0 (front)
  • 8 heavy duty fans w/ optimal fan speed control, 2 air shroud
  • 1600W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

20 NVMe support • 24 DDR4 DIMM • 2x 25G SFP28
  • Virtualization, Hyperconverge Storage, Cloud Computing, High End Enterprise Server
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 24 Hot-swap 2.5" drive bays; 20 NVMe + 4 SAS3/SATA
  • 1 PCI-E 3.0 x8 (LP)
  • 2x 25G SFP28 Ethernet ports, 1 Dedicated IPMI port
  • 2 VGA, 1 Serial, 3 USB 3.0 (2 rear, 1 Type A)
  • 4 heavy duty 8cm fans
  • 1600W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

  • Virtualization, Hyperconverge Storage, Cloud Computing, High End Enterprise Server
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 24 Hot-swap 2.5" drive bays; 20 SAS3 + 4 SAS3/NVMe
  • 1 PCI-E 3.0 x16 (FH, 10.5"L); 5 PCI-E 3.0 x8 (FH, 10.5"L); 1 PCI-E 3.0 x8 (LP); 1 PCI-E 3.0 x8 (internal LP)
  • 4 Gigabit Ethernet ports, 1 Dedicated IPMI port
  • 2 VGA, 1 Serial, 3 USB 3.0 (2 rear, 1 Type A)
  • 4 heavy duty 8cm fans
  • 1600W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

  • Virtualization, Hyperconverge Storage, Cloud Computing, High End Enterprise Server
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 12 Hot-swap 3.5" drive bays; Optional 8 SAS3 + 4 SAS3/NVMe
  • 1 PCI-E 3.0 x16 (FH, 10.5"L); 5 PCI-E 3.0 x8 (FH, 10.5"L); 1 PCI-E 3.0 x8 (LP); 1 PCI-E 3.0 x8 (internal LP)
  • 4 Gigabit Ethernet ports, 1 Dedicated IPMI port
  • 2 VGA, 1 Serial, 3 USB 3.0 (2 rear, 1 Type A)
  • 4 heavy duty 8cm fans
  • 1600W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

Xeon 6244 and 12x 16GB DDR4-2933MHz included
  • Financial Analysis, Business Critical Applications, Enterprise Server
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors (Dual Intel® Xeon® Gold 6244 Processors included); Dual UPI up to 10.4GT/s
  • 16 DIMMs; up to 4TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • 8 Hot-swap 2.5" SAS3 drive bays and 2 NVMe bays
  • 2 PCI-E 3.0 x16 (FH, 10.5"/10" L), 1 PCI-E 3.0 x8 (LP),
    1 PCI-E 3.0 x8 (internal SAS3 integrated 3108)
  • 4x 1GbE ports, 1 Dedicated IPMI port
  • 1 VGA, 1 Serial, 5 USB 3.0 (2 rear, 2 via header, 1 Type A)
  • 8 heavy duty fans w/ optimal fan speed control
  • 750W Redundant Platinum Level Power Supplies
Xeon 6144 and 12x 16GB DDR4-2666MHz included
  • Financial Analysis, Business Critical Applications, Enterprise Server
  • Dual Socket P (LGA 3647) support: Intel® Xeon® Scalable processors (Dual Intel® Xeon® Gold 6144 Processors included); Dual UPI up to 10.4GT/s
  • 16 DIMMs; up to 2TB 3DS ECC DDR4-2666 MHz RDIMM/LRDIMM
  • 8 Hot-swap 2.5" SAS3 drive bays and 2 NVMe bays
  • 2 PCI-E 3.0 x16 (FH, 10.5"/10" L), 1 PCI-E 3.0 x8 (LP),
    1 PCI-E 3.0 x8 (internal SAS3 integrated 3108)
  • 4x 1GbE ports, 1 Dedicated IPMI port
  • 1 VGA, 1 Serial, 5 USB 3.0 (2 rear, 2 via header, 1 Type A)
  • 8 heavy duty fans w/ optimal fan speed control
  • 750W Redundant Platinum Level Power Supplies
Xeon 6146 and 12x 16GB DDR4-2666MHz included
  • Financial Analysis, Business Critical Applications, Enterprise Server
  • Dual Socket P (LGA 3647) support: Intel® Xeon® Scalable processors (Dual Intel® Xeon® Gold 6146 Processors included); Dual UPI up to 10.4GT/s
  • 16 DIMMs; up to 2TB 3DS ECC DDR4-2666MHz RDIMM/LRDIMM
  • 8 Hot-swap 2.5" SAS3 drive bays and 2 NVMe bays
  • 2 PCI-E 3.0 x16 (FH, 10.5"/10" L), 1 PCI-E 3.0 x8 (LP),
    1 PCI-E 3.0 x8 (internal SAS3 integrated 3108)
  • 4x 1GbE ports, 1 Dedicated IPMI port
  • 1 VGA, 1 Serial, 5 USB 3.0 (2 rear, 2 via header, 1 Type A)
  • 8 heavy duty fans w/ optimal fan speed control
  • 750W Redundant Platinum Level Power Supplies
Xeon 6154 and 12x • 16GB DDR4-2666MHz included
  • Financial Analysis, Business Critical Applications, Enterprise Server
  • Dual Socket P (LGA 3647) support: Intel® Xeon® Scalable processors (Dual Intel® Xeon® Gold 6154 Processors included); Dual UPI up to 10.4GT/s
  • 16 DIMMs; up to 2TB 3DS ECC DDR4-2666MHz RDIMM/LRDIMM
  • 8 Hot-swap 2.5" SAS3 drive bays and 2 NVMe bays
  • 2 PCI-E 3.0 x16 (FH, 10.5"/10" L), 1 PCI-E 3.0 x8 (LP), 1 PCI-E 3.0 x8 (internal SAS3 integrated 3108)
  • 4x 1GbE ports, 1 Dedicated IPMI port
  • 1 VGA, 1 Serial, 5 USB 3.0 (2 rear, 2 via header, 1 Type A)
  • 8 heavy duty fans w/ optimal fan speed control
  • 750W Redundant Platinum Level Power Supplies
10 NVMe support • 24 DDR4 DIMM • 2x 10GBase-T
  • Virtualization, Cloud Computing, High End Enterprise Server
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 10 Hot-swap 2.5" drive bays; 4 NVMe/SAS3 hybrid + 6 NVMe ports
  • 2 PCI-E 3.0 x16 Full-height, 10.5" L slots
  • 2x 10GBase-T ports, 1 Dedicated IPMI port
  • 2 VGA (1 rear, 1 onboard), 1 Serial, 5 USB 3.0
  • 8 heavy duty fans w/ optimal fan speed control
  • 1000W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

10x 2.5" SATA3 or Opt. • 8x SAS3 + 2x NVMe/SATA • Flexible Network Opt.
  • Virtualization, Cloud Computing, High End Enterprise Server
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 10 Hot-swap 2.5" drive bays; 10 SATA3 (2 hybrid ports - 2 NVMe opt.)
  • 2 PCI-E 3.0 x16 (FH, 10.5" L), 2 PCI-E 3.0 x8 (1 LP, 1 LP internal)
  • 2 PCI-E 3.0 x16 (FH, 10.5" L), 1 PCI-E 3.0 x8 (1 LP), 1 PCI-E 3.0 x16 (internal LP) - SYS-1029U-TR25M
  • Networking Options:
    • SYS-1029U-TR4 - 4x 1GbE ports
    • SYS-1029U-TR4T - 4x 10GBase-T ports
    • SYS-1029U-TRT - 2x 10GBase-T ports
    • SYS-1029U-TRTP - 2x 10G SFP+ ports
    • SYS-1029U-TRTP2 - 2x 10G SFP+ ports + 2x 1GbE ports
    • SYS-1029U-TR25M - 2x 25GbE SFP28 ports
  • 1 Dedicated IPMI port, 2 VGA (1 rear, 1 onboard), 1 Serial
  • 5 USB 3.0 (2 rear, 2 front, 1 Type A)
  • 8 heavy duty fans w/ optimal fan speed control
  • 750W Redundant Platinum Level Power Supplies

*Contact your Supermicro sales rep for more info.

10x 2.5" SAS3 • Flexible Network Opt.
  • Virtualization, Cloud Computing, High End Enterprise Server
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 10 Hot-swap 2.5" drive bays; 10 SAS3 via optional AOC
  • 2 PCI-E 3.0 x16, 2 PCI-E 3.0 x8 slots (1 LP, 1 internal LP)
  • 2 PCI-E 3.0 x16 (FH, 10.5" L), 1 PCI-E 3.0 x8 (1 LP), 1 PCI-E 3.0 x16 (internal LP) - SYS-1029U-E1CR25M
  • Networking Options:
    • SYS-1029U-E1CR4 - 4x 1GbE ports
    • SYS-1029U-E1CR4T - 4x 10GBase-T ports
    • SYS-1029U-E1CRT - 2x 10GBase-T ports
    • SYS-1029U-E1CRTP - 2x 10G SFP+ ports
    • SYS-1029U-E1CRTP2 - 2x 10G SFP+ ports + 2x 1GbE ports
    • SYS-1029U-E1CR25M - 2x 25GbE SFP28 ports
  • 1 Dedicated IPMI port, 2 VGA (1 rear, 1 onboard), 1 COM/Serial
  • 5 USB 3.0 (2 rear, 2 front, 1 Type A)
  • 8 heavy duty fans w/ optimal fan speed control
  • 750W Redundant Platinum Level Power Supplies

*Contact your Supermicro sales rep for more info.

4 NVMe support • 24 DDR4 DIMM • 4x/2x 10GBase-T
  • Virtualization, Cloud Computing, High End Enterprise Server
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 4 Hot-swap 3.5" drive bays; 4 NVMe/SAS3 hybrid ports, 2 internal M.2 (1 SATA3, 1 NVMe)
  • 2 PCI-E 3.0 x16 (FH, 10.5" L), 2 PCI-E 3.0 x8 (1 LP, 1 LP internal)
  • Networking Options:
    • SYS-6019U-TN4R4T - 4x 10GBase-T ports
    • SYS-6019U-TN4RT - 2x 10GBase-T ports
  • 1 Dedicated IPMI port, 2 VGA (1 rear, 1 onboard), 1 Serial
  • 3 USB 3.0 (2 rear, 1 Type A)
  • 8 heavy duty fans w/ optimal fan speed control
  • 750W Redundant Platinum Level Power Supplies

*Contact your Supermicro sales rep for more info.

4x 3.5" SATA3 • Flexible Network Opt.
  • Virtualization, Cloud Computing, High End Enterprise Server
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 4 Hot-swap 3.5" drive bays
  • 2 PCI-E 3.0 x16 (FH, 10.5" L), 2 PCI-E 3.0 x8 (1 LP, 1 LP internal)
  • 2 PCI-E 3.0 x16 (FH, 10.5" L), 1 PCI-E 3.0 x8 (1 LP), 1 PCI-E 3.0 x16 (internal LP) - SYS-6019U-TR25M
  • Networking Options:
    • SYS-6019U-TR4 - 4x 1GbE ports
    • SYS-6019U-TR4T - 4x 10GBase-T ports
    • SYS-6019U-TRT - 2x 10GBase-T ports
    • SYS-6019U-TRTP - 2x 10G SFP+ ports
    • SYS-6019U-TRTP2 - 2x 10G SFP+ ports + 2x 1GbE ports
    • SYS-6019U-TR25M - 2x 25GbE SFP28 ports
  • 1 Dedicated IPMI port, 2 VGA (1 rear, 1 onboard), 1 Serial
  • 3 USB 3.0 (2 rear, 1 Type A)
  • 8 heavy duty fans w/ optimal fan speed control
  • 750W Redundant Platinum Level Power Supplies

*Contact your Supermicro sales rep for more info.

24 NVMe support • 4x 10GBase-T
  • Virtualization Hosting, Cloud Computing, Data Center
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 24 Hot-swap 2.5" drive bays; 24 NVMe (4 hybrid ports - SAS3 via AOC), 2 rear Hot-swap 2.5" drive bays; 2 internal M.2 (1 SATA3, 1 NVMe)
  • 2 PCI-E 3.0 x16 (FH, 10.5" L), 1 PCI-E 3.0 x8 (LP)
  • 4x 10GBase-T ports, 1 Dedicated IPMI port
  • 2 VGA (1 rear, 1 onboard), 1 Serial, 3 USB 3.0 (2 rear, 1 Type A)
  • 4 heavy duty 8cm PWM fans
  • 1600W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

24x 2.5" Drive Bays • Opt. 20 SAS3 + 4 NVMe/SAS3 • Flexible Network Opt.
  • Virtualization Hosting, Cloud Computing, Data Center
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 24 Hot-swap 2.5" drive bays; 14 SATA (opt. 20 SAS3 + 4 NVMe/SAS3)
  • Expansion Slots:
    • 8 PCI-E Slots: 1 PCI-E 3.0 x16, 6 PCI-E 3.0 x8, 1 Internal PCI-E 3.0 x8
    • 7 PCI-E Slots (SYS-2029U-TR4T): 2 PCI-E 3.0 x16, 5 PCI-E 3.0 x8
  • Networking Options:
    • SYS-2029U-TR4 - 4x 1GbE ports
    • SYS-2029U-TR4T - 4x 10GBase-T ports
    • SYS-2029U-TRT - 2x 10GBase-T ports
    • SYS-2029U-TRTP - 2x 10G SFP+ ports
    • SYS-2029U-TR25M - 2x 25GbE SFP28 ports
  • 1 Dedicated IPMI port, 2 VGA (1 rear, 1 onboard), 1 Serial
  • 3 USB 3.0 (2 rear, 1 Type A)
  • 4 heavy duty 8cm PWM fans
  • 1000W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

24x 2.5" SAS3 Opt. 4 NVMe • Flexible Network Opt.
  • Virtualization Hosting, Cloud Computing, Data Center
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 24 Hot-swap 2.5" drive bays; optional 20 SAS3 + 4 NVMe/SAS3, 2 rear Hot-swap 2.5" drive bays
  • Expansion Slots:
    • 8 PCI-E Slots: 1 PCI-E 3.0 x16, 6 PCI-E 3.0 x8, 1 Internal PCI-E 3.0 x8
    • 7 PCI-E Slots (SYS-2029U-E1CR4T): 2 PCI-E 3.0 x16, 5 PCI-E 3.0 x8
  • Networking Options:
    • SYS-2029U-E1CR4 - 4x 1GbE ports
    • SYS-2029U-E1CR4T - 4x 10GBase-T ports
    • SYS-2029U-E1CRT - 2x 10GBase-T ports
    • SYS-2029U-E1CRTP - 2x 10G SFP+ ports
    • SYS-2029U-E1CR25M - 2x 25GbE SFP28 ports
  • 1 Dedicated IPMI port
  • 2 VGA (1 rear, 1 onboard), 1 Serial, 3 USB 3.0 (2 rear, 1 Type A)
  • 4 heavy duty 8cm PWM fans
  • 1000W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

12x 3.5" SATA3 Opt. 4 NVMe • Flexible Network Opt.
  • Virtualization, Cloud Computing, High End Enterprise Server
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 12 Hot-swap 3.5" drive bays; Optional 8 SAS3 + 4 SAS3/NVMe and 2 Rear Hot-swap 2.5" drive bays
  • Expansion Slots:
    • 8 PCI-E Slots: 1 PCI-E 3.0 x16, 6 PCI-E 3.0 x8, 1 Internal PCI-E 3.0 x8
    • 7 PCI-E Slots (SYS-6029U-TR4T): 2 PCI-E 3.0 x16, 5 PCI-E 3.0 x8
  • Networking Options:
    • SYS-6029U-TR4 - 4x 1GbE ports
    • SYS-6029U-TR4T - 4x 10GBase-T ports
    • SYS-6029U-TRT - 2x 10GBase-T ports
    • SYS-6029U-TRTP - 2x 10G SFP+ ports
    • SYS-6029U-TR25M - 2x 25GbE SFP28 ports
  • 1 Dedicated IPMI port, 2 VGA (1 rear, 1 onboard), 1 Serial
  • 3 USB 3.0 (2 rear, 1 Type A)
  • 4 heavy duty fans w/ optimal fan speed control
  • 1000W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

12x 3.5" SAS3 opt. 4 NVMe • Flexible Network Opt.
  • Virtualization, Hyperconverge Storage, Cloud Computing, High End Enterprise Server
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 12 Hot-swap 3.5" drive bays; 12 SAS3 via opt. AOC (4 hybrid ports - 4 NVMe opt.)
  • Expansion Slots:
    • 8 PCI-E Slots: 1 PCI-E 3.0 x16, 6 PCI-E 3.0 x8, 1 Internal PCI-E 3.0 x8
    • 7 PCI-E Slots (SYS-6029U-E1CR4T): 2 PCI-E 3.0 x16, 5 PCI-E 3.0 x8
  • Networking Options:
    • SYS-6029U-E1CR4 - 4x 1GbE ports
    • SYS-6029U-E1CR4T - 4x 10GBase-T ports
    • SYS-6029U-E1CRT - 2x 10GBase-T ports
    • SYS-6029U-E1CRTP - 2x 10G SFP+ ports
    • SYS-6029U-E1CR25M - 2x 25GbE SFP28 ports
  • 1 Dedicated IPMI port, 2 VGA (1 rear, 1 onboard), 1 Serial
  • 3 USB 3.0 (2 rear, 1 Type A)
  • 4 heavy duty 8cm PWM fans
  • 1000W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

2U Ultra 4-Way • 112 Cores per System • 48 DDR4 DIMMs
  • High End Enterprise Server, in-memory database, Business Intelligence, High Performance Computer Cluster, Virtualization, ERP, CRM
  • Quad Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
  • 11 PCI-E 3.0 total: 5 PCI-E 3.0 x8 and 6 PCI-E 3.0 x16 slots
  • 48 DIMMs; up to 12TB 3DS ECC DDR4-2399 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 24 Hot-swap 2.5" drive bays: 4 U.2 NVMe + 20 SAS3 opt. via AOC
  • 4 GbE via AOC, 1 dedicated IPMI
  • 1 VGA, 1 COM, 2 USB 3.0 (rear)
  • 4 heavy duty 8cm PWM fans
  • 1600W (1+1) Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

  • Share the same chassis with Super SBB
  • Redundant JBOD with SAS3 Expander and BMC
  • Hot-pluggable
  • 4x 12Gb/s SAS3 IO links
  • Titanium Level (96%+) efficiency power supplies
  • Share the same chassis with Super SBB
  • Redundant JBOD with SAS3 Expander and BMC
  • Hot-pluggable
  • 4x 12Gb/s SAS3 IO links
  • Titanium Level (96%+) efficiency power supplies
Super SBB JBOD
  • Share the same chassis with Super SBB
  • Redundant JBOD with SAS3 Expander and BMC
  • Hot-pluggable
  • 4x 12Gb/s SAS3 IO links
  • Titanium Level (96%+) efficiency power supplies
  • HPC/Cluster, Financial Analysis, oil & gas simulation
  • 4 Hot-plug System Nodes in 2U, each Node:
  • Single Socket P (LGA 3647) support: Intel® Coprocessor x200; optional integrated Intel® Omni-Path fabric
  • 3 Hot-swap 3.5" SATA3 Drive Bays
  • 6 DIMM slots; up to 384GB ECC LRDIMM or 192GB RDIMM, DDR4-2400MHz
  • 2 PCI-E 3.0 x16 (Low-profile) slots
  • 2 GbE, 1 Video, 1 COM, 2 USB 3.0 (rear)
  • System management: Built-in Server management tool(IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 4 heavy-duty 8cm PWM fans w/ optimal fan speed control
  • 2000W Redundant Titanium Level Power Supplies
  • Gaming, Digital Imaging, Entry-Level Workstation, Simulation and Creation Design
  • Single Socket R3 (LGA 2011) supports: Intel® 4th Gen Core i7 series, Xeon E5-2600 v4/v3, E5-1600 v3 processors
  • Removable 3.5" and 2.5" HDD/SSD cages with tool-less trays for up to 10 drives, 2x 5.25" Peripheral Drive Bays
  • 4 PCI-E 3.0 x16, 2 PCI-E 2.0 x1 (in x4) slots
  • Up to 64GB Non-ECC UDIMMs DDR4 3300MHz (OC) in 8 sockets
  • 2 GbE LAN ports (via Intel® i210-AT)
  • 8 USB 3.0 (6 rear, 2 via headers); 4 of 8 USB 3.0 upgradable to USB 3.1 (10Gbps)
  • Audio: RealTek ALC1150 HD Audio
  • 750W Multi-output Power Supply
  • Development Box, Financial Analysis, Oil and Gas Simulation, Code Optimization
  • Single socket P (LGA 3647) supports: Intel® Coprocessor x200
  • Removable 3.5" and 2.5" HDD/SSD cages with tool-less trays for up to 10 drives, 2x 5.25" Peripheral Drive Bays
  • 6 DIMM slots; up to 384GB ECC LRDIMM or 192GB RDIMM, DDR4-2400MHz
  • 2 PCI-E 3.0 x16 and 1 PCI-E 3.0 x4 slots
  • 2 GbE, 1 Video, 1 COM, 6 USB 3.0 (4 rear, 2 front)
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 750W Multi-output Power Supply
  • 12 trays per system, 2 modular UP Nodes per tray in 3U, EACH NODE:
  • Intel® Atom processor C2750 SoC, FCBGA 1283, 20W 8-Core
  • Up to 64GB DDR3 VLP ECC UDIMM 1600MHz memory support
  • 2x 2.5" SATA3 HDDs
  • 2 GbE LAN ports, shared LAN supports IPMI 2.0
  • 2 USB 2.0 ports, 1 VGA
  • 4 heavy-duty 9cm PWM fans with optimal cooling zone
  • 1620W Redundant Platinum Level Power Supplies
  • Extreme Gaming, HPC, High-end Desktop, Simulation and Creation Design
  • Single socket R4 supports Intel® Core™ i9/i7/i5 X-Series and Intel® Core™ i9 Extreme X-Series Processors; Intel® X299 Chipset
  • 6 Fixed 3.5" and 4 Fixed 2.5" drive bays; 2x 5.25" Peripheral drive bays
  • 4 PCI-E 3.0 x16, 1 PCI-E 3.0 x1 slots, 2 U.2, 2 M.2 M-key for SSD & Optane
  • Up to 128GB DDR4-2666MHz non-ECC UDIMMs in 8 DIMM slots
  • Single GbE LAN port with Intel® i210-AT
  • Single LAN with Aquantia 5G LAN chip AQC108
  • 6 SATA3 ports via PCH; RAID 0, 1, 5, 10
  • 4 USB 3.1 (rear, 3 Type A + 1 Type C), 4 USB 3.0 (2 rear, 2 front), 4 USB 2.0 headers
  • ALC 1220 7.1 HD Audio
  • 2x 12cm front cooling fans, 1x 12cm rear exhaust fan
  • 750W Multi-output Power Supply
  • 12 modular UP Nodes in 3U; EACH NODE:
  • Intel® Atom® processor C3955; Socket FCBGA1310
  • Intel® C3000 chipset
  • Up to 128GB RDIMM or 64GB UDIMM,
    up to 2400MHz DDR4 VLP ECC memory support
  • Flexible storage options: 2x 3.5" SATA3 or 4x 2.5" SATA3 or
    2x 2.5" NVMe + 2x 2.5" SATA3 or 2x 2.5" NVMe + 1x 3.5" SATA3
  • 2x 10GBase-T LAN ports via C3000 SoC
  • 4 heavy-duty 9cm PWM fans with optimal cooling zone
  • 2000W Redundant Titanium Level Power Supplies
  • 12 modular UP Nodes in 3U; EACH NODE:
  • Intel® Atom® processor C3750; Socket FCBGA1310
  • Intel® C3000 chipset
  • Up to 128GB RDIMM or 64GB UDIMM,
    up to 2400MHz DDR4 VLP ECC memory support
  • Flexible storage options: 2x 3.5" SATA3 or 4x 2.5" SATA3 or
    2x 2.5" NVMe + 2x 2.5" SATA3 or 2x 2.5" NVMe + 1x 3.5" SATA3
  • 2x 10GBase-T LAN ports via C3000 SoC
  • 4 heavy-duty 9cm PWM fans with optimal cooling zone
  • 2000W Redundant Titanium Level Power Supplies
  • Gaming, Digital Imaging, Entry-Level Worksation, Simulation and Creation Design
  • Socket H4 (LGA 1151) supports Intel® 7th/6th Gen. Core™ i7/i5/i3 series Processor; Intel® Z270 Express Chipset
  • Removable 3.5" and 2.5" HDD/SSD cages with tool-less trays
  • Up to 10 drives; 2x 5.25" Peripheral Drive Bays
  • 4 PCI-E 3.0 x16, 1 PCI-E 3.0 x4, 2 PCI-E 3.0 x4 M.2, 2 PCI-E 3.0 x4 U.2 (1 share with M.2)
  • Up to 64GB DDR4 non-ECC UDIMMs in 4 sockets; Overclocking* support up to 3733MHz
  • Dual GbE LAN port with Intel® i219V and Intel® i210-AT
  • 6 SATA3 ports via PCH; RAID 0, 1, 5, 10
  • 4 USB 3.1 (3 Type A, 1 Type C), 4 USB 3.0 (2 rear, 2 via headers), 8 USB 2.0 (2 rear, 6 via headers)
  • 7.1 HD Audio by RealTek ALC1150
  • 3x 12 cm PWM fans
  • 750W Multi-output Power Supply
  • Single socket H4 (LGA 1151) supports Intel® 7th/6th Gen. Core™ i7/i5/i3 series
  • Intel® B250 Express Chipset
  • Up to 64GB Non-ECC UDIMM, DDR4-2400MHz, in 4 DIMM slots
  • 1 PCI-E 3.0 x16, 1 PCI-E 3.0 x4, 1 PCI-E 3.0 x1
  • 2x 5.25" drive bays, 2x 3.5" fixed drive bays, 1x 2.5" fixed drive bay
  • 1 HDMI, 1 DP, 1 DVI-D
  • HD Audio 7.1 channel connector by Realtek ALC888S, support SPDIF-Out
  • 1x 80mm Rear Fan
  • 260W 80Plus Bronze Power Supply
  • Commercial Desktop, Remote Manageability, Intel® vPro™ Technology
  • Socket H4 (LGA 1151) supports Intel® 7th/6th Gen. Core™ i7/i5/i3 series Processor; Intel® Q270 Express Chipset
  • 2 Fixed 3.5" drive bays, 1 Fixed 2.5" drive bay, 2x 5.25" Peripheral Drive Bays
  • 1 PCI-E 3.0 x16, 1 PCI-E 3.0 x4, 1 PCI-E 3.0 x1, 1 PCI-E 3.0 x4 M.2 (support 2280)
  • Up to 64GB Non-ECC UDIMM, DDR4-2400MHz, in 4 DIMM slots
  • 1 GbE LAN port with Intel® i219LM
  • 6 SATA3 ports via PCH; RAID 0, 1, 5, 10
  • 6 USB 3.0 (2 front, 4 rear), 4 USB 2.0 (2 front, 2 rear)
  • 7.1 HD Audio by RealTek ALC1150
  • 1x 80mm rear fan
  • 260W 80Plus Bronze Power Supply
Up to 3 NVIDIA GPUs
  • 2D/3D and CAD Applications, Astrophysics, Chemistry, Cloud and Virtualization
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
  • 16 DIMMs; up to 4TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 2 Hot-swap 2.5" SAS/SATA drive bays, 2 Hot-swap 2.5" SAS/SATA/NVMe drive bays
  • 4 PCI-E 3.0 x16 (FHFL) and 1 PCI-E 3.0 x8 (in x16, LP) slots
  • 1 Dedicated IPMI port
  • 1 VGA, 1 COM, 2 USB 3.0 (rear)
  • 10x 4cm heavy duty counter-rotating fans with air shroud
  • 1600W Redundant Platinum Level (94%) Power Supplies

*Contact your Supermicro sales rep for more info.

  • 12 modular UP Nodes in 3U; EACH NODE:
  • Intel® Xeon® processor E3-1200 v6/v5 family; socket H4 (LGA 1151)
  • Intel® C236 chipset
  • Up to 128GB UDIMM, up to 2666MHz DDR4 VLP ECC memory support
  • 4x 2.5" NVMe + 1 M.2 (2280 SATA3)
  • 1 SFP28 25GbE LAN port and 1 dedicated LAN supports IPMI 2.0
  • 1 Micro-LP
  • 4x 9cm heavy-duty PWM fans with optimal cooling zone
  • 2000W Redundant Titanium Level Power Supplies
  • High Throughput Ingest, High Density Hot Storage, HPC / Data Analytics, Media/Video Streaming, Content Delivery Network (CDN), Big Data Top of Rack Storage
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors
  • 32 Hot-swap EDSFF Long drive slots
  • 24 DIMMs; up to 6TB 3DS ECC DDR4 2933MHz RDIMM
  • Supports Intel® Optane™ DCPMM*
  • 2 PCI-E 3.0 x16 Low-profile slots
  • 2x 10GBase-T ports via Intel X550, 1 Dedicated IPMI port
  • 1 VGA, 2 USB 3.0, 1 TPM header
  • 8x 40x56mm PWM fans
  • 1600W Redundant Platinum Level Power Supplies

*Contact your Supermicro sales rep for more info.

  • IOPS Intensive Storage App., DB App. (MySQL, Casandra), Hyper-converged Infrastructure / Scale-out Architectures
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors
  • 32 Hot-swap EDSFF Short drive bays
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 2 PCI-E 3.0 x16, 1 PCI-E 3.0 x4
  • 2x 10GBase-T ports via Intel X550, 1 Dedicated IPMI port
  • 1 VGA, 4 USB 3.0, 1 TPM header
  • 8x 4cm counter-rotating cooling fans
  • 1600W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

  • IOPS Intensive Storage App., DB App. (MySQL, Casandra), Hyperconverged Infrastructure / Scale-out Architectures
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors
  • 32 Hot-swap NF1 drive bays, 4 hybrid PCI-E NF1 or SATA3 M.2 drive bays
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 2 PCI-E 3.0 x16, 1 PCI-E 3.0 x4
  • 2x 10GBase-T ports via Intel X550, 1 Dedicated IPMI port
  • 1 VGA, 4 USB 3.0, 1 TPM header
  • 8x 4cm counter-rotating cooling fans
  • 1600W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

32 NVMe support • (2 sleds with • 16 drives per sled)
  • 1U 32 NVMe JBOF Storage Enclosure
  • High Throughput Ingest, High Density Hot Storage, HPC / Data Analytics, Media/Video Streaming, Content Delivery Network (CDN), Big Data Top of Rack Storage
  • 32 Hot-swap 2.5" NVMe SSDs (2 sleds with 16 drives per sled)
  • 4 PCI-E x16 IO ports, 2 PCI-E x16 slots
  • 2 RJ45 Dedicated IPMI LAN ports, support for IPMI v.2.0
  • 8x 40mm Hot-swap cooling fans
  • 1000W Redundant Titanium Level (96%) Power Supplies
SSG-136R-NEL32JBF (Coming Soon)
32 EDSFF Long SSDs
  • 1U 32 NVMe 9.5mm EDSFF Long SSDs JBOF Storage Enclosure
  • High Throughput Ingest, High Density Hot Storage, HPC / Data Analytics, Media/Video Streaming, Content Delivery Network (CDN), Big Data Top of Rack Storage
  • 32 Hot-swap NVMe, 9.5mm EDSFF Long SSDs
  • 4 PCI-E 3.0 x16 IO ports, 2 PCI-E 3.0 x16 slots
  • 2 RJ45 Dedicated IPMI LAN ports, support for IPMI v.2.0
  • 8x 40mm Hot-swap cooling fans
  • 1000W Redundant Titanium Level (96%) Power Supplies
32 NVMe Ruler SSDs
  • 1U 32 NVMe Ruler SSD JBOF Storage Enclosure
  • High Throughput Ingest, High Density Hot Storage, HPC / Data Analytics, Media/Video Streaming, Content Delivery Network (CDN), Big Data Top of Rack Storage
  • 32 Hot-swap NVMe Ruler SSDs
  • 4 PCI-E x16 IO ports, 2 PCI-E x16 slots
  • 2 RJ45 Dedicated IPMI LAN ports, support for IPMI v.2.0
  • 8x 40mm Hot-swap cooling fans
  • 1000W Redundant Titanium Level (96%) Power Supplies
24 Hot-swap 2.5" SAS3/SATA3
  • Corporate Database, Database Processing & Storage, Enterprise Server, HPC, Data Center, iSCSI SAN
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
  • 24 Hot-swap 2.5" SAS3/SATA3 drive bays, 2 Optional onboard NVMe M.2
  • Storage Options:
    • SSG-2029P-ACR24H - SAS3 via Broadcom 3108 AOC
    • SSG-2029P-ACR24L - SAS3 via Broadcom 3008 AOC
  • 16 DIMMs; up to 4TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 3 PCI-E 3.0 x16, 4 PCI-E 3.0 x8
  • 2x 10GBase-T ports via Intel X722 + PHY Intel X557, 1 Dedicated IPMI port
  • 1 VGA, 1 COM, 3 USB 3.0, 1 Type A
  • 3 Hot-swap 8cm redundant PWM cooling fans
  • 1200W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

  • 2U 2-Node Mission critical storage server
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
  • 12 DIMMs; up to 3TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 2 PCI-E 3.0 x16 Low-profile slots
  • 1 SIOM card support for flexible networking options
  • Dual port 10GBase-T (Intel® X557-AT2), 1 Dedicated IPMI port.
  • 1 VGA, 2 USB 3.0, 1 Type A,1x TPM header
  • 5x 8cm high-performance PWM fans w/ optimal fan speed control.
  • Lowest latency:
    • 24 U.2 Hot-swap dual-port NVMe drive bays
    • Omni-Path SIOM support
  • Robust Data Availability:
    • Shared storage between redundant controllers
    • Node to node heartbeat/ NTB connectivity
    • Dual 10G private Ethernet between nodes
    • Redundant power supply and cooling system
  • Greener Storage:
    • Titanium Level (96%+) efficiency 2000W redundant power supplies
    • 90%+ VRM power efficiency

*Contact your Supermicro sales rep for more info.

24 Hot-swap 2.5" SAS3/SATA3 • Dual JBOD Exp. Ports
  • Corporate Database, Database Processing & Storage, Enterprise Server, HPC, Data Center, iSCSI SAN
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
  • 24 Hot-swap 2.5" SAS3/SATA3 drive bays
  • Storage Options:
    • SSG-2029P-E1CR24H - SAS3 via Broadcom 3108 AOC
    • SSG-2029P-E1CR24L - SAS3 via Broadcom 3008 AOC
  • 16 DIMMs; up to 4TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 3 PCI-E 3.0 x16, 4 PCI-E 3.0 x8; Dual JBOD Expansion ports (slot 2 & 3 occupied by controller and JBOD expansion port)
  • 2x 10GBase-T ports via Intel X722 + PHY Intel X557, 1 Dedicated IPMI port
  • 1 VGA, 1 COM, 3 USB 3.0, 1 Type A
  • 3 Hot-swap 8cm redundant PWM cooling fans
  • 1200W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

48 Hot-swap 2.5" SAS3/SATA3 drive bays + 2 Hot-swap 2.5" drive bays (rear)
  • Corporate Database, Database Processing & Storage, Enterprise Server, HPC, Data Center, iSCSI SAN
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
  • 48 Hot-swap 2.5" SAS3/SATA3 drive bays, 2 Hot-swap 2.5" drive bays (rear)
  • Storage Options:
    • SSG-2029P-E1CR48H – SAS3 via Broadcom 3108 AOC
    • SSG-2029P-E1CR48L – SAS3 via Broadcom 3008 AOC
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 2 PCI-E 3.0 x16 and 1 PCI-E 3.0 x8 slots
  • 1 Dedicated IPMI port
  • 1 VGA, 1 COM, 2 USB 3.0, 1 Type A
  • 5 Hot-swap 80mm redundant PWM cooling fans
  • 1600W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

12x 3.5" SATA3 drive bays
  • Warm storage, CDN, Web or DB Server, Multi-access Edge Computing, VM and SMB Servers
  • Intel® Xeon® processor D-2146NT (8-Core)
  • 12x 3.5" SATA3 Drive Bays, SAS3 support by AOC
  • 4 DIMMs, up to 512GB ECC LRDIMM, up to 256GB reg. ECC RDIMM, DDR4-2133MHz memory
  • 1 PCI-E 3.0 x8 (FH), M.2: M Key and B Key
  • 2x 10GBase-T, 4x 1GbE, 2x 10G SFP+ ports, 1x dedicated IPMI LAN port
  • I/O ports: 1 VGA, 1 COM, 2 USB 3.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 6x 40mm 4-pin fans
  • 400W Redundant Platinum Level Power Supplies
12 Hot-swap 3.5" SAS3/SATA3
  • Application and data serving, Connectivity/Storage Compute Nodes, High Availability Storage Appliance Platform
  • Single Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors
  • 12 Hot-swap 3.5" SAS3/SATA3 drive bays, 2 Optional NVMe/SATA (rear)
  • SAS3 via Broadcom 3008 controller
  • 8 DIMMs; up to 2TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • 1 PCI-E 3.0 x16, 2 PCI-E 3.0 x8, 1 PCI-E 3.0 x4 (in x8)
  • 2x 10GBase-T ports via X557, 1 Dedicated IPMI port
  • 1 VGA, 2 COM, 2 USB 3.0, 2 USB 2.0
  • 3 High-performance 80mm PWM fans
  • 800W Redundant Titanium Level (96%) Power Supplies
  • Backup Storage, Cold Storage; Database Applications; Data Warehousing, Archiving
  • Single Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors
  • 45 Hot-swap 3.5" SAS3/SATA3 drive bays, 2 rear Hot-swap 2.5” drive bays (NVMe/SATA optional)
  • Storage Options:
    • SSG-5049P-E1CR45H – SAS3 via Broadcom 3108 AOC
    • SSG-5049P-E1CR45L – SAS3 via Broadcom 3008 AOC
  • 8 DIMMs; up to 2TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 2 PCI-E 3.0 x8 (in x16), 4 PCI-E 3.0 x8, 1 PCI-E 3.0 x4 (in x8)
  • 2 GbE LAN ports via Intel i210, 1 Dedicated IPMI port
  • 1 VGA, 2 COM, 2 USB 3.0, 2 USB 2.0
  • 5 Hot-swap 8cm redundant PWM fans
  • 1600W Redundant Platinum Level Power Supplies

*Contact your Supermicro sales rep for more info.

36 Hot-swap 3.5" SAS3/SATA3
  • Connectivity/Storage Compute Nodes, Database Processing & Storage Appliance Platform
  • Single Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors
  • 36 Hot-swap 3.5" SAS3/SATA3 drive bays, 2 Optional NVMe/SATA (rear)
  • SAS3 via Broadcom 3008 controller
  • 8 DIMMs; up to 2TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • 1 PCI-E 3.0 x16, 2 PCI-E 3.0 x8, 1 PCI-E 3.0 x4 (in x8)
  • 2x 10GBase-T ports via Intel X722 + X557, 1 Dedicated IPMI port
  • 1 VGA, 2 COM, 2 USB 3.0, 2 USB 2.0
  • 7 High-performance 80mm PWM fans
  • 1200W Redundant Titanium Level (96%) Power Supplies
12 Hot-swap 3.5" SAS3/SATA3 + 4 Hot-swap 2.5" NVMe/SATA
  • High Density Storage, Object Storage 1U, Ceph / Hadoop, Scale-out Storage, Big Data Analytics
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 12 Hot-swap 3.5" SAS3/SATA3 drive bays, 4 Hot-swap 2.5" NVMe/SATA drive bays
  • 12 DIMMs; up to 3TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 2 PCI-E 3.0 x16, 1 PCI-E 3.0 x8
  • 2x 10GBase-T ports via Intel C622, 1 Dedicated IPMI port
  • 1 VGA, 4 USB 3.0, 1 TPM header
  • 6x 4cm 20.5K RPM cooling fans
  • 600W Redundant Platinum Level Power Supplies

*Contact your Supermicro sales rep for more info.

12 Hot-swap 3.5" SAS3/SATA3 + 4 Hot-swap 2.5" NVMe/SATA
  • High Density Storage, Object Storage 1U, Ceph / Hadoop, Scale-out Storage, Big Data Analytics
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 12 Hot-swap 3.5" SAS3/SATA3 drive bays, 4 Hot-swap 2.5" 7mm NVMe/SATA drive bays
  • 12 DIMMs; up to 3TB 3DS ECC DDR4 2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 3 PCI-E 3.0 x16, 1 PCI-E 3.0 x16 for AOM
  • 2x 10GBase-T ports via Intel C622, 1 Dedicated IPMI port
  • 1 VGA, 4 USB 3.0, 1 TPM header
  • 6x 4cm 20.5K RPM cooling fans
  • 800W Redundant Platinum Level Power Supplies

*Contact your Supermicro sales rep for more info.

12 Hot-swap 3.5" SAS3/SATA3 • Dual JBOD Exp. Ports
  • Corporate Database, Database Processing & Storage, Enterprise Server, HPC, Data Center, iSCSI SAN
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
  • 12 Hot-swap 3.5" SAS3/SATA3 drive bays, 2 Optional onboard NVMe M.2
  • Storage Options:
    • SSG-6029P-E1CR12H - SAS3 via Broadcom 3108 AOC
    • SSG-6029P-E1CR12L - SAS3 via Broadcom 3008 AOC
  • 16 DIMMs; up to 4TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 3 PCI-E 3.0 x16, 4 PCI-E 3.0 x8; Dual JBOD Expansion ports (slot 2 & 3 occupied by controller and JBOD expansion port)
  • 2x 10GBase-T ports via Intel X722 + PHY Intel X557, 1 Dedicated IPMI port
  • 1 VGA, 1 COM, 3 USB 3.0, 1 Type A
  • 3 Hot-swap 8cm redundant PWM cooling fans
  • 1200W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

12 Hot-swap 3.5" SAS3/SATA3 • SAS3 via Broadcom 3108
  • Corporate Database, Database Processing & Storage, Enterprise Server, HPC, Data Center, iSCSI SAN
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
  • 12 Hot-swap 3.5" SAS3 (via Broadcom 3108)/SATA3 drive bays, 2 Optional onboard NVMe M.2
  • 16 DIMMs; up to 4TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 3 PCI-E 3.0 x16, 4 PCI-E 3.0 x8 (slot 1 occupied by controller)
  • 2x 10GBase-T ports via Intel X722 + PHY Intel X557, 1 Dedicated IPMI port
  • 1 VGA, 1 COM, 3 USB 3.0, 1 Type A
  • 3 Hot-swap 8cm redundant PWM cooling fans
  • 1200W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

16 Hot-swap 3.5" SAS3/SATA3 • SAS3 via Broadcom 3108
  • Corporate Database, Database Processing & Storage, Enterprise Server, HPC, Data Center, iSCSI SAN
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
  • 16 Hot-swap 3.5" SAS3 (via Broadcom 3108)/SATA3 drive bays
  • 16 DIMMs; up to 4TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 3 PCI-E 3.0 x16, 4 PCI-E 3.0 x8 (slot 1 occupied by controller)
  • 2x 10GBase-T ports via Intel X722 + PHY Intel X557, 1 Dedicated IPMI port
  • 1 VGA, 1 COM, 3 USB 3.0, 1 Type A
  • 3 Hot-swap 8cm redundant PWM cooling fans
  • 1600W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

24 Hot-swap 3.5" SAS3/SATA3 drive bays + 2 Hot-swap 2.5" drive bays (rear)
  • Corporate Database, Database Processing & Storage, Enterprise Server, HPC, Data Center, iSCSI SAN
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
  • 24 Hot-swap 3.5" SAS3/SATA3 drive bays, 2 Hot-swap 2.5" drive bays (rear)
  • Storage Options:
    • SSG-6029P-E1CR24H – SAS3 via Broadcom 3108 AOC
    • SSG-6029P-E1CR24L – SAS3 via Broadcom 3008 AOC
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 2 PCI-E 3.0 x16 and 1 PCI-E 3.0 x8 slots
  • 1 Dedicated IPMI port
  • 1 VGA, 1 COM, 2 USB 3.0, 1 Type A
  • 5 Hot-swap 80mm redundant PWM cooling fans
  • 1600W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

16 Hot-swap 3.5" SAS3/SATA3 • Dual JBOD Exp. Ports
  • Corporate Database, Database Processing & Storage, Enterprise Server, HPC, Data Center, iSCSI SAN
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
  • 16 Hot-swap 3.5" SAS3/SATA3 drive bays, 2 Optional onboard NVMe M.2
  • Storage Options:
    • SSG-6039P-E1CR16H - SAS3 via Broadcom 3108 AOC
    • SSG-6039P-E1CR16L - SAS3 via Broadcom 3008 AOC
  • 16 DIMMs; up to 4TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 3 PCI-E 3.0 x16, 4 PCI-E 3.0 x8; Dual JBOD Expansion ports (slot 2 & 3 occupied by controller and JBOD expansion port)
  • 2x 10GBase-T ports via Intel X722 + PHY Intel X557, 1 Dedicated IPMI port
  • 1 VGA, 1 COM, 3 USB 3.0, 1 Type A
  • 3 Hot-swap 8cm redundant PWM cooling fans
  • 1600W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

24 Hot-swap 3.5" SAS3/SATA3 • Dual JBOD Exp. Ports
  • Corporate Database, Database Processing & Storage, Enterprise Server, HPC, Data Center, iSCSI SAN
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
  • 24" Hot-swap 3.5 SAS3/SATA3 drive bays, 2 Optional onboard NVMe M.2
  • Storage Options:
    • SSG-6049P-E1CR24H - SAS3 via Broadcom 3108 AOC
    • SSG-6049P-E1CR24L - SAS3 via Broadcom 3008 AOC
  • 16 DIMMs; up to 4TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 3 PCI-E 3.0 x16, 4 PCI-E 3.0 x8; Dual JBOD Expansion ports (slot 2 & 3 occupied by controller and JBOD expansion port)
  • 2x 10GBase-T ports via Intel X722 + PHY Intel X557, 1 Dedicated IPMI port
  • 1 VGA, 1 COM, 4 USB 3.0, 1 Type A
  • 3 Hot-swap 8cm redundant PWM cooling fans
  • 1200W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

36 Hot-swap 3.5" SAS3/SATA3 • Dual JBOD Exp. Ports
  • Corporate Database, Database Processing & Storage, Enterprise Server, HPC, Data Center, iSCSI SAN
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
  • 36 Hot-swap 3.5" SAS3/SATA3 drive bays, 2 Optional onboard NVMe M.2
  • Storage Options:
    • SSG-6049P-E1CR36H - SAS3 via Broadcom 3108 AOC
    • SSG-6049P-E1CR36L - SAS3 via Broadcom 3008 AOC
  • 16 DIMMs; up to 4TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 3 PCI-E 3.0 x16, 4 PCI-E 3.0 x8; Dual JBOD Expansion ports (slot 2 & 3 occupied by controller and JBOD expansion port)
  • 2x 10GBase-T ports via Intel X722 + PHY Intel X557, 1 Dedicated IPMI port
  • 1 VGA, 1 COM, 4 USB 3.0, 1 Type A
  • 3 Hot-swap 8cm redundant PWM cooling fans
  • 1200W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

  • Corporate Database, Database Processing & Storage, Enterprise Server, HPC, Data Center, iSCSI SAN
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
  • 45 Hot-swap 3.5" SAS3/SATA3 drive bays, 2 rear Hot-swap 2.5” drive bays, 6 optional NVMe bays
  • Storage Options:
    • SSG-6049P-E1CR45H – SAS3 via Broadcom 3108 AOM
    • SSG-6049P-E1CR45L – SAS3 via Broadcom 3008 AOM
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 2 PCI-E 3.0 x16, 1 PCI-E 3.0 x8, 1 SIOM card slot
  • 1 Dedicated IPMI port
  • 1 VGA, 1 COM, 2 USB 3.0, 1 Type A
  • 5 Hot-swap 8cm rear exhaust PWM cooling fans
  • 1600W Redundant Platinum Level Power Supplies

*Contact your Supermicro sales rep for more info.

  • Corporate Database, Database Processing & Storage, Enterprise Server, HPC, Data Center, iSCSI SAN
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
  • 45 Hot-swap 3.5" SAS3/SATA3 drive bays, 2 rear Hot-swap 2.5” drive bays, 6 optional NVMe bays
  • Storage Options:
    • SSG-6049P-E1CR45L+ – SAS3 via Broadcom 3616 AOM
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 2 PCI-E 3.0 x16, 1 PCI-E 3.0 x8, 1 SIOM card slot
  • 1 Dedicated IPMI port
  • 1 VGA, 1 COM, 2 USB 3.0, 1 Type A
  • 5 Hot-swap 8cm rear exhaust PWM cooling fans
  • 1600W Redundant Platinum Level Power Supplies

*Contact your Supermicro sales rep for more info.

  • Corporate Database, Database Processing & Storage, Enterprise Server, HPC, Data Center, iSCSI SAN
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
  • 60 Hot-swap 3.5" SAS3/SATA3 drive bays, 2 rear Hot-swap 2.5” drive bays
  • Storage Options:
    • SSG-6049P-E1CR60H – SAS3 via Broadcom 3108 AOM
    • SSG-6049P-E1CR60L – SAS3 via Broadcom 3008 AOM
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 2 PCI-E 3.0 x16, 1 PCI-E 3.0 x8
  • 1 Dedicated IPMI port
  • 1 VGA, 1 COM, 2 USB 3.0, 1 Type A
  • 5 Hot-swap 8cm rear exhaust PWM cooling fans
  • 2000W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

  • Corporate Database, Database Processing & Storage, Enterprise Server, HPC, Data Center, iSCSI SAN
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
  • 60 Hot-swap 3.5" SAS3/SATA3 drive bays, 2 rear Hot-swap 2.5” drive bays
  • Storage Options:
    • SSG-6049P-E1CR60L+ – SAS3 via Broadcom 3616 AOM
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 2 PCI-E 3.0 x16, 1 PCI-E 3.0 x8
  • 1 Dedicated IPMI port
  • 1 VGA, 1 COM, 2 USB 3.0, 1 Type A
  • 5 Hot-swap 8cm rear exhaust PWM cooling fans
  • 2000W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

  • uCPE Network Appliance, Network Security Appliance, Virtualization Server
  • Single socket H4 (LGA 1151) supports Intel® Xeon® E-2100 and E-2200 processors, 8th Gen. Intel® Core™ i3/Pentium®/Celeron®; Intel ® C246 chipset
  • Up to 128GB unbuffered ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots
  • 8x 1GbE LAN ports (Intel i210-AT)
  • 1 PCI-E 3.0 x16 slot
  • 2 Hot-swap 2.5", 2 Internal 2.5" SATA3 drive bays (SSD only)
  • M.2: 1 SATA/PCI-E 3.0 x4, 2280, M-Key
  • 2 USB 3.1 ports (rear), 2 USB 2.0 ports (rear)
  • 1 VGA port, 1 COM, 1 TPM 2.0 (header)
  • 350W Platinum Level AC-DC multiple output power supply
  • Digital Signage, DVR/NVR, POS, Office Server, Security Appliance Network Security, and Video Surveillance
  • Single socket H4 (LGA 1151) supports Intel® Xeon® E-2100 and E-2200 processors, 8th Gen. Intel® Core™ i3 processors, Intel® Celeron®, Intel® Pentium®
  • Up to 64GB unbuffered ECC/non-ECC UDIMM in 4 DIMM slots
  • 2x 1GbE LAN ports (Intel i210-AT and Intel PHY I219LM)
  • 1x 3.5" or 4x 2.5" drive bays with bracket
  • 1x PCI-E 3.0 x8 slot, M.2 PCIe 3.0 x4, M Key 2242/2280/22110
  • Mini-PCIe with mSATA support
  • 4 USB 3.1 (3 Type A, 1 Type C), 1 COM, 1 TPM, 1 HDMI, 1 DVI, ALC 888S HD Audio
  • 400W Redundant Platinum Level Power Supplies
  • Centralized/Cloud Radio Access Network (C-RAN), Universal Customer Premise Equipment (uCPE), Software Defined WAN (SD-WAN), Network Function Virtualization (NFV)
  • Intel® Xeon® processor D-2163IT SoC, 12-Cores, 24 Threads, 75W
  • Up to 512GB ECC LRDIMM or 256GB ECC RDIMM DDR4 2133MHz in 4 DIMM slots
  • 2x 10GBase-T, 2x 10G SFP+ and 1 dedicated LAN for IPMI 2.0
  • 2x 2.5” drive bays (one drive space shares with M.2), 2 EDSFF
  • 2 M.2: M-Key: 2280/22110, 1 M.2 E-Key: 2230, 1 M.2 B-Key: 3042
  • 4 PCI-E 3.0 x8 slots for optional AIOM
  • 2 USB 3.0, 1 VGA, 1 COM via RJ45
  • 400W Redundant Platinum Level Power Supplies
  • Centralized/Cloud Radio Access Network (C-RAN), Universal Customer Premise Equipment (uCPE), Software Defined WAN (SD-WAN), Network Function Virtualization (NFV)
  • Intel® Xeon® processor D-2173IT SoC, 14-Cores, 28 Threads, 70W
  • Up to 512GB ECC LRDIMM or 256GB ECC RDIMM DDR4 2133MHz in 4 DIMM slots
  • 2x 10GBase-T, 2x 10G SFP+ and 1 dedicated LAN for IPMI 2.0
  • 2x 2.5” drive bays (one drive space shares with M.2), 2 EDSFF
  • 2 M.2: M-Key: 2280/22110, 1 M.2 E-Key: 2230, 1 M.2 B-Key: 3042
  • 4 PCI-E 3.0 x8 slots for optional AIOM
  • 2 USB 3.0, 1 VGA, 1 COM via RJ45
  • 400W Redundant Platinum Level Power Supplies
  • Multi-Access Edge Computing (MEC), Centralized/Cloud Radio Access Network (C-RAN), Universal Customer Premise Equipment (uCPE), Software Defined WAN (SD-WAN), Network Function Virtualization (NFV), Artificial Intelligence (AI)
  • Intel® Xeon® processor D-2177NT SoC, 14-Cores, 28 Threads, 105W
  • Up to 512GB ECC LRDIMM or 256GB ECC RDIMM DDR4 2666MHz in 4 DIMM slots
  • 9x 1GbE (1 port used for management), 2x 10GBase-T, 2x 10G SFP+ and 1 dedicated LAN for IPMI 2.0
  • 2 Hot-swap 2.5" drive bays and 2 Internal 2.5" SSD bays
  • 3 M.2: M-Key: 2280/22110, 1 E-Key: 2230, 1 B-Key: 3042
  • 2 PCI-E 3.0 x16 (FHFL) slots
  • 2 USB 3.0, 1 VGA, 1 COM via RJ45
  • 500W Multi-output Platinum Level Power Supply
  • Multi-Access Edge Computing (MEC), Centralized/Cloud Radio Access Network (C-RAN), Universal Customer Premise Equipment (uCPE), Software Defined WAN (SD-WAN), Network Function Virtualization (NFV), Artificial Intelligence (AI)
  • Intel® Xeon® processor D-2183IT SoC, 16-Cores, 32 Threads, 100W
  • Up to 512GB ECC LRDIMM or 256GB ECC RDIMM DDR4 2400MHz in 4 DIMM slots
  • 9x 1GbE (1 port used for management), 2x 10GBase-T, 2x 10G SFP+ and 1 dedicated LAN for IPMI 2.0
  • 2 Hot-swap 2.5" drive bays and 2 Internal 2.5" SSD bays
  • 1 M-Key: 2280/22110, 1 E-Key: 2230, 1 B-Key: 3042
  • 2 PCI-E 3.0 x16 slots
  • 2 USB 3.0, 1 VGA, 1 COM via RJ45
  • 500W Multi-output Platinum Level Power Supply
  • Centralized/Cloud Radio Access Network (C-RAN), Universal Customer Premise Equipment (uCPE), Software Defined WAN (SD-WAN), Network Function Virtualization (NFV)
  • Intel® Xeon® processor D-2183IT SoC, 16-Cores, 32 Threads, 100W
  • Up to 512GB ECC LRDIMM or 256GB ECC RDIMM DDR4 2400MHz in 4 DIMM slots
  • 2x 10GBase-T, 2x 10G SFP+ and 1 dedicated LAN for IPMI 2.0
  • 2x 2.5” drive bays (one drive space shares with M.2), 2 EDSFF
  • 2 M.2: M-Key: 2280/22110, 1 M.2 E-Key: 2230, 1 M.2 B-Key: 3042
  • 4 PCI-E 3.0 x8 slots for optional AIOM
  • 2 USB 3.0, 1 VGA, 1 COM via RJ45
  • 400W Redundant Platinum Level Power Supplies
  • Multi-Access Edge Computing (MEC), Centralized/Cloud Radio Access Network (C-RAN), Universal Customer Premise Equipment (uCPE), Software Defined WAN (SD-WAN), Network Function Virtualization (NFV), Artificial Intelligence (AI)
  • Intel® Xeon® processor D-2123IT SoC, 4-Cores, 8 Threads, 60W
  • Up to 512GB ECC LRDIMM or 256GB ECC RDIMM DDR4 2666MHz in 4 DIMM slots
  • 9x 1GbE (1 port used for management), 2x 10GBase-T, 2x 10G SFP+ and 1 dedicated LAN for IPMI 2.0
  • 2 Hot-swap 2.5" drive bays and 2 Internal 2.5" SSD bays
  • 1 M-Key: 2280/22110, 1 E-Key: 2230, 1 B-Key: 3042
  • 2 PCI-E 3.0 x16 slots
  • 2 USB 3.0, 1 VGA, 1 COM via RJ45
  • 350W AC-DC Multi-output Platinum Level Power Supply
  • Multi-Access Edge Computing (MEC), Centralized/Cloud Radio Access Network (C-RAN), Universal Customer Premise Equipment (uCPE), Software Defined WAN (SD-WAN), Network Function Virtualization (NFV), Artificial Intelligence (AI)
  • Intel® Xeon® processor D-2146NT SoC, 8-Cores, 16 Threads, 80W
  • Up to 512GB ECC LRDIMM or 256GB ECC RDIMM DDR4 2133MHz in 4 DIMM slots
  • 9x 1GbE (1 port used for management), 2x 10GBase-T, 2x 10G SFP+ and 1 dedicated LAN for IPMI 2.0
  • 2 Hot-swap 2.5" drive bays and 2 Internal 2.5" SSD bays
  • 3 M.2: M-Key: 2280/22110, 1 E-Key: 2230, 1 B-Key: 3042
  • 2 PCI-E 3.0 x16 slots
  • 2 USB 3.0, 1 VGA, 1 COM via RJ45
  • 350W AC-DC Multi-output Platinum Level Power Supply
  • Centralized/Cloud Radio Access Network (C-RAN), Universal Customer Premise Equipment (uCPE), Software Defined WAN (SD-WAN), Network Function Virtualization (NFV)
  • Intel® Xeon® processor D-2146NT SoC, 8-Cores, 16 Threads, 80W
  • Up to 512GB ECC LRDIMM or 256GB ECC RDIMM DDR4 2133MHz in 4 DIMM slots
  • 2x 10GBase-T, 2x 10G SFP+ and 1 dedicated LAN for IPMI 2.0
  • 2x 2.5” drive bays (one drive space shares with M.2), 2 EDSFF
  • 2 M.2: M-Key: 2280/22110, 1 M.2 E-Key: 2230, 1 M.2 B-Key: 3042
  • 4 PCI-E 3.0 x8 slots for optional AIOM
  • 2 USB 3.0, 1 VGA, 1 COM via RJ45
  • 400W Redundant Platinum Level Power Supplies
  • Network Security Appliance, FireWall Applications, Virtualization, SD-WAN and vCPE/uCPE
  • Intel® Xeon® processor D-2146NT SoC, 8-Cores, 16 Threads, 80W
  • Up to 512GB ECC LRDIMM or 256GB ECC RDIMM DDR4 2666MHz in 4 DIMM slots
  • 4x 1GbE, 2x 10GBase-T, 2x 10G SFP+ and 1 dedicated LAN for IPMI 2.0 (front)
  • Up to 4 Internal fixed 2.5" drive bays
  • 1 M.2 M-Key for storage: 2242/2280, 1 M.2 B-Key for SSD & WAN: 2242
  • 2 USB 3.0 (front), 1 VGA (front)
  • 400W Redundant Platinum Level Power Supplies
Up to 2 NVIDIA GPUs in 1U
  • HPC cluster computer nodes
  • Single Socket P (LGA 3647) supports: 2nd Gen. Intel® Xeon® Scalable processors
  • 6 DIMMs; up to 1.5TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 6 Hot-swap 2.5" SAS/SATA drive bays
  • 2 PCI-E 3.0 x16 (right riser) and 1 PCI-E x16 (left riser) slots
  • 2x 10GBase-T ports via Intel X550, 1 Dedicated IPMI port
  • 1 VGA, 2 USB 3.0 (rear)
  • 8 heavy duty 4cm counter-rotating fans with air shroud
  • 1400W Platinum Level (94%) Power Supply

*Contact your Supermicro sales rep for more info.

WIO, Flexible I/O, UP • 10 Hot-swap 2.5" bays • 2 NVMe w/ AOC opt.
  • Database Processing and Storage, Data Center Applications
  • Single Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors
  • 6 DIMMs; up to 1.5TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • 10 Hot-swap 2.5" drive bays, M.2 mini-PCI-e support
  • 2 PCI-E 3.0 x16 (FHFL) slots, 1 PCI-E 3.0 x8 (LP) slot
  • 2x 10GBase-T ports via Intel X557, 1 Dedicated IPMI port
  • 1 VGA, 2 USB 3.0 (rear), 2 USB 2.0 (rear)
  • 5 Counter-rotating 4cm PWM cooling fans
  • 500W Redundant Platinum Level Power Supplies
X11SSZ-QF + • SC514-704C-1P
  • Embedded, Industrial automation & control, military compact server, VOIP & network appliance, mdeical applications
  • Single Socket H4 (LGA 1151) supports: Intel® 7th/6th Gen Core i7/i5/i3 series processor, Intel® Celeron® and Intel® Pentium processors
  • Intel® Q170 express chipset
  • 2x 2.5" Fixed bays with bracket
  • 1 PCI-E 3.0 x16 (in x16) slot
  • Up to 64GB DDR4 2400MHz Non-ECC UDIMMs in 4 sockets
  • 2 RJ45 1GbE LAN ports (Intel® i210-AT and i219LM)
  • Integrated IPMI 2.0 with KVM and Dedicated LAN
  • 1 HDMI, 1 DP, 1 DVI-I, 1 VGA, 1 BMC integrated Matrox G200
  • 2 COM, 2 USB 3.0 (rear), 3 USB 2.0 (2 rear, 1 Type A)
  • 1 SuperDOM, ALC 888S HD Audio
  • 400W Platinum Level Redundant Power Supplies w/ BBP® option
X11SSH-CTF + • SC113MFTQC-350CB
  • Storage HN, VM, Web hosting, Small File Server, Entry Level Storage
  • Single Socket H4 (LGA 1151) supports: Intel® Xeon® processor E3-1200 v6/v5 family, Intel® 7th/6th Gen Core i3 series processor, Intel® Celeron® and Intel® Pentium processors
  • Intel® C236 chipset
  • 8x 2.5" Hot-swap SAS3 (Broadcom 3008) bays w/ RAID
  • 1 PCI-E 3.0 x8 AOC Slot
  • Up to 64GB DDR4 2400MHz ECC UDIMMs in 4 sockets
  • 2 RJ45 10GBase-T LAN ports (Intel® X550)
  • Integrated IPMI 2.0 with KVM and Dedicated LAN
  • 1 VGA, 2 COM, 2 USB 3.0 (rear), 2 USB 2.0 (rear)
  • 2 SuperDOM ports with built-in power; TPM header
  • 340W High-efficiency Power Supply
X11SSW-F + • SC514-R407W
  • Appliance Server, WIO, Embedded Applications
  • Single Socket H4 (LGA 1151) supports: Intel® Xeon® processor E3-1200 v6/v5 family, Intel® 7th/6th Gen Core i3 series processor, Intel® Celeron® and Intel® Pentium processors
  • Intel® C236 chipset
  • 2x 2.5" internal fixed SATA3 drive bays
  • 1 PCI-E 3.0 x16 or 2 PCI-E 3.0 x8 Left Riser slot; 1 PCI-E 3.0 x4 (in x8); 1 M.2 connector
  • Up to 64GB DDR4 2400MHz ECC UDIMMs in 4 sockets
  • 2 RJ45 1GbE LAN ports (Intel® i210-AT)
  • Integrated IPMI 2.0 with KVM and Dedicated LAN
  • 1 VGA, 1 COM, 2 USB 3.0 (rear), 2 USB 2.0 (rear)
  • 2 SuperDOM ports with built-in power; TPM header
  • 400W Redundant High-efficiency Power Supplies
Up to 4 GPUs in 1U
  • High-performance Computing, Big Data Analytics, Business Intelligence, Research Lab, Astrophysics
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
  • 12 DIMMs; up to 3TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 2 Hot-swap 2.5" drive bays, 2 Internal 2.5" drive bays
  • 4 PCI-E 3.0 x16 (FHFL), 1 PCI-E x16 (LP), and 1 PCI-E 3.0 x8 (LP) slots
  • 2x 10GBase-T ports via Intel X540, 1 Dedicated IPMI port
  • 1 VGA, 2 COM, 2 USB 3.0 (rear)
  • 9x 4cm heavy duty counter-rotating fans with air shroud
  • 2000W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

Up to 4 NVIDIA GPUs in 1U
  • GPU Server, Mission-critical app., enterprise server, oil & gas, financial, 3D rendering, chemistry, HPC
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
  • 12 DIMMs; up to 3TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 2x Hot-swap 2.5" drive bays, 2 Internal 2.5" drive bays
  • 4 PCI-E 3.0 x16 (FHFL) and 2 PCI-E x16 (LP) slots
  • 2x 10GBase-T ports via Intel X540, 1 Dedicated IPMI port
  • 1 VGA, 2 COM, 2 USB 3.0 (rear)
  • 9x 4cm heavy duty counter-rotating fans with air shroud
  • 2000W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

Up to 4 NVIDIA Tesla • V100 SXM2 GPUs • Up to 300 GB/s • GPU-to-GPU NVLINK
  • HPC, Artificial Intelligence, Big Data Analytics, Research Lab, Astrophysics, Business Intelligence
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 12 DIMMs; up to 3TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 2 Hot-swap 2.5" drive bays, 2 Internal 2.5" drive bays
  • 4 PCI-E 3.0 x16 slots
  • 2x 10GBase-T ports via Intel X540, 1 Dedicated IPMI port
  • 1 VGA, 2 COM, 2 USB 3.0 (rear)
  • 7x 4cm heavy duty counter-rotating fans with air shroud
  • 2000W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

Up to 4 NVIDIA Tesla P100 SXM2 GPUs
  • HPC, Artificial Intelligence, Big Data Analytics, Research Lab, Astrophysics, Business Intelligence
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 12 DIMMs; up to 3TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 2 Hot-swap 2.5" drive bays, 2 Internal 2.5" drive bays
  • 4 PCI-E 3.0 x16 slots
  • 2x 10GBase-T ports via Intel X540, 1 Dedicated IPMI port
  • 1 VGA, 2 COM, 2 USB 3.0 (rear)
  • 7x 4cm heavy duty counter-rotating fans with air shroud
  • 2000W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

Short Depth (19.98") • Data Center Optimized
  • 1U Data Center Optimized Server, Short-Depth
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 8 DIMMs; up to 2TB 3DS ECC DDR4-2933 MHz L/RDIMM
  • 8 Hot-swap 2.5" SATA3 drive bays
  • 1 PCI-E 3.0 x8 (FHHL) slot
  • 2x 1GbE ports, 1 Dedicated IPMI port, 1 VGA, 2 USB 2.0
  • 4x 4cm 22.5K RPM middle cooling fans
  • 600W Platinum Level Power Supply
Short Depth (19.98") • Data Center Optimized
  • 1U Data Center Optimized Server, Short-Depth
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 8 DIMMs; up to 2TB 3DS ECC DDR4-2933 MHz L/RDIMM
  • 8 Hot-swap 2.5" SATA3 drive bays
  • 1 PCI-E 3.0 x8 (FHHL) slot
  • 2x 1GbE ports, 1 Dedicated IPMI port, 1 VGA, 2 USB 2.0
  • 4x 4cm 22.5K RPM middle cooling fans
  • 800W Redundant Platinum Level Power Supplies
32 NVMe Support • (2 sleds with 16 drives per sled)
  • High Throughput Ingest, High Density Hot Storage, HPC / Data Analytics, Media/Video Streaming, Content Delivery Network (CDN), Big Data Top of Rack Storage
  • Dual socket P (LGA 3647) supports 2nd Gen. Intel® Xeon® Scalable Processors, 3 UPI up to 10.4GT/s
  • 32 Hot-swap 2.5" NVMe SSDs (2 sleds with 16 drives per sled), 2 M.2 boot drives
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 2 PCI-E 3.0 x16 slots
  • 2x 10GBase-T LAN ports, 1 dedicated IPMI Port
  • 1 VGA, 2 USB 3.0, 1 COM, 2 SuperDOM
  • Built-in Intel® QAT for Crypto/Compression
  • 8 Hot-swap 40mm cooling fans
  • 1600W Redundant Platinum Level Power Supplies

*Contact your Supermicro sales rep for more info.

32 NVMe Ruler SSDs
  • High Throughput Ingest, High Density Hot Storage, HPC / Data Analytics, Media/Video Streaming, Content Delivery Network (CDN), Big Data Top of Rack Storage
  • Dual socket P (LGA 3647) supports 2nd Gen. Intel® Xeon® Scalable Processors, 3 UPI up to 10.4GT/s
  • 32 Hot-swap NVMe Ruler SSDs, 2 M.2 boot drives
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 2 PCI-E 3.0 x16 slots
  • 2x 10GBase-T LAN ports, 1 dedicated IPMI Port
  • 1 VGA, 2 USB 3.0, 1 COM, 2 SuperDOM
  • Built-in Intel® QAT for Crypto/Compression
  • 8 Hot-swap 40mm cooling fans
  • 1600W Redundant Platinum Level Power Supplies

*Contact your Supermicro sales rep for more info.

WIO, Flexible I/O • 8 Hot-swap 2.5" bays • 1 Slim DVD-ROM (Opt.)
  • Web Server, FireWall Applications, DNS, Print, Login, Gateway, Compact Network Appliance, Cloud Computing
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 12 DIMMs; up to 3TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 8 Hot-swap 2.5" drive bays; 1 slim DVD-ROM bay (option)
  • 2 PCI-E 3.0 x16 (FHHL), 1 PCI-E 3.0 x8 (LP), 1 PCI-E 3.0 x16 for AOM, 1 PCI-E 3.0 x4 NVMe M.2 slot
  • 2x 1GbE ports via Intel C621, 1 Dedicated IPMI port
  • 1 VGA, 6 USB 3.0 (4 rear, 2 via header)
  • 4 Counter-rotating 4cm PWM cooling fans
  • 600W Multi Output Platinum Level Power Supply

*Contact your Supermicro sales rep for more info.

WIO, Flexible I/O • 8 Hot-swap 2.5" bays • 1 Slim DVD-ROM (Opt.)
  • Web Server, FireWall Applications, DNS, Print, Login, Gateway, Compact Network Appliance, Cloud Computing
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 12 DIMMs; up to 3TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 8 Hot-swap 2.5" drive bays; 1 slim DVD-ROM bay (option)
  • 2 PCI-E 3.0 x16 (FHHL), 1 PCI-E 3.0 x8 (LP), 1 PCI-E 3.0 x16 for AOM, 1 PCI-E 3.0 x4 NVMe M.2 slot
  • 2x 1GbE ports via Intel C621, 1 Dedicated IPMI port
  • 1 VGA, 6 USB 3.0 (4 rear, 2 via header)
  • 4 Counter-rotating 4cm PWM cooling fans
  • 750W Redundant Platinum Level Power Supplies

*Contact your Supermicro sales rep for more info.

WIO, Flexible I/O • 10 Hot-swap 2.5" bays • 2 NVMe support
  • Cloud and other virtualization needs, hosting & application delivery, database processing & storage, simulation, automation
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 12 DIMMs; up to 3TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 10 Hot-swap 2.5" drive bays; 8 SATA3 + 2 NVMe/SATA3 hybrid ports
  • 2 PCI-E 3.0 x16 (FHHL), 1 PCI-E 3.0 x8 (LP), 1 PCI-E 3.0 x16 for AOM, 1 PCI-E 3.0 x4 NVMe M.2 slot
  • 2x 10GBase-T ports via Intel C622, 1 Dedicated IPMI port
  • 1 VGA, 6 USB 3.0 (4 rear, 2 front via header)
  • 4 Counter-rotating 4cm PWM cooling fans
  • 750W Redundant Platinum Level Power Supplies

*Contact your Supermicro sales rep for more info.

TwinPro • 2 Hot-swappable DP nodes in 1U
  • 2 Hot-swappable DP nodes in 1U; Each Node (x2 nodes) supports:
  • Dual 2nd Gen. Intel® Xeon® Scalable processors
  • 16 DIMMs; up to 4TB 3DS ECC DDR4-2933 MHz L/RDIMM
  • 2 PCI-E 3.0 x16 slots and 1 SIOM slot for flexible Networking options (SIOM must bundle 1 per node)
  • Storage Drive Options:
    • SYS-1029TP-DTR - 4 Hot-swap 2.5" SATA3 (Intel C621)
    • SYS-1029TP-DC0R - 4 Hot-swap 2.5" SAS3 (Broadcom 3008)
    • SYS-1029TP-DC1R - 4 Hot-swap 2.5" SAS3 (Broadcom 3108)
  • 1 Video, 2 USB 3.0, 2 SuperDOM, 2 SATA M.2 or 1 NVMe M.2 (optional carrier card AOC-SMG3-2H8M2, support 1029TR-DTR/DC0R)
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 3 heavy duty counter rotating fans with air shroud
  • 1000W Redundant Titanium Level (96%) Power Supplies
SYS-2029BR-HER (Coming Soon)
BigTwin™ • 10 EDSFF (E1.S) per Node
  • 4 DP nodes in 2U; depth 28.75", Each Node:
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
  • 24 DIMMs; up to 6TB 3DS ECC DDR4 2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 10 EDSFF (E1.S) drive bays and 2 SATA M.2 drive bays per node.
  • 2 PCI-E 3.0 x16 Low-profile slots, 1 Networking SIOM card support
  • 1 Dedicated IPMI port, 1 VGA, 2 USB 3.0, 1 SuperDOM
  • 4 Heavy duty 8cm PWM fans w/ optimal fan speed control
  • 2600W Redundant Titanium Level (96%) Power Supplies

* Contact your Supermicro sales rep for more info.

BigTwin™ • 4 NVMe/SAS3 + • 8 SAS3 per Node
  • 2 DP nodes in 2U; depth 28.5", Each Node:
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 4 NVMe/SAS3 + 8 SAS3 Hot-swap 2.5" drive bays per node
  • SAS3 (12Gbps) support via Broadcom 3216; IT mode
  • 2 PCI-E 3.0 x8, 1 PCI-E 3.0 x16, 1 Networking SIOM card support
  • 1 Dedicated IPMI port, 1 VGA, 2 USB 3.0, 1 SuperDOM
  • 4 heavy duty 80mm fans w/ optimal fan speed control
  • 2200W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

BigTwin™ • 4 NVMe/SAS3/SATA3 + • 2 SAS3/SATA3 per Node
  • 4 DP nodes in 2U; depth 28.5", Each Node:
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 6 SAS3 or 4 NVMe + 2 SAS3 Hot-swap 2.5" drive bays per node
  • SAS3 support via Broadcom 3008; IT mode
  • 2 PCI-E 3.0 x16 Low-profile slots, 1 Networking SIOM card support
  • 1 Dedicated IPMI port, 1 VGA, 2 USB 3.0, 1 SuperDOM
  • 4 heavy duty 80mm fans w/ optimal fan speed control
  • 2200W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

BigTwin™ • 4 NVMe/SAS3/SATA3 + 2 SAS3/SATA3 per Node
  • 4 DP nodes in 2U; depth 28.5", Each Node:
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 6 SAS3 or 4 NVMe + 2 SAS3 Hot-swap 2.5" drive bays per node
  • SAS3 support via Broadcom 3108; RAID 0, 1, 5, 6, 10, 50, 60
  • 1 PCI-E 3.0 x16 Low-profile slot, 1 Networking SIOM card support
  • 1 Dedicated IPMI port, 1 VGA, 2 USB 3.0, 1 SuperDOM
  • 4 heavy duty 80mm fans w/ optimal fan speed control
  • 2200W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

BigTwin™ • 6 NVMe per Node
  • 4 DP nodes in 2U; depth 28.5", Each Node:
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 6 Hot-swap 2.5" NVMe drive bays per node
  • 2 PCI-E 3.0 x16 Low-profile slots, 1 Networking SIOM card support
  • 1 Dedicated IPMI port, 1 VGA, 2 USB 3.0, 1 SuperDOM
  • 4 heavy duty 80mm fans w/ optimal fan speed control
  • 2200W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

BigTwin™ • 4 NVMe/SATA3 + • 2 SATA3 per Node
  • 4 DP nodes in 2U; depth 28.5", Each Node:
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 4 Hot-swap 2.5" NVMe/SATA3 + 2 Hot-swap 2.5" SATA3 drive bays per node
  • 2 PCI-E 3.0 x16 Low-profile slots, 1 Networking SIOM card support
  • 1 Dedicated IPMI port, 1 VGA, 2 USB 3.0, 1 SuperDOM
  • 4 heavy duty 80mm fans w/ optimal fan speed control
  • 2200W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

BigTwin™ • 6 SATA3 per Node
  • 4 DP nodes in 2U; depth 28.5", Each Node:
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 6 Hot-swap 2.5" SATA3 drive bays per node
  • 2 PCI-E 3.0 x16 Low-profile slots, 1 Networking SIOM card support
  • 1 Dedicated IPMI port, 1 VGA, 2 USB 3.0, 1 SuperDOM
  • 4 heavy duty 80mm fans w/ optimal fan speed control
  • 2200W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

BigTwin™ • 6 NVMe per Node • N+1 Cooling
  • 4 DP nodes in 2U; depth 28.75", Each Node:
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 6 Hot-swap 2.5" NVMe drive bays per node; 2 M.2 SATA3 or NVMe support
  • 2 PCI-E 3.0 x16 Low-profile slots, 1 Networking SIOM card support
  • 1 Dedicated IPMI port, 1 VGA, 2 USB 3.0, 1 SuperDOM
  • 16 Heavy duty 40x56mm fans w/ optimal fan speed control (4 fans per node)
  • 2600W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

Up to 6 NVIDIA GPUs
  • GPU Server, Mission-critical app., enterprise server, oil & gas, large database, e-business, on-line transaction processing, medical
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
  • 16 DIMMs; up to 4TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 8 Hot-swap 2.5" SAS/SATA drive bays, 2 Hot-swap 2.5" SAS/SATA/NVMe drive bays
  • 6 PCI-E 3.0 x16 and 1 PCI-E 3.0 x8 (in x16) slots
  • 1 Dedicated IPMI port
  • 1 VGA, 1 COM, 2 USB 3.0 (rear)
  • 5 heavy duty fans w/ optimal fan speed control
  • 2000W Redundant Platinum Level Power Supplies

*Contact your Supermicro sales rep for more info.

8 2.5" + 8 2.5" • SAS3 via Broadcom 3108
  • Compute Intensive Application/Storage, Big Data Analytics, DB Application/Processing, Mission-critical Application, Simulation and Automation
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 16 DIMMs; up to 4TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 8 Hot-swap 2.5" SAS3 drives (via Broadcom 3108), 8 Hot-swap 2.5" SATA3 drives (via Intel C620 series chipset)
  • 4 PCI-E 3.0 x16 and 2 PCI-E 3.0 x8 slots
  • 2x 10GBase-T (-C1RT) / 1GbE (-C1R), 1 Dedicated IPMI port
  • 1 Video, 2 COM, 2 USB 3.0, 4 USB 2.0, 1 Type A, 1 M.2 support
  • 3 Hot-swap 80mm PWM cooling fans
  • 1200W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

11 PCI-E Slots • 16 Hot-swap 2.5", 1 Peripheral 5.25"
  • 2U Max I/O Server - Expansion / Performance / Flexibility
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
  • 16 Hot-swap 2.5" drive bays and 1 peripheral 5.25" bay
  • 16 DIMMs; up to 4TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 2 PCI-E 3.0 x16 (HSSI), 2 PCI-E 3.0 x16 (or 4 PCI-E x8), 4 PCI-E 3.0 x8 , 1 PCI-E 3.0 x4 (in x8 slot)
  • 1 PCI-E 3.0 x4 M.2 2280 slot from PCH
  • 2 GbE, 1 Video, 2 COM, 2 USB 3.0 (rear), 4 USB 2.0 (rear), 1 Type A
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 4x 80mm 7K RPM middle fans
  • 1000W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

TwinPro² (SIOM) • Flexible Storage Options
  • 4 DP nodes in 2U; depth 28.5" (2029TP) / 30.5" (6029TP), Each Node:
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 16 DIMMs; up to 4TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • Storage Drive Options:
    • SYS-2029TP-HTR - 6 Hot-swap 2.5" SATA3
    • SYS-2029TP-HC0R - 6 Hot-swap 2.5" SAS3 (Broadcom 3008)
    • SYS-2029TP-HC1R - 6 Hot-swap 2.5" SAS3 (Broadcom 3108)
    • SYS-6029TP-HTR - 3 Hot-swap 3.5" SATA3
    • SYS-6029TP-HC0R - 3 Hot-swap 3.5" SAS3 (Broadcom 3008)
    • SYS-6029TP-HC1R - 3 Hot-swap 3.5" SAS3 (Broadcom 3108)
  • 2 PCI-E 3.0 x16 Low-profile slots
  • 1 SIOM card support for flexible networking options
  • 1 Dedicated IPMI port, 1 VGA, 2 USB 3.0, 2 SuperDOM
  • 4 Heavy duty 8cm fans with optimal fan speed control
  • 2200W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

Up to 8 NVIDIA GPUs
  • 3D rendering, Astrophysics, Chemistry, Cloud Computing, Virtualization, Compute intensive application
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • Up to 24 Hot-swap 2.5" Drive Bays, 8x 2.5” drives supported natively
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 8 PCI-E 3.0 x16 (double-width), 2 PCI-E 3.0 x8 slots, 1 PCI-E 3.0 x4 slot
  • I/O ports: 2x 10GBase-T, 1 Video, 1 COM, 4 USB 3.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 8x 92mm RPM Hot-Swappable Cooling Fans
  • 2000W (2+2) Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

Up to 8 GPUs
  • Artificial Intelligence, Big Data Analytics, High-performance Computing, Research Lab/National Lab, Astrophysics, Business Intelligence
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 24 Hot-swap 2.5" drive bays (8x 2.5" drives supported natively)
  • 11 PCI-E 3.0 x16 (FH, FL) and 1 PCI-E 3.0 x8 (in x16) slots
  • 2x 10GBase-T ports via Intel C622, 1 Dedicated IPMI port
  • 1 VGA, 1 COM, 4 USB 3.0
  • 8x 92mm Hot-swap cooling fans
  • 2000W (2+2) Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

Up to 8 NVIDIA GPUs
  • Artificial Intelligence, Big Data Analytics, High-performance Computing, Research Lab/National Lab, Astrophysics, Business Intelligence
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 24 Hot-swap 2.5" drive bays (8x 2.5" drives supported natively)
  • 11 PCI-E 3.0 x16 (FH, FL) and 1 PCI-E 3.0 x8 (in x16) slots
  • 2x 10GBase-T ports via Intel C622, 1 Dedicated IPMI port
  • 1 VGA, 1 COM, 4 USB 3.0
  • 8x 92mm Hot-swap cooling fans
  • 2000W (2+2) Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

Up to 8 NVIDIA Tesla • V100 SXM2 GPUs • Up to 300 GB/s • GPU-to-GPU NVLINK
  • Artificial Intelligence, Big Data Analytics, High-performance Computing, Research Lab/National Lab, Astrophysics, Business Intelligence
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 16 Hot-swap 2.5" drive bays (support 8 NVMe drives)
  • 4 PCI-E 3.0 x16 (LP, GPU tray for GPUDirect RDMA), 2 PCI-E 3.0 x16 (LP, CPU tray)
  • 2x 10GBase-T ports via Intel X540, 1 Dedicated IPMI port
  • 1 VGA, 1 COM, 2 USB 3.0 (front)
  • 8x 92mm cooling fans, 4x 80mm cooling fans
  • 2200W (2+2) Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

  • Appliance Server, Security/Gateway Server, Edge Computing
  • Single socket H4 (LGA 1151) supports Intel® Xeon® E-2100 and E-2200 processors, 8th Gen. Intel® Core™ i3/Pentium®/Celeron®; Intel ® C242 chipset
  • Up to 64GB unbuffered ECC UDIMM, DDR4-2666MHz, in 2 DIMM slots
  • 2x 1GbE LAN ports (Intel i210-AT)
  • 1 PCI-E 3.0 x16 slot
  • 2 Fixed 3.5" drive bay or 4 Fixed 2.5" drive bays
  • M.2: 1 PCI-E 3.0 x4, 2280, M-Key
  • 2 USB 3.1 ports (front), 2 USB 2.0 ports (front)
  • Front side: 1 VGA port, 2 COM, 1 TPM 2.0 (header)
  • 200W Multi-output Gold Level power supply
  • Appliance Server, Front-end, Web Hosting, Edge Computing
  • Single socket H4 (LGA 1151) supports Intel® Xeon® E-2100 and E-2200 processors, 8th Gen. Intel® Core™ i3/Pentium®/Celeron®; Intel ® C242 chipset
  • Up to 64GB unbuffered ECC UDIMM, DDR4-2666MHz, in 2 DIMM slots
  • 2x 1GbE LAN ports (Intel i210-AT)
  • 1 PCI-E 3.0 x16 slot
  • 2 Fixed 3.5" drive bay or 4 Fixed 2.5" drive bays
  • M.2: 1 PCI-E 3.0 x4, 2280, M-Key
  • 2 USB 3.1 ports (rear), 2 USB 2.0 ports (rear)
  • 1 VGA port, 2 COM, 1 TPM 2.0 (header)
  • 200W Multi-output Gold Level power supply
  • General Purpose, SMB, Web Hosting, Application and data serving, Archiving, Mail/Finance, Security
  • Single socket H4 (LGA 1151) supports Intel® Xeon® E-2100 and E-2200 processors, 8th Gen. Intel® Core™ i3/Pentium®/Celeron®; Intel ® C246 chipset
  • Up to 128GB unbuffered ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots
  • 2x 1GbE LAN ports (Intel i210-AT)
  • 1 PCI-E 3.0 x16 slot
  • 4 Hot-swap 3.5" drive bays
  • M.2: 1 SATA/PCI-E 3.0 x4 and 1 PCI-E 3.0 x4, 2280/22110, M-Key
  • 2 USB 3.1 ports (rear)
  • 1 VGA port, 1 COM (header), 1 TPM 2.0 (header)
  • 350W Multi-output Platinum Level power supply
  • Entry level, Cost effective, Compact, less than 15" depth
  • Single socket H4 (LGA 1151) supports Intel® Xeon® E-2100 and E-2200 processors, 8th Gen. Intel® Core™ i3/Pentium®/Celeron®; Intel ® C242 chipset
  • Up to 128GB unbuffered ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots
  • 4x 1GbE LAN ports (Intel i210-AT)
  • 1 PCI-E 3.0 x16 slot
  • 2 Fixed 3.5" or 3 Fixed 2.5" drive bays
  • M.2: 1 PCI-E 3.0 x4, 2280/22110, M-Key
  • 2 USB 3.1 ports (rear), 2 USB 2.0 ports (rear)
  • 1 VGA port, 1 COM (header), 1 TPM 2.0 (header)
  • 350W Multi-output Platinum Level power supply
  • General Purpose, SMB, Web Hosting, Application and data serving, Archiving, Mail/Finance, Security
  • Single socket H4 (LGA 1151) supports Intel® Xeon® E-2100 and E-2200 processors, 8th Gen. Intel® Core™ i3/Pentium®/Celeron®; Intel ® C246 chipset
  • Up to 128GB unbuffered ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots
  • 2x 1GbE LAN ports (Intel i210-AT)
  • 1 PCI-E 3.0 x16 slot
  • 4 Hot-swap 3.5" drive bays
  • M.2: 1 SATA/PCI-E 3.0 x4 and 1 PCI-E 3.0 x4, 2280/22110, M-Key
  • 2 USB 3.1 ports (rear), 2 USB 2.0 ports (rear)
  • 1 VGA port, 1 COM (header), 1 TPM 2.0 (header)
  • 350W Multi-output Platinum Level power supply
  • General Purpose, SMB, Web Hosting, Application and data serving, Archiving, Mail/Finance, Security
  • Single socket H4 (LGA 1151) supports Intel® Xeon® E-2100 and E-2200 processors, 8th Gen. Intel® Core™ i3/Pentium®/Celeron®; Intel ® C246 chipset
  • Up to 128GB unbuffered ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots
  • 2x 1GbE LAN ports (Intel i210-AT)
  • 1 PCI-E 3.0 x16 slot
  • 4 Hot-swap 3.5" drive bays
  • M.2: 1 SATA/PCI-E 3.0 x4 and 1 PCI-E 3.0 x4, 2280/22110, M-Key
  • 2 USB 3.1 ports (rear), 2 USB 2.0 (rear)
  • 1 VGA port, 1 COM (header), 1 TPM 2.0 (header)
  • 400W Redundant Platinum Level power supplies
  • HA, High flexibility, VM, Communication, Application and data serving, Appliance Server
  • Single socket H4 (LGA 1151) supports Intel® Xeon® E-2100 and E-2200 processors, 8th Gen. Intel® Core™ i3/Pentium®/Celeron®; Intel ® C246 chipset
  • Up to 128GB unbuffered ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots
  • 2x 1GbE LAN ports (Intel i210-AT)
  • 1 PCI-E 3.0 x16 slot or 2 PCI-E 3.0 x8, 1 PCI-E 3.0 x4 (in x8) slot
  • 4 Hot-swap 3.5" drive bays
  • M.2: 1 SATA/PCI-E 3.0 x4 and 1 PCI-E 3.0 x4, 2260/2280/22110, M-Key
  • 2 USB 3.1 ports (rear), 2 USB 2.0 (rear)
  • 1 VGA port, 2 COM, 1 TPM 2.0 (header)
  • 500W Redundant Platinum Level power supplies
  • Network Security Appliance, SDN-WAN, vCPE controller box, NFV Edge Computing Server, Virtualization Server, IoT Edge Computing
  • Intel® Xeon® processor D-2123IT SoC, 4-Cores, 8 Threads, 80W
  • Up to 512GB ECC LRDIMM or 256GB ECC RDIMM DDR4-2666MHz in 4 DIMM slots
  • 4x 1GbE, 2x 10GBase-T, 2x 10G SFP+ and 1 dedicated LAN for IPMI 2.0
  • 2 Internal 3.5" or 4 Internal 2.5" drive bays
  • 1 M.2 slot M key for SSD, 2242/80, 1 M.2 B Key for SSD/ WAN card,
    1 Mini-PCI-E with mSATA Support, 1 PCI-E 3.0 x8 slot
  • 2 USB 3.0, 1 VGA
  • 200W Low-noise AC-DC Power Supply
  • Network Security Appliance, SDN-WAN, vCPE controller box, NFV Edge Computing Server, Virtualization Server, IoT Edge Computing / Gateway
  • Intel® Xeon® processor D-2146NT SoC, 8-Cores, 16 Threads, 80W
  • Up to 512GB ECC LRDIMM or 256GB ECC RDIMM DDR4-2666MHz in 4 DIMM slots
  • 4x 1GbE, 2x 10GBase-T, 2x 10G SFP+ and 1 dedicated LAN for IPMI 2.0
  • 2 Internal 3.5" or 4 Internal 2.5" drive bays
  • 1 M.2 slot M key for SSD, 2242/8, 1 M.2 B Key for SSD/ WAN card,
    1 Mini-PCI-E with mSATA Support, 1 PCI-E 3.0 x8 slot
  • 2 USB 3.0, 1 VGA
  • 200W Low-noise AC-DC Power Supply
Up to 2 NVIDIA GPUs in 1U
  • HPC cluster computer nodes
  • Single Socket P (LGA 3647) supports: 2nd Gen. Intel® Xeon® Scalable processors
  • 6 DIMMs; up to 1.5TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 3 Hot-swap 3.5" SAS/SATA drive bays
  • 1 slim DVD-ROM bay or 1 USB + COM port tray
  • 2 PCI-E 3.0 x16 (right riser) and 1 PCI-E x16 (left riser) slots
  • 2x 10GBase-T ports via Intel X550, 1 Dedicated IPMI port
  • 1 VGA, 2 USB 3.0 (rear)
  • 8 heavy duty 4cm counter-rotating fans with air shroud
  • 1400W Platinum Level (94%) Power Supply

*Contact your Supermicro sales rep for more info.

Mainstream, UP
  • Web Hosting, VM, Compact Network Appliance
  • Single Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors
  • 6 DIMMs; up to 1.5TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 4 Hot-swap 3.5" SATA3 drive bays, M.2 PCIe 3.0 x4
  • 1 PCI-E 3.0 x16 slot
  • 2x 1GbE ports, 1 Dedicated IPMI port
  • 1 VGA, 2 COM, 4 USB 3.0 (front/rear), 2 USB 2.0
  • 4x 40mm mid-fan
  • 350W Platinum Level Power Supply

*Contact your Supermicro sales rep for more info.

Mainstream, UP
  • Web Hosting, VM, Compact Network Appliance
  • Single Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors
  • 6 DIMMs; up to 1.5TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 4 Hot-swap 3.5" SATA3 drive bays, M.2 PCIe 3.0 x4
  • 1 PCI-E 3.0 x16 slot
  • 2x 1GbE ports, 1 Dedicated IPMI port
  • 1 VGA, 2 COM, 4 USB 3.0 (front/rear), 2 USB 2.0
  • 4x 40mm mid-fan
  • 400W Redundant Platinum Level Power Supply

*Contact your Supermicro sales rep for more info.

Mainstream, UP
  • Web Hosting, VM, Application and Data Serving, DB Applications
  • Single Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors
  • 8 DIMMs; up to 2TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • 4 Hot-swap 3.5" SATA3 drive bays, M.2 mini-PCI-e support
  • 1 PCI-E 3.0 x16 slot
  • 2x 10GBase-T ports, 1 Dedicated IPMI port
  • 1 VGA, 2 COM, 4 USB 3.0 (front/rear), 2 USB 2.0
  • 4x 40mm mid-fan
  • 350W Platinum Level Power Supply
Mainstream, UP
  • Web Hosting, VM, Application and Data Serving, DB Applications, Mission-critical Applications
  • Single Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors
  • 8 DIMMs; up to 2TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • 4 Hot-swap 3.5" SATA3 drive bays, M.2 mini-PCI-e support
  • 1 PCI-E 3.0 x16 slot
  • 2x 10GBase-T ports, 1 Dedicated IPMI port
  • 1 VGA, 2 COM, 4 USB 3.0 (front/rear), 2 USB 2.0
  • 4x 40mm mid-fan
  • 400W Redundant Platinum Level Power Supplies
WIO, Flexible I/O, UP • 4 Hot-swap 3.5" bays
  • Database Processing and Storage, Data Center / Firewall Applications
  • Single Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors
  • 6 DIMMs; up to 1.5TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • 4 Hot-swap 3.5" drive bays, 1 slim DVD-ROM bay, M.2 mini-PCI-e support
  • 2 PCI-E 3.0 x16 (FHFL) slots, 1 PCI-E 3.0 x8 (LP) slot
  • 2x 10GBase-T ports via Intel X557, 1 Dedicated IPMI port
  • 1 VGA, 2 USB 3.0 (rear), 2 USB 2.0 (rear)
  • 5 Counter-rotating 4cm PWM cooling fans
  • 600W Multi Output Platinum Level Power Supply
WIO, Flexible I/O, UP • 4 Hot-swap 3.5" bays
  • Database Processing and Storage, Data Center / Firewall Applications
  • Single Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors
  • 6 DIMMs; up to 1.5TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • 4 Hot-swap 3.5" drive bays, M.2 mini-PCI-e support
  • 2 PCI-E 3.0 x16 (FHFL) slots, 1 PCI-E 3.0 x8 (LP) slot
  • 2x 10GBase-T ports via Intel X557, 1 Dedicated IPMI port
  • 1 VGA, 2 USB 3.0 (rear), 2 USB 2.0 (rear)
  • 5 Counter-rotating 4cm PWM cooling fans
  • 500W Redundant Platinum Level Power Supplies
X11SSL-F + • SC510-203B
  • Entry Appliance, Low Power, Cost effective
  • Single Socket H4 (LGA 1151) supports: Intel® Xeon® processor E3-1200 v6/v5 family, Intel® 7th/6th Gen Core i3 series processor, Intel® Celeron® and Intel® Pentium processors
  • Intel® C232 chipset
  • 1x 3.5" or 2x 2.5" Internal drive option
  • 1 PCI-E 3.0 x8 (in x16) AOC Slot
  • Up to 64GB DDR4 2400MHz ECC UDIMMs in 4 sockets
  • 2 RJ45 1GbE LAN ports (Intel® i210-AT), 1 dedicated IPMI port
  • 1 VGA, 2 COM, 2 USB 3.0 (rear), 2 USB 2.0 (rear)
  • 2 SuperDOM ports with built-in power; TPM header
  • 200W High-efficiency Power Supply
X11SSH-F + • SC813MFTQC-350CB
  • Cloud, Web hosting, File/Print, VM, Communication
  • Single Socket H4 (LGA 1151) supports: Intel® Xeon® processor E3-1200 v6/v5 family, Intel® 7th/6th Gen Core i3 series processor, Intel® Celeron® and Intel® Pentium processors
  • Intel® C236 chipset
  • 4x 3.5" Hot-swap SATA3 bays w/ RAID
  • 1 PCI-E 3.0 x8 (in x16) AOC Slot; 1 M.2 connector
  • Up to 64GB DDR4 2400MHz ECC UDIMMs in 4 sockets
  • 2 RJ45 1GbE LAN ports (Intel® i210-AT)
  • Integrated IPMI 2.0 with KVM and Dedicated LAN
  • 1 VGA, 2 COM, 2 USB 3.0 (front/rear), 2 USB 2.0 (rear)
  • 2 SuperDOM ports with built-in power; TPM header
  • 350W Platinum Level Power Supply
X11SSZ-F + • SC813MFTQC-350CB
  • Embedded, security & surveillance, appliance server, secure storage
  • Single Socket H4 (LGA 1151) supports: Intel® Xeon® processor E3-1200 v6/v5 family, Intel® 7th/6th Gen Core i7/i5/i3 series processor, Intel® Celeron® and Intel® Pentium processors
  • Intel® C236 express chipset
  • 4x 3.5" Hot-swap SATA3 bays, Intel RST
  • 1 PCI-E 3.0 x16 (FH, FL) slot
  • Up to 64GB DDR4 2400MHz ECC/non-ECC UDIMMs in 4 sockets
  • 2 RJ45 1GbE LAN ports (Intel® i210-AT)
  • Integrated IPMI 2.0 with KVM and Dedicated LAN
  • 2 COM, 4 USB 3.0 (2 rear), 3 USB 2.0 (2 rear, 1 Type A)
  • 1 SuperDOM (shared) Audio header
  • 350W Platinum Level Power Supply
X11SSH-F + • SC512F-350B1
  • Entry Appliance, Cost effective
  • Single Socket H4 (LGA 1151) supports: Intel® Xeon® processor E3-1200 v6/v5 family, Intel® 7th/6th Gen Core i3 series processor, Intel® Celeron® and Intel® Pentium processors
  • Intel® C236 chipset
  • 2x 3.5" or 3x 2.5" Internal drive option
  • 1 PCI-E 3.0 x8 AOC Slot; 1 M.2 connector
  • Up to 64GB DDR4 2400MHz ECC UDIMMs in 4 sockets
  • 2 RJ45 1GbE LAN ports (Intel® i210-AT), 1 dedicated IPMI port
  • 1 VGA, 2 COM, 2 USB 3.0 (rear), 2 USB 2.0 (rear)
  • 2 SuperDOM ports with built-in power; TPM header
  • 350W Platinum Level Power Supply
X11SSH-LN4F + • SC813MFTQC-350CB
  • SMB, Web hosting, File/Print, Network-Centric, Domain Controller
  • Single Socket H4 (LGA 1151) supports: Intel® Xeon® processor E3-1200 v6/v5 family, Intel® 7th/6th Gen Core i3 series processor, Intel® Celeron® and Intel® Pentium processors
  • Intel® C236 chipset
  • 4x 3.5" Hot-swap SATA3 bays w/ RAID
  • 1 PCI-E 3.0 x8 (in x16) AOC Slot; 1 M.2 connector
  • Up to 64GB DDR4 2400MHz ECC UDIMMs in 4 sockets
  • 4 RJ45 1GbE LAN ports (Intel® i210-AT)
  • Integrated IPMI 2.0 with KVM and Dedicated LAN
  • 1 VGA, 2 COM, 2 USB 3.0 (front/rear), 2 USB 2.0 (rear)
  • 2 SuperDOM ports with built-in power; TPM header
  • 350W Platinum Level Power Supply
X11SSH-F + • SC813MFTQC-R407B
  • HA, Web hosting, File/Print, Mission-Critical, Light load VM
  • Single Socket H4 (LGA 1151) supports: Intel® Xeon® processor E3-1200 v6/v5 family, Intel® 7th/6th Gen Core i3 series processor, Intel® Celeron® and Intel® Pentium processors
  • Intel® C236 chipset
  • 4x 3.5" Hot-swap SATA3 bays w/ RAID
  • 1 PCI-E 3.0 x8 (in x16) AOC Slot; 1 M.2 connector
  • Up to 64GB DDR4 2400MHz ECC UDIMMs in 4 sockets
  • 2 RJ45 1GbE LAN ports (Intel® i210-AT)
  • Integrated IPMI 2.0 with KVM and Dedicated LAN
  • 1 VGA, 2 COM, 2 USB 3.0 (front/rear), 2 USB 2.0 (rear)
  • 2 SuperDOM ports with built-in power; TPM header
  • 400W Platinum Level Redundant Power Supplies w/ BBP® option
X11SSH-TF + • SC813MTQ-350CB
  • Storage HN, VM, Web hosting, Small File Server, Entry Caching
  • Single Socket H4 (LGA 1151) supports: Intel® Xeon® processor E3-1200 v6/v5 family, Intel® 7th/6th Gen Core i3 series processor, Intel® Celeron® and Intel® Pentium processors
  • Intel® C236 chipset
  • 4x 3.5" Hot-swap SATA3 bays w/ RAID
  • 1 PCI-E 3.0 x8 AOC Slot
  • Up to 64GB DDR4 2400MHz ECC UDIMMs in 4 sockets
  • 2 RJ45 10GBase-T LAN ports (Intel® X550)
  • Integrated IPMI 2.0 with KVM and Dedicated LAN
  • 1 VGA, 2 COM, 2 USB 3.0 (front/rear), 2 USB 2.0 (rear)
  • 2 SuperDOM ports with built-in power; TPM header
  • 350W Platinum Level Power Supply
X11SSW-F + • SC815TQC-R504WB
  • HA, VM, Communication, WIO, Flexible I/O
  • Single Socket H4 (LGA 1151) supports: Intel® Xeon® processor E3-1200 v6/v5 family, Intel® 7th/6th Gen Core i3 series processor, Intel® Celeron® and Intel® Pentium processors
  • Intel® C236 chipset
  • 4x 3.5" Hot-swap SATA3 bays w/ RAID
  • 2 PCI-E 3.0 x8, 1 PCI-E 3.0 x4 (in x8) AOC Slot; 1 M.2 connector
  • Up to 64GB DDR4 2400MHz ECC UDIMMs in 4 sockets
  • 2 RJ45 1GbE LAN ports (Intel® i210-AT)
  • Integrated IPMI 2.0 with KVM and Dedicated LAN
  • 1 VGA, 2 COM, 2 USB 3.0 (rear), 2 USB 2.0 (rear)
  • 2 SuperDOM ports with built-in power; TPM header
  • 500W (1+1) Redundant High-efficiency Power Supplies
  • File server/ Entry Storage, Local Cloud and Web Hosting, Mainstream
  • Single socket H4 (LGA 1151) supports Intel® Xeon® E-2100 and E-2200 processors, 8th Gen. Intel® Core™ i3/Pentium®/Celeron®; Intel ® C242 chipset
  • Up to 64GB unbuffered ECC UDIMM, DDR4-2666MHz, in 2 DIMM slots
  • 2x 1GbE LAN ports (Intel i210-AT)
  • 1 PCI-E 3.0 x16 slot, for low-profile AOC
  • 4 Hot-swap 3.5" drive bays, 2 Fixed 2.5" drive bays
  • 1 M.2 (M-key, 2280) via PCI-E 3.0 x4 or SATA 3.0
  • 2 USB 3.1 Gen1 (front), 2 USB 3.1 Gen1 (rear), 2 USB 2.0 ports (rear)
  • 1 VGA port, 1 COM, 1 TPM 2.0 (header)
  • 250W Bronze Level power supply
WIO, Flexible I/O, UP • 8 Hot-swap 3.5" bays
  • Database Processing and Storage, Connectivity/Storage Computer Nodes, Data Warehouse
  • Single Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors
  • 6 DIMMs; up to 1.5TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • 8 Hot-swap 3.5" drive bays, 1 Slim DVD-ROM bay, M.2 mini-PCI-e support
  • 4 PCI-E 3.0 x8 (FHFL) slots, 1 PCI-E 3.0 x8 (LP) slot
  • 2x 10GBase-T ports via Intel X557, 1 Dedicated IPMI port
  • 1 VGA, 1 COM, 2 USB 3.0 (rear), 2 USB 2.0 (rear)
  • 3 Hot-swap 8cm PWM cooling fans
  • 500W Redundant Platinum Level Power Supplies
X11SSV-Q + • SC721TQ-250B
  • Embedded, database processing & storage, high performance NAS, security appliance, video surveillance, small and medium business
  • Single Socket H4 (LGA 1151) supports: Intel® 7th/6th Gen Core i3/i5/i7 series processor, Intel® Celeron® & Intel® Pentium processors
  • Intel® Q170 express chipset
  • 4 3.5" hot-swap + 2x 2.5" fixed drive bays
  • 1 slim DVD-ROM drive bay
  • 1 PCI-E 3.0 x16 (in x16) LP slot, 1 M.2 (Mkey 2242/80 PCI-E 3.0 x4), 1 Mini-PCI-E with mSATA support
  • Up to 32GB DDR4 2400MHz Non-ECC Unbuf. SO-DIMMs in 2 sockets
  • 2 RJ45 GbE LAN ports (Intel® i210-AT & i219LM)
  • 1 HDMI, 1 DP, 1 DVI-D, Intel HD graphics, 3 Independent Displays
  • 2 COM, 4 USB 3.0 (rear), 2 USB 2.0 (front), 1 USB 2.0 (Type A)
  • 1 SuperDOM, ALC 888S HD Audio
  • 250W Bronze Level Power Supply
  • Designed for Content Creation, Engineering and  Scientific applications
  • Single socket R4 supports Intel® Xeon® processor W Family; Intel® C422 Chipset
  • 4 Fixed 3.5" drive bays; 2 optional 5.25" Peripheral drive bays
  • 3 PCI-E 3.0 x16, 1 PCI-E 3.0 x4 slots, 2 U.2, 2 M.2 M key
  • Up to 512GB Registered ECC LRDIMMs, up to DDR4-2666MHz; in 8 DIMM slots
  • Dual GbE LAN ports
  • 6 SATA3 ports via PCH; RAID 0, 1, 5, 10
  • 2 USB 3.1 (2 Type A), 6 USB 3.0 (4 rear, 2 headers), 6 USB 2.0 (2 rear, 4 headers)
  • ALC 1220 7.1 HD Audio
  • 1x 12cm front cooling fan
  • 900W High Efficiency Power Supply
X11SAE + • SC732D4-500B
  • CAD/CAM/CAE, Digital Imaging, Entry-Level Worksation, Medical Applications, Oil & Gas, Simulation & Automation
  • Single Socket H4 (LGA 1151) supports: Intel® Xeon® processor E3-1200 v6/v5 family, Intel® 7th/6th Gen Core i7/i5/i3 series processors
  • Intel® C236 Chipset
  • 4x 3.5" internal SATA HDD Bays, 90° rotatable HDD cage design, 4x 2.5" internal SATA HDD Bays (opt.)
  • 2 PCI-E 3.0 x16, 2 PCI-E 3.0 x1 (in x4), and 2 PCI 32-bit slots
  • Up to 64GB DDR4 2400MHz ECC UDIMMs in 4 sockets
  • Dual GbE LAN ports (1 via Intel® i219LM + 1 via Intel® i210-AT)
  • 8 SATA3 (6Gbps) from Intel® C236; RAID 0, 1, 5, 10
  • 6 USB 3.0 (2 rear, 4 via headers), 8 USB 2.0 (2 rear, 6 via headers), 2 USB 3.1 (rear)
  • Audio: RealTek ALC888S HD Audio; Video: Aspeed AST2400
  • 500W High-efficiency Power Supply
  • Entry-Level Server for SOHO, SMB, Remote access for mobile users, Data sharing/storage and Centralized backup
  • Single socket H4 (LGA 1151) supports Intel® Xeon® E-2100 and E-2200 processors, 8th Gen. Intel® Core™ i3/Pentium®/Celeron®; Intel ® C242 chipset
  • Up to 128GB unbuffered ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots
  • 2x 1GbE LAN ports (Intel i210-AT)
  • 1 PCI-E 3.0 x8 (in x16) slot, 2 PCI-E 3.0 x4 (in x8) slots
  • 4 Fixed 3.5" drive bays, 2 External 5.25" peripheral bays
  • 1 M.2 (M-Key, 22110/2280) via PCI-E 3.0 x4
  • 2 USB 3.1 Gen1 (front), 2 USB 3.1 Gen1 (rear), 2 USB 2.0 (rear)
  • 1 VGA port, 1 COM, 1 TPM 2.0 (header)
  • 400W Gold Level power supply
  • Entry-Level Worksation, CAD/CAM/CAE, Digital Imaging, 3D Simulation and Rendering, Cost effective UP platform
  • Single socket H4 (LGA 1151) supports Intel® Xeon® E-2100 and E-2200 processors, 8th Gen. Intel® Core™ i3 processors, Intel® Celeron®, Intel® Pentium®
  • Up to 64GB ECC/non-ECC UDIMM in 4 DIMM slots
  • 2x 1GbE LAN ports (Intel i210-AT and Intel PHY I219LM)
  • 4 Fixed 3.5" and 4 optional 2.5" drive bays, 2 standard 5.25" peripheral drive bays, 1 Internal 3.5" fixed device bay
  • 2 PCI-E 3.0 x16 (NA/16 or 8/8), 1 PCI-E 3.0 x4, 1 PCI-E 3.0 x1, 1 PCI 32bit 5V
  • 2 M.2 (M key, 2260/2280/22110), 1 U.2 for optional expanded storages
  • 2 USB Type A & Type C, 4 USB 3.1 Gen1 (2 rear + 2 front), 2 USB 2.0 (front)
  • 1 HDMI 2.0a port, 1 DVI-D port, 1 DP 1.2 port, 1 TPM header, 1 COM header, 7.1 HD Audio
  • 500W Bronze Certified High Efficient power supply
X11SSL-F + • SC731i-300B
  • Application and data serving, CAD/CAM/CAE, Medical Applications, Oil & Gas, SOHO Entry-Level Server
  • Single Socket H4 (LGA 1151) supports: Intel® Xeon® processor E3-1200 v6/v5 family, Intel® 7th/6th Gen Core i7/i5/i3 series processor, Intel® Celeron® and Intel® Pentium processors
  • Intel® C232 Chipset
  • 4x 3.5" Fixed drive bays, 2x 5.25" drive bays
  • 1 PCI-E 3.0 x8 (in x16), 1 PCI-E 3.0 x8, 1 PCI-E 3.0 x4 (in x8)
  • Up to 64GB DDR4 2400MHz ECC UDIMMs in 4 sockets
  • 2 RJ45 1GbE LAN ports (Intel® i210-AT)
  • Integrated IPMI 2.0 with KVM and Dedicated LAN
  • 6 SATA3 (6Gbps) ports; RAID 0, 1, 5, 10
  • 5 USB 3.0 (2 rear, 2 via header, 1 Type A)
  • 6 USB 2.0 (2 rear, 4 via header)
  • Video: Aspeed AST2400 BMC
  • 300W High-efficiency Power Supply
  • Cloud Computing, Web Cache, Web Hosting, VM, Social Networking, Corporate-WINS
  • Single socket H4 (LGA 1151) supports Intel® Xeon® E-2100 and E-2200 processors, 8th Gen. Intel® Core™ i3/Pentium®/Celeron®; Intel ® C246 chipset
  • Up to 128GB unbuffered ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots
  • 2x 1GbE LAN ports (Intel i350)
  • 1 Micro-LP slot (MicroLP upgradable)
  • Drive options: 2x 3.5" SATA3 or 4x 2.5" SATA3 drives or
  • 2x 2.5" NVMe + 2x 2.5" SATA3 drives or 2x 2.5" NVMe + 1x 3.5" SATA3 drive
  • M.2: 1 PCI-E 3.0 x4, 2280/22110, M-Key
  • 1 VGA port, 1 TPM 2.0 (header)
  • 4x 9cm Heavy duty fans with optimal cooling zone (per system)
  • 2000W Redundant Titanium Level power supplies
  • Cloud Computing, Web Cache, Web Hosting, VM, Social Networking, Corporate-WINS
  • Single socket H4 (LGA 1151) supports Intel® Xeon® E-2100 and E-2200 processors, 8th Gen. Intel® Core™ i3/Pentium®/Celeron®; Intel ® C246 chipset
  • Up to 128GB unbuffered ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots
  • 2x 1GbE LAN ports (Intel i350)
  • 1 PCI-E 3.0 LP slot, 1 Micro-LP slot (MicroLP upgradable)
  • Drive options: 2x 3.5" SATA3 or 2x 2.5" SATA3 drives (with optional kits)
  • M.2: 2 PCI-E 3.0 x4, 2280/22110, M-Key
  • 1 VGA port, 1 TPM 2.0 (header)
  • 4x 8cm Heavy duty fans with optimal cooling zone (per system)
  • 2000W Redundant Titanium Level power supplies
  • Cloud computing, dynamic web serving, dedicated hosting, content delivery network, memory caching, and corporate applications
  • 8 modular UP Nodes in 3U; EACH NODE:
  • Intel® Xeon® processor D-2191 SoC, 18-Cores, 36 Threads, 86W
  • Up to 512GB ECC LRDIMM, up to 256GB ECC RDIMM DDR4-2400MHz in 4 DIMM slots
  • 2 GbE LAN ports and 1 dedicated LAN supports IPMI 2.0
  • 2x 3.5" SATA3 or 2x 2.5" Hybrid SATA3/NVMe w/ optional kits
  • 1 PCI-E 3.0 x16, 1 Micro-LP, and 2 M.2
  • 1600W Redundant Titanium Level Power Supplies
  • Cloud computing, dynamic web serving, dedicated hosting, content delivery network, memory caching, and corporate applications
  • 8 modular UP Nodes in 3U; EACH NODE:
  • Intel® Xeon® processor D-2141i SoC, 8-Cores, 16 Threads, 65W
  • Up to 512GB ECC LRDIMM, up to 256GB ECC RDIMM DDR4-2133MHz in 4 DIMM slots
  • 2 GbE LAN ports and 1 dedicated LAN supports IPMI 2.0
  • 2x 3.5" SATA3 or 2x 2.5" Hybrid SATA3/NVMe w/ optional kits
  • 1 PCI-E 3.0 x16, 1 Micro-LP, and 2 M.2
  • 1600W Redundant Titanium Level Power Supplies
  • 12 modular UP Nodes in 3U; EACH NODE:
  • Intel® Xeon® processor E3-1200 v6/v5 family; socket H4 (LGA 1151)
  • Intel® C236 chipset
  • Up to 64GB UDIMM, up to 2400MHz DDR4 VLP ECC memory support
  • Flexible storage options: 2x 3.5" SATA3 or 4x 2.5" SATA3 or 2x 2.5" NVMe + 2x 2.5" SATA3 or 2x 2.5" NVMe + 1x 3.5" SATA3
  • 2 GbE LAN ports and 1 dedicated LAN supports IPMI 2.0
  • 2 USB 2.0, 1 VGA, 1 COM port (w/ KVM dongle); 1 USB 3.0 (Type A), 1 SATA DOM
  • 1 Micro-LP
  • 4x 9cm heavy-duty PWM fans with optimal cooling zone
  • 2000W Redundant Titanium Level Power Supplies
  • 8 modular UP Nodes in 3U; EACH NODE:
  • Intel® Xeon® processor E3-1200 v6/v5 family; socket H4 (LGA 1151)
  • Intel® C236 chipset
  • Up to 64GB UDIMM, up to 2400MHz DDR4 ECC memory support
  • 2x 3.5" SATA3 (default) or 2x 2.5" SATA3 HDDs with optional kits
  • 2 GbE LAN ports and 1 dedicated LAN supports IPMI 2.0
  • 2 USB 2.0, 1 VGA, 1 COM port (w/ KVM dongle), 1 SATA DOM
  • 1 PCI-E 3.0 x8 and 1 Micro-LP
  • 4x 8cm heavy-duty PWM fans with optimal cooling zone
  • 1600W Redundant Titanium Level Power Supplies
  • Single Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors
  • 12 DIMMs; up to 3TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 8 Hot-swap 3.5" SAS3/SATA3 drive bays (SATA3 by default) with SGPIO
  • 4 PCI-E 3.0 x16, 3 PCI-E 3.0 x8 (in x16) slots
  • 1x 10GBase-T and 1x 1GbE port, 1 dedicated IPMI port
  • 1 VGA, 1 COM, 6 USB 3.1 Gen1, 4 USB 3.1 Gen2, M.2, 7.1 HD Audio
  • 2 Super quiet PWM fans and 1 Super quiet rear fan
  • 1200W Platinum Level Power Supply

*Contact your Supermicro sales rep for more info.

  • Single Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors, Intel® Xeon® W-32xx processors
  • 12 DIMMs; up to 3TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 8 Hot-swap 3.5" SAS3/SATA3 drive bays (SATA3 by default) with SGPIO
  • 4 PCI-E 3.0 x16, 3 PCI-E 3.0 x8 (in x16) slots
  • 1x 10GBase-T and 1x 1GbE port, 1 dedicated IPMI port
  • 1 VGA, 1 COM, 6 USB 3.1 Gen1, 4 USB 3.1 Gen2, M.2, 7.1 HD Audio
  • 4 hot-swap 92mm fans and 2 rear hot-swap 80mm exhaust PWM fans
  • 2200W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.
Xeon® W-3200 doesn't support DCPMM.

Short Depth (19.98") • Data Center Optimized
  • 1U Data Center Optimized Server, Short-Depth
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 8 DIMMs; up to 2TB 3DS ECC DDR4-2933 MHz L/RDIMM
  • 4 Hot-swap 3.5" SATA3 drive bays
  • 1 PCI-E 3.0 x8 (FHHL) slot
  • 2x 1GbE ports, 1 Dedicated IPMI port, 1 VGA, 2 USB 2.0
  • 4x 4cm 22.5K RPM middle cooling fans
  • 500W Platinum Level Power Supply
Short Depth (19.98") • Data Center Optimized
  • 1U Data Center Optimized Server, Short-Depth
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 8 DIMMs; up to 2TB 3DS ECC DDR4-2933 MHz L/RDIMM
  • 4 Hot-swap 3.5" SATA3 drive bays
  • 1 PCI-E 3.0 x8 (FHHL) slot
  • 2x 1GbE ports, 1 Dedicated IPMI port, 1 VGA, 2 USB 2.0
  • 4x 4cm 22.5K RPM middle cooling fans
  • 800W Redundant Platinum Level Power Supplies
WIO, Flexible I/O • 4 Hot-swap 3.5" bays
  • Web Server, FireWall Applications, DNS, Print, Login, Gateway, Compact Network Appliance, Cloud Computing
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 12 DIMMs; up to 3TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 4 Hot-swap 3.5" drive bays
  • 2 PCI-E 3.0 x16 (FHHL), 1 PCI-E 3.0 x8 (LP), 1 PCI-E 3.0 x16 for AOM, 1 PCI-E 3.0 x4 NVMe M.2 slot
  • 2x 1GbE ports via Intel C621, 1 Dedicated IPMI port
  • 1 VGA, 4 USB 3.0 (rear)
  • 4 Counter-rotating 4cm PWM cooling fans
  • 600W Multi Output Platinum Level Power Supply

*Contact your Supermicro sales rep for more info.

WIO, Flexible I/O • 8x 3.5" + 2x 2.5" bays
  • Web Server, FireWall Applications, DNS, Print, Login, Gateway, Compact Network Appliance, Cloud Computing
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 12 DIMMs; up to 3TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 8 Fixed 3.5" + 2 Fixed 2.5" drive bays
  • 2 PCI-E 3.0 x16 (FHHL), 1 PCI-E 3.0 x8 (LP), 1 PCI-E 3.0 x16 for AOM, 1 PCI-E NVMe M.2 SSD
  • 2x 1GbE ports via Intel C621, 1 Dedicated IPMI port
  • 1 VGA, 4 USB 3.0 (rear)
  • 6 Counter-rotating 4cm PWM cooling fans
  • 650W/600W Multi-output Platinum Level Power Supply

*Contact your Supermicro sales rep for more info.

WIO, Flexible I/O • 4 Hot-swap 3.5" bays
  • Web Server, FireWall Applications, DNS, Print, Login, Gateway, Compact Network Appliance, Cloud Computing
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 12 DIMMs; up to 3TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 4 Hot-swap 3.5" drive bays
  • 2 PCI-E 3.0 x16 (FHHL), 1 PCI-E 3.0 x8 (LP), 1 PCI-E 3.0 x16 for AOM, 1 PCI-E 3.0 x4 NVMe M.2 slot
  • 2x 1GbE ports via Intel C621, 1 Dedicated IPMI port
  • 1 VGA, 4 USB 3.0 (rear)
  • 4 Counter-rotating 4cm PWM cooling fans
  • 750W Redundant Platinum Level Power Supplies

*Contact your Supermicro sales rep for more info.

BigTwin™ • 3 NVMe/SAS3 + 3 SAS3 per Node
  • 2 DP nodes in 2U; depth 30.11", Each Node:
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processor; dual UPI up to 10.4GT/s
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 3 NVMe/SAS3 + 3 SAS3 Hot-swap 3.5" drive bays per node, 2 Internal M.2 NVMe/SATA slots
  • SAS3 support via Broadcom 3008; IT mode
  • 2 PCI-E 3.0 x8, 1 PCI-E 3.0 x16, 1 Networking SIOM card support
  • 1 Dedicated IPMI port, 1 VGA, 2 USB 3.0, 1 SuperDOM
  • 4 heavy duty 80mm fans w/ optimal fan speed control
  • 2200W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

BigTwin™ • 3 NVMe/SAS3 per Node
  • 4 DP nodes in 2U; depth 30.11", Each Node:
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 3 Hot-swap NVMe/SAS3 drive bays per node
  • SAS3 support via Broadcom 3008; IT mode
  • 2 PCI-E 3.0 x16 Low-profile slots, 1 Networking SIOM card support
  • 1 Dedicated IPMI port, 1 VGA, 2 USB 3.0, 1 SuperDOM
  • 4 heavy duty 80mm fans w/ optimal fan speed control
  • 2200W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

Mainstream • Cost Effective
  • Cloud, Virtualization, Compute Intensive App, DB Processing/Storage, High Availability Storage, Hosting & Application Delivery
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 16 DIMMs; up to 4TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 8 Hot-swap 3.5" SATA3 drive bays, 2 Optional fixed NVMe drives
  • 4 PCI-E 3.0 x16 and 2 PCI-E 3.0 x8 Low-profile slots
  • 2x 10GBase-T (-TRT) / 1GbE (-TR) ports, 1 Dedicated IPMI port
  • 1 VGA, 2 COM, 2 USB 3.0, 4 USB 2.0, 1 Type A, 1 M.2 support
  • 3 heavy duty 80mm fans with PWM fan speed control
  • 1000W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

WIO, Flexible I/O • 8 Hot-swap 3.5" and • 2 Fixed 3.5" bays
  • Web Server, FireWall Applications, DNS, Print, Login, Gateway, Compact Network Appliance, Cloud Computing
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 12 DIMMs; up to 3TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 8 Hot-swap 3.5" drive bays with SGPIO, 2 Fixed 3.5" drive bays
  • 4 PCI-E 3.0 x8 (FHHL), 2 PCI-E 3.0 x8 (LP), 1 PCI-E 3.0 x16 for AOM, 1 PCI-E 3.0 x4 NVMe M.2 slot
  • 2x 1GbE ports via Intel C621, 1 Dedicated IPMI port
  • 1 VGA, 4 USB 3.0 (rear)
  • 3 high-performance 8cm heavy duty PWM fans
  • 1000W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

WIO, Flexible I/O • 12 Hot-swap 3.5" bays
  • Web Server, FireWall Applications, DNS, Print, Login, Gateway, Compact Network Appliance, Cloud Computing
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 12 DIMMs; up to 3TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 12 Hot-swap 3.5" drive bays with SES2 and Mini-i-Pass: 8 SATA3 + 4 NVMe/SATA3 hybrid ports
  • 1 PCI-E 3.0 x16 (FHHL), 2 PCI-E 3.0 x8 (FHHL), 2 PCI-E 3.0 x8 (LP), 1 PCI-E 3.0 x16 for AOM, 1 PCI-E 3.0 x4 NVMe M.2 slot
  • 2x 10GBase-T ports via Intel C622, 1 Dedicated IPMI port
  • 1 VGA, 4 USB 3.0 (rear)
  • 3 high-performance 8cm heavy duty PWM fans
  • 1200W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

  • 2 DP nodes in 2U; depth 28.5", Each Node (x2 nodes):
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; Dual UPI up to 10.4GT/s
  • 8 DIMMs; up to 2TB 3DS ECC DDR4-2933 MHz L/RDIMM
  • 2 PCI-E 3.0 x8 (FHHL) or 1 PCI-E 3.0 x8 (FHHL) + 1 PCI-E 3.0 x4 (FHHL) + 1 PCI-E 3.0 x4 (LP) (8/8/0 or 8/4/4)
  • 6 Hot-swap 3.5" SATA3 drive bays
  • 2x 1GbE LAN ports, 1 dedicated IPMI port
  • I/O ports: 2 USB 3.0, 1 VGA, 1 COM, TPM 2.0 header
  • 4 heavy duty fans w/ optimal fan speed control
  • 1200W Redundant Titanium Level (96%) Power Supplies
  • 4 DP nodes in 2U, depth 28.5", Each Node (x4 nodes):
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; Dual UPI up to 10.4GT/s
  • 8 DIMMs; up to 2TB 3DS ECC DDR4-2933 MHz L/RDIMM
  • 1 PCI-E 3.0 x16 (LP) slot
  • 3 Hot-swap 3.5" SATA3 drive bays
  • 2x 1GbE LAN ports, 1 dedicated IPMI port
  • I/O ports: 2 USB 3.0, 1 VGA, 1 COM, TPM 2.0 header
  • 4 heavy duty fans w/ optimal fan speed control
  • 1600W Redundant Titanium Level (96%) Power Supplies
11 PCI-E Slots • 8 Hot-swap 3.5", 2 Peripheral 5.25"
  • 3U Max I/O Server - Expansion / Performance / Flexibility
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
  • 8 Hot-swap 3.5" SATA3 drive bays and 2 Peripheral 5.25" bays
  • 16 DIMMs; up to 4TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 2 PCI-E 3.0 x16 (HSSI), 2 PCI-E 3.0 x16 (or 4 PCI-E x8), 4 PCI-E 3.0 x8 , 1 PCI-E 3.0 x4 (in x8 slot)
  • 1 PCI-E 3.0 x4 M.2 2280 slot from PCH
  • 2 GbE, 1 Video, 2 COM, 4 USB 3.0 (2 rear, 2 via header), 4 USB 2.0 (2 rear, 2 via header), 1 Type A
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 3x 80mm middle fans and 1x 80mm fear exhaust fan
  • 980W Redundant Platinum Level Power Supplies

*Contact your Supermicro sales rep for more info.

Up to 20 single-width GPUs
  • AI/Deep Learning, Video Transcoding
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 24 Hot-swap 3.5" drive bays, 2 optional 2.5" U.2 NVMe drives
  • 20 PCI-E 3.0 x16 slots, 1 PCI-E 3.0 x8 (FHFL, in x16 slot)
  • 2x 10GBase-T ports via Intel C622, 1 Dedicated IPMI port
  • 1 VGA, 1 COM, 4 USB 3.0 (rear)
  • 8x 92mm RPM Hot-Swappable Cooling Fans
  • 2000W (2+2) Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

Up to 2 GPUs • 7.1 HD Audio
  • CAD/CAM/CAE, 3D Rendering, Digital Content Creation, Oil and Gas Simulation, Research lab/National Lab
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 16 DIMMs; up to 4TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 4x 3.5" drive bays supported by 90° rotating hard drive cage
  • Optional 4x 2.5" internal drive bays (supports 2 NVMe via opt. cables)
  • 2x 5.25" Peripheral drive bays
  • 4 PCI-E 3.0 x16, 2 PCI-E x8
  • 2x 1GbE, 1 shared IPMI port
  • 1 VGA, 1 COM, 6 USB 3.0, 2 USB 3.1, M.2, 7.1 HD Audio
  • 1 rear 12cm exhaust fan, 1 front 12cm cooling fan
  • 1200W Platinum Level Power Supply

*Contact your Supermicro sales rep for more info.

Up to 2 GPUs • 7.1 HD Audio
  • CAD/CAM/CAE, 3D Rendering, Digital Content Creation, Oil and Gas Simulation, Research lab/National Lab
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 16 DIMMs; up to 4TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 8 Hot-swap 3.5" drive bays (SATA3 by default, SAS3 via opt. AOC, 2 NVMe support with optional cables)
  • 4 PCI-E 3.0 x16, 2 PCI-E x8
  • 2x 1GbE ports, 1 shared IPMI port
  • 1 VGA, 1 COM, 6 USB 3.0, 2 USB 3.1, M.2, 7.1 HD Audio
  • 2 Super quiet PWM fans and 1 Super quiet rear fan
  • 1200W Platinum Level Power Supply

*Contact your Supermicro sales rep for more info.

Up to 4 GPUs
  • GPU Server, Mission-critical app., enterprise server, large database, e-business, on-line transaction processing, oil & gas, medical app.
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
  • 16 DIMMs; up to 4TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 8 Hot-swap 3.5" drive bays (2 SATA3 ports by default)
  • 4 PCI-E 3.0 x16 (double-width), 2 PCI-E 3.0 x16 (single-width), 1 PCI-E x4 (in x8) slots
  • 2x 10GBase-T ports via Intel X550, 1 Dedicated IPMI port
  • 1 VGA, 2 COM, 4 USB 3.0 (front/rear), 2 USB 2.0, 7.1 HD Audio
  • 4 heavy duty fans, 4 exhaust fans, 2 active heat sinks with optimal fan speed control
  • 2200W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

8 Hot-swap 3.5" Bays • 3 Peripheral 5.25" bays • Cost Effective
  • 4U Mainstream Server for Virtualization and Multi Tasking
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 16 DIMMs; up to 4TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 8 Hot-swap 3.5" SATA3 drive bays, 3 Peripheral 5.25" bays, 2 opt. fixed 2.5" SATA, SSD/NVMe
  • 4 PCI-E 3.0 x16 and 2 PCI-E 3.0 x8 slots
  • 2x 10GBase-T (-TRT) / 1GbE (-TR) ports, 1 Dedicated IPMI port
  • 1 VGA, 1 COM, 2 USB 3.0, 4 USB 2.0, 1 Type A, 1 M.2 support
  • 3 Hot-swap PWM cooling fans and 2 Hot-swap rear fans
  • 1280W Redundant Platinum Level Power Supplies

*Contact your Supermicro sales rep for more info.

7U 8-Way • 224 Cores per System • 96 DDR4 DIMMs
  • In-Memory Database Application, Research lab/National Lab, Scale-up HPC, Virtualization, ERP, CRM
  • Octa Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 8S-3 UPI up to 10.4GT/s
  • Up to 23 or 39 (OEM) PCI-E 3.0 slots, 32 U.2 NVMe support opt. available
  • 96 DIMMs; up to 24TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM using 8x X11OPi-CPU modules
  • Supports Intel® Optane™ DCPMM*
  • 16 Hot-swap 2.5" SAS3 drive bays (w/ RAID cards); 8x 2.5" or 6x 3.5" internal drive bays (w/ RAID cards)
  • 4x 10GBase-T via SIOM, 1 dedicated IPMI
  • 1 VGA, 1 COM, 2 USB 2.0 (rear)
  • 8x 9cm 10.5K-10.8K RPM Hot-Swap Counter-rotating Rear Fans
  • 5x 1600W (N+2) Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

4-Way MP • 112 Cores per System • 48 DDR4 DIMMs
  • High Throughput Ingest, High Density Hot Storage, HPC / Data Analytics, Media/Video Streaming, Content Delivery Network (CDN), Big Data Top of Rack
  • Quad Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
  • 6 PCI-E 3.0 x16 slots, 10 PCI-E 3.0 x8 slots (Up to 6 double width passive GPUs)
  • 48 DIMMs; up to 12TB 3DS ECC DDR4 2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 24 Hot-swap 3.5" SAS3/SATA3 drive bays via opt. RAID card; 8 Hybrid ports with NVMe support via opt. AOC
  • 4x 10GBase-T via AOC, 1 dedicated IPMI
  • 1 VGA, 1 COM, 2 USB 3.0 (rear)
  • 8x 9cm heavy duty fans with speed control
  • 1600W (3+1) Redundant Platinum Level Power Supplies

*Contact your Supermicro sales rep for more info.

Up to 16 V100 SXM3 GPUs
  • AI/Deep Learning, High-performance Computing
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 16 Hot-swap 2.5" NVMe drive bays, 6 Hot-swap 2.5" SATA3 drive bays
  • 16 PCI-E 3.0 x16 slots for RDMA via IB EDR, 2 PCI-E 3.0 x16 on board
  • 2x 10GBase-T ports via Intel X540, 1 Dedicated IPMI port
  • 1 VGA, 1 COM, 2 USB 3.0 (front)
  • 6x 80mm hot-swap PWM Fans, 8x 92mm Hot-swap Fans
  • 6x 3000W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

  • Network Security Appliance, SDN-WAN, vCPE controller box, NFV Edge Computing Server, Virtualization Server, IoT Edge Computing / Gateway
  • Intel® Xeon® processor D-2123IT SoC, 4-Cores, 8 Threads, 60W
  • Up to 512GB ECC LRDIMM or 256GB ECC RDIMM DDR4-2666MHz in 4 DIMM slots
  • 2x 10GBase-T LAN and 1 dedicated LAN for IPMI 2.0
  • 1 Internal 2.5" drive bay
  • 1 onboard OCuLink port (or 1 PCI-E 3.0 x4 NVMe), 1 PCI-E 3.0 x8 (LP) open slot
  • 2 USB 3.0, 1 VGA, 1 TPM 2.0 header
  • 120W Lockable DC Power Adapter
  • Multi-Access Edge Computing (MEC), Universal Customer Premise Equipment (uCPE), Network Function Virtualization (NFV), Edge Computing, Vehicle to Everything Application (C-V2X / V2X)
  • Intel® Xeon® processor D-2163IT SoC, 12-Cores, 24 Threads, 75W
  • Up to 512GB ECC LRDIMM or 256GB ECC RDIMM DDR4 2133MHz in 4 DIMM slots
  • 9x 1GbE (1 port used for management), 2x 10GBase-T, 2x 10G SFP+ and 1 dedicated LAN for IPMI 2.0
  • 4 Internal 2.5" drive bays
  • 1 M-Key: 2280/22110, 1 E-Key: 2230, 1 B-Key: 3042
  • 2 PCI-E 3.0 x16 slots or 2 PCI-E 3.0 x8 + 1 PCI-E 3.0 x16 (FH3/4L) slots
  • 2 USB 3.0, 2 USB 2.0, 1 COM via RJ45, VGA (option)
  • 600W Multi-output Gold Level Power Supply
  • Multi-Access Edge Computing (MEC), Universal Customer Premise Equipment (uCPE), Network Function Virtualization (NFV), Edge Computing, Vehicle to Everything Application (C-V2X / V2X)
  • Intel® Xeon® processor D-2173IT SoC, 14-Cores, 28 Threads, 70W
  • Up to 512GB ECC LRDIMM or 256GB ECC RDIMM DDR4 2133MHz in 4 DIMM slots
  • 9x 1GbE (1 port used for management), 2x 10GBase-T, 2x 10G SFP+ and 1 dedicated LAN for IPMI 2.0
  • 4 Internal 2.5" drive bays
  • 1 M-Key: 2280/22110, 1 E-Key: 2230, 1 B-Key: 3042
  • 2 PCI-E 3.0 x16 slots or 2 PCI-E 3.0 x8 + 1 PCI-E 3.0 x16 (FH3/4L) slots
  • 2 USB 3.0, 2 USB 2.0, 1 COM via RJ45, VGA (option)
  • 600W Multi-output Gold Level Power Supply
  • Multi-Access Edge Computing (MEC), Universal Customer Premise Equipment (uCPE), Network Function Virtualization (NFV), Edge Computing, Vehicle to Everything Application (C-V2X / V2X)
  • Intel® Xeon® processor D-2177NT SoC, 14-Cores, 28 Threads, 105W
  • Up to 512GB ECC LRDIMM or 256GB ECC RDIMM DDR4 2133MHz in 4 DIMM slots
  • 9x 1GbE (1 port used for management), 2x 10GBase-T, 2x 10G SFP+ and 1 dedicated LAN for IPMI 2.0
  • 4 Internal 2.5" drive bays
  • 1 M-Key: 2280/22110, 1 E-Key: 2230, 1 B-Key: 2242/3042
  • 2 PCI-E 3.0 x16 slots or 2 PCI-E 3.0 x8 + 1 PCI-E 3.0 x16 (FH3/4L) slots
  • 2 USB 3.0, 2 USB 2.0, 1 COM via RJ45, VGA
  • 600W Multi-output Gold Level Power Supply
  • Multi-Access Edge Computing (MEC), Universal Customer Premise Equipment (uCPE), Network Function Virtualization (NFV), Edge Computing, Vehicle to Everything Application (C-V2X / V2X)
  • Intel® Xeon® processor D-2183IT SoC, 16-Cores, 32 Threads, 100W
  • Up to 512GB ECC LRDIMM or 256GB ECC RDIMM DDR4 2400MHz in 4 DIMM slots
  • 9x 1GbE (1 port used for management), 2x 10GBase-T, 2x 10G SFP+ and 1 dedicated LAN for IPMI 2.0
  • 4 Internal 2.5" drive bays
  • 1 M-Key: 2280/22110, 1 E-Key: 2230, 1 B-Key: 3042
  • 2 PCI-E 3.0 x16 slots or 2 PCI-E 3.0 x8 + 1 PCI-E 3.0 x16 (FH3/4L) slots
  • 2 USB 3.0, 2 USB 2.0, 1 COM via RJ45, VGA (option)
  • 600W Multi-output Gold Level Power Supply
SYS-E403-9D-4C-FN13TP (Coming Soon)
  • Multi-Access Edge Computing (MEC), Universal Customer Premise Equipment (uCPE), Network Function Virtualization (NFV), Edge Computing, Vehicle to Everything Application (C-V2X / V2X)
  • Intel® Xeon® processor D-2123IT SoC, 4-Cores, 8 Threads, 60W
  • Up to 512GB ECC LRDIMM or 256GB ECC RDIMM DDR4 2400MHz in 4 DIMM slots
  • 9x 1GbE (1 port used for management), 2x 10GBase-T, 2x 10G SFP+ and 1 dedicated LAN for IPMI 2.0
  • 4 Internal 2.5" drive bays
  • 1 M-Key: 2280/22110, 1 E-Key: 2230, 1 B-Key: 3042
  • 2 PCI-E 3.0 x16 slots or 2 PCI-E 3.0 x8 + 1 PCI-E 3.0 x16 (FH3/4L) slots
  • 2 USB 3.0, 2 USB 2.0, 1 COM via RJ45, VGA (option)
  • 600W Multi-output Gold Level Power Supply
  • Multi-Access Edge Computing (MEC), Universal Customer Premise Equipment (uCPE), Network Function Virtualization (NFV), Edge Computing, Vehicle to Everything Application (C-V2X / V2X)
  • Intel® Xeon® processor D-2146NT SoC, 8-Cores, 16 Threads, 80W
  • Up to 512GB ECC LRDIMM or 256GB ECC RDIMM DDR4 2400MHz in 4 DIMM slots
  • 9x 1GbE (1 port used for management), 2x 10GBase-T, 2x 10G SFP+ and 1 dedicated LAN for IPMI 2.0
  • 4 Internal 2.5" drive bays
  • 1 M-Key: 2280/22110, 1 E-Key: 2230, 1 B-Key: 3042
  • 2 PCI-E 3.0 x16 slots or 2 PCI-E 3.0 x8 + 1 PCI-E 3.0 x16 (FH3/4L) slots
  • 2 USB 3.0, 2 USB 2.0, 1 COM via RJ45, VGA (option)
  • 600W Multi-output Gold Level Power Supply
Front I/O, 8-Node, • Each: 2/4 Fixed 2.5" SATA3/ NVMe
  • FatTwin™ Server; EACH NODE (x8 Hot-plug System Nodes):
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 12 DIMMs; up to 3TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 2 or 4 Fixed 2.5" SATA3/NVMe drive bays
  • 1 PCI-E 3.0 x16 (LP), 1 PCI-E 3.0 x8 (LP), 1 PCI-E 3.0 x16 (SIOM)
  • SIOM flexible Network card, 1 Dedicated IPMI port
  • 1 VGA, 2 USB 3.0, 2 M.2 support
  • 8x 8cm 13.5k RPM rear fans
  • 2200W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

Rear I/O, 8-Node, Each: • 6 Hot-swap 2.5" SAS3/SATA3/NVMe opt.
  • FatTwin™ Server; EACH NODE (x8 Hot-plug System Nodes):
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 12 DIMMs; up to 3TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • Storage Options (all Hot-swap):
    • SYS-F619P2-RT – 6x 2.5" SATA3
    • SYS-F619P2-RTN – 6x 2.5" SATA3 or 2 SATA3 + 4 NVMe U.2
    • SYS-F619P2-RC0 – 6x 2.5" SAS3 or 2 SAS3 + 4 opt. NVMe U.2; SAS3 with Broadcom 3008
    • SYS-F619P2-RC1 – 6x 2.5" SAS3 or 2 SAS3 + 4 opt. NVMe U.2; SAS3 with Broadcom 3108
  • 1 PCI-E 3.0 x16 (LP), 1 PCI-E 3.0 x16 (SIOM)
  • SIOM flexible Network card, 1 Dedicated IPMI port
  • 1 VGA, 2 USB 3.0, 1 M.2 support
  • 3x 4cm 20k RPM middle fans
  • 2200W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

Rear I/O, 8-Node, Each: • 6 Hot-swap 2.5"
  • FatTwin™ Server; EACH NODE (x8 Hot-plug System Nodes):
  • Dual Socket P (LGA 3647) support:
  • 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 12 DIMMs; up to 3TB 3DS ECC DDR4-2933 MHz L/RDIMM, Up to 2TB Intel® DCPMM (Optane™)
  • Supports Intel® Optane™ DCPMM*
  • Storage Options (all Hot-swap):
    • SYS-F619P2-RTN – 6x 2.5" SATA3 or 2 SATA3 + 4 NVMe U.2
    • SYS-F619P2-RC0 – 6x 2.5" SAS3 or 2 SAS3 + 4 opt. NVMe U.2; SAS3 with Broadcom 3008
    • SYS-F619P2-RC1 – 6x 2.5" SAS3 or 2 SAS3 + 4 opt. NVMe U.2; SAS3 with Broadcom 3108
  • 1 PCI-E 3.0 x16 (LP), 1 PCI-E 3.0 x16 (SIOM)
  • SIOM flexible Network card, 1 Dedicated IPMI port
  • 1 VGA, 2 USB 3.0, 1 M.2 support
  • 3x 4cm 20k RPM middle fans
  • 2200W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

Front I/O, 8-Node, • Each: 2 Fixed 3.5" SATA3
  • FatTwin™ Server; EACH NODE (x8 Hot-plug System Nodes):
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 12 DIMMs; up to 3TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 2 Fixed 3.5" SATA3 drive bays
  • 1 PCI-E 3.0 x16 (LP), 1 PCI-E 3.0 x8 (LP), 1 PCI-E 3.0 x16 (SIOM)
  • SIOM flexible Network card, 1 Dedicated IPMI port
  • 1 VGA, 2 USB 3.0, 2 M.2 support
  • 8x 8cm 13.5k RPM rear fans
  • 2200W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

Rear I/O, 4-Node, Each: • 8 Hot-swap 3.5" SAS3/SATA3/NVMe opt.
  • FatTwin™ Server; EACH NODE (x4 Hot-plug System Nodes):
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 12 DIMMs; up to 3TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • Storage Options (all Hot-swap):
    • SYS-F629P3-RTB – 8x 3.5" SATA3
    • SYS-F629P3-RTBN – 8x 3.5" SATA3 or 6 SATA3 + 2 NVMe U.2
    • SYS-F629P3-RC0B – 8x 3.5" SAS3 or 6 SAS3 + 2 opt. NVMe U.2; SAS3 with Broadcom 3008
    • SYS-F629P3-RC1B – 8x 3.5" SAS3 or 6 SAS3 + 2 opt. NVMe U.2; SAS3 with Broadcom 3108
  • 1 PCI-E 3.0 x16 (LP), 1 PCI-E 3.0 x16 (SIOM)
  • SIOM flexible Network card, 1 Dedicated IPMI port
  • 1 VGA, 2 USB 3.0, 1 M.2 support
  • 2x 8cm 14k RPM middle fans
  • 1200W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

Rear I/O, 4-Node, Each: • 8 Hot-swap 3.5"
  • FatTwin™ Server; EACH NODE (x4 Hot-plug System Nodes):
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 12 DIMMs; up to 3TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • Storage Options (all Hot-swap):
    • SYS-F629P3-RTBN – 8x 3.5" SATA3 or 6 SATA3 + 2 NVMe U.2
    • SYS-F629P3-RC0B – 8x 3.5" SAS3 or 6 SAS3 + 2 opt. NVMe U.2; SAS3 with Broadcom 3008
    • SYS-F629P3-RC1B – 8x 3.5" SAS3 or 6 SAS3 + 2 opt. NVMe U.2; SAS3 with Broadcom 3108
  • 1 PCI-E 3.0 x16 (LP), 1 PCI-E 3.0 x16 (SIOM)
  • SIOM flexible Network card, 1 Dedicated IPMI port
  • 1 VGA, 2 USB 3.0, 1 M.2 support
  • 2x 8cm 14k RPM middle fans
  • 1200W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

4 Internal NVMe ports • Data Center Optimized • WIO, Flexible I/O
  • 2U WIO Server
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 8x 3.5" Hot-swap SATA3 + 4x 2.5" NVMe drive bays
  • 16 DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • 1 PCI-E 3.0 x16 (FHHL), 2x PCI-E 3.0 x8 (FHHL), and 1x PCI-E 3.0 (LP) via riser card
  • 2 GbE, 1 Video, 2 USB 3.0, 2 USB 2.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 3x 80mm PWM fans w/ optimal fan speed control
  • 920W Redundant Platinum Level Power Supplies
24 Hot-swap 2.5" SAS3/SATA3 • 3 Broadcom 3108(H) / • 3 Broadcom 3008(L)
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 24 Hot-swap 2.5" SAS3/SATA3 direct attached drive bays;
    2 optional Hot-swap 2.5" rear side drive bays
  • SAS3 via 3 Broadcom 3108 AOC; HW RAID (2028R-ACR24H)
  • SAS3 via 3 Broadcom 3008 - IT mode; SW RAID (2028R-ACR24L)
  • 16 DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • 1 PCI-E 3.0 x16 and 6 PCI-E 3.0 x8 slots (slot 1-3 occupied)
  • I/O ports: 2x 10GBase-T, 1 Video, 1 COM, 2 USB 3.0, 1 Type A
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 3 heavy duty fans w/ optimal fan speed control
  • 920W Redundant Platinum Level Power Supplies
  • 2U 2-Node Mission critical storage server
  • High Density: 24x 2.5" hot-swap SAS3/SATA* HDDs
  • Fastest Storage: SAS3 (12Gbps)
  • Robust Data Availability:
    • Shared storage between redundant controllers
    • Node to node heartbeat/ NTB connectivity
    • Redundant power supply and cooling system
  • Greener Storage:
    • Titanium Level (96%+) efficiency 1200W redundant power supplies
    • 90%+ VRM power efficiency
20 NVMe support
  • 2U 2-Node Mission critical storage server
  • Lowest latency:
    • 20 Hot-swap 2.5" NVMe drive bays
    • Omni-Path SIOM support
  • Robust Data Availability:
    • Shared storage between redundant controllers
    • Node to node heartbeat/10G connectivity
  • Redundant power supply and cooling system
  • Greener Storage:
    • Titanium Level (96%+) efficiency 2000W redundant power supplies
    • 90%+ VRM power efficiency
  • 2U 2-Node Mission critical storage server
  • Lowest latency:
    • 24 Hot-swap 2.5" NVMe drive bays
    • Omni-Path SIOM support
  • Robust Data Availability:
    • Shared storage between redundant controllers
    • Node to node heartbeat/10G connectivity
    • Redundant power supply and cooling system
  • Greener Storage:
    • Titanium Level (96%+) efficiency 2000W redundant power supplies
    • 90%+ VRM power efficiency
  • 2U 2-Node Mission critical storage server
  • Lowest latency:
    • 48 Hot-swap 2.5" NVMe drive bays
    • Omni-Path SIOM support
  • Robust Data Availability:
    • Shared storage between redundant controllers
    • Node to node heartbeat/10G connectivity
    • Redundant power supply and cooling system
  • Greener Storage:
    • Titanium Level (96%+) efficiency 2000W redundant power supplies
    • 90%+ VRM power efficiency
24 Hot-swap 2.5" SAS3/SATA3 • Broadcom 3108(H) / Broadcom 3008(L)
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 24 Hot-swap 2.5" SAS3/SATA3 drive bays;
    2 optional Hot-swap 2.5" rear side drive bays
  • SAS3 via Broadcom 3108 AOC; HW RAID (-E1CR24H)
  • SAS3 via Broadcom 3008 - IT mode; SW RAID (-E1CR24L)
  • 16 DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • 1 PCI-E 3.0 x16 and 6x PCI-E 3.0 x8 slots (slot 1 & 2 occupied)
  • I/O ports: 2x 10GBase-T, 1 Video, 1 COM, 2 USB 3.0, 1 Type A
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 3 heavy duty fans w/ optimal fan speed control
  • 920W Redundant Platinum Level Power Supplies
24 Hot-swap 2.5" SAS3/SATA3 • SAS3 via Broadcom 3108 AOC
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 24 Hot-swap 2.5" SAS3/SATA3 drive bays (SAS3 via Broadcom 3108 AOC)
  • 24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • 2 PCI-E 3.0 x16, 3 PCI-E 3.0 x8, 1 PCI-E 2.0 x4 (slot 3 & 4 occupied)
  • I/O ports: 4x 10GBase-T, 1 Video, 1 COM, 2 USB 3.0, 1 Type A
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 3 heavy duty fans w/ optimal fan speed control
  • 920W Redundant Platinum Level Power Supplies
48 Hot-swap 2.5" SAS3/SATA3 drive bays + 2 Hot-swap 2.5" drive bays (rear)
  • IOPS Intensive Storage Applications, Database Applications (MySQL, Casandra), Virtual Storage Environments, Single Instance Storage & Data Deduplication
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 48 Hot-swap 2.5" SAS3/SATA3 drive bays, 2 Hot-swap 2.5" drive bays (rear); Cable-arm for second row drives' hot-swap access
  • SAS3 via Broadcom 3008, IT mode controller
  • 24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • 2 PCI-E 3.0 x16 slots
  • I/O: SIOM for flexible networking options, 2 USB 3.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 5 Hot-swap 80mm redundant PWM cooling fans
  • 1600W Redundant Titanium Level (96%) Power Supplies
48 Hot-swap 2.5" SAS3/SATA3 drive bays + 2 Hot-swap 2.5" drive bays (rear)
  • IOPS Intensive Storage Applications, Database Applications (MySQL, Casandra), Virtual Storage Environments, Single Instance Storage & Data Deduplication
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 48 Hot-swap 2.5" SAS3/SATA3 drive bays, 2 Hot-swap 2.5" drive bays (rear); Cable-arm for second row drives' hot-swap access
  • SAS3 via Broadcom 3108, HW RAID 0, 1, 5, 6, 10, 50, 60
  • 24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • 2 PCI-E 3.0 x16 and 1 PCI-E 3.0 x8 slots
  • I/O: SIOM for flexible networking options, 2 USB 3.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 5 Hot-swap 80mm redundant PWM cooling fans
  • 1600W Redundant Titanium Level (96%) Power Supplies
48 NVMe support • 2 rear 2.5" drive bays
  • IOPS Intensive Storage Applications, Database Applications (MySQL, Casandra), Virtual Storage Environments, Single Instance Storage & Data Deduplication
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 48 Hot-swap 2.5" NVMe bays; 2 Hot-swap 2.5" drive bays (rear) Cable-arm for second row drives' hot-swap access
  • 24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • 1 PCI-E 3.0 x16 and 1 PCI-E 3.0 x8 slots
  • I/O: SIOM for flexible networking options, 2 USB 3.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 5 Hot-swap 80mm redundant PWM cooling fans
  • 1600W Redundant Titanium Level (96%) Power Supplies
12x 3.5" SAS2/SATA3 drive bays
  • 1U High-density Storage Server
  • Socket FCBGA 1283 support Intel Atom® processor C2750
  • 12x 3.5" SAS2/SATA3 Drive Bays
  • Broadcom 2116 SW controller for SATA3 or SAS2 with IT Mode
  • 4 DIMMs, up to 64GB, up to 1600MHz DDR3 memory
  • 1 PCI-E 2.0 x4 (in x8, Low-profile) slot
  • I/O ports: 2 GbE, 1 Video, 1 COM/Serial, 3 USB 2.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 6x 40x28mm PWM cooling fans
  • 400W Redundant Short-Depth Gold level Power Supplies
12x 3.5" SAS2/SATA3 drive bays
  • 1U High-density Storage Server
  • Socket FCBGA 1667 support Intel® Pentium® processor D1508 (2-Core)
  • 12x 3.5" SAS2/SATA3 Drive Bays
  • Broadcom 2116 SW controller for SATA3 or SAS2 with IT Mode
  • 4 DIMMs, up to 128GB, up to 1866MHz DDR4 memory
  • 1 PCI-E 3.0 x8, M.2 PCIe 3.0 x4, M Key 2242/2280/22110,
    Mini-PCIe w/ mSATA support
  • I/O ports: 2 10G SFP+, 2 GbE, 1 Video, 1 COM, 2 USB 3.0, 5 USB 2.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 5x 40mm middle fans
  • 400W Redundant Short-Depth Power Supplies
12x 3.5" SAS2/SATA3 drive bays
  • 1U High-density Storage Server
  • Socket FCBGA 1667 support Intel® Xeon® processor D1518 (4-Core)
  • 12x 3.5" SAS2/SATA3 Drive Bays
  • Broadcom 2116 SW controller for SATA3 or SAS2 with IT Mode
  • 4 DIMMs, up to 128GB, up to 1866MHz DDR4 memory
  • 1 PCI-E 3.0 x8, M.2 PCIe 3.0 x4, M Key 2242/2280/22110,
    Mini-PCIe w/ mSATA support
  • I/O ports: 2 10G SFP+, 2 GbE, 1 Video, 1 COM, 2 USB 3.0, 5 USB 2.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 5x 40mm middle fans
  • 400W Redundant Short-Depth Power Supplies
12x 3.5" SAS2/SATA3 drive bays
  • 1U High-density Storage Server
  • Socket FCBGA 1667 support Intel® Xeon® processor D1537 (8-Core)
  • 12x 3.5" SAS2/SATA3 Drive Bays
  • Broadcom 2116 SW controller for SATA3 or SAS2 with IT Mode
  • 4 DIMMs, up to 128GB, up to 1866MHz DDR4 memory
  • 1 PCI-E 3.0 x8, M.2 PCIe 3.0 x4, M Key 2242/2280/22110,
    Mini-PCIe w/ mSATA support
  • I/O ports: 2 10G SFP+, 2 GbE, 1 Video, 1 COM, 2 USB 3.0, 5 USB 2.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 5x 40mm middle fans
  • 400W Redundant Short-Depth Power Supplies
6x 3.5" SAS3 per U • 2 Rear Optional 2.5" • SAS3 via Broadcom 3008
  • 2U Storage Server – Expansion / Capacity / Cost per TB
  • Single Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 12 Hot-swap 3.5" SAS3 HDD Bays (SAS3 via Onboard Broadcom 3008 to SAS3 backplane); 2x Rear optional 2.5" Hot-swap HDD Bays
  • 8 DIMM slots; up to 1TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • 4 PCI-E 3.0 (x8/4, x16/8, x8) + 2 PCI-E 2.0 (x8/4, x4/2)
  • I/O ports: 4 GbE, 1 Video, 1 COM/Serial, 2 USB 3.0, 2 USB 2.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 3 heavy duty fans w/ optimal fan speed control
  • 920W Redundant Platinum Level Power Supplies
Storage Powerhouse • 24 Front + 12 Rear • SAS3 via Broadcom 3008
  • 4U Storage Server (Double-sided) – Expansion / Capacity / Cost per TB
  • Single Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 36 Hot-swap 3.5" SAS3 HDD Bays (SAS3 via Onboard Broadcom 3008 to SAS3 backplane); Optional 2 Rear 2.5" Hot-swap HDD Bays
  • 8 DIMM slots; up to 1TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • 4 PCI-E 3.0 (x8/4, x16/8, x8) + 2 PCI-E 2.0 (x8/4, x4/2)
  • I/O ports: 4 GbE, 1 Video, 1 COM/Serial, 2 USB 3.0, 2 USB 2.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 3 heavy duty fans w/ optimal fan speed control
  • 1280W Redundant Platinum Level Digital Power Supplies
12x 3.5" Hot-swap SAS3/SATA3 • SAS3 via Broadcom 3108 AOC or Broadcom 3008 controller
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 12x 3.5" Hot-swap SAS3/SATA3 drive bays, 2x 2.5" optional Hot-swap drive bays (rear)
  • SAS3 via Broadcom 3108 AOC, HW RAID (-E1CR12H)
    SAS3 via Broadcom 3008 controller, IT mode (-E1CR12L)
  • 16 DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • 1 PCI-E 3.0 x16 and 6 PCI-E 3.0 x8 slots (slot 1 & 2 occupied)
  • I/O ports: 2x 10GBase-T, 1x Video, 1x COM, 2x USB 3.0, 1x Type A
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 3x heavy duty fans w/ optimal fan speed control
  • 920W Redundant Platinum Level Power Supplies
12 Hot-swap 3.5" SAS3/SATA3 • SAS3 via Broadcom 3108 AOC
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 12 Hot-swap 3.5" SAS3/SATA3 drive bays (SAS3 via Broadcom 3108 AOC)
  • 24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • 2 PCI-E 3.0 x16, 3 PCI-E 3.0 x8, 1 PCI-E 2.0 x4 (slot 3 & 4 occupied)
  • I/O ports: 4x 10GBase-T, 1 Video, 1 COM, 2 USB 3.0, 1 Type A
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 3 heavy duty fans w/ optimal fan speed control
  • 920W Redundant Platinum Level Power Supplies
12 Hot-swap 3.5" SAS3/SATA3 • SAS3 via Broadcom 3108
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 12 Hot-swap 3.5" SAS3/SATA3 drive bays (SAS3 via Broadcom 3108)
  • 16 DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • 1 PCI-E 3.0 x16 and 6 PCI-E 3.0 x8 slots
  • I/O ports: 2x 10GBase-T, 1 Video, 1 COM, 2 USB 3.0, 1 Type A
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 3 heavy duty fans w/ optimal fan speed control
  • 920W Redundant Platinum Level Power Supplies
16x 3.5" Hot-swap SAS3/SATA3 • SAS3 via Broadcom 3108
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 16x 3.5" Hot-swap SAS3/SATA3 drive bays (SAS3 via Broadcom 3108)
  • 16 DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • 1 PCI-E 3.0 x16 and 6 PCI-E 3.0 x8 slots
  • I/O ports: 2x 10GBase-T, 1x Video, 1x COM, 2x USB 3.0, 1x Type A
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 4x 80mm hot-swap redundant PWM cooling fans
  • 1000W Redundant Titanium Level (96%) Power Supplies
24 Hot-swap 3.5" SAS3/SATA3 drive bays + 2 Hot-swap 2.5" drive bays (rear)
  • Corporate Database, Data Center, Database Processing & Storage, Enterprise Server, HPC, iSCSI SAN
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 24 Hot-swap 3.5" SAS3/SATA3 drive bays, 2 Hot-swap 2.5" drive bays (rear); Cable-arm for second row drives' hot-swap access
  • SAS3 via Broadcom 3008, IT mode controller
  • 24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • 2 PCI-E 3.0 x16 and 1 PCI-E 3.0 x8 slots
  • I/O: SIOM for flexible networking options, 2 USB 3.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 5 Hot-swap 80mm redundant PWM cooling fans
  • 1600W Redundant Titanium Level (96%) Power Supplies
24 Hot-swap 3.5" SAS3/SATA3 drive bays + 2 Hot-swap 2.5" drive bays (rear)
  • Corporate Database, Data Center, Database Processing & Storage, Enterprise Server, HPC, iSCSI SAN
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 24 Hot-swap 3.5" SAS3/SATA3 drive bays, 2 Hot-swap 2.5" drive bays (rear); Cable-arm for second row drives' hot-swap access
  • SAS3 via Broadcom 3108, HW RAID 0, 1, 5, 6, 10, 50, 60
  • 24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • 2 PCI-E 3.0 x16 and 1 PCI-E 3.0 x8 slots
  • I/O: SIOM for flexible networking options, 2 USB 3.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 5 Hot-swap 80mm redundant PWM cooling fans
  • 1600W Redundant Titanium Level (96%) Power Supplies
  • 3U 2-Node Mission critical storage server
  • High Density: 16x 3.5" hot-swap SAS3/SATA* HDDs
  • Fastest Storage: SAS3 (12Gbps)
  • Robust Data Availability:
    • Shared storage between redundant controllers
    • Node to node heartbeat/ NTB connectivity
    • Redundant power supply and cooling system
  • Greener Storage:
    • Titanium Level (96%+) efficiency 1200W redundant power supplies
    • 90%+ VRM power efficiency
16 Hot-swap 3.5" SAS3/SATA3 • SAS3 via Broadcom 3108 AOC or Broadcom 3008 controller
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 16 Hot-swap 3.5" SAS3/SATA3 drive bays,
    2 optional Hot-swap 2.5" drive bays (rear)
  • SAS3 via Broadcom 3108 AOC; HW RAID (-E1CR16H)
    SAS3 via Broadcom 3008 controller; IT mode (-E1CR16L)
  • 16 DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • 1 PCI-E 3.0 x16 and 3 PCI-E 3.0 x8 (-E1CR16L: slot 3 & 4 occupied)
  • 1 PCI-E 3.0 x16 and 6 PCI-E 3.0 x8 (-E1CR16H: slot 1 & 2 occupied)
  • I/O ports: 2x 10GBase-T, 1 Video, 1 COM, 2 USB 3.0, 1 Type A
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 2 Hot-swap 80mm rear exhaust PWM cooling fans
  • 920W Redundant Platinum Level Power Supplies
16 Hot-swap 3.5" SAS3/SATA3 • SAS3 via Broadcom 3108 AOC
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 16 Hot-swap 3.5" SAS3/SATA3 drive bays (SAS3 via Broadcom 3108 AOC);
    2 optional Hot-swap 2.5" drive bays (rear)
  • 24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • 2 PCI-E 3.0 x16, 3 PCI-E 3.0 x8, 1 PCI-E 2.0 x4 (slot 3 & 4 occupied)
  • I/O ports: 4x 10GBase-T, 1 Video, 1 COM, 2 USB 3.0, 1 Type A
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 2 Hot-swap 80mm rear exhaust PWM cooling fans
  • 920W Redundant Platinum Level Power Supplies
  • 4U 2-Node Mission critical storage server
  • High Density: 24x 3.5" hot-swap SAS3/SATA* HDDs
  • Fastest Storage: SAS3 (12Gbps)
  • Robust Data Availability:
    • Shared storage between redundant controllers
    • Node to node heartbeat/ NTB connectivity
    • Redundant power supply and cooling system
  • Greener Storage:
    • Titanium Level (96%+) efficiency 1600W redundant power supplies
    • 90%+ VRM power efficiency
24 Hot-swap 3.5" SAS3/SATA3 • SAS3 via Broadcom 3108 AOC or Broadcom 3008 controller
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 24 Hot-swap 3.5" SAS3/SATA3 drive bays,
    2 optional Hot-swap 2.5" drive bays (rear)
  • SAS3 via Broadcom 3108 AOC, HW RAID (-E1CR24H);
    SAS3 via Broadcom 3008 controller, IT mode (-E1CR24L)
  • 16 DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • 1 PCI-E 3.0 x16 and 6 PCI-E 3.0 x8 (slot 1 & 2 occupied)
  • I/O ports: 2x 10GBase-T, 1 Video, 1 COM, 2 USB 3.0, 1 Type A
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 2 Hot-swap 80mm rear exhaust PWM cooling fans
  • 920W Redundant Platinum Level Power Supplies
24 Hot-swap 3.5" SAS3/SATA3 • SAS3 via Broadcom 3108 AOC
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 24 Hot-swap 3.5" SAS3/SATA3 drive bays (SAS3 via Broadcom 3108 AOC);
    2 optional Hot-swap 2.5" drive bays (rear)
  • 24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • 2 PCI-E 3.0 x16, 3 PCI-E 3.0 x8, 1 PCI-E 2.0 x4 (slot 3 & 4 occupied)
  • I/O ports: 4x 10GBase-T, 1 Video, 1 COM, 2 USB 3.0, 1 Type A
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 2 Hot-swap 80mm rear exhaust PWM cooling fans
  • 920W Redundant Platinum Level Power Supplies
36x 3.5" Hot-swap SAS3/SATA3 • SAS3 via Broadcom 3108 AOC or Broadcom 3008 controller
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 36x 3.5" Hot-swap SAS3/SATA3 drive bays, 4x 2.5" internal fixed drive bays; 2x 2.5" optional Hot-swap drive bays (rear)
  • SAS3 via Broadcom 3108 AOC, HW RAID (-E1CR36H)
    SAS3 via Broadcom 3008 controller, IT mode (-E1CR36L)
  • 16 DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • 1 PCI-E 3.0 x16 and 6 PCI-E 3.0 x8 slots (slot 1 & 2 occupied)
  • I/O ports: 2x 10GBase-T, 1x Video, 1x COM, 2x USB 3.0, 1x Type A
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 2x 80mm Hot-swap rear exhaust PWM cooling fans
  • 1280W Redundant Platinum Level Power Supplies
36 Hot-swap 3.5" SAS3/SATA3 • SAS3 via Broadcom 3108 AOC
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 36 Hot-swap 3.5" SAS3/SATA3 drive bays (SAS3 via Broadcom 3108 AOC);
    4 internal fixed 2.5" drive bays
  • 24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • 2 PCI-E 3.0 x16, 3 PCI-E 3.0 x8, 1 PCI-E 2.0 x4 (slot 3 & 4 occupied)
  • I/O ports: 4x 10GBase-T, 1 Video, 1 COM, 2 USB 3.0, 1 Type A
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 2 Hot-swap 80mm rear exhaust PWM cooling fans
  • 1280W Redundant Platinum Level Power Supplies
45 Hot-swap Top-Loading drive bays, 6 opt. NVMe, Broadcom 3108
  • Software Defined Storage Applications, Backup, Archive and Cold storage, Data Replication & Business Continuity, Virtual Tape Library
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 45 Hot-swap 3.5" SAS3/SATA3 drive bays, 2 Hot-swap 2.5" drive bays (rear), 6 Optional NVMe bays
  • SAS3 via Broadcom 3108, HW RAID
  • 24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • 2 PCI-E 3.0 x16 and 1 PCI-E 3.0 x8 slots
  • Front 3.5" LCD display
  • I/O: SIOM for flexible networking options, 2 USB 3.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 5 Hot-swap 80mm rear exhaust cooling fans
  • 1600W Redundant Platinum Level Power Supplies
45 Hot-swap Top-Loading drive bays, 6 opt. NVMe, Broadcom 3008
  • Software Defined Storage Applications, Backup, Archive and Cold storage, Data Replication & Business Continuity, Virtual Tape Library
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 45 Hot-swap 3.5" SAS3/SATA3 drive bays, 2 Hot-swap 2.5" drive bays (rear), 6 Optional NVMe bays
  • SAS3 via Broadcom 3008, IT mode controller
  • 24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • 2 PCI-E 3.0 x16 and 1 PCI-E 3.0 x8 slots
  • Front 3.5" LCD display
  • I/O: SIOM for flexible networking options, 2 USB 3.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 5 Hot-swap 80mm rear exhaust cooling fans
  • 1600W Redundant Platinum Level Power Supplies
60 Hot-swap Top-Loading, 6 opt. NVMe, Broadcom 3008
  • Software Defined Storage Applications, Backup, Archive and Cold storage, Data Replication & Business Continuity, Virtual Tape Library
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 60x 3.5" Hot-swap SAS3/SATA3 drive bays, 2x 2.5" Hot-swap drive bays (rear), 6 Optional NVMe bays
  • SAS3 via Broadcom 3008, IT mode controller
  • 24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • 2 PCI-E 3.0 x16 and 1 PCI-E 3.0 x8 slots
  • Front 3.5" LCD display
  • I/O: SIOM for flexible networking options, 2 USB 3.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 2x 80mm hot-swap rear exhaust cooling fans
  • 2000W Redundant Titanium Level (96%) Power Supplies
60 Hot-swap Top-Loading, 6 opt. NVMe, Broadcom 3108
  • High capacity File and Object storage, Backup, Archive and Cold storage, Data Replication & Business Continuity, Virtual Tape Library
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 60x 3.5" Hot-swap SAS3/SATA3 drive bays, 2x 2.5" Hot-swap drive bays (rear), 6 Optional NVMe bays
  • SAS3 via Broadcom 3108, HW RAID 0, 1, 5, 6, 10, 50, 60
  • 24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • 2 PCI-E 3.0 x16 and 1 PCI-E 3.0 x8 slots
  • Front 3.5" LCD display
  • I/O: SIOM for flexible networking options, 2 USB 3.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 2x 80mm hot-swap rear exhaust cooling fans
  • 2000W Redundant Titanium Level (96%)Power Supplies
72 Hot-swap 3.5" SAS3/SATA3 • SAS3 via Broadcom 3008 controller; IT mode
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 72 Hot-swap 3.5" SAS3/SATA3 drive bays,
    2 Hot-swap 2.5" drive bays (rear)
  • SAS3 via Broadcom 3008 controller, IT mode
  • 16 DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • 1 PCI-E 3.0 x16 and 6 PCI-E 3.0 x8 slots (3 slots occupied)
  • I/O ports: 2x 10GBase-T, 1 Video, 1 COM, 2 USB 3.0, 1 Type A
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 7 Hot-swap 92mm cooling fans
  • 2000W Redundant Titanium Level (96%) Power Supplies
90 Hot-swap • Top-Loading • Broadcom 3008
  • Software Defined Storage Applications, Backup, Archive and Cold storage, Data Replication & Business Continuity, Virtual Tape Library
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 90 Hot-swap 3.5" SAS3/SATA3 drive bays, 2 Hot-swap 2.5" drive bays (rear)
  • SAS3 via 2 Onboard Broadcom 3008 SAS3 controllers
  • 8 DIMM slots; up to 1TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • I/O: SIOM card for multiple IO options
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 5 Hot-swap 8cm redundant PWM fans
  • 1000W Redundant Titanium Level (96%) Power Supplies
  • Compact Design, Virtualization, Network Security Appliance, SD-WAN, vCPE
  • Intel® Xeon® processor D-1587 SoC, 16 cores, 65W
  • Up to 128GB ECC DDR4 RDIMM 2133MHz in 4 DIMM slots
  • 2x 10G SFP+ and 6x 1GbE LAN ports
  • 1x 3.5" or 4x 2.5" drive bays with bracket
  • 1x PCI-E 3.0 x8 slot, M.2 PCIe 3.0 x4, M Key 2242/2280/22110
  • Mini-PCIe with mSATA support
  • 2x USB 3.0, 1x VGA, and SATA DOM power connector
  • 400W Redundant Platinum Level Power Supplies
  • GPU Server, Mission-critical app., enterprise server, oil & gas, financial, 3D rendering, chemistry, HPC
  • Single Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 or E5-1600 v3 family; QPI up to 9.6GT/s
  • 6 Hot-swap 2.5" SATA3 HDD Bays
  • 8 DIMM slots; up to 1TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • 2 PCI-E 3.0 x16 (2 GPU cards opt.) and 1 PCI-E 3.0 x8 slots
  • I/O ports: 2 GbE, 1 Video, 1 COM/Serial, 2 USB 3.0 (rear)
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 8 counter-rotating fans w/ optimal fan speed control
  • 1400W Platinum Level digital-switching Power Supplies
WIO, Flexible I/O • Storage Array
  • Cloud and other virtualization needs, hosting & application delivery, database processing & storage, simulation, automation
  • Single Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 8 Hot-swap 2.5" SAS3 + 2 Hot-swap 2.5" SATA3 drive bays
  • 8 DIMM slots; up to 1TB ECC 3DS LRDIMM or RDIMM DDR4-2400
  • 2 PCI-E 3.0 x16 and 1 PCI-E 3.0 x8 (in x16) slots
  • 2 GbE, 1 Video, 2 COM, 2 USB 3.0, 4 USB 2.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 3 PWM Cooling fans
  • 700W/750W Redundant Platinum Level Power Supplies
Embedded Appliances
  • 1U Appliance Server, WIO, Embedded Applications
  • Single Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 2 fixed 2.5" SATA3 drive bays
  • 8 DIMM slots; up to 1TB ECC 3DS LRDIMM or RDIMM DDR4-2400
  • 2 PCI-E 3.0 x16 left riser slot, 1 PCI-E 3.0 x8 LP slot
  • 2 GbE, 1 Video, 2 COM, 4 USB 3.0, 2 USB 2.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 4 PWM Cooling fans; 2 optional fans for AOC cooling
  • 400W Redundant Platinum Level Power Supplies
  • GPU Server, Mission-critical app., enterprise server, oil & gas, financial, 3D rendering, chemistry, HPC
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 2 Hot-swap 2.5" and 2 internal 2.5" Drive Bays
  • 16x DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • 4 PCI-E 3.0 x16 (4 GPU cards opt.) and 2 PCI-E 3.0 x8 (in x16) LP slots
  • I/O ports: 2 GbE (-TR)/10GbE (-TRT), 1 Video, 1 COM/Serial, 2 USB 3.0 (2 via header)
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 9x 4cm heavy-duty counter-rotating fans w/ optimal fan speed control
  • 2000W Redundant Platinum Level Power Supplies
Up to 4 NVIDIA Tesla • V100 SXM2 GPUs • Up to 300 GB/s • GPU-to-GPU NVLINK
  • HPC, Artificial Intelligence, Big Data Analytics, Research Lab, Astrophysics, Business Intelligence
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 2 Hot-swap 2.5" Drive Bays and 2 internal 2.5" Drive Bays
  • 16 DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • 3 PCI-E 3.0 x16 and 1 PCI-E 3.0 x8 Low-profile slots; support up to 4 Pascal GPU
  • 2x 10GBase-T (1028GQ-TVRT), 1 Video, 1 Serial, 2 USB 3.0 (via header)
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 7x 4cm heavy duty PWM fans w/ optimal fan speed control
  • 2000W Redundant Titanium Level Power Supplies
New! HPC Solutions Powered by NVIDIA
  • HPC, Artificial Intelligence, Big Data Analytics, Research Lab, Astrophysics, Business Intelligence
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 2 Hot-swap 2.5" Drive Bays and 2 internal 2.5" Drive Bays
  • 16 DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • 3 PCI-E 3.0 x16 and 1 PCI-E 3.0 x8 Low-profile slots; support up to 4 Pascal GPU
  • 2 GbE (1028GQ-TXR)/10GBase-T (1028GQ-TXRT), 1 Video, 1 Serial, 2 USB 3.0 (via header)
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 7x 4cm heavy duty PWM fans w/ optimal fan speed control
  • 2000W Redundant Titanium Level Power Supplies
Up to 3 GPU
  • GPU Server, Mission-critical app., enterprise server, oil & gas, financial, 3D rendering, chemistry, HPC
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 4 Hot-swap 2.5" SATA3 HDD Bays
  • 16 DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • 4 PCI-E 3.0 x16 (3 GPU cards opt.) and 1 PCI-E 3.0 x8 slots
  • I/O ports: 2 GbE/10GBase-T (TRT), 1 Video, 1 COM/Serial, 4 USB 3.0 (2 rear, 2 via header), 2 USB 2.0 (2 via header)
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 10 heavy duty fans w/ optimal fan speed control
  • 1600W Redundant Platinum Level Power Supplies
10x 2.5" Hot-swap bays • SAS3 via Broadcom 3108 • 2 NVMe support
  • Cloud and other virtualization needs, hosting & application delivery, database processing & storage, simulation, automation
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 10x 2.5" Hot-swap SAS/SATA HDD Bays; SAS3 via Broadcom 3108, 2 Opt. NVMe drive support
  • 16 DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • 2 PCI-E 3.0 x16 (FHHL) via riser card, 1 PCI-E 3.0 x8 Mezzanine for HBA cards
  • 2 GbE (1028R-WC1R) / 10GBase-T (1028R-WC1RT), 1 Video, 1 COM, 6 USB 3.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 5x 40mm Counter-rotating PWM fans
  • 700W/750W Redundant Platinum Level Power Supplies
Short Depth 16.9", WIO • Flexible I/O
  • Cloud and other virtualization needs, hosting & application delivery, database processing & storage, simulation, automation
  • Dual socket R3 (LGA 2011) supports: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 2 Fixed 2.5" drive bays w/ bracket
  • 16 DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400
  • 2 PCI-E 3.0 x16 and 1 PCI-E 3.0 x8 (in x16) slots
  • 2 SuperDOM, 1 VGA, 1 COM, 2 USB 3.0, 4 USB 2.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 4x 40x56mm PWM fan; 2x fans for AOC cooling
  • 400W (1+1) Redundant SuperCompact Short-depth AC-DC Gold-level power supply with PMBus and I²C
10 Hot-swap 2.5" bays • SAS3 via Broadcom 3108, • 2 NVMe support ("C")
  • Cloud and other virtualization needs, hosting & application delivery, database processing & storage, simulation, automation
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 10 Hot-swap 2.5" SAS/SATA drive bays; SAS3 via Broadcom 3108 ("C" SKUs), 2 Opt. NVMe drive support ("C" SKUs)
  • 16 DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400
  • 2 PCI-E 3.0 x16 (FHHL) via riser card, 1 PCI-E 3.0 x8 Mezzanine for HBA cards
  • 2 GbE/10GBase-T ("RT"), 1 Video, 1 COM, 6 USB 3.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 5x 40mm Counter-rotating PWM fans
  • 750W Redundant Platinum Level Power Supplies
TwinPro • Supermicro Data Center Management Support • SAS3 via Broadcom 3008
  • 2 DP nodes in 1U; Each Node (x2 nodes) supports:
  • Dual Socket R3 support Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 16 DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • 1 PCI-E 3.0 x16 Low-profile slot and 1 "0 slot"
  • 4 Hot-swap 2.5" drive bays support SAS3 with Broadcom 3008 SW RAID controller
  • 1 InfiniBand port (FDR, 56Gbps), w/ QSFP connector (-DC0FR SKU)
  • I/O ports: 2 GbE (-DC0R/-DC0FR) / 10GBase-T (-DC0TR), 1 Video, 2 USB 3.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 3 heavy duty counter rotating fans with air shroud and optimal fan speed control
  • 1000W Redundant Titanium Level (96%) High-efficiency Digital Power Supplies
TwinPro • Supermicro Data Center Management Support • SAS3 via Broadcom 3108
  • 2 DP nodes in 1U; Each Node (x2 nodes) supports:
  • Dual Socket R3 support Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 16 DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • 1 PCI-E 3.0 x16 Low-profile slot
  • 4 Hot-swap 2.5" drive bays support SAS3 with Broadcom 3108 HW RAID controller
  • Broadcom 3108 HW RAID controller supports RAID 0, 1, 10, 5, 6
  • 1 InfiniBand port (FDR, 56Gbps), w/ QSFP connector (-DC1FR SKU)
  • I/O ports: 2 GbE (-DC1R/-DC1FR) / 10GBase-T (-DC1TR), 1 Video, 2 USB 3.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 3 heavy duty counter rotating fans with air shroud and optimal fan speed control
  • 1000W Redundant Titanium Level (96%) High-efficiency Digital Power Supplies
TwinPro • Supermicro Data Center Management Support
  • 2 DP nodes in 1U; Each Node (x2 nodes) supports:
  • Dual Socket R3 support Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 16 DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • 1 PCI-E 3.0 x16 Low-profile slot and 1 "0 slot"
  • 4 Hot-swap 2.5" drive bays support SATA3
  • 1 InfiniBand port (FDR, 56Gbps), w/ QSFP connector (-DTFR SKU)
  • I/O ports: 2 GbE (-DTR/-DTFR) / 10GBase-T (-DTTR), 1 Video, 2 USB 3.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 3 heavy duty counter rotating fans with air shroud and optimal fan speed control
  • 1000W Redundant Titanium Level (96%) High-efficiency Digital Power Supplies
Single port IB (FDR, 56Gbps) - SYS-1028TR-TF
  • 2 DP nodes in 1U; depth 27.75", Each Node (x2 nodes):
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 8 DIMM slots; up to 1TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • 1 PCI-E x16 slot
  • 4x 2.5" Hot-swap SATA3 drive bays
  • 2 GbE, 1 VGA, 1 COM, 2 USB 2.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 3 counter-rotating 40x56mm PWM fans
  • IB FDR (56Gbps) - SYS-1028TR-TF
  • 1000W Titanium Level (96%) Power Supply
10x 2.5" SAS3/SATA3 • Flexible Network Opt.
  • Virtualization Hosting, Cloud Computing, Data Center
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 10 Hot-swap 2.5" drive bays; 10 SAS3 via optional AOC
  • 24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400
  • 2 PCI-E 3.0 x16 and 2 PCI-E 3.0 x8 slots (1 LP, 1 internal LP)
  • 2x 10G SFP+ and 2 GbE (-E1CRTP+) / 4 GbE (-E1CR4+), 1 Video, 1 COM/Serial, 5 USB 3.0 (2 rear, 2 front, 1 Type A)
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 5 heavy duty fans w/ optimal fan speed control
  • 750W Redundant Platinum Level Power Supplies
10 NVMe support • 24 DDR4 DIMM • 2x 10GBase-T
  • Virtualization Hosting, Cloud Computing, Data Center
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 10 Hot-swap 2.5" drive bays; 4 NVMe/SAS3 hybrid + 6 NVMe ports
  • 24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400
  • 3 PCI-E 3.0 x8 slots (2 FH 10.5" L, 1 LP)
  • 2x 10GBase-T, 1 Video, 1 Serial, 5 USB 3.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 8 heavy duty fans w/ optimal fan speed control
  • 1000W Redundant Titanium Level (96%) Power Supplies
2 NVMe + 8 SATA3 2.5" (SAS3 opt.) • Flexible Network Opt.
  • Virtualization Hosting, Cloud Computing, Data Center
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 10 Hot-swap 2.5" drive bays; 2 NVMe + 8 SATA3, SAS3 optional
  • 24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400
  • 2 PCI-E 3.0 x16 and 2 PCI-E 3.0 x8 slots (1 LP, 1 internal LP)
  • 2x 10G SFP+ (-TNRTP+) / 4x 10GBase-T (-TNR4T+) / 2x 10GBase-T (-TNRT+), 1 Video, 1 COM/Serial, 5 USB 3.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 5 heavy duty fans w/ optimal fan speed control
  • 750W Redundant Platinum Level Power Supplies
10x 2.5" SATA3 or Opt. • 8x SAS3 • Flexible Network Opt.
  • Virtualization Hosting, Cloud Computing, Data Center
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 10 Hot-swap 2.5" drive bays; 10 SATA3 or Optional 8 SAS3
  • 24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400
  • 2 PCI-E 3.0 x16 and 2 PCI-E 3.0 x8 slots (1 LP, 1 internal LP)
  • 4 GbE (-TR4+) / 4x 10GBase-T (-TR4T+) / 2x 10GBase-T (-TRT+), 1 Video, 1 COM/Serial, 5 USB 3.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 4 heavy duty fans w/ optimal fan speed control
  • 750W Redundant Platinum Level Power Supplies
8x 2.5" SAS3 + 2x SATA3 or Opt. 2 NVMe via AOC • 4 GbE LAN
  • Optimized for Low-Latency/Low-Jitter apps. with BIOS optimizations
  • Pre-installed w/ accelerated dual E5-2643 v3 CPUs and 8x 8GB DDR4 DIMMs (64GB total)
  • 8 Hot-swap 2.5" SAS3 + 2 SATA3 or 2 Optional NVMe via AOC
  • 16 DIMM slots; up to 1TB DDR4
  • 2 PCI-E 3.0 x16 (FHFL), 2 PCI-E 3.0 x8 (LP, 1 SAS3 integrated)
  • 4 GbE, 1 Video, 1 COM/Serial, 5 USB 3.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 8 heavy duty fans w/ optimal fan speed control
  • 750W Redundant Platinum Level Power Supplies
  • Hyper-Speed hardware acceleration technology
8x 2.5" SAS3 + 2x SATA3 or Opt. 2 NVMe via AOC • 4 GbE LAN
  • Optimized for Low-Latency/Low-Jitter apps. with BIOS optimizations
  • Pre-installed w/ accelerated dual E5-2687W v3 CPUs and 8x 8GB DDR4 DIMMs (64GB total)
  • 8 Hot-swap 2.5" SAS3 + 2 SATA3 or 2 Optional NVMe via AOC
  • 16 DIMM slots; up to 1TB DDR4
  • 2 PCI-E 3.0 x16 (FHFL), 2 PCI-E 3.0 x8 (LP, 1 SAS3 integrated)
  • 4 GbE, 1 Video, 1 COM/Serial, 5 USB 3.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 8 heavy duty fans w/ optimal fan speed control
  • 750W Redundant Platinum Level Power Supplies
  • Hyper-Speed hardware acceleration technology
8x 2.5" SAS3 + 2 SATA3 or Opt. 2 NVMe via AOC • 4 GbE LAN
  • Optimized for Low-Latency/Low-Jitter apps. with BIOS optimizations
  • Pre-installed w/ accelerated dual E5-2643 v4 CPUs and 8x 8GB DDR4-2400MHz DIMMs (16 DIMM, up to 1TB DDR4-2400MHz)
  • 8x Hot-swap 2.5" SAS3 + 2 SATA3 or 2 Optional NVMe via AOC
  • 2 PCI-E 3.0 x16 (FHFL), 2 PCI-E 3.0 x8 (LP, 1 SAS3 integrated)
  • 4 GbE, 1 Video, 1 COM/Serial, 5 USB 3.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 4 heavy duty fans w/ optimal fan speed control
  • 750W Redundant Platinum Level Power Supplies
  • Hyper-Speed hardware acceleration technology
8x 2.5" SAS3 + 2 SATA3 or Opt. 2 NVMe via AOC • 4 GbE LAN
  • Optimized for Low-Latency/Low-Jitter apps. with BIOS optimizations
  • Pre-installed w/ accelerated dual E5-2687W v4 CPUs and 8x 8GB DDR4-2400MHz DIMMs (16 DIMM, up to 1TB DDR4-2400MHz)
  • 8 Hot-swap 2.5" SAS3 + 2 SATA3 or 2 Optional NVMe via AOC
  • 2 PCI-E 3.0 x16 (FHFL), 2 PCI-E 3.0 x8 (LP, 1 SAS3 integrated)
  • 4 GbE, 1 Video, 1 COM/Serial, 5 USB 3.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 4 heavy duty fans w/ optimal fan speed control
  • 750W Redundant Platinum Level Power Supplies
  • Hyper-Speed hardware acceleration technology
8x 2.5" SAS3 + 2 SATA3 or Opt. 2 NVMe via AOC • 4 GbE LAN
  • Optimized for Low-Latency/Low-Jitter apps. with BIOS optimizations
  • Pre-installed w/ accelerated dual E5-2689 v4 CPUs and 8x 8GB DDR4-2400MHz DIMMs (16 DIMM, up to 1TB DDR4-2400MHz)
  • 8 Hot-swap 2.5" SAS3 + 2 SATA3 or 2 Optional NVMe via AOC
  • 2 PCI-E 3.0 x16 (FHFL), 2 PCI-E 3.0 x8 (LP, 1 SAS3 integrated)
  • 4 GbE, 1 Video, 1 COM/Serial, 5 USB 3.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 4 heavy duty fans w/ optimal fan speed control
  • 750W Redundant Platinum Level Power Supplies
  • Hyper-Speed hardware acceleration technology
16 NVMe support • 4 NVMe/SAS3/SATA3 + • 2 SAS3/SATA3 per Node
  • 4 DP nodes in 2U; depth 28.75", Each Node:
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family
  • 24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • 2 PCI-E 3.0 x16 Low-profile slots, 1 Networking SIOM card support
  • At least one network card must be bundled
  • 6 SAS3 or 4 NVMe + 2 SAS3 Hot-swap 2.5" drive bays per node
  • SAS3 support via Broadcom 3008; IT mode
  • 1 Dedicated IPMI port, 1 VGA, 2 USB 3.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 4 heavy duty 80mm fans w/ optimal fan speed control
  • 2200W Redundant Titanium Level (96%) High-efficiency Power Supplies
BigTwin™ • 4 NVMe/SAS3/SATA3 + • 2 SAS3/SATA3 per Node
  • 4 DP nodes in 2U; depth 28.75", Each Node:
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family
  • 24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • 1 PCI-E 3.0 x16 Low-profile slot, 1 Networking SIOM card support
  • At least one network card must be bundled
  • 6 SAS3 or 4 NVMe + 2 SAS3 Hot-swap 2.5" drive bays per node
  • SAS3 support via Broadcom 3108; HW RAID 0, 1, 5, 6, 10, 50, 60
  • 1 Dedicated IPMI port, 1 VGA, 2 USB 3.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 4 heavy duty 80mm fans w/ optimal fan speed control
  • 2200W Redundant Titanium Level (96%) Power Supplies
24 NVMe support • 6 NVMe per Node
  • 4 DP nodes in 2U; depth 28.75", Each Node:
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family
  • 24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • 2 PCI-E 3.0 x16 Low-profile slots, 1 Networking SIOM card support
  • At least one network card must be bundled
  • 6 Hot-swap 2.5" NVMe drive bays per node
  • 1 Dedicated IPMI port, 1 VGA, 2 USB 3.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 4 heavy duty 80mm fans w/ optimal fan speed control
  • 2200W Redundant Titanium Level (96%) High-efficiency Power Supplies
BigTwin™ • 6 SATA3 per Node
  • 4 DP nodes in 2U; depth 28.75", Each Node:
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family
  • 24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • 2 PCI-E 3.0 x16 Low-profile slots, 1 Networking SIOM card support
  • At least one network card must be bundled
  • 6 Hot-swap 2.5" SATA3 drive bays per node
  • 1 Dedicated IPMI port, 1 VGA, 2 USB 3.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 4 heavy duty 80mm fans w/ optimal fan speed control
  • 2200W Redundant Titanium Level (96%) High-efficiency Power Supplies
  • GPU Server, Mission-critical app., enterprise server, oil & gas, large database, e-business, on-line transaction processing, medical
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 10 Hot-swap 2.5" SATA3 HDD Bays
  • 16 DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • 4 PCI-E 3.0 x16 (4 GPU cards opt.) and 1 PCI-E 3.0 x8 slots
  • I/O ports: 2 GbE/10GBase-T (TRT, TRHT), 1 Video, 1 COM/Serial, 4 USB 3.0 (2 rear, 2 via header), 2 USB 2.0 (2 via header)
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 5 heavy duty fans w/ optimal fan speed control
  • 2000W Redundant Platinum Level Power Supplies
TwinPro
  • 2x DP nodes in 2U; depth 28.75", Each Node (x2 nodes):
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family
  • 16x DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • 1x PCI-E 3.0 x16, 1x PCI-E x8, and 1x "0 Slot" ("C0" SKUs)
  • 1x PCI-E 3.0 x16, 1x PCI-E x8, and GPU support via x16 slot ("C1" SKUs)
  • 12x 2.5" Hot-swap SAS (8) / SATA (4) HDD bays
  • 1x InfiniBand port (FDR, 56Gbps), w/ QSFP connector ("FR" SKUs)
  • I/O ports: 2x GbE/10GBase-T ("TR"), 1x Video, 2x USB 3.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 4x 80mm heavy duty fans w/ optimal fan speed control
  • 1280W Redundant Platinum Level Digital Power Supplies
TwinPro
  • 2 DP nodes in 2U; depth 28.75", Each Node (x2 nodes):
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family
  • 16x DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • 1x PCI-E 3.0 x16, 1x PCI-E x8, and 1x "0 Slot"
  • 12x 2.5" Hot-swap SAS3 HDD bays; SAS3 via Broadcom 3008 expander
  • 1x InfiniBand port (FDR, 56Gbps), w/ QSFP connector ("FR" SKUs)
  • I/O ports: 2x GbE/10GBase-T ("TR"), 1x Video, 2x USB 3.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 4x 80mm heavy duty fans w/ optimal fan speed control
  • 1280W Redundant Platinum Level Digital Power Supplies
NVMe support
  • 2 DP nodes in 2U; depth 28.75", Each Node (x2 nodes):
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 16x DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • 1 PCI-E 3.0 x16 and 1 PCI-E x8 slots
  • 4 NVMe and 8x 2.5" Hot-swap SAS3 HDD bays
  • 1 InfiniBand port (FDR, 56Gbps), w/ QSFP connector (2028TP-DNCFR)
  • 2 GbE (2028TP-DNCR) / 10GBase-T (2028TP-DNCTR), 1 Video, 2 USB 3.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 4x 80mm heavy duty fans w/ optimal fan speed control
  • 1600W Redundant Titanium Level (96%) Power Supplies
TwinPro
  • 2 DP nodes in 2U; depth 28.75", Each Node (x2 nodes):
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family
  • 16x DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • 1x PCI-E 3.0 x16, 1x PCI-E x8, and GPU support via x16 slot
  • 8x 2.5" Hot-swap SATA3 HDD bays
  • 1x InfiniBand port (FDR, 56Gbps), w/ QSFP connector ("FR" SKUs)
  • I/O ports: 2x GbE/10GBase-T ("TR"), 1x Video, 2x USB 3.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 4x 80mm heavy duty fans w/ optimal fan speed control
  • 1280W Redundant Platinum Level Digital Power Supplies
TwinPro²
  • 4 DP nodes in 2U; depth 28.75" (2028TP) / 30.5" (6028TP), Each Node (x4 nodes):
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family
  • 16x DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • 1x PCI-E 3.0 x16 Low-profile slot and 1x "0 Slot" ("C0" SKUs)
  • 1x PCI-E 3.0 x16 Low-profile slot ("C1" SKUs)
  • Storage Drive Options:
    • 6x 2.5" Hot-swap HDD bays; supports SAS3, SATA3 and mSATA (2028TP SKUs)
    • 3x 3.5" Hot-swap HDD bays; supports SAS3 (6028TP SKUs)
  • Broadcom 3008 ("C0" SKUs) / 3108 ("C1" SKUs) controller for 6x SAS3 (12Gbps) ports
  • 1x InfiniBand port (FDR, 56Gbps), w/ QSFP connector ("FR" SKUs)
  • Support external slot for rear expansion or "0 slot" AOC solution
  • I/O ports: 2x GbE or 2x 10GBase-T ("TR" SKUs), IPMI 2.0, 1x Video, 2x USB 3.0
  • 4x 80mm heavy duty fans w/ optimal fan speed control
  • 2000W Redundant Titanium Level (96%) High-efficiency Power Supplies
TwinPro²
  • 4 DP nodes in 2U; depth 28.75" (2028TP) / 30.5" (6028TP), Each Node (x4 nodes):
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family
  • 16x DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • 1x PCI-E 3.0 x16 Low-profile slot and 1x "0 Slot"
  • Support external slot for rear expansion or "0 slot" AOC solution
  • Storage Drive Options:
    • 6x 2.5" Hot-swap HDD bays; supports SATA3 (2028TP SKUs)
    • 3x 3.5" Hot-swap HDD bays; supports SATA3 (6028TP SKUs)
  • 1x InfiniBand port (FDR, 56Gbps), w/ QSFP connector ("FR" SKUs)
  • I/O ports: 2x GbE/10GBase-T ("TR"), 1x Video, 2x USB 3.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 4x 80mm heavy duty fans w/ optimal fan speed control
  • 2000W Redundant Titanium Level (96%) High-efficiency Power Supplies
TwinPro² (SIOM)
  • 4 DP nodes in 2U; depth 28.5" (2028TP) / 30.5" (6028TP), Each Node (x4 nodes):
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family
  • 16x DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • 1x PCI-E 3.0 x16 Low-profile slot, 1 PCI-E 3.0 x8 Low-profile slot, 1 SIOM card support
  • At least one SIOM network card must be bundled
  • Storage Drive Options:
    • 6x 2.5" Hot-swap SATA3 drive bays per node (2028TP-HTR-SIOM)
    • 6x 2.5" Hot-swap SAS3 (Broadcom 3008) drive bays per node (2028TP-HC0R-SIOM)
    • 6x 2.5" Hot-swap SAS3 (Broadcom 3108) drive bays per node (2028TP-HC1R-SIOM)
    • 3x 3.5" Hot-swap SATA3 drive bays per node (6028TP-HTR-SIOM)
    • 3x 3.5" Hot-swap SAS3 (Broadcom 3008) drive bays per node (6028TP-HC0R-SIOM)
    • 3x 3.5" Hot-swap SAS3 (Broadcom 3108) drive bays per node (6028TP-HC1R-SIOM)
  • I/O ports: 1x Dedicated IPMI port, 1x Video, 2x USB 3.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 4x 80mm heavy duty fans w/ optimal fan speed control
  • 2000W Redundant Titanium Level (96%) High-efficiency Power Supplies
Titanium, 96% Efficiency Power Supplies • IB FDR (56Gbps)
  • 4 DP nodes in 2U; Each Node (x4 nodes):
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 6 Hot-swap 2.5" HDD Bays: SATA3 ('HT' SKUs), SAS2 via Broadcom 2208 ('H72' SKUs)
  • 8 DIMM slots; up to 1TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • 1 PCI-E 3.0 x16 Low-profile slot
  • I/O ports: 2 GbE, 1 Video, 2 USB 3.0 (rear)
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • Mellanox ConnectX-3 FDR ('FR' SKUs) IB Controller
  • 4 heavy duty fans w/ optimal fan speed control
  • 1600W Redundant Titanium Level (96%) High-efficiency Digital Power Supplies
24x 2.5" SAS3 via Expander & AOC, • 4 NVMe • 24 DDR4 DIMM • 4x/2x 10GBase-T
  • Virtualization Hosting, Cloud Computing, Data Center
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 24 Hot-swap 2.5" SAS3 via Expander and AOC; 4 NVMe
  • 24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400
  • 7 PCI-E 3.0 x8 slots (5 FH, 2 LP) (-E1CNRT+), 6 PCI-E 3.0 x8 slots (4 FH, 2 LP) (-E1CNR4T+)
  • 4x 10GBase-T (-E1CNR4T+) / 2x 10GBase-T (-E1CNRT+), 1 Video, 1 COM/Serial, 5 USB 3.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 4 heavy duty fans w/ optimal fan speed control
  • 1000W Redundant Titanium Level (96%) Power Supplies
24 NVMe support • 4x 10GBase-T
  • Virtualization Hosting, Cloud Computing, Data Center
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 24 Hot-swap 2.5" NVMe bays (4 hybrid ports - optional SAS3 support via AOC); 2x 2.5" Hot-swap SATA3 drive bays (rear)
  • 24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400
  • 2 PCI-E 3.0 x16 slots (FH 10.5" L), 1 PCI-E 3.0 x8 (LP) slot
  • 4x 10GBase-T ports, 1 dedicated IPMI, 1 Video, 1 COM, 5 USB 3.0 (2 rear, 2 via header, 1 Type A)
  • System management: Server management tool (IPMI 2.0, Virtual Media over LAN) with dedicated LAN port
  • 4x 80mm heavy duty PWM fans
  • 1600W Redundant Titanium Level (96%) Power Supplies
24x 2.5" Drive bays • 4 NVMe ports + 8 SATA3 ports • 24 DDR4 DIMM • 4x/2x 10GBase-T
  • Virtualization Hosting, Cloud Computing, Data Center
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 24 Hot-swap 2.5" drive bays; 4 NVMe ports + 8 SATA3 ports; 24 SAS3 ports optional via AOC
  • 24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400
  • 7 PCI-E 3.0 x8 slots (5 FH, 2 LP) (-TNR4T+)
    6 PCI-E 3.0 x8 slots (4 FH, 2 LP) (-TNRT+)
  • 4x 10GBase-T (-TNR4T+) / 2x 10GBase-T (-TNRT+), 1 Video, 1 COM/Serial, 5 USB 3.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 4 heavy duty fans w/ optimal fan speed control
  • 1000W Redundant Titanium Level (96%) Power Supplies
24x 2.5" SATA3/SAS3 • GbE/10GBase-T/10G SFP+
  • Virtualization Hosting, Cloud Computing, Data Center
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 24 Hot-swap 2.5" drive bays; Optional 24 SAS3
  • 24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400
  • 1 PCI-E 3.0 x16&7 PCI-E 3.0 x8 slots (5 FH, 2 LP)
    1 PCI-E 3.0 x16&6 PCI-E 3.0 x8 slots (4 FH, 2 LP) 2028U-TR4T+
  • 4 GbE (-TR4+) / 4x 10GBase-T (-TR4T+) / 2x 10GBase-T (-TRT+) / 2x 10G SFP+ (-TRTP+), 1 Video, 1 COM/Serial, 5 USB 3.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 4 heavy duty fans w/ optimal fan speed control
  • 1000W Redundant Titanium Level (96%) Power Supplies
EX DP • 2 NVMe HDD bays

Each EX DP Node supports:

  • Dual Socket R1 (LGA 2011) support Intel® Xeon® processor E7-8800/4800/2800 v2 family (15-Core) with QPI up to 8.0 GT/s
  • 32 DIMM slots: up to 2TB ECC DDR3, up to 1600MHz memory
  • 2 PCI-E 3.0 x16 FH/HL slots and 1 PCI-E 3.0 x8 for MicroLP card
  • 2 NVMe 2.5" SSD and 8x 2.5" SAS3/SATA3 HDD/SSD bays
  • 8 SATA3 (6Gbps) ports via C602; RAID 0, 1, 5, 10 (-BTNRT)
  • Broadcom 3108 SAS3 (12Gbps); RAID 0, 1, 5, 6, 10, 50 (-BC1NRT)
  • Connectivity: 2x 10GBase-T
  • 1 VGA, 1 Aspeed AST2400 BMC, 1 COM port
  • IPMI 2.0 + KVM with dedicated LAN, SuperDoctor 5, Watch Dog
  • 4x 80mm Energy-Efficient PWM fans
  • 1280W Redundant Platinum Level power supplies
2U 4-way (22-Core) MP • 11 PCI-E 3.0 • NVMe support
  • Mission Critical applications, Virtualization, HPC, Data Center
  • Quad Intel® Xeon® processor E5-4600 v4/v3 family 4-Way (up to 22 cores) with QPI up to 9.6GT/s
  • 11 PCI-E 3.0 total: 9 PCI-E 3.0 x8 and 2 PCI-E 3.0 x16 slots
  • 48 DIMM slots; Up to 6TB 3DS LRDIMM, up to DDR4-2400MHz
  • 24x 2.5" Hot-swap drive bays: 8 SATA3 default, 4 NVMe + 20 SAS3 optional via AOC
  • 4 GbE (via AOC, other opt. available), 1 dedicated IPMI, 1 Video, 1 COM, 5 USB 3.0 (2 rear, 2 via header, 1 Type A), 2 USB 2.0
  • System management: Server management tool (IPMI 2.0, Virtual Media over LAN) with dedicated LAN port
  • 4x 8cm heavy duty PWM fans
  • 1000W Redundant Titanium Level (96%) Power Supplies
  • GPU Server, Mission-critical app., enterprise server, large database, e-business, on-line transaction processing, oil & gas, medical app.
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 24 Hot-swap 2.5" Drive Bays
  • 24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • 8 PCI-E 3.0 x16 (double-width), 2 PCI-E 3.0 x8 (in x16) slots, 1 PCI-E 2.0 x4 (in x16) slot
  • I/O ports: 2 GbE/10GBase-T (TRT), 1 Video, 1 COM/Serial,
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 8x 92mm RPM Hot-Swappable Cooling Fans
  • 1600W Redundant (2+2) Platinum Level Power Supplies
HPC Solutions Powered by NVIDIA
  • HPC, Artificial Intelligence, Big Data Analytics, Research Lab, Astrophysics, Business Intelligence
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 24 Hot-swap 2.5" Drive Bays
  • 24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • 11 PCI-E 3.0 x16 (FH, FL) and 1 PCI-E 3.0 x8 (in x16) slots, Single Root Complex
  • 2 GbE (4028GR-TR2)/10GBase-T (4028GR-TRT2), 1 Video, 1 Serial
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 8x 92mm RPM Hot-Swappable Cooling Fans
  • 2000W Redundant Titanium Level Power Supplies
Up to 8 NVIDIA Tesla • V100 SXM2 GPUs • Up to 300 GB/s • GPU-to-GPU NVLINK
  • HPC, Artificial Intelligence, Big Data Analytics, Research Lab, Astrophysics, Business Intelligence
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 16 Hot-swap 2.5" Drive Bays
  • 24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • 4 PCI-E 3.0 x16 (low-profile) and 2 PCI-E 3.0 x8 slots
  • 2x 10GBase-T, 1 Video, 1 Serial
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 8x 92mm RPM Hot-Swappable Cooling Fans
  • 2200W Redundant Titanium Level Power Supplies
HPC Solutions Powered by NVIDIA
  • HPC, Artificial Intelligence, Big Data Analytics, Research Lab, Astrophysics, Business Intelligence
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 16 Hot-swap 2.5" Drive Bays
  • 24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • 4 PCI-E 3.0 x16 (low-profile) and 2 PCI-E 3.0 x8 slots
  • 2 GbE (4028GR-TXR)/10GBase-T (4028GR-TXRT), 1 Video, 1 Serial
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 8x 92mm RPM Hot-Swappable Cooling Fans
  • 2200W Redundant Titanium Level Power Supplies
4U, 4-way
  • In-memory Database, ERP, CRM, Business Intelligence, Scientific Research, Virtualization
  • Quad Intel® Xeon® processor E7-8800 v4/v3, E7-4800 v4/v3 family (up to 24-Core)
  • 11 PCI-E 3.0 slots (4 x16, 7 x8)
  • 96 DIMM slots support up to 12TB of DDR4 ECC 3DS LRDIMMs
  • Up to 24x 2.5" hot-swap SAS3/SATA3 HDD/SSD drive bays (48x 2.5" Hot-swap HDD/SSD optional)
  • Intel® X540 dual-port 10GBase-T LAN controller (via AOM)
  • Onboard BMC supports IPMI 2.0 + Virtual Media over LAN (via AOM)
  • Default HDD connection: 2 SATA3 + 4 SATA2 ports via C602J onboard
  • 1620W Hot-swap (N+1) redundant Platinum Level power supplies
4U, 4-way
  • In-memory Database, ERP, CRM, Business Intelligence, Scientific Research, Virtualization
  • Quad Intel® Xeon® processor E7-8800 v4/v3, E7-4800 v4/v3 family (up to 24-Core)
  • 11 PCI-E 3.0 slots (4 x16, 7 x8)
  • 96 DIMM slots support up to 6TB of DDR3 ECC LRDIMMs/RDIMMs
  • Up to 24x 2.5" hot-swap SAS3/SATA3 HDD/SSD drive bays (48x 2.5" Hot-swap HDD/SSD optional)
  • Intel® X540 dual-port 10GBase-T LAN controller (via AOM)
  • Onboard BMC supports IPMI 2.0 + Virtual Media over LAN (via AOM)
  • Default HDD connection: 2 SATA3 + 4 SATA2 ports via C602J onboard
  • 1620W Hot-swap (N+1) redundant Platinum Level power supplies
  • Front I/O, Space-efficient, compact design, Less than 10" depth
  • Intel® Xeon® processor D-1541 SoC, 8 cores, 45W
  • Up to 128GB ECC DDR4 RDIMM 2133MHz in 4 DIMM slots
  • 2x 10GbE LAN ports and 2x GbE LAN ports
  • 2x 3.5" or 4x 2.5" SATA3 drive bays, 2.5" optional
  • 1 PCI-E 3.0 x16 slot
  • 2 USB 3.0, 1 VGA, COM, and SATA DOM power connector
  • 200W Low Noise Power Supply
  • Compact Design, Less than 10" depth, Cloud and Virtualization, Network Appliance
  • Intel® Xeon® processor D-1518 SoC, 4 cores, 35W
  • Up to 128GB ECC DDR4 RDIMM 2133MHz in 4 DIMM slots
  • 2x 10G SFP+ and 6x 1GbE LAN ports
  • 1x 3.5" or 4x 2.5" drive bays with bracket
  • 1 PCI-E 3.0 x8 slot, M.2 PCIe 3.0 x4, M Key 2242/2280/22110
  • Mini-PCIe with mSATA support
  • 2 USB 3.0, 1 VGA, and SATA DOM power connector
  • 200W Low Noise Power Supply
  • Compact Network Appliance (< 10" Depth), FireWall Applications, Software Defined WAN
  • Intel® Pentium® processor D-1508 SoC, 2 cores, 25W
  • Up to 128GB ECC DDR4 RDIMM 2133MHz in 4 DIMM slots
  • 2x 10G SFP+ and 2x GbE LAN ports
  • 1x 3.5" or 4x 2.5" fixed drive bays, 2.5" optional
  • 1 PCI-E 3.0 x8 slot, M.2 PCIe 3.0 x4, M Key 2242/2280/22110, Mini-PCIe w/ mSATA support
  • 2 USB 3.0, 5 USB 2.0, 1 VGA, 1 COM, 2 SuperDOM, and TPM header
  • 200W Low Noise Power Supply
  • Hyper-Converged Appliance, Enterprise Server, Edge Computing Server, Private Cloud Server, Virtualization Server
  • Intel® Xeon® processor D-1537 SoC, 8 cores, 35W
  • Up to 128GB ECC DDR4 RDIMM 2133MHz in 4 DIMM slots
  • 2x 10G SFP+ and 2x 1GbE LAN ports
  • 4x 3.5" Hot-swap SATA3/SAS2 drive bays
  • 1 PCI-E 3.0 x8 slot, M.2 PCIe 3.0 x4, M Key 2242/2280/22110
  • Mini-PCIe with mSATA support
  • 2 USB 3.0 (rear), 1 VGA, and SATA DOM power connector
  • 400W High-efficiency redundant short depth Power Supplies
  • GPU Server, Mission-critical app., enterprise server, oil & gas, financial, 3D rendering, chemistry, HPC
  • Single Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 or E5-1600 v3 family; QPI up to 9.6GT/s
  • 3 Hot-swap 3.5" SATA3 HDD Bays
  • 8 DIMM slots; up to 1TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • 2 PCI-E 3.0 x16 (2 GPU cards opt.) and 1 PCI-E 3.0 x8 slots
  • I/O ports: 2 GbE, 1 Video, 1 COM/Serial, 2 USB 3.0 (rear)
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 8 counter-rotating fans w/ optimal fan speed control
  • 1400W Platinum Level digital-switching Power Supplies
  • Cloud and Virtualization, Network Security Appliance, NAS Servers
  • Intel® Xeon® processor D-1541 SoC, 8 cores, 45W
  • Up to 128GB ECC DDR4 RDIMM 2133MHz in 4 DIMM slots
  • 2x 10GbE LAN ports and 2x GbE LAN ports
  • 4x 3.5" Hot-swap SATA3 Drive Bays, 2x 2.5" Internal drive bays
  • 1 PCI-E 3.0 x16 (LP) slot, 1 M.2 PCI-E 3.0 x4, M Key 2242/2280
  • 2 USB 3.0 (rear), 2 USB 2.0 (front), 1 VGA, COM, and SATA DOM power connector
  • 250W Multi-output Power Supply
WIO, Flexible I/O
  • Cloud and other virtualization needs, hosting & application delivery, database processing & storage, simulation, automation
  • Single Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 8 Hot-swap 3.5" SATA3 drive bays
  • 8 DIMM slots; up to 1TB ECC 3DS LRDIMM or RDIMM DDR4-2400
  • 4 PCI-E 3.0 x8 (FH) and 1 PCI-E 3.0 x8 (LP) slots via riser card
  • 2 GbE, 1 Video, 1 COM/Serial, 2 USB 2.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 3 Counter-rotating PWM Cooling fans
  • 500W Redundant Platinum Level Power Supplies
  • High Performance, Versatile Features & I/O Access
  • Intel® Xeon® processor E5-2600 v4/v3, E5-1600 v3 family and Intel® 4th Gen Core i7 processor; Socket R3 (LGA 2011)
  • 4x 3.5" internal drive bays, 2x 5.25" peripheral drive bays, 1x card reader module
  • 4 PCI-E 3.0 x16 and 2 PCI-E 2.0 x1 (in x4) slots
  • 8 DIMMs slots; up to 1TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • I/O ports: 2 GbE, ALC1150 HD Audio, 8 USB 3.0 (2 front, 6 rear)
  • 900W Multi-output Power Supply
  • 12 trays per system, 2 modular UP Nodes per tray in 3U, EACH NODE:
  • Intel® Xeon® processor D-1531 SoC, 6-Core, 45W
  • Up to 128GB ECC DDR4 RDIMM 2133MHz in 4 DIMM slots
  • 1x 2.5" SATA3 HDDs; optional kit for 2x 2.5" slim SSDs
  • 2 GbE LAN ports, 1 shared LAN port for IPMI Remote Management
  • 2 USB 2.0, 1 VGA, 1 COM port (w/ KVM dongle)
  • 4x 9cm heavy-duty PWM fans with optimal cooling zone
  • 1600W Redundant Platinum Level Power Supplies
  • Cloud and Virtualization, Computing, Web Servers
  • 8 modular UP Nodes in 3U; EACH NODE:
  • Intel® Xeon® processor D-1541 SoC, 8 cores, 45W
  • Up to 128GB ECC DDR4 RDIMM 2133MHz in 4 DIMM slots
  • 2 GbE LAN ports and 1 dedicated LAN supports IPMI 2.0
  • 2x 3.5" Hot-swap SATA3/SAS Drive Bays
  • 1 PCI-E 3.0 x8 (LP) slot, MicroLP slot, 4 M Key 2242/22110
  • 1600W Redundant Titanium Level Power Supplies
  • 12 modular UP Nodes in 3U, EACH NODE:
  • Intel® Xeon® processor E3-1200 v3/v4 family, Intel® 4th/5th Gen Core™ processor family; socket H3 (LGA 1150) from 13W to 80W
  • Intel® C224 PCH Chipset
  • Up to 32GB DDR3 VLP ECC UDIMM 1600/1333MHz memory support
  • 2x 3.5" SATA3 HDDs; optional kit for 4x 2.5" SATA HDDs
  • 2 GbE LAN ports and 1 dedicated LAN supports IPMI 2.0
  • 2 USB 2.0 ports, 1 VGA, 1 USB 3.0 (Type-A), 1 SATA DOM
  • 4 heavy-duty 9cm PWM fans with optimal cooling zone
  • 1620W Redundant Platinum Level Power Supplies
  • 12 trays per system, 2 modular UP Nodes per tray in 3U, EACH NODE:
  • Intel® Xeon® processor E3-1200 v3 family, Intel® 4th/5th Gen Core™ processor family; socket H3 (LGA 1150) up to 80W
  • Intel® C224 PCH Chipset
  • Up to 32GB DDR3 VLP ECC UDIMM 1600/1333MHz memory support
  • 1x 2.5" SATA3 HDD; optional kit for 2x 2.5" slim SSDs
  • 4 GbE LAN ports and 1 dedicated LAN supports IPMI 2.0
  • 2 USB 2.0 ports, 1 VGA
  • 4 heavy-duty 9cm PWM fans with optimal cooling zone
  • 2000W Redundant Platinum Level Power Supplies
  • 8 modular UP Nodes in 3U; EACH NODE:
  • Intel® Xeon® processor E3-1200 v3/v4 family, Intel® 4th/5th Gen Core™ processor family; socket H3 (LGA 1150) from 13W to 84W
  • Intel® C224 PCH chipset
  • Up to 32GB DDR3 ECC UDIMM 1600/1333MHz memory support
  • 2x 3.5" hot-swap SAS/SATA HDDs (SW/HW RAID 0,1 depends on RAID card config.)
  • 2 GbE LAN ports and 1 dedicated LAN supports IPMI 2.0
  • 2 USB 2.0 ports, 1 USB 3.0 (Type-A), 1 VGA, 1 SATA DOM
  • Low-profile PCI-E x8 expansion support
  • 4 heavy-duty 8cm PWM fans with optimal cooling zone
  • 1620W Redundant Platinum Level Power Supplies
  • 8 modular UP Nodes in 3U; EACH NODE:
  • Intel® Xeon® processor E5-2600 v4/v3 family; socket R3 (LGA 2011)
  • Intel® C612 chipset
  • Up to 512GB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz in 4 DIMM slots
  • 2x 3.5" Hot-swap SATA3/SAS drive bays
  • 2 GbE LAN ports and 1 dedicated LAN supports IPMI 2.0
  • 2 USB 2.0, 1 VGA, 1 COM port (w/ KVM dongle), 1 SATA DOM
  • 1 PCI-E 3.0 x8 Low-profile expansion slot
  • 4 heavy-duty 8cm PWM fans with optimal cooling zone
  • 1620W Redundant Platinum Level Power Supplies
WIO, Flexible I/O
  • Cloud and other virtualization needs, hosting & application delivery, database processing & storage, simulation, automation
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 4 Hot-swap 3.5" SAS/SATA drive bays for Customizable storage
  • 16 DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400
  • Riser card support: Left side - 2 PCI-E 3.0 x16 slots
  • 2 GbE/10GBase-T (WTRT), 1 Video, 1 Serial, 6 USB 3.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) w/ dedicated LAN port
  • 5 Counter-rotating PWM fans
  • 750W Redundant Platinum Level Power Supplies
Single port IB (FDR, 56Gbps) - SYS-6018TR-TF
  • 2 DP nodes in 1U; depth 27.75", Each Node (x2 nodes):
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 8 DIMM slots; up to 1TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • 1 PCI-E x16 slot
  • 2x 3.5" Hot-swap SATA3 drive bays
  • 2 GbE, 1 VGA, 1 COM, 2 USB 2.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 3 counter-rotating 40x56mm PWM fans
  • IB FDR (56Gbps) - SYS-6018TR-TF
  • 1000W Titanium Level (96%) Power Supply
4x 3.5" SATA3 • Flexible Network Opt.
  • Virtualization Hosting, Cloud Computing, Data Center
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 4 Hot-swap 3.5" SATA3 drive bays
  • 24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400
  • 2 PCI-E 3.0 x16 and 2 PCI-E 3.0 x8 slots (1 LP, 1 internal LP)
  • 4 GbE (-TR4+) / 4x 10GBase-T (-TR4T+) / 2x 10GBase-T (-TRT+) / 2x 10G SFP+ (-TRTP+), 1 Video, 1 COM/Serial, 5 USB 3.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 4 heavy duty fans w/ optimal fan speed control
  • 750W Redundant Platinum Level Power Supplies
BigTwin™ • 3 NVMe/SAS3 per Node
  • 4 DP nodes in 2U; depth 30.5", Each Node:
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family
  • 24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • 2 PCI-E 3.0 x16 Low-profile slots, 1 Networking SIOM card support
  • At least one network card must be bundled
  • 3 Hot-swap 3.5” NVMe/SAS3 drive bays per node
  • SAS3 support via Broadcom 3008; IT mode
  • 1 Dedicated IPMI port, 1 VGA, 2 USB 3.0, 1 SuperDOM
  • 4 heavy duty 80mm fans w/ optimal fan speed control
  • 2200W Redundant Titanium Level (96%) Power Supplies
WIO, Flexible I/O
  • 2U Mainstream WIO Server
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 8 Hot-swap 3.5" drive bays ready for flexible storage support
  • 16 DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400
  • 4 PCI-E 3.0 x8 (2 FHFL, 2 FHHL), 2 PCI-E 3.0 (LP) slots via riser card
  • 2 GbE/10GBase-T (WTRT), 1 Video, 2 COM, 6 USB 3.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 3 heavy duty fans w/ optimal fan speed control
  • 740W Redundant Platinum Level Power Supplies
NVMe support
  • 2 DP nodes in 2U; depth 30.5", Each Node (x2 nodes):
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 16 DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • 1 PCI-E 3.0 x16 and 1 PCI-E x8 slots
  • 6x 3.5" Hot-swap drive bays (up to 4 NVMe + 2 SAS3 or 6 SAS3)
  • 1 InfiniBand port (FDR, 56Gbps), w/ QSFP connector ("FR" SKUs)
  • 2 GbE (6028TP-DNCR) / 10GBase-T (6028TP-DNCTR), 1 Video, 2 USB 3.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 4x 80mm heavy duty fans w/ optimal fan speed control
  • 1600W Redundant Titanium Level (96%) Power Supplies
SAS2 via Broadcom 2208 (6028TR-D72R)
  • 2 DP nodes in 2U; depth 28.5", Each Node (x2 nodes):
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 8 DIMM slots; up to 1TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • 2 PCI-E 3.0 x8 and 1 PCI-E x8 slots
  • 6x 3.5" Hot-swap SAS2 (6028TR-D72R)/SATA3 drive bays
  • 2 GbE, 1 Video, 1 RS232, 2 USB 3.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 4 heavy duty fans w/ optimal fan speed control
  • 1280W Redundant Platinum Level Digital Power Supplies
Titanium, 96% Efficiency Power Supplies • IB FDR (56Gbps)
  • 4 DP nodes in 2U, depth 28.5", Each Node (x4 nodes):
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 8 DIMM slots; up to 1TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • 1 PCI-E 3.0 x16 and 1 PCI-E x8 connectors for SMCI AOC
  • 3x 3.5" Hot-swap SAS2/SATA3 drive bays
  • I/O ports: 2x GbE, 1x Video, 1x RS232, 2x USB 3.0
  • 1 InfiniBand port (FDR, 56Gbps), w/ QSFP connector ('FR' SKU)
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 4 heavy duty fans w/ optimal fan speed control
  • 1600W Redundant Titanium Level (96%) High-efficiency Digital Power Supplies
12x 3.5" SAS3 via Expander & AOC, 4 NVMe • 24 DDR4 DIMM • 4x/2x 10GBase-T
  • Virtualization Hosting, Cloud Computing, Data Center
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 12 Hot-swap 3.5" SAS3 via Expander and AOC; 4 NVMe
  • 24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400
  • SYS-6028U-E1CNRT+: 7 PCI-E 3.0 x8 slots (5 FH, 2 LP)
    SYS-6028U-E1CNR4T+: 6 PCI-E 3.0 x8 slots (4 FH, 2 LP)
  • 4x 10GBase-T (-E1CNR4T+) / 2x 10GBase-T (-E1CNRT+), 1 Video, 1 COM/Serial, 5 USB 3.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 4 heavy duty fans w/ optimal fan speed control
  • 1000W Redundant Titanium Level (96%) Power Supplies
12x 3.5" Drive bays • 4 NVMe ports + 8 SATA3 ports • 24 DDR4 DIMM • 4x/2x 10GBase-T •
  • Virtualization Hosting, Cloud Computing, Data Center
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 12 Hot-swap 3.5" drive bays; 4 NVMe ports + 8 SATA3 ports; 12 SAS3 ports optional via AOC
  • 24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400
  • SYS-6028U-TNRT+: 7 PCI-E 3.0 x8 slots (5 FH, 2 LP)
    SYS-6028U-TNR4T+: 6 PCI-E 3.0 x8 slots (4 FH, 2 LP)
  • 4x 10GBase-T (-TNR4T+) / 2x 10GBase-T (-TNRT+), 1 Video, 1 COM/Serial, 5 USB 3.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 4 heavy duty fans w/ optimal fan speed control
  • 1000W Redundant Titanium Level (96%) Power Supplies
12x 3.5" drive bays • Opt. 12 SAS3 • GbE/10GBase-T/10G SFP+
  • Virtualization Hosting, Cloud Computing, Data Center
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 12 Hot-swap 3.5" drive bays; Optional 12 SAS3
  • 24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400
  • 1 PCI-E 3.0 x16&7 PCI-E 3.0 x8 slots (5 FH, 2 LP)
    1 PCI-E 3.0 x16&6 PCI-E 3.0 x8 slots (4 FH, 2 LP) 6028U-TR4T+
  • 4 GbE (-TR4+) / 4x 10GBase-T (-TR4T+) / 2x 10GBase-T
    (-TRT+) / 2x 10G SFP+ (-TRTP+), 1 Video, 1 COM/Serial, 5 USB 3.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 4 heavy duty fans w/ optimal fan speed control
  • 1000W Redundant Titanium Level (96%) Power Supplies
12x 3.5" drive bays: • SATA default, SAS3 Opt. Opt. 4 NVMe via AOC • 4 GbE LAN
  • Remote Workstation, EDA/CAD license server, High Performance single node compute
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 12 Hot-swap 3.5" drive bays: SATA3 default, SAS3 Optional, 4 Optional NVMe via AOC
  • 16 DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400
  • 3 PCI-E 3.0 x16 (FHFL), 3 PCI-E 3.0 x8 (1 in x16, 1 LP, 1 internal LP)
  • 4 GbE, 1 Video, 1 COM/Serial, 5 USB 3.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 4 heavy duty fans w/ optimal fan speed control
  • 1000W Redundant Titanium Level (96%) Power Supplies
  • Hyper-Speed hardware acceleration technology
Thunderbolt Support • Up to 3 GPUs • 7.1 HD Audio
  • Mid-Tower Mainstream Whisper Quiet Workstation
  • Dual Socket R3 support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 4x 3.5" internal drive bays, 2x 5.25" drive bays, and 1x 3.5" internal fixed drive bay
  • 16 DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • 3 PCI-E 3.0 x16, 2 PCI-E 3.0 x8, and 1 PCI-E 2.0 x4 (in x8) slot supports Thunderbolt 2.0 AIC
  • I/O ports: 2 GbE, 1 Video, 2 COM/Serial, 6 USB 3.0, 4 USB 2.0, 1 Type A, 7.1 HD Audio
  • 1 Super-quiet PWM rear fan
  • 900W Gold Level Power Supply
Thunderbolt Support • Up to 3 GPUs • 7.1 HD Audio
  • 4U Whisper Quiet Workstation for Virtualization and Multi Tasking
  • Dual Socket R3 support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 8x 3.5" Hot-swap drive bays
  • 16 DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • 3 PCI-E 3.0 x16, 2 PCI-E 3.0 x8, and 1 PCI-E 2.0 x4 (in x8) slot supports Thunderbolt 2.0 AIC
  • I/O ports: 2 GbE, 1 Video, 2 COM/Serial, 2 USB 3.0 (rear), 4 USB 2.0, 7.1 HD Audio
  • 2x 2800 RPM cooling fans and 1x 2700 RPM fan
  • 1200W Platinum Level Power Supply
Thunderbolt Support • Up to 4 GPUs • 7.1 HD Audio
  • GPU Server, Mission-critical app., enterprise server, large database, e-business, on-line transaction processing, oil & gas, medical app.
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 8 Hot-swap 3.5" SATA HDD Bays, 3 peripheral 5.25" drive bays, 1 fixed 3.5" drive bay
  • 16 DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • 4 PCI-E 3.0 x16 (4 GPU cards opt.), 2 PCI-E 3.0 x8 (1 in x16), and 1 PCI-E 2.0 x4 (in x8) slot
  • 2 GbE, 1 Video, 2 COM/Serial, 5 USB 3.0, 4 USB 2.0, 7.1 HD Audio, Thunderbolt Support
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 4 PWM Middle cooling fans and 2 PWM rear exhaust fans
  • 2000W Redundant Titanium Level Power Supplies
7U, 8-way • U.2 NVMe Support option
  • In-memory Database, ERP, CRM, Business Intelligence, Scientific Research, Virtualization
  • 8 Intel® Xeon® processor E7-8800 v4/v3 family (up to 24-Core)
  • Up to 15 or 23 (OEM) PCI-E 3.0 slots, 16 U.2 NVMe support option available
  • 192 DDR4 memory DIMM slots, support up to 24TB of DDR4 ECC 3DS LRDIMMs
  • Up to 12x 2.5" hot-swap SAS3/SATA3 HDD/SSD drive bays
  • 4 10GBase-T LAN ports (via SIOM)
  • Onboard BMC supports IPMI 2.0
  • Default HDD connection: 2 SATA2 ports via C602J onboard
  • 2 SATA3 SATA DOM + 2 SATA2 M.2 for internal storage device connection via C602J onboard
  • 5x 1600W Hot-swap (N+2) redundant Titanium Level power supplies
2U, 4-way
  • Enterprise mission-critical applications, financial, oil & gas, medical, e-Commerce, virtualization
  • Quad Intel® Xeon® processor E7-8800 v4/v3, E7-4800 v4/v3 family (up to 24-Core)
  • 2 PCI-E 3.0 x16 and 2 PCI-E 3.0 x8 Low-profile slots
  • 32 DIMM slots support up to 2TB of DDR3 ECC LRDIMMs
  • 6x 3.5" Hot-swap SATA3 (TR3F) or SAS2 (C0R3FT) drive bays
  • Onboard Broadcom 3008 controller (C0R3FT)
  • I/O: 2 GbE (TR3F) / 2 10GBase-T (C0R3FT), 1 Video, 1 COM, 3 USB 2.0
  • System management: Server management tool (IPMI 2.0, Virtual Media over LAN) with dedicated LAN port
  • 3 Hot-swap PWM Cooling fans
  • 1400W Redundant Platinum Level Digital Power Supplies
2U, 4-way
  • Enterprise mission-critical applications, financial, oil & gas, medical, e-Commerce, virtualization
  • Quad Intel® Xeon® processor E7-8800 v4/v3, E7-4800 v4/v3 family (up to 24-Core)
  • 2 PCI-E 3.0 x16 and 2 PCI-E 3.0 x8 Low-profile slots
  • 32 DIMM slots support up to 4TB of DDR4 ECC 3DS LRDIMMs
  • 6x 3.5" Hot-swap SATA3 (TR4F) or SAS2 (C0R4FT) drive bays
  • Onboard Broadcom 3008 controller (C0R4FT)
  • I/O: 2 GbE (TR4F) / 2 10GBase-T (C0R4FT), 1 Video, 1 COM, 3 USB 2.0
  • System management: Server management tool (IPMI 2.0, Virtual Media over LAN) with dedicated LAN port
  • 3 Hot-swap PWM Cooling fans
  • 1400W Redundant Platinum Level Digital Power Supplies
4U Tower, 4-way
  • Enterprise mission-critical applications, financial, oil & gas, medical, e-Commerce
  • Quad Intel® Xeon® processor E7-8800 v4/v3, E7-4800 v4/v3 family (up to 24-Core)
  • 2 PCI-E 3.0 x16 and 2 PCI-E 3.0 x8 Full-height slots
  • 32 DIMM slots support up to 2TB of DDR3 ECC LRDIMMs
  • 5x 3.5" Hot-swap SATA (TR3F) or SAS3 (C0R3FT) drive bays
  • Onboard Broadcom 3008 controller (C0R3FT)
  • I/O: 2 GbE (TR3F) / 2 10GBase-T (C0R3FT), 1 Video, 1 COM, 3 USB 2.0
  • System management: Server management tool (IPMI 2.0, Virtual Media over LAN) with dedicated LAN port
  • 3x 9cm + 3x 8cm Heavy Duty fans with speed control
  • 1400W Redundant Platinum Level Digital Power Supplies
4U Tower, 4-way
  • Enterprise mission-critical applications, financial, oil & gas, medical, e-Commerce
  • Quad Intel® Xeon® processor E7-8800 v4/v3, E7-4800 v4/v3 family (up to 24-Core)
  • 2 PCI-E 3.0 x16 and 2 PCI-E 3.0 x8 Full-height slots
  • 32 DIMM slots support up to 4TB of DDR4 ECC 3DS LRDIMMs
  • 5x 3.5" Hot-swap SATA (TR4F) or SAS3 (C0R4FT) drive bays
  • Onboard Broadcom 3008 controller (C0R4FT)
  • I/O: 2 GbE (TR4F) / 2 10GBase-T (C0R4FT), 1 Video, 1 COM, 3 USB 2.0
  • System management: Server management tool (IPMI 2.0, Virtual Media over LAN) with dedicated LAN port
  • 3x 9cm + 3x 8cm Heavy Duty fans with speed control
  • 1400W Redundant Platinum Level Digital Power Supplies
4U, 4-way
  • In-memory Database, ERP, CRM, Business Intelligence, Scientific Research, Virtualization
  • Quad Intel® Xeon® processor E7-8800 v4/v3, E7-4800 v4/v3 family (up to 24-Core)
  • 11 PCI-E 3.0 slots (4 x16, 7 x8)
  • 96 DIMM slots support up to 12TB of DDR4 ECC 3DS LRDIMMs
  • 24x 3.5" hot-swap SAS2/SATA3 drive bays
  • Intel® X540 dual-port 10GBase-T LAN controller (via AOM)
  • Onboard BMC supports IPMI 2.0 + Virtual Media over LAN (via AOM)
  • Default HDD connection: 2 SATA3 + 4 SATA2 ports via C602J onboard
  • 1620W Hot-swap (N+1) redundant Platinum Level power supplies
4U, 4-way
  • In-memory Database, ERP, CRM, Business Intelligence, Scientific Research, Virtualization
  • Quad Intel® Xeon® processor E7-8800 v4/v3, E7-4800 v4/v3 family (up to 24-Core)
  • 11 PCI-E 3.0 slots (4 x16, 7 x8)
  • 96 DIMM slots support up to 6TB of DDR3 ECC LRDIMMs/RDIMMs
  • Up to 24x 3.5" hot-swap SAS2/SATA3 HDD/SSD drive bays
  • Intel® X540 dual-port 10GBase-T LAN controller (via AOM)
  • Onboard BMC supports IPMI 2.0 + Virtual Media over LAN (via AOM)
  • Default HDD connection: 2 SATA3 + 4 SATA2 ports via C602J onboard
  • 1620W Hot-swap (N+1) redundant Platinum Level power supplies
  • Embedded Networking / Firewall Applications, Network Security Appliance, Virtualization
  • Intel® Xeon® processor D-1528 SoC, 6-Cores, 12 Threads, 35W
  • Up to 128GB ECC DDR4 RDIMM 2133MHz in 4 DIMM slots
  • 2x 10GbE and 2x 1GbE LAN ports
  • 2.5" fixed drive bay with bracket
  • M.2 PCI-E 3.0 x4 (SATA support), M Key 2242/2280/22110
  • 2 USB 3.0, 1 VGA, 2 SuperDOM, TPM 2.0
  • DC Power adapter
  • Embedded Networking / Firewall Applications, Network Security Appliance, Virtualization
  • Intel® Xeon® processor D-1518 SoC, 4-Cores, 8 Threads, 35W
  • Up to 128GB ECC DDR4 RDIMM 2133MHz in 4 DIMM slots
  • 2x 10G SFP+ and 6x 1GbE LAN ports
  • 2.5" fixed drive bay when AOC area is occupied
  • 1 PCI-E 3.0 x8 AOC slot (LP), M.2 PCI-E 3.0 x4 (SATA support), M Key 2242/2280/22110
  • Mini PCI-E with mSATA support
  • 2 USB 3.0, 1 VGA, 2 SuperDOM, TPM 2.0
  • DC Power adapter
Hadoop, 4 DP Nodes with Front I/O
  • Up to 12 Fixed 3.5" SATA3 drives per U
  • Evolutionary 4U Twin Architecture that Offers Industry's Best Capacity and Efficiency
  • 4 Hot-plug System Nodes in 4U
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family
  • 16 DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • 2 PCI-E 3.0 x8 (LP) expansion slots via riser card
  • Ports: 2 GbE/10GBase-T ("PT"), 1 Video, 2 USB 3.0
  • Server Management with Onboard IPMI 2.0 through Dedicated LAN Port
  • 8x 8cm heavy duty fans with PWM fan speed control
  • 2000W Redundant Titanium Level (96%) High-efficiency Digital Power Supplies
Hadoop, 4 DP Nodes with Front I/O
  • Up to 8 Fixed 3.5" SAS/SATA + 4 Fixed 3.5" SATA HDDs per U
  • Evolutionary 4U Twin Architecture that Offers Industry's Best Capacity and Efficiency
  • 4 Hot-plug System Nodes in 4U
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family
  • 16 DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • 2 PCI-E 3.0 x8 (LP) expansion slots via riser card
  • Ports: 2 GbE/10GBase-T ("PT"), 1 Video, 2 USB 3.0
  • Server Management with Onboard IPMI 2.0 through Dedicated LAN Port
  • SAS3 (12Gbps) via Broadcom 3008 controller; SW RAID 0, 1, 10 support
  • 8x 8cm heavy duty fans with PWM fan speed control
  • 2000W Redundant Titanium Level (96%) High-efficiency Digital Power Supplies
8 DP Nodes with Front I/O
  • FatTwin™ Server; EACH NODE (x8 Hot-plug System Nodes):
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family
  • 2x 2.5" Hot-swap SATA3 HDD Bays (F618R2-FT); 2x 2.5" Hot-swap SAS3 HDD Bays; SAS3 via Broadcom 3008 (F618R2-FC0)
  • 8x DIMM slots; up to 1TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • 1x PCI-E 3.0 x16 Low-profile slot
  • I/O ports: 2x GbE, 1x Video, 2x USB 3.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 8x 8cm 9.5K RPM Rear fans total in the system
  • 1620W Redundant Platinum Level Power Supplies
8 DP Nodes with Front I/O
  • FatTwin™ Server; EACH NODE (x8 Hot-plug System Nodes):
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family
  • 4 Fixed 2.5" ("R2") or 2 Fixed 3.5" ("R3") SATA3 drive bays
  • 16 DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • 1 PCI-E 3.0 x8 and 1 PCI-E 2.0 x4 or 2 PCI-E 3.0 x8 (optional)
  • Ports: 2 GbE/10GBase-T ("PT+"), 1 Video, 2 USB 3.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 8x 8cm 9.5k RPM Rear fans
  • 2000W Redundant Titanium Level (96%) High-efficiency Digital Power Supplies
8-Node Rear I/O • 6 Hot-swap 2.5" HDDs per Node • 4 SAS3 + 2 NVMe
  • FatTwin™ Server; EACH NODE (x8 Hot-plug System Nodes):
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 6x 2.5" Hot-swap drive bays: 6 SAS3 or 4 SAS3 + 2 NVMe SSD SAS3 support via Broadcom 3108 ("C1") / Broadcom 3008 ("C0")
  • 16 DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • 1 PCI-E 3.0 x16, 1 PCI-E 3.0 x8 Micro LP slot (flexible networking opt.)
  • 2 GbE/10GBase-T ("PT+"), 1 Video, 2 USB 3.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 3 heavy duty internal fans, optional rear fan w/ Optimal Fan Speed Control
  • 2000W Redundant Titanium Level (96%) Power Supplies
8 DP Nodes with Rear I/O
  • FatTwin™ Server; EACH NODE (x8 Hot-plug System Nodes):
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family
  • 6 Hot-swap 2.5" SATA3 HDD Bays (-RT+ and -RTPT+ SKUs); SAS2 support via Broadcom 2208 (-R72+ and -R72PT+ SKUs)
  • 16 DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • 1 PCI-E 3.0 x16, 1 PCI-E 3.0 x8 Micro LP slot (flexible networking opt.)
  • Ports: 2 GbE/10GBase-T ("PT+"), 1 Video, 2 USB 3.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 3x 4cm 14K RPM middle fans
  • 1620W Redundant Platinum Level Power Supplies
8-Node Rear I/O • 6 Hot-swap 2.5" HDDs per Node • 4 SATA3 + 2 NVMe
  • FatTwin™ Server; EACH NODE (x8 Hot-plug System Nodes):
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 6x 2.5" Hot-swap drive bays: 6 SATA3 or 4 SATA3 + 2x NVMe SSD
  • 16 DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • 1 PCI-E 3.0 x16, 1 PCI-E 3.0 x8 Micro LP slot (flexible networking opt.)
  • 2 GbE (SYS-F618R2-RTN+) / 10GBase-T (SYS-F618R2-RTPTN+), 1 Video, 2 USB 3.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 3 heavy duty internal fans, optional rear fan w/ Optimal Fan Speed Control
  • 2000W Redundant Titanium Level (96%) Power Supplies
8 DP Nodes with Front I/O
  • FatTwin™ Server; EACH NODE (x8 Hot-plug System Nodes):
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family
  • 2 Fixed 3.5" SATA3 HDD Bays
  • 8 DIMM slots; up to 1TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • 1 PCI-E 3.0 x16 Low-profile slot
  • Ports: 2 GbE, 1 Video, 2 USB 3.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 8x 8cm 9.5K RPM Rear fans total in the system
  • 1620W Redundant Platinum Level Power Supplies
8 DP Nodes with Front I/O
  • FatTwin™ Server; EACH NODE (x8 Hot-plug System Nodes):
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family
  • 2 Fixed 3.5" SATA3 HDD Bays
  • 8 DIMM slots; up to 1TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • 1 PCI-E 3.0 x16 Low-profile slot
  • Ports: 2 GbE, 1 Video, 2 USB 3.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 2x 17cm Rear fans total in the system
  • 1620W Redundant Platinum Level Power Supplies
  • Up to 6 Hot-swap 2.5" SATA (-FT+/-FTPT+) or SAS3 (-FC0+/-FC0PT+) HDDs per U
  • Outstanding high-density compute performance for Engineering and Scientific Research, Modeling, Simulation and HPC applications
  • 4 Hot-plug System Nodes in 4U, each Node:
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 16 DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • 3 PCI-E 3.0 x16 support 3 Double-width GPU/Xeon Phi™; and 2 PCI-E 3.0 x8 Low-profile slots
  • I/O ports: 2 GbE/10GBase-T ("PT"), 1 Video, 2 USB 3.0
  • Server Management with Onboard IPMI 2.0 through Dedicated LAN Port
  • SAS3 (12Gbps) via Broadcom 3008 controller ("C0"); SW RAID 0, 1, 10 support
  • 8x 8cm heavy duty 11K fans with air shroud and PWM fan speed control
  • 2000W Redundant Titanium Level (96%) High-efficiency Digital Power Supplies
  • Up to 2 Hot-swap 3.5" SATA (-FT+/-FTPT+) or SAS3 (-FC0+/-FC0PT+) HDDs per U
  • Outstanding high-density compute performance for Engineering and Scientific Research, Modeling, Simulation and HPC applications
  • 4 Hot-plug System Nodes in 4U, each Node:
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 16 DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • 3 PCI-E 3.0 x16 support 3 Double-width GPU/Xeon Phi™; and 2 PCI-E 3.0 x8 Low-profile slots
  • I/O ports: 2 GbE/10GBase-T ("PT"), 1 Video, 2 USB 3.0
  • Server Management with Onboard IPMI 2.0 through Dedicated LAN Port
  • SAS3 (12Gbps) via Broadcom 3008 controller ("C0"); SW RAID 0, 1, 10 support
  • 8x 8cm heavy duty 11K fans with air shroud and PWM fan speed control
  • 2000W Redundant Titanium Level (96%) High-efficiency Digital Power Supplies
4 DP Nodes with Front I/O
  • FatTwin™ Server; EACH NODE (x4 Hot-plug System Nodes):
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family
  • 8 Hot-swap 2.5" SAS3 HDD Bays; SAS3 via Broadcom 3008
  • 8 DIMM slots; up to 1TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • 1 PCI-E 3.0 x16 Low-profile slot
  • Ports: 2 GbE, 1 Video, 2 USB 3.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 8x 8cm 9.5K RPM Rear fans total in the system
  • 1280W Redundant Platinum Level Power Supplies
4 DP Nodes with Front I/O
  • Up to 6 Hot-swap 2.5" SATA3 (-FT+/-FTPT+) or SAS3 (-FC0+/-FC0PT+) HDDs per U
  • Outstanding high-density compute performance for Engineering and Scientific Research, Modeling, Simulation and HPC applications
  • 4 Hot-plug System Nodes in 4U
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family
  • 16 DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • 2 PCI-E 3.0 x8 (FH HL) slots
  • Ports: 2 GbE/10GBase-T ("PT"), 1 Video, 2 USB 3.0
  • Server Management with Onboard IPMI 2.0 through Dedicated LAN Port
  • SAS3 (12Gbps) via Broadcom 3008 controller ("C0"); SW RAID 0, 1, 10 support
  • 8x 8cm heavy duty 9.5K hot swappable fans with air shroud and PWM fan speed control
  • 1280W Redundant Platinum Level Power Supplies
4 DP Nodes with Front I/O
  • FatTwin™ Server; EACH NODE (x4 Hot-plug System Nodes):
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family
  • 4 Hot-swap 3.5" SATA3 HDD Bays (F628R3-FT); 4 Hot-swap 3.5" SAS3 HDD Bays; SAS3 via Broadcom 3008 (F628R3-FC0)
  • 8 DIMM slots; up to 1TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • 1 PCI-E 3.0 x16 Low-profile slot
  • Ports: 2 GbE, 1 Video, 2 USB 3.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 8x 8cm 9.5K RPM Rear fans total in the system
  • 1280W Redundant Platinum Level Power Supplies
4 DP Nodes with Front I/O
  • Up to 2 Hot-swap 3.5" SATA (-FT+/-FTPT+) or SAS3 (-FC0+/-FC0PT+) HDDs per U
  • Outstanding high-density compute performance for Engineering and Scientific Research, Modeling, Simulation and HPC applications
  • 4 Hot-plug System Nodes in 4U
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family
  • 16 DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • 2 PCI-E 3.0 x8 (FH HL) slots
  • Ports: 2 GbE/10GBase-T ("PT"), 1 Video, 2 USB 3.0
  • Server Management with Onboard IPMI 2.0 through Dedicated LAN Port
  • SAS3 (12Gbps) via Broadcom 3008 controller ("C0"); SW RAID 0, 1 support
  • 8x 8cm heavy duty 9.5K hot swappable fans with air shroud and PWM fan speed control
  • 1280W Redundant Platinum Level Power Supplies
4-Node Rear I/O • 8 Hot-swap 3.5" HDDs per 1U • 6 SAS3 + 2 NVMe
  • FatTwin™ Server; EACH NODE (x4 Hot-plug System Nodes):
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 8x 3.5" Hot-swap drive bays: 8 SAS3 or 6 SAS3 + 2 NVMe SSD SAS3 (12Gbps) support via Broadcom 3108 ("C1") / Broadcom 3008 ("C0")
  • 16 DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • 1 PCI-E 3.0 x16, 1 PCI-E 3.0 x8 Micro LP slot (flexible networking opt.)
  • 2 GbE/10GBase-T ("PT+"), 1 Video, 2 USB 3.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 2 heavy duty internal fans, optional rear fan w/ Optimal Fan Speed Control
  • 1280W Redundant Platinum Level Power Supplies
4 DP Nodes with Rear I/O
  • FatTwin™ Server; EACH NODE (x4 Hot-plug System Nodes):
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family
  • 6 + 2 Hot-swap 3.5" SATA3 HDD Bays(-RTB+ and -RTBPT+ SKUs); SAS2 support via Broadcom 2208 (-R72B+ and -R72BPT+ SKUs)
  • 16 DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • 1 PCI-E 3.0 x16, 1 PCI-E 3.0 x8 Micro LP slot (flexible networking opt.)
  • Ports: 2 GbE/10GBase-T ("PT+"), 1 Video, 2 USB 3.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 2x 8cm 11K RPM middle fans
  • 1280W Redundant Platinum Level Power Supplies
4-Node Rear I/O • 8 Hot-swap 3.5" HDDs per 1U • 6 SATA3 + 2 NVMe
  • FatTwin™ Server; EACH NODE (x4 Hot-plug System Nodes):
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 8x 3.5" SATA3 or 6x 3.5" SATA3 and 2x NVMe Hot-swap drives per U
  • 16 DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • 1 PCI-E 3.0 x16, 1 PCI-E 3.0 x8 Micro LP slot (flexible networking opt.)
  • 2 GbE (SYS-F628R3-RTBN+) / 10GBase-T (SYS-F628R3-RTBPTN+), 1 Video, 2 USB 3.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 2x 80mm 11K RPM middle fans
  • 1280W Redundant Platinum Level Power Supplies
12 GPU/Coprocessor, Front I/O
  • Outstanding high-density compute performance for Engineering and Scientific Research, Modeling, Simulation and HPC applications
  • 2 Hot-plug System Nodes in 4U supporting 12 double-width GPU/Coprocessor, each Node:
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family
  • 8 Hot-swap 2.5" SATA3 (-FT+/-FTPT+) or SAS3 (-FC0+/-FC0PT+) HDDs; SAS3 via Broadcom 3008
  • 16 DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • 6 PCI-E 3.0 x16 support 6 Double-width GPU/Coprocessor ; and 2 PCI-E 3.0 x8 FHHL slots
  • I/O ports: 2x GbE (-FT+/-FC0+)/10GBase-T (-FTPT+/-FC0PT+), 1x Video, 2x USB 3.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 8 heavy duty rear fans, optional rear fan w/ Optimal Fan Speed Control
  • 2000W Redundant Titanium Level (96%) High-efficiency Digital Power Supplies
X9DRG-HF • + SC118GQ-1800GB
  • GPU Server, Mission-critical app., enterprise server, oil & gas, financial, 3D rendering, chemistry, HPC
  • Dual Intel® Xeon® processor E5-2600 or E5-2600 v2 family; Socket R (LGA 2011)
  • 4 Hot-swap 2.5" SATA2/3 HDD Bays
  • 8 DIMMs support up to DDR3 1866MHz reg. ECC memory
  • 4 (x16) PCI-E 3.0 and 1 (x8) PCI-E 3.0 (in x16) slots
  • I/O ports: 2 GbE, 1 Video, 1 COM/Serial, 2 USB 2.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 10 heavy duty fans w/ optimal fan speed control
  • 1800W Platinum Level Power Supply
X9DRG-HF • + SC118GQ-R1800B
  • GPU/MIC Server, Mission-critical app., enterprise server, oil & gas, financial, 3D rendering, chemistry, HPC
  • Dual Intel® Xeon® processor E5-2600 or E5-2600 v2 family; Socket R (LGA 2011)
  • 4 Hot-swap 2.5" SATA2/3 HDD Bays
  • 8 DIMMs support up to DDR3 1866MHz reg. ECC memory
  • 3 (x16) PCI-E 3.0 and 1 (x8) PCI-E 3.0 (in x16) slots
  • I/O ports: 2 GbE, 1 Video, 1 COM/Serial, 2 USB 2.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 10 heavy duty fans w/ optimal fan speed control
  • 1800W Redundant Platinum Level Power Supplies
  • K10 (Kepler) and Xeon Phi support
X9DRW-7TPF • + SC119TQ-R700WB
  • Cloud and other virtualization needs, hosting & application delivery, database processing & storage, simulation, automation
  • Dual Intel® Xeon® processor E5-2600 or E5-2600 v2 family; Socket R (LGA 2011)
  • 8 Hot-swap 2.5" SAS/SATA2 HDD Bays (SAS2 via Broadcom 2208)
  • 16 DIMMs support up to 512GB DDR3 1600MHz reg. ECC memory
  • Riser card support: 2 (x16) and 1 (x8) PCI-E 3.0 slots
  • I/O ports: 2 GbE, 2 SFP+ 10Gb, 1 Video, 1 COM/Serial, 7 USB 2.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 6x 4cm Counter-rotating PWM fans
  • 700W Redundant Gold Level Power Supplies
2 NVMe PCIe SSD/SATA3
  • Dual Socket R (LGA 2011) support Intel® Xeon® processor E5-2600 or E5-2600 v2 family
  • 2 NVMe and 8x 2.5" Hot-swap SAS3 drives; Broadcom 3108 SAS3; RAID 0, 1, 5, 6, 10, 50, 60
  • 16 DIMM slots: up to 1TB ECC DDR3, up to 1866MHz memory
  • 1 PCI-E 3.0 x16 Full-height, Half-length slot
  • Connectivity: 2 GbE (-WC1NR) / 2x 10GBase-T (-WC1NRT)
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 5x 40x56mm counter-rotating PWM fans
  • 700W Redundant Gold Level Power Supplies
X9DRW-iF + SC113TQ-R700WB
  • Cloud and other virtualization needs, hosting & application delivery, database processing & storage, simulation, automation
  • Dual Intel® Xeon® processor E5-2600 or E5-2600 v2 family; Socket R (LGA 2011)
  • 8 Hot-swap 2.5" SATA HDD Bays for Customizable storage
  • 16 DIMMs support up to 1TB DDR3 1866MHz reg. ECC memory
  • Riser card support: Left side - 2 PCI-E 3.0 x16 slots
  • I/O ports: 2 GbE, 1 Video, 1 COM/Serial, 6 USB 2.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 5x 4cm Counter-rotating PWM fans
  • 700W Redundant Gold Level Power Supplies
X9DRG-OTF-CPU • + SC418GTS-R3200B
  • Mission-critical app., enterprise server, large database, e-business, on-line transaction processing, oil & gas, medical app.
  • Dual Intel® Xeon® processor E5-2600 or E5-2600 v2 family; Socket R (LGA 2011)
  • 24 Hot-swap 2.5" SAS2/SATA3 HDD Bays
  • 24 DIMMs, up to 1.5TB, up to 1866MHz DDR3 memory
  • 8 PCI-E 3.0 x16 (double-width), 2 PCI-E 3.0 x8 (in x16), 1 PCI-E 2.0 x4 (in x16)
  • I/O ports: 2 GbE/10GBase-T (TRT), 1 Video, 1 COM/Serial, 10 USB 2.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 8 Hot-swap cooling fans
  • 1600W Redundant Platinum Level Power Supplies
X9DRW-7TPF • + SC819TQ-R700WB
  • Cloud and other virtualization needs, hosting & application delivery, database processing & storage, simulation, automation
  • Dual Intel® Xeon® processor E5-2600 or E5-2600 v2 family; Socket R (LGA 2011)
  • 4 Hot-swap 3.5" SAS/SATA2 HDD Bays (SAS2 via Broadcom 2208)
  • 16 DIMMs support up to 512GB DDR3 1600MHz reg. ECC memory
  • Riser card support: 2 (x16) and 1 (x8) PCI-E 3.0 slots
  • I/O ports: 2 GbE, 2 SFP+ 10Gb, 1 Video, 1 COM/Serial, 7 USB 2.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 6x 4cm Counter-rotating PWM fans
  • 700W Redundant Gold Level Power Supplies
X9DRW-7TPF+ • + SC829BTQ-R920WB
  • 2U WIO Server
  • Dual Intel® Xeon® processor E5-2600 or E5-2600 v2 family; Socket R (LGA 2011)
  • 10 Hot-swap 3.5" SAS/SATA HDD Bays
  • Support SAS2 HW RAID via Broadcom 2208
  • 24 DIMMs support up to DDR3 1866MHz reg. ECC memory
  • Left: 1 (x16) & 2 (x8) PCI-E 3.0 slots; Right: 2 (x8) PCI-E 3.0 slots via Riser
  • I/O ports: 2 10G SFP+, 2 GbE, 1 Video, 1 COM/Serial, 5 USB 2.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 4 heavy duty fans w/ optimal fan speed control
  • 920W Redundant Platinum Level Power Supplies
4 NVMe ports • SAS3 via Broadcom 3108 • 24 DDR3 DIMM • 2x 10GBase-T
  • Data Center Optimized (DCO)
  • Dual Socket R (LGA 2011) support Intel® Xeon® processor E5-2600 or E5-2600 v2 family
  • 12x 3.5" Hot-swap Bays; 4x NVMe + 8 SAS/SATA; SAS3 via Broadcom 3108; HW RAID 0, 1, 5, 6, 10, 50, 60 support
  • 24 DIMM slots: up to 1.5TB ECC DDR3, up to 1866MHz memory
  • 1 PCI-E 3.0 x16 (FHHL), 2 PCI-E 3.0 x8 (FHHL), 1 PCI-E 3.0 x8 (LP)
  • 2x 10GBase-T, 1 Video, 1 COM, 4 USB 2.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 3 heavy duty fans w/ optimal fan speed control
  • 920W Redundant Platinum Level Power Supplies
X9DRT-HF • + SC827HD-R1K28B
  • 2U Twin Server; EACH NODE (x2 nodes):
  • Dual Intel® Xeon® processor E5-2600 or E5-2600 v2 family; Socket R (LGA 2011)
  • 6 Hot-swap 3.5" HDD Bays: SAS via Broadcom 2008
  • 8 DIMMs support up to 256GB DDR3 1600MHz reg. ECC memory
  • 3 (x8) PCI-E 3.0 slots (1x LP and 2x FH FL)
  • I/O ports: 2 GbE, 1 Video, 1 COM/Serial, 3 USB 2.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • Mellanox ConnectX QDR (QRF) / FDR (FRF) InfiniBand Controller
  • 4 heavy duty fans w/ optimal fan speed control
  • 1280W Redundant Platinum Level Power Supplies
X9DRT-HF • + SC827HQ-R1620B
  • 2U Twin²® Server; EACH NODE (x4 nodes):
  • Dual Intel® Xeon® processor E5-2600 or E5-2600 v2 family; Socket R (LGA 2011)
  • 3 Hot-swap 3.5" HDD Bays: SAS via Broadcom 2008
  • 16 DIMMs support up to DDR3 1866MHz reg. ECC memory
  • 1 (x16) PCI-E 3.0 Low-profile (LP) slot
  • I/O ports: 2 GbE, 1 Video, 1 COM/Serial, 3 USB 2.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 4 heavy duty fans w/ optimal fan speed control
  • 1620W Redundant Platinum Level Power Supplies
X9DRX+-F • + SC835XTQ-R982B
  • 3U Multi-I/O Server for Flexible & Efficient Expandable I/O Deployment
  • Dual Intel® Xeon® processor E5-2600 or E5-2600 v2 family; Socket R (LGA 2011)
  • 8 Hot-swap 3.5" HDD Bays and 2 5.25" Peripheral Drive Bays
  • 16 DIMMs support up to 512GB DDR3 1600MHz reg. ECC memory
  • 10 (x8) PCI-E 3.0 and 1 (x4) PCI-E 2.0 (in x8) expansion slots
  • I/O ports: 2 GbE, 1 Video, 1 COM/Serial, 10 USB 2.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 3 middle fans and 1 rear exhaust fan
  • 980W Redundant Platinum Level Power Supplies
X9DRFF-i+ • + CSE-F418IF-R1K62B
  • 2x (up to 4) 3.5" fixed SATA HDDs per 1/2 U
  • Evolutionary 4U Twin Architecture that Offers Industry's Best Capacity and Efficiency
  • 4x 1620W Redundant Platinum Level (94%+) Digital Power Supplies
  • 8 Hot-plug System Nodes in 4U, each Node:
  • Dual Intel® Xeon® Processor E5-2600 or E5-2600 v2 Family; Socket R (LGA 2011)
  • 16 DIMMs, up to 1TB, up to 1866MHz DDR3 memory
  • 1 PCI-E 3.0 x16 Low-profile (LP) and 1 PCI-E 3.0 x8 Low-profile (LP) slots via riser card
  • Dual LAN ports via Intel® i350 Gigabit Ethernet controller
  • Server Management with Onboard IPMI 2.0 through Dedicated LAN Port
  • SATA3 (6Gbps) and SATA2 (3Gbps); RAID 0, 1 support
  • Standard 19" Rack Cabinet support
