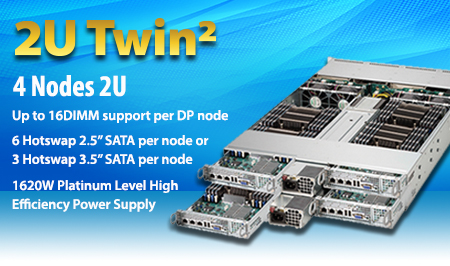

2U Twin^2 SolutionsSupermicro 2U Twin2 ® Solutions

The 2U Twin2® extends Supermicro's innovative Twin architecture with hot-swappable compute nodes in space-efficient form factors to facilitate ease of maintenance, reduce/eliminate down time, while saving power and space by sharing the same chassis and power supplies. The 2U Twin2® model is optimized for space efficiency and performance-per-watt, featuring four hot-swappable 1U compute nodes in a 2U form factor, each with up to six hot-swap 2.5" SAS2/SATA3 drive bays for exceptional storage capacity. The 2U Twin2® also offers one x16 native PCI-Express 3.0 slot for highest non-blocking I/O bandwidth, 8 DIMM slots per node for up to 1TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz memory, onboard Gigabit Ethernet or Mellanox® ConnectX3 single-port 56Gbps InfiniBand to provide greatest networking connectivity, and redundant 1600-watt Titanium Level (96%+) power supplies for greatest efficiency.

The 2U Twin2® is designed to further satisfy the ever-increasing efficiency, density, and low-TCO demands of today's High Performance Computing (HPC) clusters, Data Center Web Server and Virtualization, Cloud, and Hyperscale environments.




Product Brief





Titanium, 96% Efficiency
Power Supplies
IB FDR (56Gbps)

SYS-6028TR-HTFR / SYS-6028TR-HTR

• 4x DP nodes in 2U, depth 28.5", Each Node (x4 nodes):
• Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor
   E5-2600 v4/v3 family; QPI up to 9.6GT/s
• 8x DIMM slots; up to 1TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
• 1x PCI-E 3.0 x16 and 1x PCI-E x8 connectors for SMCI AOC
• 3x 3.5" Hot-swap SAS2/SATA3 drive bays
• I/O ports: 2x GbE, 1x Video, 1x RS232, 2x USB 3.0
• 1x InfiniBand port (FDR, 56Gbps), w/ QSFP connector ('FR' SKU)
Titanium Level • System management: Built-in Server management tool
   (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
• 4 heavy duty fans w/ optimal fan speed control
• 1600W Redundant Titanium Level (96%) High-efficiency Digital Power Supplies


2U Twin2
Titanium, 96% Efficiency
Power Supplies
IB FDR (56Gbps)

SYS-2028TR-H72R / SYS-2028TR-H72FR / SYS-2028TR-HTR / SYS-2028TR-HTFR

• 4x DP nodes in 2U; Each Node (x4 nodes):
• Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor
   E5-2600 v4/v3 family; QPI up to 9.6GT/s
• 6x Hot-swap 2.5" HDD Bays: SATA3 ('HT' SKUs),
   SAS2 via LSI 2208 ('H72' SKUs)
• 8x DIMM slots; up to 1TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
• 1x PCI-E 3.0 x16 Low-profile slot
• I/O ports: 2 GbE, 1 Video, 2 USB 3.0 (rear)
• System management: Built-in Server management tool
Titanium Level    (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
• Mellanox ConnectX-3 FDR ('FR' SKUs) IB Controller
• 4x heavy duty fans w/ optimal fan speed control
• 1600W Redundant Titanium Level (96%) High-efficiency Digital Power Supplies


2U Twin2

SYS-2027TR-HTRF+ / SYS-2027TR-H72RF+ / SYS-2027TR-H71RF+ / SYS-2027TR-H70RF+

• 4x DP nodes in 2U; Each Node (x4 nodes):
• Dual Socket R (LGA 2011) support Intel® Xeon® processor E5-2600
   or E5-2600 v2 family
• 6x Hot-swap 2.5" HDD Bays: SATA3 ('T'), SAS2 via LSI 2208 ('72'
   SKUs), SAS2 via LSI 2108 ('71' SKUs), SAS via LSI 2008 ('70' SKUs)
• 16x DIMMs, up to 1TB, up to 1866MHz DDR3 memory
• 1x PCI-E 3.0 x8 Micro Low-profile slot (support FDR, SFP+, or
   dual port SFP+ via optional AOC)
• I/O ports: 2 GbE, 1 Video, 1 COM/Serial, 5 USB 2.0 (1 Type-A)
Platinum Level • System management: Built-in Server management tool
   (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
• 4x heavy duty fans w/ optimal fan speed control
• 1620W Redundant Platinum Level Power Supplies


2U Twin2

SYS-6027TR-HTRF+ / SYS-6027TR-H71RF+ / SYS-6027TR-H70RF+

• 4x DP nodes in 2U; Each Node (x4 nodes):
• Dual Socket R (LGA 2011) support Intel® Xeon® processor E5-2600
   or E5-2600 v2 family
• 3x Hot-swap 3.5" HDD Bays: SATA3 ('T')
   SAS2 via LSI 2108 ('71' SKUs), or SAS via LSI 2008 ('70' SKUs)
• 16x DIMMs, up to 1TB, up to 1866MHz DDR3 memory
• 1x PCI-E 3.0 x8 Micro Low-profile slot (support QDR, SFP+, or
   dual port SFP+ via optional AOC)
• I/O ports: 2 GbE, 1 Video, 1 COM/Serial, 5 USB 2.0 (1 Type-A)
Platinum Level • System management: Built-in Server management tool
   (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
• 4x heavy duty fans w/ optimal fan speed control
• 1620W Redundant Platinum Level Power Supplies





2U Twin2

SYS-2027TR-HTRF / SYS-2027TR-H72RF / SYS-2027TR-H71RF / SYS-2027TR-H70RF
SYS-2027TR-HTQRF / SYS-2027TR-H72QRF / SYS-2027TR-H71QRF / SYS-2027TR-H70QRF
SYS-2027TR-HTFRF / SYS-2027TR-H72FRF / SYS-2027TR-H71FRF / SYS-2027TR-H70FRF


• 4x DP nodes in 2U; Each Node (x4 nodes):
• Dual Socket R (LGA 2011) support Intel® Xeon® processor E5-2600
   or E5-2600 v2 family
• 6x Hot-swap 2.5" HDD Bays: SATA3 ('HT'), SAS2 via LSI 2208 ('H72'),
   SAS2 via LSI 2108 ('H71' SKUs), or SAS via LSI 2008 ('H70' SKUs)
• 8x DIMMs, up to 512GB, up to 1866MHz DDR3 memory
• 1x PCI-E 3.0 x16 Low-profile (LP) slot
• I/O ports: 2 GbE, 1 Video, 1 COM/Serial, 3 USB 2.0
• System management: Built-in Server management tool
Platinum Level    (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
• Mellanox ConnectX QDR (QRF) / FDR (FRF) IB Controller
• 4x heavy duty fans w/ optimal fan speed control
• 1620W Redundant Platinum Level Power Supplies





2U Twin2

SYS-6027TR-HTRF / SYS-6027TR-H71RF / SYS-6027TR-H70RF
SYS-6027TR-HTQRF / SYS-6027TR-H71QRF / SYS-6027TR-H70QRF
SYS-6027TR-HTFRF / SYS-6027TR-H71FRF / SYS-6027TR-H70FRF


• 4x DP nodes in 2U; Each Node (x4 nodes):
• Dual Socket R (LGA 2011) support Intel® Xeon® processor E5-2600
   or E5-2600 v2 family
• 3x Hot-swap 3.5" HDD Bays: SATA3 ('T')
   SAS2 via LSI 2108 ('71' SKUs), or SAS via LSI 2008 ('70' SKUs)
• 8x DIMMs, up to 512GB, up to 1866MHz DDR3 memory
• 1x PCI-E 3.0 x16 Low-profile (LP) slot
• I/O ports: 2 GbE, 1 Video, 1 COM/Serial, 3 USB 2.0
• System management: Built-in Server management tool
Platinum Level    (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
• Mellanox ConnectX QDR (QRF) / FDR (FRF) IB Controller
• 4x heavy duty fans w/ optimal fan speed control
• 1620W Redundant Platinum Level Power Supplies





2U Twin2

SYS-2026TT-H6IBQRF / SYS-2026TT-H6IBXRF / SYS-2026TT-H6RF

• 4 DP nodes share one 2U chassis
• 4x Two Intel® Xeon® 5600/5500 series processors
• Intel 5520 chipset with QPI up to 6.4 GT/s
• 4x 8x DIMMs, up to 512GB, up to 1866MHz DDR3 memory
• 4x PCI-E 2.0 x16 low-profile expansion slots
• 4x Onboard Mellanox ConnectX QDR/DDR Infiniband Controller
   (2026TT-H6IBQRF and 2026TT-H6IBXRF SKUs only)
• 4x Six 2.5" hot-swap SAS drives (with LSI 2108 SAS controller)
• 4x Dual LAN w/Intel Gigabit Ethernet controllers
• 4x Matrox G200eW graphics controllers
• 4x sets of rear I/O ports including 2 USB, VGA, COM, 2 LAN ports
• 4x 80mm heavy-duty PWM fans w/optimal fan speed control
• 4x BMC supporting IPMI 2.0, Media/KVM over LAN
• 1400W Redundant Gold Level Power Supplies with PMbus
• Independent power control





2U Twin2

SYS-2016Ti-HTRF

• 4 hot-pluggable nodes share one 2U chassis
• Cable-less, optimized design!
• 4 sets of Intel® Xeon® 3400 series processors
• Up to 24 DIMM slots in 2U
• 4 sets of 6x 2.5" hot-swap drive bays
• 4x 80mm heavy duty fans
• 4x front control panels with UID
• 4x PCI-E 2.0 x16 low-profile expansion slots
Platinum Level • 4 sets of dual Gigabit Ethernet LAN
• 4 sets of COM/VGA output
• 4x BMC supporting IPMI 2.0, Media/KVM over LAN
• 920W Redundant Platinum Level Power Supplies





2U Twin2

SYS-5026Ti-BTRF / SYS-5026Ti-HTRF

• 4 hot-pluggable nodes share one 2U chassis
• Cable-less, optimized design! (5026Ti-HTRF)
• 4 sets of Intel® Xeon® 3400 series processors
• Up to 24 DIMM slots in 2U
• 4 sets of 3x 3.5" hot-swap drive bays
• 4x 80mm heavy duty fans
• 4x front control panels with UID
• 4x PCI-E 2.0 x16 low-profile expansion slots
Platinum Level • 4 sets of dual Gigabit Ethernet LAN
• 4 sets of COM/VGA output
• 4x BMC supporting IPMI 2.0, Media/KVM over LAN
• 920W Redundant Platinum Level Power Supplies





2U Twin2

SYS-6026TT

• 4 DP nodes share one 2U chassis
• 4 sets of DP Quad-Core/Dual-Core 64-bit Xeon® processors
• Up to 48 DIMM slots in 2U
• 4 sets of 3x 3.5" hot-swap drive bays
• 4x 80mm heavy duty fans
• 4x front control panels with UID
• 4x PCI-E 2.0 x16 low-profile expansion slots
• 4 sets of dual Gigabit Ethernet LAN
• 4 sets of COM/VGA output
• 4x InfiniBand controller ports (SS6026TT-BIBQF/BIBXF)
• 4x BMC supporting IPMI 2.0, Media/KVM over LAN
• 1200W Redundant (Optional) Gold Level Power Supplies
