Tylersburg / Nehalem SolutionsSupermicro Ultra / WIO Solutions


Supermicro Ultra/WIO servers allow users to select from a wide range of I/O options to provide the ultimate in storage and networking flexibility.
| X11 Ultra | A+ Ultra | X10 Ultra | X11 WIO | X10 WIO | UIO |


Ultra Server Add-on-card Support

Slot Mechanical Electrical Images / Illustration
1 Internal Low Profile (2.536"),
Half Length (6.6")
PCI-E 3.0 x8 (CPU1)*
SYS-1029U-TR(4/4T/T/TP/TP2/25M)
SYS-1029U-E1CR(4/4T/T/TP/2TP/25M)
SYS-6019U-TR(4/4T/T/TP/TP2/25M)
SYS-6019U-TN4R(4T/T)
2 Low Profile (2.536"),
Half Length (6.6")
PCI-E 3.0 x8 (CPU2)
3 Full Height (4.2"), 10.5" Length PCI-E 3.0 x16 (CPU2)
4 Full Height (4.2"), 10.5" Length PCI-E 3.0 x16 (CPU2)
* PCI-E 3.0 x16 (CPU1) for 25M models

Slot Mechanical Electrical Images / Illustration
1 Full Height (4.2"), 10.5" Length PCI-E 3.0 x16 (CPU2)
SYS-1029U-TN10RT
2 Full Height (4.2"), 10.5" Length PCI-E 3.0 x16 (CPU2)

Slot Mechanical Electrical Images / Illustration
1 Double Width Full Height (4.2"),
10.5" Length
PCI-E 3.0 x16 (CPU1)
SYS-2029U-TR(4/T/TP/25M)
SYS-6029U-TR(4/T/TP/25M)
SYS-2029U-E1CR(4/T/TP/25M)
SYS-6029U-E1CR(4/T/TP/25M)
2 Double Width Full Height (4.2"),
10.5" Length
PCI-E 3.0 x8 (CPU1)
3 Internal Low Profile (2.536"),
Half Length (6.6")
PCI-E 3.0 x8 (CPU1)
4 Low Profile (2.536"),
Half Length (6.6")
PCI-E 3.0 x8 (CPU2)
5 Full Height (4.2"), 10.5" Length PCI-E 3.0 x8 (CPU2)
6 Full Height (4.2"), 10.5" Length PCI-E 3.0 x8 (CPU2)
7 Full Height (4.2"), 10.5" Length PCI-E 3.0 x8 (CPU2)
8 Full Height (4.2"), 10.5" Length PCI-E 3.0 x8 (CPU2)

Slot Mechanical Electrical Images / Illustration
1 Double Width Full Height (4.2"),
10.5" Length
PCI-E 3.0 x16 (CPU1)
SYS-2029U-TR4T
SYS-6029U-TR4T
SYS-2029U-E1CR4T
SYS-6029U-E1CR4T
2 Double Width Full Height (4.2"),
10.5" Length
PCI-E 3.0 x16 (CPU1)
4 Low Profile (2.536"),
Half Length (6.6")
PCI-E 3.0 x8 (CPU2)
5 Full Height (4.2"), 10.5" Length PCI-E 3.0 x8 (CPU2)
5 Full Height (4.2"), 10.5" Length PCI-E 3.0 x8 (CPU2)
6 Full Height (4.2"), 10.5" Length PCI-E 3.0 x8 (CPU2)
7 Full Height (4.2"), 10.5" Length PCI-E 3.0 x8 (CPU2)

Slot Mechanical Electrical Images / Illustration
1 Double Width Full Height (4.2"),
10.5" Length
PCI-E 3.0 x16 (CPU1)
SYS-2029U-TN24R4T
2 Double Width Full Height (4.2"),
10.5" Length
PCI-E 3.0 x16 (CPU2)
5 Low Profile (2.536"), Half Length (6.6") PCI-E 3.0 x8 (CPU2)


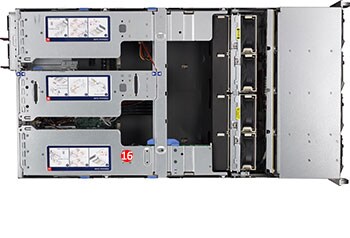

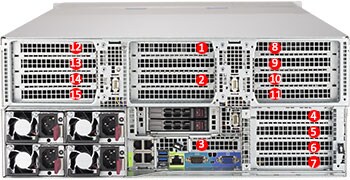

Slot Mechanical Electrical Images / Illustration
1 Double Width Full Height (4.2"),
10.5" Length*
PCI-E 3.0 x16 (CPU1)

SYS-2049U-TR4
2 Double Width Full Height (4.2"),
10.5" Length
PCI-E 3.0 x16 (CPU1)
3 Low Profile (2.536"),
Half Length (6.6")
PCI-E 3.0 x8 (CPU2)
4 Full Height (4.2"), 10.5" Length PCI-E 3.0 x8 (CPU2)
5 Full Height (4.2"), 10.5" Length PCI-E 3.0 x8 (CPU2)
6 Full Height (4.2"), 6.6" Length PCI-E 3.0 x8 (CPU2)
7 Full Height (4.2"), 6.6" Length** PCI-E 3.0 x8 (CPU2)
8 Low Profile (2.536"), Half Length (6.6")^ PCI-E 3.0 x16 (CPU3)
9 PCI-E 3.0 x16 (CPU3)
10 PCI-E 3.0 x16 (CPU4)
11 PCI-E 3.0 x16 (CPU4)
* Slot 1: can't support GPU card.
** Slot 7: can't support any 4-port network card.
^ Slot 8-11: Internal slots for selected RAID cards or NVMe AOC

Slot Mechanical Electrical Images / Illustration
1 Internal Low Profile (2.536"),
Half Length (6.6")
PCI-E 3.0 x8 (CPU1)
AS -1023US-TR4, AS -1123US-TR4
2 Low Profile (2.536"),
Half Length (6.6")
PCI-E 3.0 x8 (CPU2)
3 Full Height (4.2"), 9.5" Length PCI-E 3.0 x16 (CPU2)
4 Full Height (4.2"), 9.5" Length PCI-E 3.0 x16 (CPU2)

Slot Mechanical Electrical Images / Illustration
1 Double Width Full Height (4.2"),
10.5" Length
PCI-E 3.0 x16 (CPU1)
AS -2023US-TR4
2 Double Width Full Height (4.2"),
10.5" Length*
PCI-E 3.0 x8 (CPU1)
3 Internal Low Profile (2.536"),
Half Length (6.6")
PCI-E 3.0 x8 (CPU1)
4 Low Profile (2.536"),
Half Length (6.6")
PCI-E 3.0 x8 (CPU2)
5 Full Height (4.2"), 9.5" Length PCI-E 3.0 x8 (CPU2)
6 Full Height (4.2"), 9.5" Length PCI-E 3.0 x8 (CPU2)
7 Full Height (4.2"), 9.5" Length PCI-E 3.0 x8 (CPU2)
8 Full Height (4.2"), 9.5" Length PCI-E 3.0 x8 (CPU2)
* GPU kit needed to support up to 10.5" length, default supports up to 6.6" length.

Slot Mechanical Electrical Images / Illustration
1 Internal Low Profile (2.536"),
Half Length (6.6")
PCI-E 3.0 x8 (CPU1)
SYS-1028U-TR4+, SYS-1028U-TR4T+, SYS-1028U-TRT+, SYS-6018U-TR4+, SYS-6018U-TR4T+, SYS-6018U-TRT+, SYS-6018U-TRTP+, SYS-1028U-TNRT+, SYS-1028U-TNR4T+, SYS-1028U-TNRTP+, SYS-1028U-E1CR4+, SYS-1028U-E1CRTP+
2 Low Profile (2.536"),
Half Length (6.6")
PCI-E 3.0 x8 (CPU2)
3 Full Height (4.2"), 10.5" Length PCI-E 3.0 x16 (CPU2)
4 Full Height (4.2"), 10.5" Length PCI-E 3.0 x16 (CPU2)

Slot Mechanical Electrical Images / Illustration
1 Low Profile (2.536"),
Half Length (6.6")
PCI-E 3.0 x8 (CPU2)
SYS-1028U-TN10RT+
2 Full Height (4.2"), 10.5" Length PCI-E 3.0 x8 (CPU2)
3 Full Height (4.2"), 10.5" Length PCI-E 3.0 x8 (CPU2)

Slot Mechanical Electrical Images / Illustration
1 Full Height (4.2”), 10.5” Length PCI-E 3.0 x16 (CPU1)
SYS-2028U-TN24R4T+
2 Full Height (4.2"), 10.5" Length PCI-E 3.0 x16 (CPU2)
3 Low Profile (2.536"), 6.6" Length PCI-E 3.0 x8 (CPU2)

Slot Mechanical Electrical Images / Illustration
1 Double Width Full Height (4.2"),
10.5" Length*
PCI-E 3.0 x16 (CPU1)
SYS-2028U-TR4+, SYS-2028U-TR4T+, SYS-2028U-TRT+, SYS-2028U-TRTP+, SYS-6028U-TR4+, SYS-6028U-TR4T+, SYS-6028U-TRT+, SYS-6028U-TRTP+
2 Double Width Full Height (4.2"),
10.5" Length* ^
PCI-E 3.0 x8 (CPU1)^
3 Internal Low Profile (2.536"),
Half Length (6.6")
PCI-E 3.0 x8 (CPU1)
4 Low Profile (2.536"),
Half Length (6.6")
PCI-E 3.0 x8 (CPU2)
5 Full Height (4.2"), 10.5" Length* PCI-E 3.0 x8 (CPU2)
6 Full Height (4.2"), 10.5" Length* PCI-E 3.0 x8 (CPU2)
7 Full Height (4.2"), 10.5" Length* PCI-E 3.0 x8 (CPU2)
8 Full Height (4.2"), 10.5" Length* PCI-E 3.0 x8 (CPU2)
* GPU kit needed to support up to 10.5" length, default supports up to 6.6" length.
^ Slot 2 not supported in 4T models.

Slot Mechanical Electrical Images / Illustration
1 n/a n/a
SYS-2028U-TNRT+, SYS-2028U-TNR4T+, SYS-6028U-TNRT+, SYS-6028U-TNR4T+, SYS-2028U-E1CNRT+, SYS-2028U-E1CNR4T+, SYS-6028U-E1CNRT+, SYS-6028U-E1CNR4T+
2 Double Width Full Height (4.2"),
10.5" Length*^
PCI-E 3.0 x8 (CPU1)^
3 Internal Low Profile (2.536"),
Half Length (6.6")
PCI-E 3.0 x8 (CPU1)
4 Low Profile (2.536"),
Half Length (6.6")
PCI-E 3.0 x8 (CPU2)
5 Full Height (4.2"), 10.5" Length* PCI-E 3.0 x8 (CPU2)
6 Full Height (4.2"), 10.5" Length* PCI-E 3.0 x8 (CPU2)
7 Full Height (4.2"), 10.5" Length* PCI-E 3.0 x8 (CPU2)
8 Full Height (4.2"), 10.5" Length* PCI-E 3.0 x8 (CPU2)
* GPU kit needed to support up to 10.5" length, default supports up to 6.6" length.
^ Slot 2 not supported in 4T models.

Slot Mechanical Electrical Images / Illustration
1 Double Width Full Height (4.2"),
10.5" Length*
PCI-E 3.0 x16 (CPU2)

SYS-2048U-RTR4
2 Double Width Full Height (4.2"),
10.5" Length
PCI-E 3.0 x16 (CPU2)
3 Low Profile (2.536"),
Half Length (6.6")
PCI-E 3.0 x8 (CPU1)
4 Full Height (4.2"), 10.5" Length PCI-E 3.0 x8 (CPU1)
5 Full Height (4.2"), 10.5" Length PCI-E 3.0 x8 (CPU1)
6 Full Height (4.2"), 6.6" Length PCI-E 3.0 x8 (CPU1)
7 Full Height (4.2"), 6.6" Length** PCI-E 3.0 x8 (CPU1)
8 Low Profile (2.536"), Half Length (6.6")^ PCI-E 3.0 x8 (CPU3)
9 PCI-E 3.0 x8 (CPU3)
10 PCI-E 3.0 x8 (CPU4)
11 PCI-E 3.0 x8 (CPU4)
* Slot 1: can't support GPU card.
** Slot 7: can't support any 4-port network card.
^ Slot 8-11: Internal slots for selected RAID cards or NVMe AOC



WIO Server Add-on-card Support

Slot Mechanical Electrical Images / Illustration
1 Low Profile (2.536"), Half Length (6.6") PCI-E 3.0 x8 (CPU2)
SYS-1029P-WT, SYS-6019P-WT, SYS-6019P-WT8
2 Full Height (4.2"), Half Length (6.6") PCI-E 3.0 x16 (CPU2)
3 Full Height (4.2"), Half Length (6.6") PCI-E 3.0 x16 (CPU1)

Slot Mechanical Electrical Images / Illustration
1 Low Profile (2.536"), Half Length (6.6") PCI-E 3.0 x8 (CPU2)
SYS-1029P-WTR, SYS-1029P-WTRT, SYS-6019P-WTR
2 Full Height (4.2"), Half Length (6.6") PCI-E 3.0 x16 (CPU2)
3 Full Height (4.2"), Half Length (6.6") PCI-E 3.0 x16 (CPU1)

Slot Mechanical Electrical Images / Illustration
1 N/A N/A
SYS-6029P-WTR
2 Low Profile (2.536"), Half Length (6.6") PCI-E 3.0 x8 (CPU2)
3 Low Profile (2.536"), Half Length (6.6") PCI-E 3.0 x8 (CPU2)
4 Full Height (4.2"), Half Length (6.6") PCI-E 3.0 x8 (CPU2)
5 Full Height (4.2"), Half Length (6.6") PCI-E 3.0 x8 (CPU2)
6 Full Height (4.2"), Half Length (6.6") PCI-E 3.0 x8 (CPU1)
7 Full Height (4.2"), Half Length (6.6") PCI-E 3.0 x8 (CPU1)


Slot Mechanical Electrical Images / Illustration
1 N/A N/A
SYS-6029P-WTRT
2 Low Profile (2.536"), Half Length (6.6") PCI-E 3.0 x8 (CPU2)
3 Low Profile (2.536"), Half Length (6.6") PCI-E 3.0 x8 (CPU2)
4 Full Height (4.2"), Half Length (6.6") PCI-E 3.0 x16 (CPU2)
5 Full Height (4.2"), Half Length (6.6") PCI-E 3.0 x8 (CPU1)
6 Full Height (4.2"), Half Length (6.6") PCI-E 3.0 x8 (CPU1)
7 N/A N/A


Slot Mechanical Electrical Images / Illustration
1 N/A N/A
SYS-6018R-WTR, SYS-6018R-WTRT, SYS-1028R-WC1R, SYS-1028R-WC1RT, SYS-1028R-WTR, SYS-1028R-WTRT, SYS-1028R-WMR, SYS-1028R-WMRT
2 Full Height (4.2"), Half Length (6.6") PCI-E 3.0 x16 (CPU2)
3 Full Height (4.2"), Half Length (6.6") PCI-E 3.0 x16 (CPU1)

Slot Mechanical Electrical Images / Illustration
1 N/A N/A
SYS-6028R-WTR, SYS-6028R-WTRT
2 Low Profile (2.536"), Half Length (6.6") PCI-E 3.0 x8 (CPU2)
3 Low Profile (2.536"), Half Length (6.6") PCI-E 3.0 x8 (CPU2)
4 Full Height (4.2"), 13.5" Length PCI-E 3.0 x8 (CPU2)
5 Full Height (4.2"), 13.5" Length PCI-E 3.0 x8 (CPU2)
6 Full Height (4.2"), Half Length (6.6") PCI-E 3.0 x8 (CPU1)
7 Full Height (4.2"), Half Length (6.6") PCI-E 3.0 x8 (CPU1)


Slot Mechanical Electrical Images / Illustration
1 N/A N/A
SYS-1027R-N3RF, SYS-1027R-WRF, SYS-6017R-NTF, SYS-6017R-WRF
2 Full Height (4.2"), 6.6" Length PCI-E 3.0 x16 (CPU1)
3 Full Height (4.2"), 6.6" Length PCI-E 3.0 x16 (CPU1)

Slot Mechanical Electrical Images / Illustration
1 N/A N/A
SYS-2027R-WRF, SYS-6027R-N3RF, SYS-6027R-WRF
2 N/A N/A
3 N/A N/A
4 Full Height (4.2"), 13.5" Length PCI-E 3.0 x8 (CPU1)
5 Full Height (4.2"), 13.5" Length PCI-E 3.0 x8 (CPU1)
6 Full Height (4.2"), 6.6" Length PCI-E 3.0 x8 (CPU1)
7 Full Height (4.2"), 6.6" Length PCI-E 3.0 x8 (CPU1)


WIO+ Server Add-on-card Support

Slot Mechanical Electrical Images / Illustration
1 Low Profile (2.536"), 4.1" Length PCI-E 3.0 x8 (CPU2)
SYS-1027R-WRF4+, SYS-1027R-WRFT+, SYS-6017R-N3RF4+, SYS-6017R-N3RFT+
2 Full Height (4.2"), 10" Length PCI-E 3.0 x16 (CPU1)
3 Full Height (4.2"), 6.6" Length PCI-E 3.0 x8 (CPU1)

Slot Mechanical Electrical Images / Illustration
1 Low Profile (2.536"), 6.6" Length PCI-E 3.0 x8 (CPU2)
SYS-2027R-N3RF4+, SYS-2027R-N3RFT+, SYS-6027R-N3RF4+, SYS-6027R-N3RFT+
2 Low Profile (2.536"), 6.6" Length PCI-E 3.0 x8 (CPU2)
3 Full Height (4.2"), 16.5" Length PCI-E 3.0 x16 (CPU2)
4 Full Height (4.2"), 16.5" Length PCI-E 3.0 x8 (CPU1)
5 Full Height (4.2"), 10" Length PCI-E 3.0 x16 (CPU1)
6 Full Height (4.2"), 6.6" Length PCI-E 3.0 x8 (CPU1)


SAS2 WIO Server Add-on-card Support

Slot Mechanical Electrical Images / Illustration
1 Low Profile (2.536"), 6.6" Length PCI-E 3.0 x8
(CPU1 or 2*)

SYS-1027R-72RFTP, SYS-1027R-72BRFTP, SYS-6017R-72RFTP
2 Full Height (4.2"), 10" Length PCI-E 3.0 x16 (CPU2)
3 Full Height (4.2"), 6.6" Length PCI-E 3.0 x16 (CPU1)
* CPU1 for RSC-R1UW-E8R R.1.10, CPU2 for RSC-R1UW-E8R R.1.02

Slot Mechanical Electrical Images / Illustration
1 Low Profile (2.536"), 6.6" Length PCI-E 3.0 x8 (CPU2)
SYS-6027R-72RFTP+, SYS-2027R-72RFTP+
2 Low Profile (2.536"), 6.6" Length PCI-E 3.0 x8 (CPU2)
3 Full Height (4.2"), 16.5" Length PCI-E 3.0 x16 (CPU2)
4 n/a n/a
5 Full Height (4.2"), 10" Length PCI-E 3.0 x8 (CPU1)
6 Full Height (4.2"), 6.6" Length PCI-E 3.0 x8 (CPU1)


SAS3 WIO Server Add-on-card Support

Slot Mechanical Electrical Images / Illustration
1 N/A N/A
SYS-1027R-WC1R, SYS-1027R-WC1RT
2 Full Height (4.2"), 6.6" Length PCI-E 3.0 x16 (CPU2)
3 Full Height (4.2"), 6.6" Length PCI-E 3.0 x16 (CPU1)




UIO Add-on-card Support

[ AOC Support | Storage Cards | Network Cards | Riser Cards ]



Socket B2 UIO Server Add-on-card Support

Slot Mechanical Electrical Images / Illustration
1 Optional 2 LAN (RSC-R1UU-E8PR + AOC-PG-i2+)*
SYS-1027B-URF, SYS-6017B-NTF/URF
2 Full Height (4.2"), 13.5" Length PCI-E 3.0 x8 (CPU2)
3 Full Height (4.2"), 6.6" Length PCI-E 3.0 x8/UIO** (CPU1)
* Slot 1 optional 2 LAN can be supported only with VLP memory installed due to mechanical limitation
** UIO for the URF models, and PCI-E 3.0 x8 for SYS-6017B-NTF model

Slot Mechanical Electrical Images / Illustration
1 Low Profile (2.536"), 6.6" Length PCI-E 3.0 x4 (CPU2)
SYS-6027B-URF
2 Low Profile (2.536"), 6.6" Length PCI-E 3.0 x4 *** (CPU2)
3 N/A N/A
4 Full Height (4.2"), 13.5" Length PCI-E 3.0 x8 (CPU1)
5 Full Height (4.2"), 13.5" Length PCI-E 3.0 x4 (CPU2)
6 Full Height (4.2"), 13.5" Length PCI-E 3.0 x4 (CPU2)
7 Full Height (4.2"), 6.6" Length UIO (CPU1)
*** Slot 2 can be supported only with VLP memory installed

UIO Server Add-on-card Support

Slot Mechanical Electrical Images / Illustration
1 Optional 2 LAN (RSC-R1UU-E8PR + AOC-PG-i2+)
SYS-1026T-UF, SYS-1026T-URF, SYS-6016T-U, SYS-6016T-UF, SYS-6016T-URF
2 Full Height (4.2"), 13.5" Length PCI-E 2.0 x16
3 Full Height (4.2"), 6.6" Length UIO


Slot Mechanical Electrical Images / Illustration
1 N/A N/A
SYS-6026T-UR, SYS-6026T-URF
2 N/A N/A
3 N/A N/A
4 Full Height (4.2"), 13.5" Length PCI-E 2.0 x8
5 Full Height (4.2"), 13.5" Length PCI-E 2.0 x4
6 Full Height (4.2"), 13.5" Length PCI-E 2.0 x8
7 Full Height (4.2"), 6.6" Length UIO


UIO+ Server Add-on-card Support

Slot Mechanical Electrical Images / Illustration
1 Low Profile (2.536"), 5.6" Length PCI-E 2.0 x8
SYS-1026T-URF4+, SYS-6016T-NTRF4+, SYS-6016T-URF4+
2 Full Height (4.2"), 16" Length PCI-E 2.0 x16
3 Full Height (4.2"), 10.5" Length UIO

Slot Mechanical Electrical Images / Illustration
1 Low Profile (2.536"), 5.6" Length PCI-E 2.0 x4
SYS-2026T-URF4+, SYS-6026T-URF4+
2 Low Profile (2.536"), 5.6" Length PCI-E 2.0 x4
3 Full Height (4.2"), 16.5" Length PCI-E 2.0 x8
4 Full Height (4.2"), 16.5" Length PCI-E 2.0 x4
5 Full Height (4.2"), 16.5" Length PCI-E 2.0 x4
6 Full Height (4.2"), 10.5" Length UIO


UIO+ Server with onboard SAS2 Add-on-card Support

Slot Mechanical Electrical Images / Illustration
1 Low Profile (2.536"), 5.6" Length PCI-E 2.0 x4
SYS-1026T-6RF(T)+, SYS-6016T-6RF(T)+
2 Full Height (4.2"), 16" Length PCI-E 2.0 x8
3 Full Height (4.2"), 10.5" Length PCI-E 2.0 x8

Slot Mechanical Electrical Images / Illustration
1 N/A N/A
SYS-2026T-6RF(T)+, SYS-6026T-6RF(T)+
2 Low Profile (2.536"), 5.6" Length PCI-E 2.0 x4
3 N/A N/A
4 Full Height (4.2"), 16.5" Length PCI-E 2.0 x8
5 Full Height (4.2"), 16.5" Length PCI-E 2.0 x8
6 N/A N/A


Neutral UIO/UIO+ Server Add-on-card Support

Slot Mechanical Electrical Images / Illustration
1 Optional 2 LAN (RSC-R1UU-E8PR + AOC-PG-i2+)
SYS-6016T-NT, SYS-6016T-NTF, SYS-6016T-NTRF
2 Full Height (4.2"), 16" Length PCI-E 2.0 x8
3 Full Height (4.2"), 6.6" Length PCI-E 2.0 x8

Slot Mechanical Electrical Images / Illustration
1 Low Profile (2.536"), 5.6" Length PCI-E 2.0 x8
SYS-6016T-NTRF4+
2 Full Height (4.2"), 16" PCI-E 2.0 x8
3 Full Height (4.2"), 10.5" Length PCI-E 2.0 x8




Terms & Conditions   |   Privacy   |   Investor Relations   |   Jobs   |   Site Map   |   Follow Us
SuperServer® | Motherboards | Chassis | SuperRack® | SuperBlade® | Embedded | Networking | Storage | Accessories | AMD Solutions | Power Supplies

Copyright © 2017 Super Micro Computer, Inc. Information in this document is subject to change without notice.
Other products and companies referred to herein are trademarks or registered trademarks of their respective companies or mark holders.
