Tylersburg / Nehalem SolutionsSupermicro UIO (Universal I/O) Solutions


Supermicro UIO servers allow users to select from a wide range of I/O options to provide the ultimate in storage and networking flexibility. When installed, a Supermicro UIO card becomes part of the serverboard, and the system still retains all of its PCI-Express and PCI-X slots for expansion cards. In addition to enabling customizable configurations and optimization for a wide range of application requirements, Supermicro UIO servers also provide cost advantages and investment protection.

Future upgrades can be achieved by replacing the UIO card and/or expansion cards instead of replacing entire systems. Without any UIO or expansion cards, a UIO system functions as a cost-effective server. With a UIO card installed, one UIO server supports SAS/SATA RAID5, 4Gbit Ethernet, 10Gbit Ethernet, or Infiniband. This versatility minimizes the number of servers customers require to operate their business.

[ Advantages | Storage Cards | Network Cards | Riser cards | AOC Compatibility Matrix ]




Ultra Add-on-card Support



Ultra Server Add-on-card Support

Slot Mechanical Electrical Images / Illustration
1 Internal Low Profile (2.536"),
Half Length (6.6")
PCI-E 3.0 x8 (CPU1)
SYS-1028U-TR4+, SYS-1028U-TR4T+, SYS-1028U-TRT+, SYS-6018U-TR4+, SYS-6018U-TR4T+, SYS-6018U-TRT+, SYS-6018U-TRTP+, SYS-1028U-TNRT+, SYS-1028U-TNR4T+, SYS-1028U-TNRTP+, SYS-1028U-E1CR4+, SYS-1028U-E1CRTP+
2 Low Profile (2.536"),
Half Length (6.6")
PCI-E 3.0 x8 (CPU2)
3 Full Height (4.2"), 10.5" Length PCI-E 3.0 x16 (CPU2)
4 Full Height (4.2"), 10.5" Length PCI-E 3.0 x16 (CPU2)

Slot Mechanical Electrical Images / Illustration
1 Low Profile (2.536"),
Half Length (6.6")
PCI-E 3.0 x8 (CPU2)
SYS-1028U-TN10RT+
2 Full Height (4.2"), 10.5" Length PCI-E 3.0 x8 (CPU2)
3 Full Height (4.2"), 10.5" Length PCI-E 3.0 x8 (CPU2)

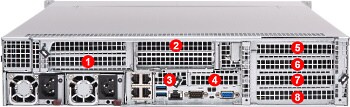

Slot Mechanical Electrical Images / Illustration
1 Double Width Full Height (4.2"),
10.5" Length*
PCI-E 3.0 x16 (CPU1)
SYS-2028U-TR4+, SYS-2028U-TR4T+, SYS-2028U-TRT+, SYS-2028U-TRTP+, SYS-6028U-TR4+, SYS-6028U-TR4T+, SYS-6028U-TRT+, SYS-6028U-TRTP+
2 Double Width Full Height (4.2"),
10.5" Length* ^
PCI-E 3.0 x8 (CPU1)^
3 Internal Low Profile (2.536"),
Half Length (6.6")
PCI-E 3.0 x8 (CPU1)
4 Low Profile (2.536"),
Half Length (6.6")
PCI-E 3.0 x8 (CPU2)
5 Full Height (4.2"), 10.5" Length* PCI-E 3.0 x8 (CPU2)
6 Full Height (4.2"), 10.5" Length* PCI-E 3.0 x8 (CPU2)
7 Full Height (4.2"), 10.5" Length* PCI-E 3.0 x8 (CPU2)
8 Full Height (4.2"), 10.5" Length* PCI-E 3.0 x8 (CPU2)
* GPU kit needed to support up to 10.5" length, default supports up to 6.6" length.
^ Slot 2 not supported in 4T models.

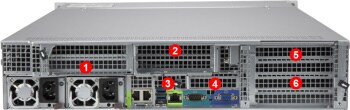

Slot Mechanical Electrical Images / Illustration
1 n/a n/a
SYS-2028U-TNRT+, SYS-2028U-TNR4T+, SYS-6028U-TNRT+, SYS-6028U-TNR4T+, SYS-2028U-E1CNRT+, SYS-2028U-E1CNR4T+, SYS-6028U-E1CNRT+, SYS-6028U-E1CNR4T+
2 Double Width Full Height (4.2"),
10.5" Length*^
PCI-E 3.0 x8 (CPU1)^
3 Internal Low Profile (2.536"),
Half Length (6.6")
PCI-E 3.0 x8 (CPU1)
4 Low Profile (2.536"),
Half Length (6.6")
PCI-E 3.0 x8 (CPU2)
5 Full Height (4.2"), 10.5" Length* PCI-E 3.0 x8 (CPU2)
6 Full Height (4.2"), 10.5" Length* PCI-E 3.0 x8 (CPU2)
7 Full Height (4.2"), 10.5" Length* PCI-E 3.0 x8 (CPU2)
8 Full Height (4.2"), 10.5" Length* PCI-E 3.0 x8 (CPU2)
* GPU kit needed to support up to 10.5" length, default supports up to 6.6" length.
^ Slot 2 not supported in 4T models.

Slot Mechanical Electrical Images / Illustration
1 Double Width Full Height (4.2"),
10.5" Length*
PCI-E 3.0 x16 (CPU2)

SYS-2048U-RTR4
2 Double Width Full Height (4.2"),
10.5" Length
PCI-E 3.0 x16 (CPU2)
3 Low Profile (2.536"),
Half Length (6.6")
PCI-E 3.0 x8 (CPU1)
4 Full Height (4.2"), 10.5" Length PCI-E 3.0 x8 (CPU1)
5 Full Height (4.2"), 10.5" Length PCI-E 3.0 x8 (CPU1)
6 Full Height (4.2"), 6.6" Length PCI-E 3.0 x8 (CPU1)
7 Full Height (4.2"), 6.6" Length** PCI-E 3.0 x8 (CPU1)
8 Low Profile (2.536"), Half Length (6.6")^ PCI-E 3.0 x8 (CPU3)
9 PCI-E 3.0 x8 (CPU3)
10 PCI-E 3.0 x8 (CPU4)
11 PCI-E 3.0 x8 (CPU4)
* Slot 1: can't support GPU card.
** Slot 7: can't support any 4-port network card.
^ Slot 9-11: Internal slots for selected RAID cards or NVMe AOC



WIO Add-on-card Support



WIO Server Add-on-card Support

Slot Mechanical Electrical Images / Illustration
1 N/A N/A
SYS-6018R-WTR, SYS-6018R-WTRT, SYS-1028R-WC1R, SYS-1028R-WC1RT, SYS-1028R-WTR, SYS-1028R-WTRT, SYS-1028R-WMR, SYS-1028R-WMRT
2 Full Height (4.2"), Half Length (6.6") PCI-E 3.0 x16 (CPU2)
3 Full Height (4.2"), Half Length (6.6") PCI-E 3.0 x16 (CPU1)

Slot Mechanical Electrical Images / Illustration
1 Low Profile (2.536"), Half Length (6.6") PCI-E 3.0 x8 (CPU2)
SYS-6028R-WTR, SYS-6028R-WTRT
2 Low Profile (2.536"), Half Length (6.6") PCI-E 3.0 x8 (CPU2)
3 N/A N/A
4 Full Height (4.2"), 13.5" Length PCI-E 3.0 x8 (CPU2)
5 Full Height (4.2"), 13.5" Length PCI-E 3.0 x8 (CPU2)
6 Full Height (4.2"), Half Length (6.6") PCI-E 3.0 x8 (CPU1)
7 Full Height (4.2"), Half Length (6.6") PCI-E 3.0 x8 (CPU1)




WIO Add-on-card Support



WIO Server Add-on-card Support

Slot Mechanical Electrical Images / Illustration
1 N/A N/A
SYS-1027R-N3RF, SYS-1027R-WRF, SYS-6017R-NTF, SYS-6017R-WRF
2 Full Height (4.2"), 6.6" Length PCI-E 3.0 x16 (CPU1)
3 Full Height (4.2"), 6.6" Length PCI-E 3.0 x16 (CPU1)

Slot Mechanical Electrical Images / Illustration
1 N/A N/A
SYS-2027R-WRF, SYS-6027R-N3RF, SYS-6027R-WRF
2 N/A N/A
3 N/A N/A
4 Full Height (4.2"), 13.5" Length PCI-E 3.0 x8 (CPU1)
5 Full Height (4.2"), 13.5" Length PCI-E 3.0 x8 (CPU1)
6 Full Height (4.2"), 6.6" Length PCI-E 3.0 x8 (CPU1)
7 Full Height (4.2"), 6.6" Length PCI-E 3.0 x8 (CPU1)


WIO+ Server Add-on-card Support

Slot Mechanical Electrical Images / Illustration
1 Low Profile (2.536"), 4.1" Length PCI-E 3.0 x8 (CPU2)
SYS-1027R-WRF4+, SYS-1027R-WRFT+, SYS-6017R-N3RF4+, SYS-6017R-N3RFT+
2 Full Height (4.2"), 10" Length PCI-E 3.0 x16 (CPU1)
3 Full Height (4.2"), 6.6" Length PCI-E 3.0 x8 (CPU1)

Slot Mechanical Electrical Images / Illustration
1 Low Profile (2.536"), 6.6" Length PCI-E 3.0 x8 (CPU2)
SYS-2027R-N3RF4+, SYS-2027R-N3RFT+, SYS-6027R-N3RF4+, SYS-6027R-N3RFT+
2 Low Profile (2.536"), 6.6" Length PCI-E 3.0 x8 (CPU2)
3 Full Height (4.2"), 16.5" Length PCI-E 3.0 x16 (CPU2)
4 Full Height (4.2"), 16.5" Length PCI-E 3.0 x8 (CPU1)
5 Full Height (4.2"), 10" Length PCI-E 3.0 x16 (CPU1)
6 Full Height (4.2"), 6.6" Length PCI-E 3.0 x8 (CPU1)


SAS2 WIO Server Add-on-card Support

Slot Mechanical Electrical Images / Illustration
1 Low Profile (2.536"), 6.6" Length PCI-E 3.0 x8
(CPU1 or 2*)

SYS-1027R-72RFTP, SYS-1027R-72BRFTP, SYS-6017R-72RFTP
2 Full Height (4.2"), 10" Length PCI-E 3.0 x16 (CPU2)
3 Full Height (4.2"), 6.6" Length PCI-E 3.0 x16 (CPU1)
* CPU1 for RSC-R1UW-E8R R.1.10, CPU2 for RSC-R1UW-E8R R.1.02

Slot Mechanical Electrical Images / Illustration
1 Low Profile (2.536"), 6.6" Length PCI-E 3.0 x8 (CPU2)
SYS-6027R-72RFTP+, SYS-2027R-72RFTP+
2 Low Profile (2.536"), 6.6" Length PCI-E 3.0 x8 (CPU2)
3 Full Height (4.2"), 16.5" Length PCI-E 3.0 x16 (CPU2)
4 n/a n/a
5 Full Height (4.2"), 10" Length PCI-E 3.0 x8 (CPU1)
6 Full Height (4.2"), 6.6" Length PCI-E 3.0 x8 (CPU1)


SAS3 WIO Server Add-on-card Support

Slot Mechanical Electrical Images / Illustration
1 N/A N/A
SYS-1027R-WC1R, SYS-1027R-WC1RT
2 Full Height (4.2"), 6.6" Length PCI-E 3.0 x16 (CPU2)
3 Full Height (4.2"), 6.6" Length PCI-E 3.0 x16 (CPU1)




UIO Add-on-card Support



Socket B2 UIO Server Add-on-card Support

Slot Mechanical Electrical Images / Illustration
1 Optional 2 LAN (RSC-R1UU-E8PR + AOC-PG-i2+)*
SYS-1027B-URF, SYS-6017B-NTF/URF
2 Full Height (4.2"), 13.5" Length PCI-E 3.0 x8 (CPU2)
3 Full Height (4.2"), 6.6" Length PCI-E 3.0 x8/UIO** (CPU1)
* Slot 1 optional 2 LAN can be supported only with VLP memory installed due to mechanical limitation
** UIO for the URF models, and PCI-E 3.0 x8 for SYS-6017B-NTF model

Slot Mechanical Electrical Images / Illustration
1 Low Profile (2.536"), 6.6" Length PCI-E 3.0 x4 (CPU2)
SYS-6027B-URF
2 Low Profile (2.536"), 6.6" Length PCI-E 3.0 x4 *** (CPU2)
3 N/A N/A
4 Full Height (4.2"), 13.5" Length PCI-E 3.0 x8 (CPU1)
5 Full Height (4.2"), 13.5" Length PCI-E 3.0 x4 (CPU2)
6 Full Height (4.2"), 13.5" Length PCI-E 3.0 x4 (CPU2)
7 Full Height (4.2"), 6.6" Length UIO (CPU1)
*** Slot 2 can be supported only with VLP memory installed

UIO Server Add-on-card Support

Slot Mechanical Electrical Images / Illustration
1 Optional 2 LAN (RSC-R1UU-E8PR + AOC-PG-i2+)
SYS-1026T-UF, SYS-1026T-URF, SYS-6016T-U, SYS-6016T-UF, SYS-6016T-URF
2 Full Height (4.2"), 13.5" Length PCI-E 2.0 x16
3 Full Height (4.2"), 6.6" Length UIO


Slot Mechanical Electrical Images / Illustration
1 N/A N/A
SYS-6026T-UR, SYS-6026T-URF
2 N/A N/A
3 N/A N/A
4 Full Height (4.2"), 13.5" Length PCI-E 2.0 x8
5 Full Height (4.2"), 13.5" Length PCI-E 2.0 x4
6 Full Height (4.2"), 13.5" Length PCI-E 2.0 x8
7 Full Height (4.2"), 6.6" Length UIO


UIO+ Server Add-on-card Support

Slot Mechanical Electrical Images / Illustration
1 Low Profile (2.536"), 5.6" Length PCI-E 2.0 x8
SYS-1026T-URF4+, SYS-6016T-NTRF4+, SYS-6016T-URF4+
2 Full Height (4.2"), 16" Length PCI-E 2.0 x16
3 Full Height (4.2"), 10.5" Length UIO

Slot Mechanical Electrical Images / Illustration
1 Low Profile (2.536"), 5.6" Length PCI-E 2.0 x4
SYS-2026T-URF4+, SYS-6026T-URF4+
2 Low Profile (2.536"), 5.6" Length PCI-E 2.0 x4
3 Full Height (4.2"), 16.5" Length PCI-E 2.0 x8
4 Full Height (4.2"), 16.5" Length PCI-E 2.0 x4
5 Full Height (4.2"), 16.5" Length PCI-E 2.0 x4
6 Full Height (4.2"), 10.5" Length UIO


UIO+ Server with onboard SAS2 Add-on-card Support

Slot Mechanical Electrical Images / Illustration
1 Low Profile (2.536"), 5.6" Length PCI-E 2.0 x4
SYS-1026T-6RF(T)+, SYS-6016T-6RF(T)+
2 Full Height (4.2"), 16" Length PCI-E 2.0 x8
3 Full Height (4.2"), 10.5" Length PCI-E 2.0 x8

Slot Mechanical Electrical Images / Illustration
1 N/A N/A
SYS-2026T-6RF(T)+, SYS-6026T-6RF(T)+
2 Low Profile (2.536"), 5.6" Length PCI-E 2.0 x4
3 N/A N/A
4 Full Height (4.2"), 16.5" Length PCI-E 2.0 x8
5 Full Height (4.2"), 16.5" Length PCI-E 2.0 x8
6 N/A N/A


Neutral UIO/UIO+ Server Add-on-card Support

Slot Mechanical Electrical Images / Illustration
1 Optional 2 LAN (RSC-R1UU-E8PR + AOC-PG-i2+)
SYS-6016T-NT, SYS-6016T-NTF, SYS-6016T-NTRF
2 Full Height (4.2"), 16" Length PCI-E 2.0 x8
3 Full Height (4.2"), 6.6" Length PCI-E 2.0 x8

Slot Mechanical Electrical Images / Illustration
1 Low Profile (2.536"), 5.6" Length PCI-E 2.0 x8
SYS-6016T-NTRF4+
2 Full Height (4.2"), 16" PCI-E 2.0 x8
3 Full Height (4.2"), 10.5" Length PCI-E 2.0 x8
