SuperServer 1019S-MC0T

Super Micro Computer, Inc.
Contact Us

Search

MySupermicro

  Products   Systems   1U   [ 1019S-MC0T ]

SYS-1019S-MC0T



Integrated Board
Super X11SSH-CTF

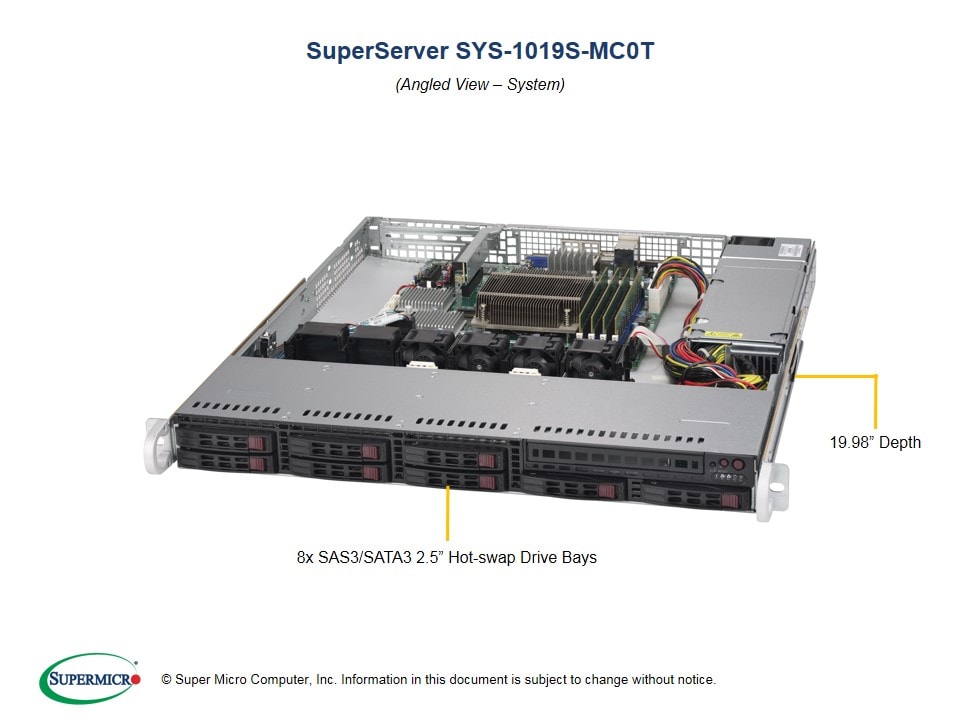

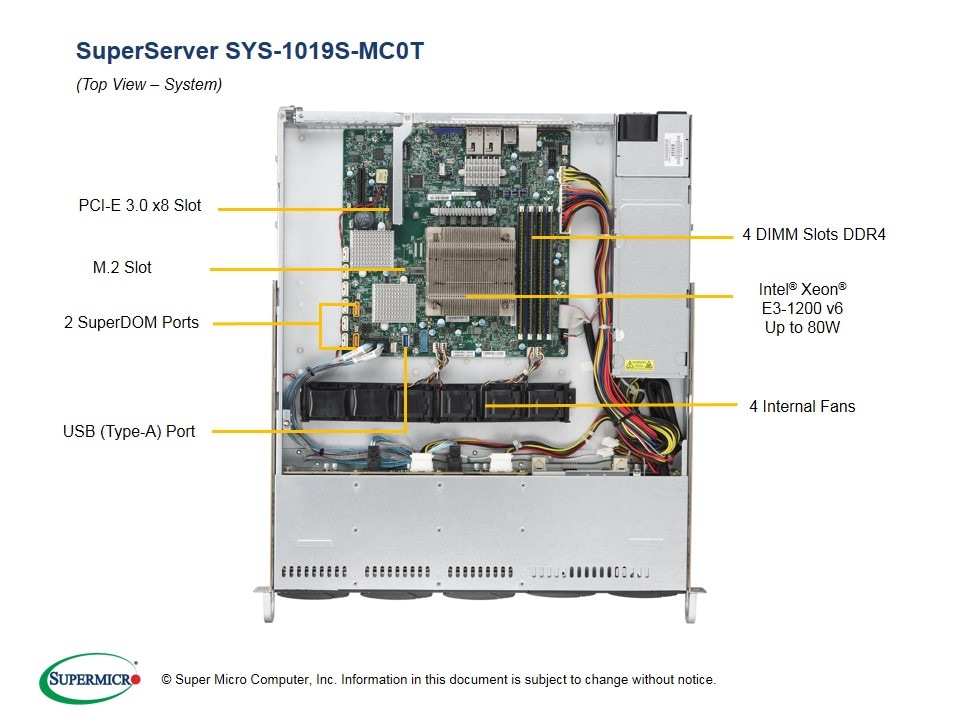

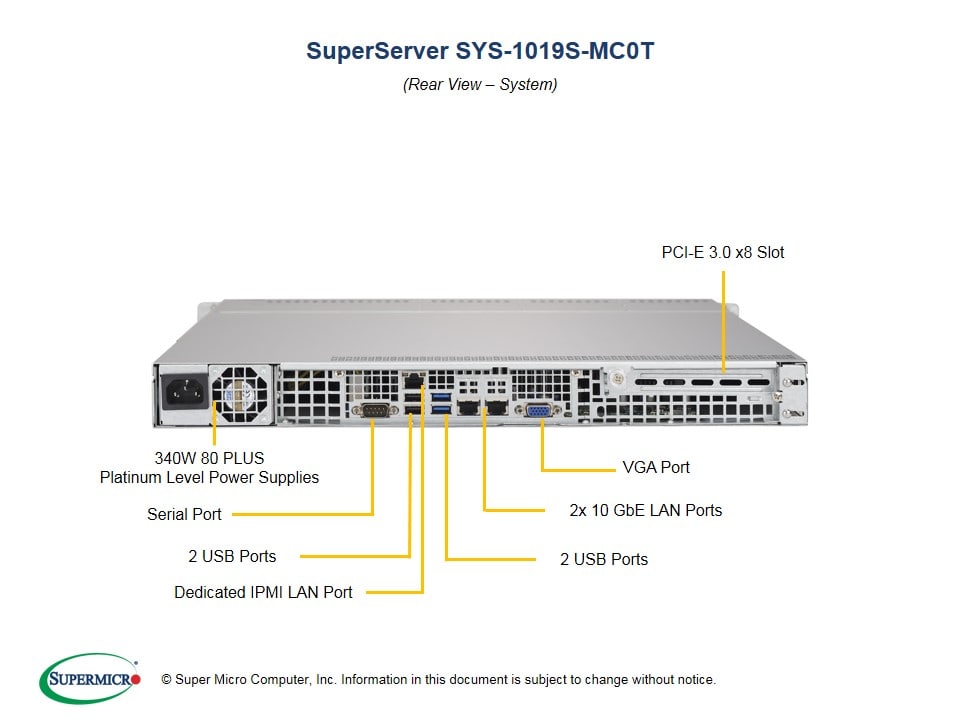

Views: | Angled View | Top View |

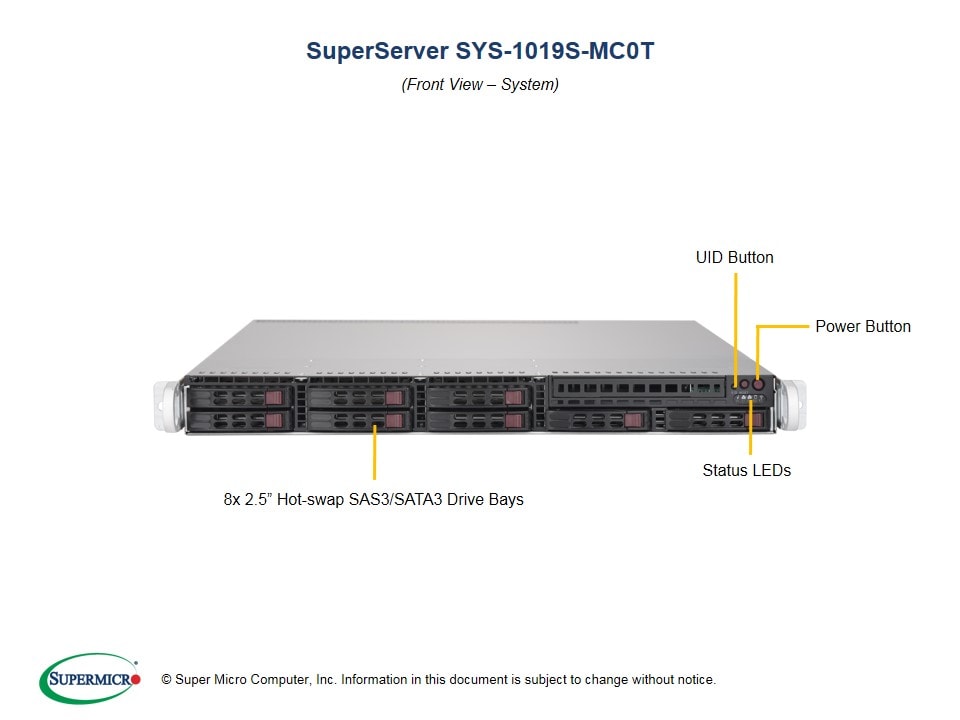

| Front View | Rear View |


Key Features
• Storage HN, VM, Hosting
• Mainstream, Compact File Server

1. Single socket H4 (LGA 1151) supports
    Intel® Xeon® processor E3-1200 v6/v5,
    Intel® 7th/6th Gen. Core™ i3 series,
    Intel® Celeron® and Intel® Pentium®
2. Intel® C236 chipset
3. 8 Hot-swap 2.5" SAS3 Drive Bays
4. Up to 64GB Unbuffered ECC UDIMM
    DDR4 2400MHz; 4 DIMM slots
5. 2x 10GBase-T ports with Intel® X550
6. Integrated IPMI 2.0 and KVM with
    Dedicated LAN
7. 1 VGA, 2 COM, 2 USB 3.0, 2 USB 2.0
8. 340W High-efficiency Power Supply


 Drivers & Utilities   BIOS   IPMI   Tested Memory  Manuals   OS Certification Matrix   Drive Options

Product SKUs
SYS-1019S-MC0T
  • SuperServer 1019S-MC0T (Black)

Motherboard

Super X11SSH-CTF

Processor/Cache
CPU
  • Single Socket H4 (LGA 1151) supports:
  • Intel® Xeon® processor E3-1200 v6/v5,
    Intel® 7th/6th Gen Core™ i3,
    Intel® Pentium®,
    Intel® Celeron® processors
  • CPU TDP up to 80W
Note BIOS version 2.0 or above is required to support Intel® Xeon® Processor E3-1200 v6 series or 7th Generation Intel® Core™ Processors

System Memory
Memory Capacity
  • 4x 288-pin DDR4 DIMM slots
  • Up to 64GB DDR4 ECC UDIMM
Memory Type
  • 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs
DIMM Sizes
  • 16GB, 8GB, 4GB
Memory Voltage
  • 1.2 V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset
  • Intel® C236 chipset
SAS
  • Broadcom 3008 SAS3 (12Gbps) controller;
    SW RAID 0, 1, 10
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2400 BMC
Network Controllers
  • Dual Intel® X550 10GBase-T LAN ports
  • Virtual Machine Device Queues reduce I/O overhead
  • Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Video
  • ASPEED AST2400 BMC

Input / Output
SAS
  • 8 SAS3 (12Gbps) ports
LAN
  • 2 RJ45 10GBase-T LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 2 USB 3.0 ports (front/rear)
  • 2 USB 2.0 ports
Video
  • 1 VGA port
Serial Port / Header
  • 2 COM ports (1 rear, 1 header)
SuperDOM
  • 2 SuperDOM (Disk on Module) ports with built-in power

PC Health Monitoring
Voltage
  • Monitors for CPU Cores, +3.3V, +5V, +12V, +5V Standby, VBAT, HT, Memory, Chipset Voltages.
FAN
  • Total of 4 fan headers supporting up to 4 fans
  • 4 fans with tachometer status monitoring
  • Status monitor for speed control
  • Status monitor for on/off control
  • Low noise fan speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support
  • I2C temperature sensing logic
  • Thermal Monitor 2 (TM2) support
  • PECI
LED
  • CPU / System Overheat LED
  • Suspend static indicator LED
  • UID/Remote UID
Other Features
  • Chassis intrusion detection
  • Chassis intrusion header
  • Chipkill support
  • RoHS, Halogen Free
Chassis
Form Factor
  • 1U Rackmount
Model

Dimensions and Weight
Height
  • 1.7" (43mm)
Width
  • 17.2" (437mm)
Depth
  • 19.98" (507mm)
Package
  • 8.5" (H) x 24" (W) x 29.5" (D)
Weight
  • Gross Weight: 31 lbs (14.1 kg)
  • Net Weight: 18.5 lbs (8.4 kg)
Available Colors
  • Black

Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power LED
  • Hard drive activity LED
  • 2 Network activity LEDs
  • System Overheat LED

Expansion Slots
PCI-Express
  • 1 PCI-E 3.0 x8 AOC slot

Drive Bays
Hot-swap
  • 8 Hot-swap 2.5" SAS3 drive bays

Backplane
SAS3/SATA HDD Backplane
(SAS support requires optional SAS controller)

System Cooling
Fans
  • 4x 4cm chassis internal fan

Power Supply
340W AC power supply w/ PFC
AC Voltage
  • 100-240 V, 50-60 Hz, 4.2-1.8 Amp
+5V
  • Max: 16 Amp / Min: 0.5A
+12V
  • Max: 28 Amp / Min: 0.5A
+3.3V
  • Max: 15 Amp
+5V standby
  • Max: 3 Amp
-12V
  • Max: 0.5 Amp
Certification Platinum Level Certified     Platinum Level


System BIOS
BIOS Type
  • 8MB SPI Flash EEPROM with AMI BIOS
BIOS Features
  • DMI 2.3
  • PCI 2.3
  • ACPI 1.0 / 2.0
  • USB Keyboard support
  • SMBIOS 2.3

Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)
See Parts List
