SuperServer 1028GQ-TRT

  Products  Systems   GPU   [ 1028GQ-TRT ]





Integrated Board
X10DGQ

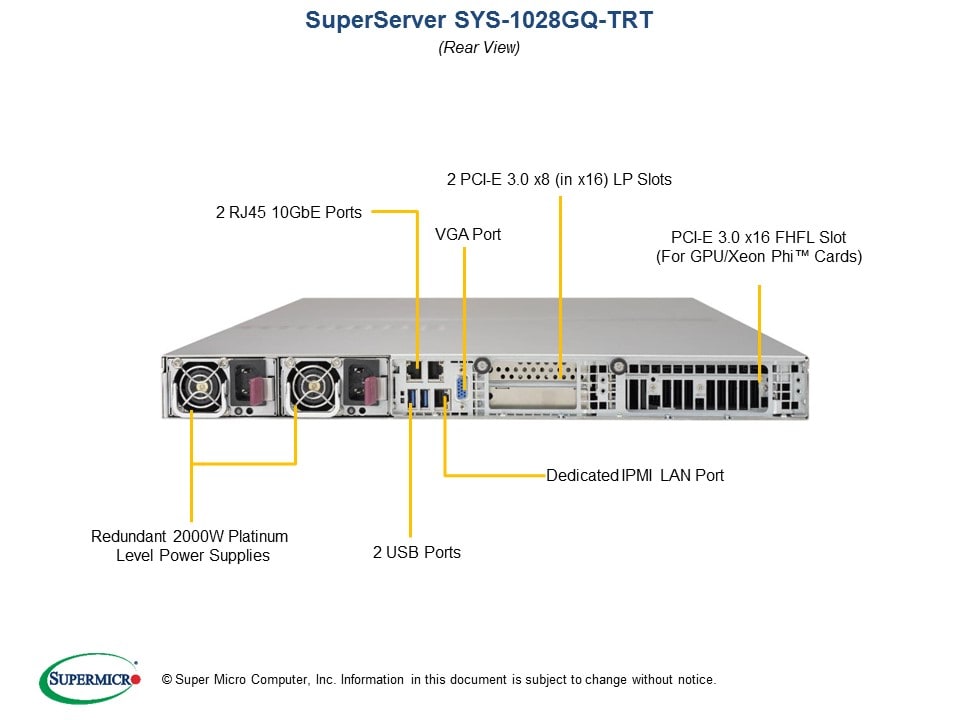

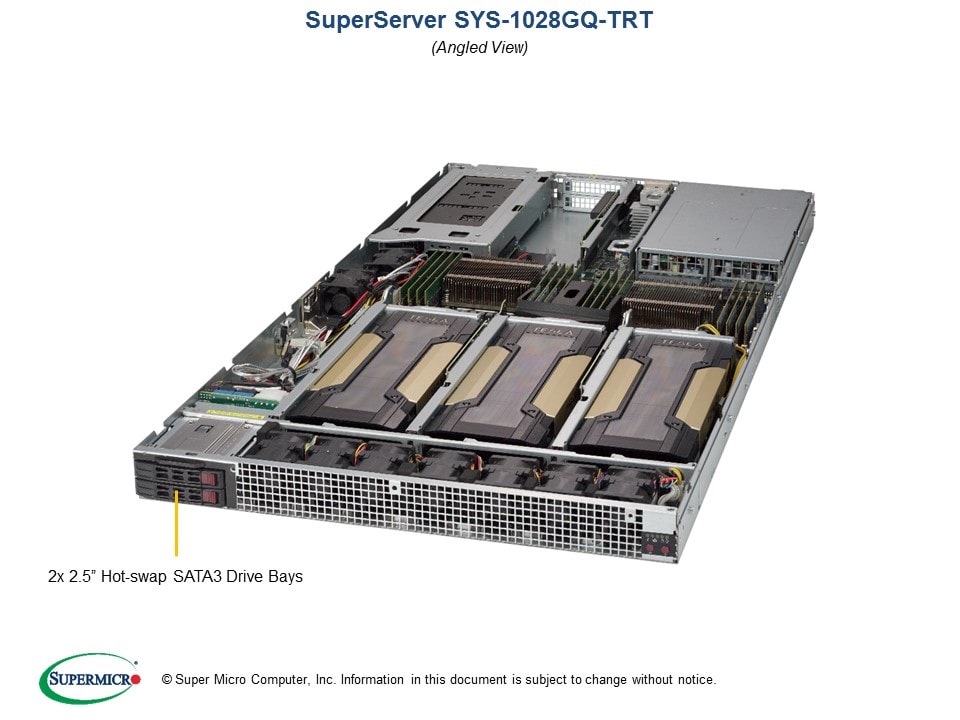

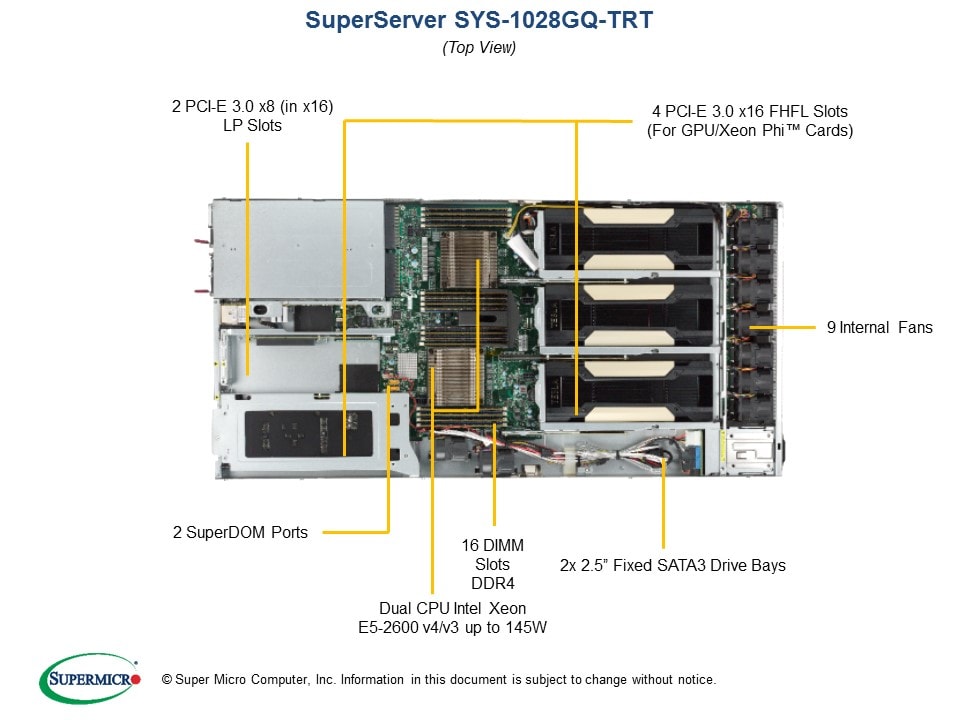

Views: | Angled View | Top View |

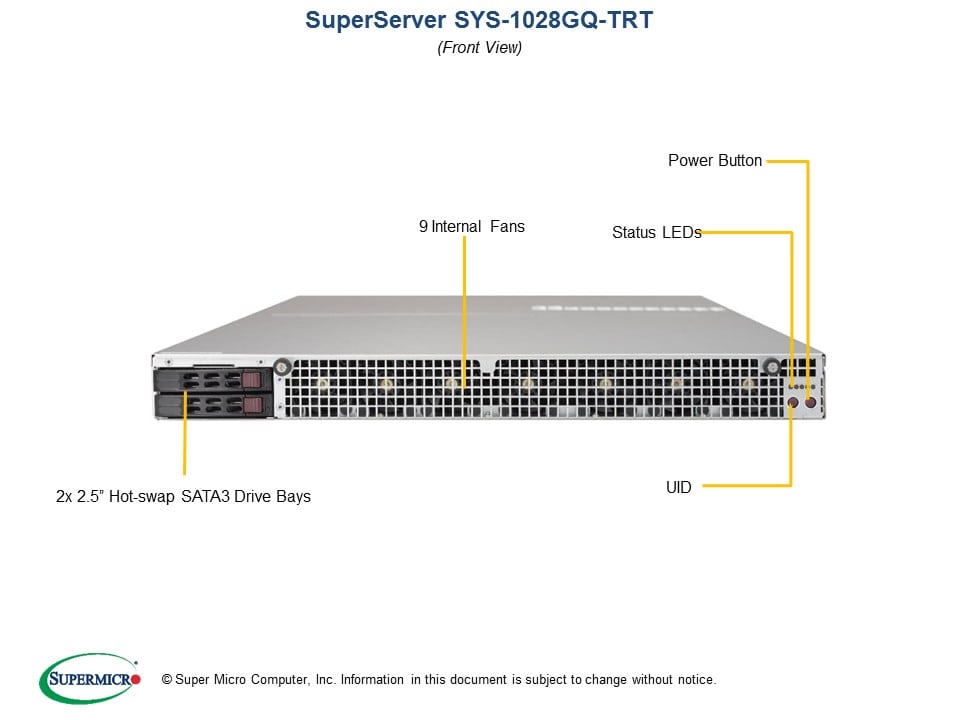

| Front View | Rear View |

Key Features
1. Dual socket R3 (LGA 2011) supports
    Intel® Xeon® processor E5-2600
    v4/ v3 family; QPI up to 9.6GT/s
2. Up to 1TB ECC 3DS LRDIMM , up to
    DDR4- 2400MHz ; 16 DIMM slots
3. 4 PCI-E 3.0 x16 slots (4 NVIDIA
    GPU/Xeon Phi cards opt.),
    2 PCI-E 3.0 x8 (in x16) LP slot
4. Dual port 10GbE LAN
5. 2 Hot-swap 2.5" drive bays,
    2 internal 2.5" drive bays
6. 9x 4cm heavy duty counter-rotating
    fans with air shroud & optimal fan
    speed control
7. 2000W Redundant Power Supplies
    Platinum Level (94%+)


 Drivers & Utilities   BIOS   IPMI   Tested Memory  Tested M.2 List   Manuals    OS Certification Matrix    Compatible GPU List  Quick-References Guide  Drive Options

Product SKUs
SYS-1028GQ-TRT
  • SuperServer 1028GQ-TRT (Black)

Motherboard

Super X10DGQ

Processor/Cache
CPU
  • Intel® Xeon® processor E5-2600 v4/ v3 family (up to 145W TDP) *
  • Dual Socket R3 (LGA 2011)
Cores / Cache
  • Up to 22 Cores / Up to 55MB Cache
System Bus
  • QPI up to 9.6 GT/s
Note BIOS version 2.0 or above is required
Note * Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization.
GPU/Xeon Phi Support
  • NVIDIA® Tesla® K1/K2/K10/K40/K80/M40/M60/Xeon Phi

System Memory
Memory Capacity
  • 16x 288-pin DDR4 DIMM slots
  • Up to 1TB ECC 3DS LRDIMM, 1TB ECC RDIMM
Memory Type
  • 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes
  • RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB
  • LRDIMM: 64GB, 32GB
  • 3DS LRDIMM: 128GB
Memory Voltage
  • 1.2 V
Error Detection
  • Corrects single-bit errors

On-Board Devices
Chipset
  • Intel® C612 chipset
SATA
  • SATA3 (6Gbps) with RAID 0, 1, 5, 10
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2400 BMC
Network Controllers
  • Dual Port 10GbE
  • Virtual Machine Device Queues reduce I/O overhead
  • Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Graphics
  • ASPEED AST2400 BMC

Input / Output
SATA
  • 4x SATA3 (6Gbps) ports
LAN
  • 2x RJ45 Gigabit Ethernet ports
  • 1x RJ45 Dedicated IPMI LAN port
USB
  • 2x USB 3.0 ports (2 via headers)
Video
  • 1x VGA Connector
Serial Port
  • 1x Serial header

System BIOS
BIOS Type
  • 128Mb SPI Flash EEPROM with AMI® BIOS
BIOS Features
  • Plug and Play (PnP)
  • APM 1.2
  • DMI 2.3
  • PCI 2.3
  • ACPI 1.0 / 2.0 / 3.0
  • USB Keyboard support
  • SMBIOS 2.7.1
  • UEFI
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-118GQE-R2K03P

Dimensions and Weight
Height
  • 1.7" (43mm)
Width
  • 17.2" (437mm)
Depth
  • 35.2" (894mm)
  • 39.3" (997mm) with rails
Package
  • 24" (H) x 8" (W) x 46" (D)
Weight
  • Net Weight: 45 lbs (15.9 kg)
  • Gross Weight: 58 lbs (21.8 kg)
Available Color
  • Black

Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power LED
  • Hard drive activity LED
  • 2x Network activity LEDs
  • System Overheat LED / Fan fail LED /
    UID LED

Expansion Slots
PCI-Express
  • 4x PCI-E 3.0 x16 slots
    (4x GPU/Xeon Phi cards optional)
  • 2x PCI-E 3.0 x8 (in x16) low-profile slot

Drive Bays
Hot-swap
  • 2x 2.5" Hot-swap drive bays
Fixed
  • 2x 2.5" internal drive bays

System Cooling
Fans
  • 9x 4cm heavy duty counter-rotating fans with air shroud & optimal fan speed control

Power Supply
2000W 1U Redundant Power Supplies with PMBus
Total Output Power
  • 1000W/1800W/1980W/2000W
Dimension
(W x H x L)
  • 73.5 x 40 x 265 mm
Input
  • 100-120Vac / 12.5-10.5A / 50-60Hz
  • 200-220Vac / 10-9.5A / 50-60Hz
  • 220-230Vac / 10-9.8A / 50-60Hz
  • 230-240Vac / 10-9.8A / 50-60Hz
  • 200-240Vac / 10-9.8A (UL/cUL only)
  • 200-240Vdc / 10-9.1A (CCC only)
+12V
  • Max: 83.3A / Min: 0.1A (100-120Vac)
  • Max: 150A / Min: 0.1A (200-220Vac)
  • Max: 165A / Min: 0.1A (220-230Vac)
  • Max: 166.7A / Min: 0.1A (230-240Vac)
  • Max: 166.7A / Min: 0.1A (200-240Vac) (UL/cUL only)
12V SB
  • Max: 3.5A / Min: 0A
Output Type
  • 25 Pairs Gold Finger Connector
Certification Platinum Level Certified94%+  Platinum Level
    [ Test Report ]

PC Health Monitoring
CPU
  • Monitors for CPU Cores, +1.5V, +3.3V, +5V, +12V, +5 Stdby, +3.3 Stdby, VBAT, Memory Voltages.
  • 5 Phase-switching voltage regulator
FAN
  • Total of nine 4-pin PWM fans
  • 9x fans with tachometer monitoring
  • Status monitor for speed control
  • Status monitor for on/off control
  • Low noise fan speed control
Temperature
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support
  • Thermal Control for 9x Fan Connectors
  • PSU I2C temperature sensing logic
  • Thermal Monitor 2 (TM2) support
  • PECI
LED
  • Power Fail / Overheat LED
  • Suspend-state Indicator LED
  • UID LED
Other Features
  • SDDC Support

Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)
See Parts List

Parts List - (Items Included)

Part Number
Qty
Description
Motherboard / Chassis MBD-X10DGQ
CSE-118GQE-R2K03P
1
1
Super X10DGQ Motherboard
CSE-118GQE-R2K03P Chassis
Add-on Card / Module AOM-PIO-I2XT-P 1 AOM-PIO-I2XT
Backplane BPN-SAS3-118GQE 1 2-port 1U SAS3 12Gbps backplane, support up to 2x 2.5-inch SAS3/SATA3 HDD/SSD
Cable 1 CBL-0484L 4 SATA,INT,ROUND,ST-ST,55CM,30AWG
Label LBL-0108 1 CAUTION LABEL FOR REDUNDANT PWR SYSTEMS
Manual MNL-1810-QRG 1 SYS-1028GQ-TR(T) Quick Reference Guide,HF,RoHS/REACH
Riser Card RSC-G-6 3 RSC-G-6-O-P
Riser Card RSC-GR-6 1 RSC-GR-6-O-P
Riser Card RSC-GR-A88 1 RSC-GR-A88-O-P
Heatsink / Retention SNK-P0057P 2 1U High Performance Passive CPU Heat Sink for X9, X10 Systems Equipped w/ a Square ILM MB
Power Supply PWS-2K03P-1R 2 1U 2000W Redundant Power Supply Platinum 73.5mm width.,RoHS/REACH
Fans FAN-0163L4 9 40x40x56 mm 23.3K-20.3K RPM Counter-rotating Fan
Rail Set MCP-290-11809-0N 1 Rail set, Quick/Quick, Auto Latch, travel 535mm Short Version, Post to Post 685mm
Optional Parts List
  Part Number Qty Description
Cable CBL-PWEX-0782
CBL-PWEX-0783
CBL-PWEX-0814
1
2
1
NVIDIA Tesla V100/K80/M60/M40/P100/P40 Cable (8-pin EPS 12V connector)
Cable CBL-PWEX-0784
CBL-PWEX-0785
CBL-PWEX-0786
1
2
1
NVIDIA Tesla K40/M10 Cable (6+2-pin PCIe 12V connector)
Cable CBL-PWEX-0787
CBL-PWEX-0788
CBL-PWEX-0789
1
2
1
Generic GPU cables ( 6+2/6-pin PCIe 12V connector)
AOC-S3008L-L8i (SAS3) CBL-SAST-0699 1 Mini SAS HD to 4 SATA 12G
AOC-S3108L-H8IR-16DD (SAS3) CBL-SAST-0699 1 Mini SAS HD to 4 SATA 12G
AOC-S3108L-H8IR (SAS3) CBL-SAST-0699 1 Mini SAS HD to 4 SATA 12G
Super Cap for LSI 3108 BKT-BBU-BRACKET-05
BTR-TFM8G-LSICVM02
1
1
Mounting Bracket for LSI BBUs
LSI Super Cap
Global Services & Support OS4HR3/2/1
OSNBD3/2/1
-
-
3/2/1-year onsite 24x7x4 service
3/2/1-year onsite NBD service
Software SFT-OOB-LIC 1 OOB Management Package (per node license)
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
  Note: For Coprocessors, GPUs, VCA, FPGA cards not listed in table above please contact sales to discuss compatibility.
Hide Parts List

Information in this document is subject to change without notice.
Other products and companies referred to herein are trademarks or registered trademarks of their respective companies or mark holders.

Certain products may not be available in your region
