SuperServer 1029UX-LL1-S16 (Complete System Only)

Super Micro Computer, Inc.
Contact Us

Search

MySupermicro

  Products   Systems   [ 1029UX-LL1-S16 ]





Integrated Board
X11DPU-XLL

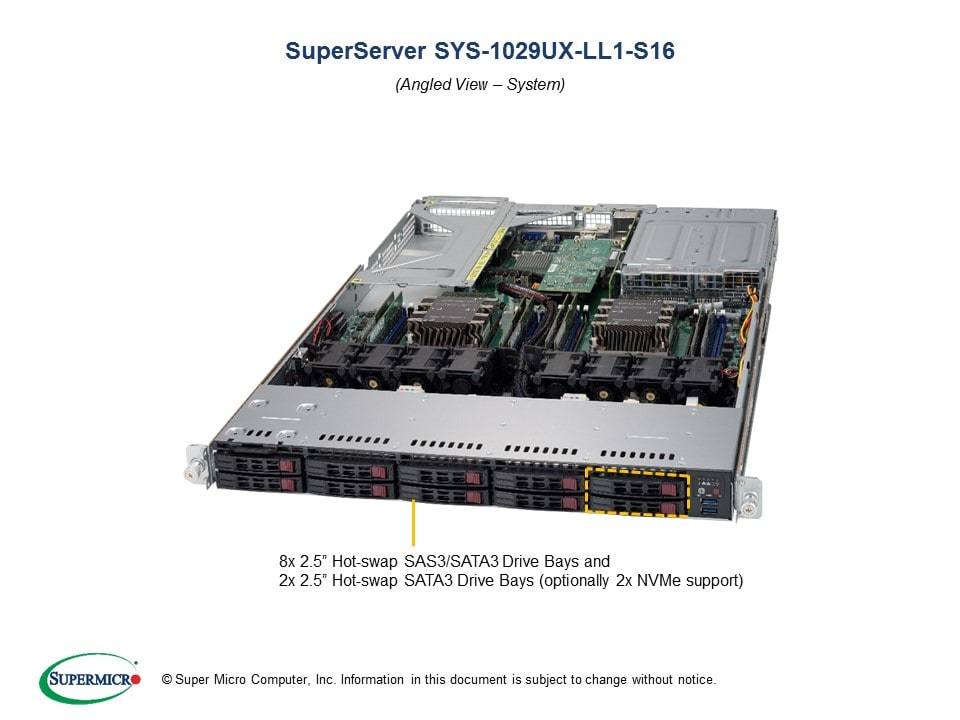

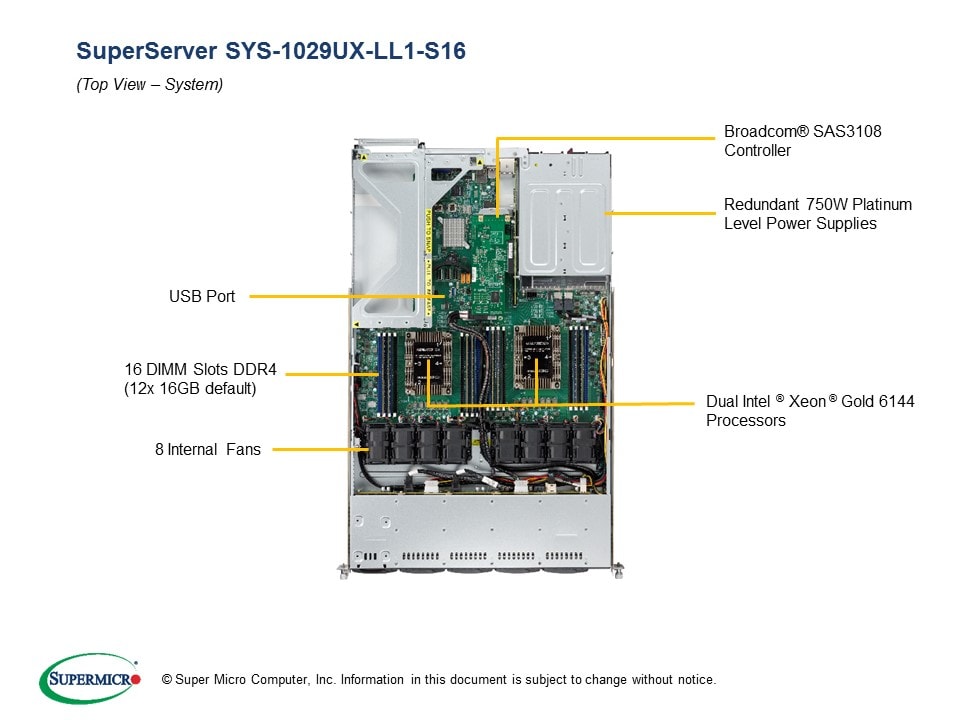

Views: | Angled View | Top View |

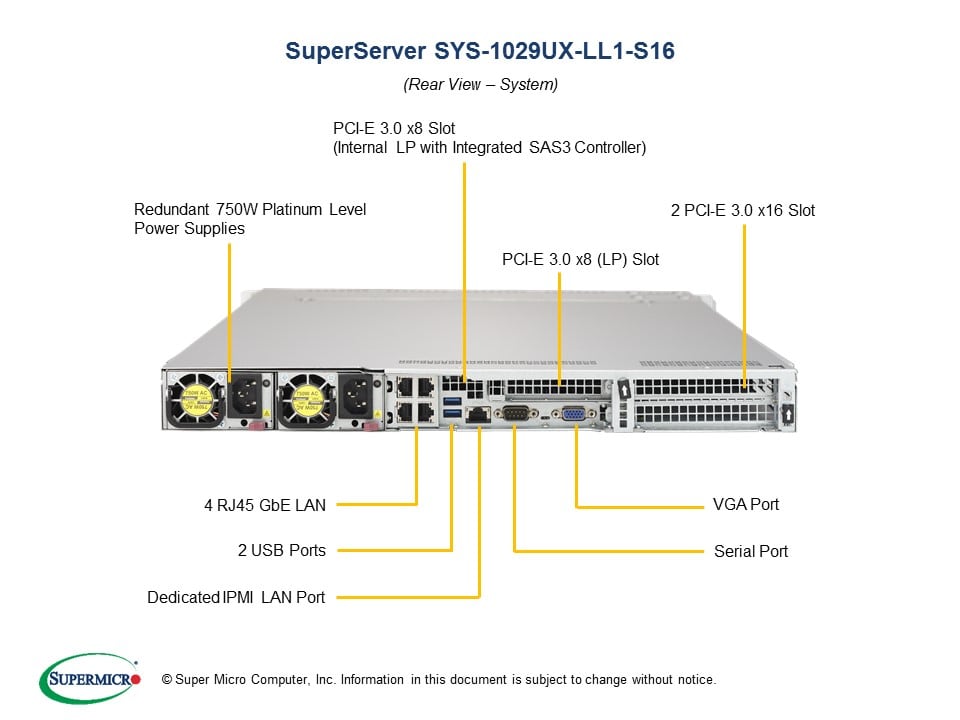

| Front View | Rear View |

Key Features
• Financial Analysis
• Business Critical Applications
• Enterprise Server

1. Dual socket P (LGA 3647) supports
    Intel® Xeon® Scalable Processors,
    Dual UPI up to 10.4GT/s
    (Intel® Xeon® Gold 6144 included)
2. Up to 2TB ECC 3DS LRDIMM or RDIMM,
    up to DDR4-2666MHz; 16 DIMM slots
    (12x 16GB DDR4-2666MHz included)
3. 2 PCI-E 3.0 x16 slots (FH, 10.5"/10" L),
    1 PCI-E 3.0 x8 (LP), 1 PCI-E 3.0 x8
    (internal SAS3 integrated 3108)
4. 4 Gigabit Ethernet ports
5. 8 Hot-swap 2.5" SAS3 drive Bays;
    2 Hot-swap NVMe bays
6. 8 heavy duty fans w/ optimal
    fan speed control
7. 750W Redundant Power Supplies
    Platinum Level (94%+)

Due to the complexity of integration, this product is sold as a completely assembled system only (including but not limited to CPUs, memory, and HDDs). Please contact your Supermicro sales rep for special requirements.

 Drivers & Utilities   BIOS   IPMI   Tested Memory  Manuals    OS Certification Matrix    Drive Options

Product SKUs
SYS-1029UX-LL1-S16
  • SuperServer 1029UX-LL1-S16 (Black)

Motherboard

Super X11DPU-XLL

Processor/Cache
CPU
  • Dual Socket P (LGA 3647)
  • Intel® Xeon® Scalable Processors,
    Dual UPI up to 10.4GT/s
  • Intel® Xeon® Gold 6144 included
Cores
  • Up to 8 Cores with Intel® HT Technology

System Memory
Memory Capacity
  • 16 DIMM slots
  • Up to 2TB ECC 3DS LRDIMM, 2TB ECC RDIMM, DDR4 up to 2666MHz
  • 12x 16GB DDR4-2666MHz included
Memory Type
  • 2666/2400/2133MHz ECC DDR4 SDRAM

On-Board Devices
Chipset
  • Intel® C621 chipset
SATA
  • SATA3 (disabled)
SAS
  • Broadcom 3108 controller for 8 SAS3 ports
Network Connectivity
  • 4 Gigabit Ethernet ports via AOC-UR-i4G (Intel® i350AM4)
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics
  • ASPEED AST2500 BMC

Input / Output
SAS
  • 8 SAS3 ports support via optional Add-on Card
LAN
  • 4 RJ45 Gigabit Ethernet ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 3 USB 3.0 ports
    (2 rear, 1 Type A)
Video
  • 1 VGA port
Serial Port
  • 1 COM Port (1 rear)

System BIOS
BIOS Type
  • AMI UEFI

Management
Software

PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 4+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-119UTS-R751P-T

Dimensions and Weight
Height
  • 1.7" (43mm)
Width
  • 17.2" (437mm)
Depth
  • 27.8" (706mm)
Weight
  • Gross Weight: 48 lbs (21.77 kg)
Available Color
  • Black

Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power LED
  • Hard drive activity LED
  • Network activity LEDs
  • System Overheat LED / Fan fail LED /
    UID LED

Expansion Slots
PCI-Express
  • 2 PCI-E 3.0 x16 (1 Full-height, 10.5" L; 1 Full-height, 10")
  • 1 PCI-E 3.0 x8 (Low Profile)
  • 1 PCI-E 3.0 x8 (Internal SAS3 integrated 3108)


  • (Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram and AOC Support for details.)

Drive Bays
Hot-swap
  • 8 Hot-swap 2.5" SAS3 drive bays
  • 2 Hot-swap 2.5" NVMe

System Cooling
Fans
  • 8 heavy duty fans with optimal fan speed control

Power Supply
750W Redundant AC-DC Power Supplies, +12V/+12Vsb output
AC Input
  • 100-127Vac, 50-60Hz
  • 200-240Vac, 50-60Hz
+12V
  • Max: 62.5A & Min: 0A (100Vac-127Vac)
  • Max: 62.5A & Min: 0A (200Vac-240Vac)
12V SB
  • Max: 2.1A
  • Min: 0A
Certification Platinum Level Certified94%+  Platinum Level


  [ Test Report ]

Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
       -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)

See Parts List
