SuperServer 2028U-TNRT+ (Complete System Only)

Super Micro Computer, Inc.
Contact Us

Search

Reseller Resource Center

  Products   Systems   2U   [ 2028U-TNRT+ ]





Integrated Board
Super X10DRU-i+
Key Features
• Flexible Connectivity Options
1. Dual socket R3 (LGA 2011) supports
    Intel® Xeon® processor E5-2600
    v4/ v3 family; QPI up to 9.6GT/s

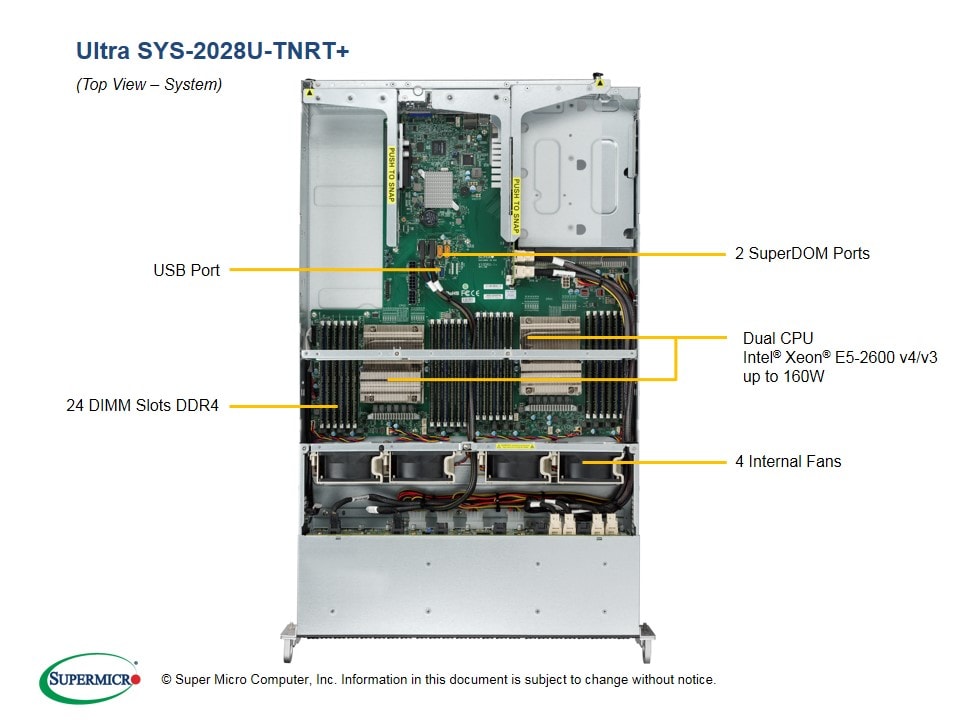

2. Up to 3TB ECC 3DS LRDIMM , up to
    DDR4- 2400MHz ; 24x DIMM slots
3. 7x PCI-E 3.0 x8 slots (5x FH, 10.5" L,
    1x LP, 1x Internal LP)
4. 2x 10GBase-T ports

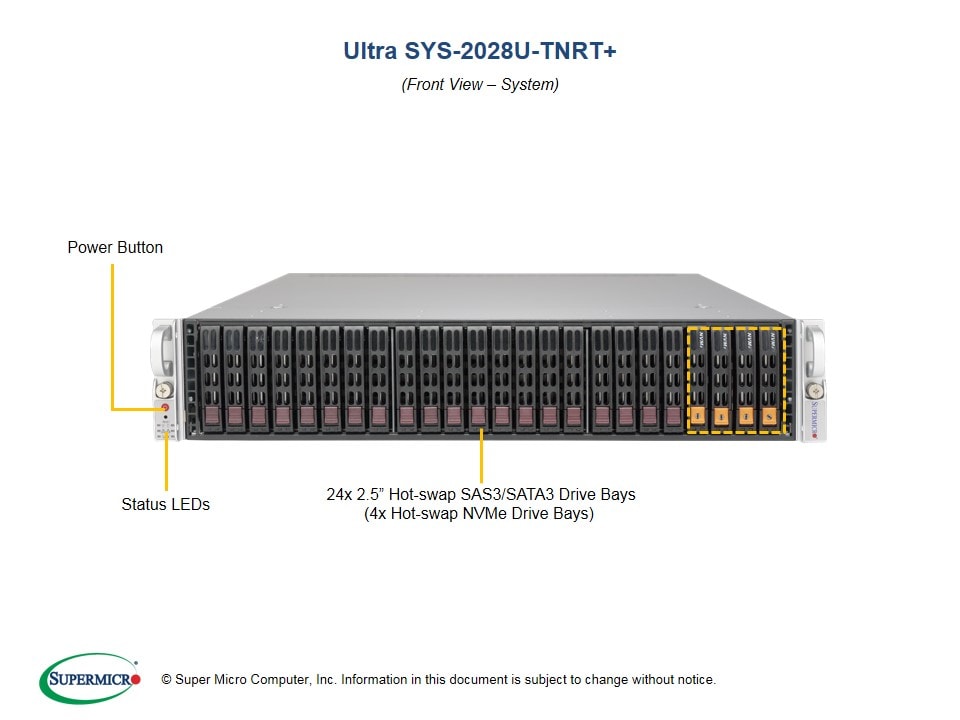

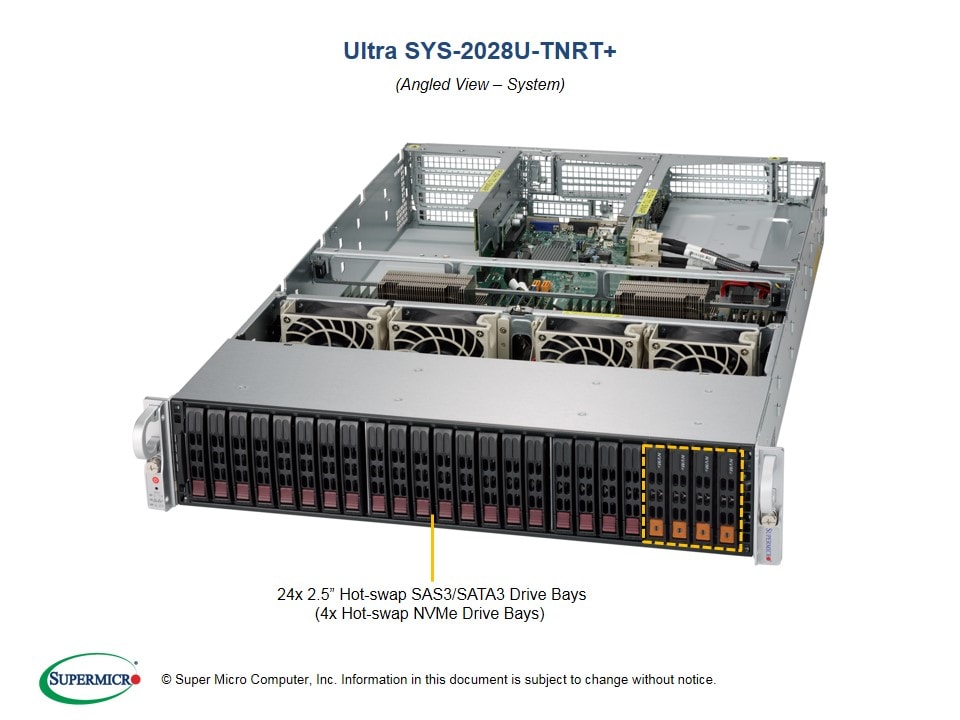

5. 24x Hot-swap 2.5" Drive Bays:
    Default 8x SATA3 ports and
    4x NVMe ports;
    Optional 24x SAS3 ports via AOC
6. 4x heavy duty fans w/ optimal
    fan speed control
7. 1000W High efficiency (96%)
    Redundant PSU; Titanium Level

Due to the complexity of integration, this product is sold as completely assembled systems only (with minimum 2 CPU and 4 DIMM). Please contact your Supermicro sales rep for special requirements.

 Drivers & Utilities   BIOS   IPMI   Tested Memory  Tested HDD   Tested NVMe   Manuals   OS Certification Matrix   Quick-References Guide

Product SKUs
SYS-2028U-TNRT+
  • SuperServer 2028U-TNRT+ (Black)

Motherboard

Super X10DRU-i+

Processor/Cache
CPU
  • Intel® Xeon® processor E5-2600 v4/ v3 family (up to 160W TDP) *
  • Dual Socket R3 (LGA 2011)
Cores / Cache
  • Up to 22 Cores / Up to 55MB Cache
System Bus
  • QPI up to 9.6 GT/s
Note BIOS version 2.0 or above is required
Note * Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization.

System Memory
Memory Capacity
  • 24x 288-pin DDR4 DIMM slots
  • Up to 3TB ECC 3DS LRDIMM, 768GB ECC RDIMM
Memory Type
  • 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes
  • 64GB, 32GB, 16GB, 8GB, 4GB
Memory Voltage
  • 1.2 V
Error Detection
  • Corrects single-bit errors

On-Board Devices
Chipset
  • Intel® C612 chipset
SATA
  • SATA3 (6Gbps) with RAID 0, 1, 5, 10
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2400 BMC
Network Connectivity
  • 2x 10GBase-T ports via AOC-2UR8N4-i2XT
  • Intel® X540 10GBase-T
  • 1x Realtek RTL8211E PHY (dedicated IPMI)
Graphics
  • ASPEED AST2400 BMC

Input / Output
SATA
  • 8x SATA3 (6Gbps) ports
SAS
  • 24x SAS3 ports support via optional Add-on Cards
NVMe
  • 4x NVMe ports
LAN
  • 2x 10GBase-T LAN ports
  • 1x RJ45 Dedicated IPMI LAN port
USB
  • 5x USB 3.0 ports
    (2 rear, 2 onboard header, 1 Type A)
Video
  • 1x VGA Connector
Serial Port / Header
  • 1x Serial header
DOM
  • 2x SuperDOM (Disk on Module) ports

System BIOS
BIOS Type
  • 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
  • Plug and Play (PnP)
  • APM 1.2
  • PCI 2.3
  • ACPI 1.0 / 2.0 / 3.0 / 4.0
  • USB Keyboard support
  • SMBIOS 2.7.1
  • UEFI 2.3.1

Management
Software
Power Configurations
  • ACPI Power Management
  • Power-on mode for AC power recovery
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-219UAC-R1K02

Dimensions and Weight
Width
  • 17.2" (437mm)
Height
  • 3.5" (89mm)
Depth
  • 27.76" (705.3mm)
Weight
  • Net Weight: 36 lbs (16.4 kg)
  • Gross Weight: 72 lbs (32.7 kg)
Available Colors
  • Black

Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power status LED
  • HDD activity LED
  • 2x Network activity LEDs
  • System information (overheat/UID) LED

Expansion Slots
PCI-Express
  • 7x PCI-E 3.0 x8 slots
    (5x FH, 10.5" L, 1x LP, 1x Internal LP)


  • (Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram and AOC Support for details.)

Drive Bays
Hot-swap
  • 24x 2.5" Hot-swap drive bays
  • Default 8x SATA3 ports and 4x NVMe ports
  • Optional 24x SAS3 ports via AOC


  • Note: optional storage card is required to support more than 10 drives.

System Cooling
Fans
  • 4x 8cm heavy duty PWM fans

Ultra Power Supply
1000W Redundant Titanium Level Power Supplies with PMBus
Total Output Power
  • 800W/1000W
Dimension
(W x H x L)
  • 73.5 x 40 x 203 mm
Input
  • 100-127Vac / 9.8 - 7A / 50-60Hz
  • 200-240Vac / 7 - 5A / 50-60Hz
+12V
  • Max: 66.7A / Min: 0A (100-127Vac)
  • Max: 83A / Min: 0A (200-240Vac)
12V SB
  • Max: 2.1A / Min: 0A
Output Type
  • 25 Pairs Gold Finger Connector
Certification Titanium Level96%    Titanium Level
    [ Test Report ]

PC Health Monitoring
Voltage
  • Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory Voltages.
  • 5+1 Phase-switching voltage regulator
FAN
  • 8x 4-pin fan headers
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Support to monitor Supermicro AOC temperatures from IPMI or SD 5
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support
  • Thermal Control for 8x Fan Connectors
  • Thermal Monitor 2 (TM2) support
  • PECI
LED
  • Memory DIMM ECC error LEDs
  • CPU / System Overheat LED
  • Suspend static indicator LED
  • UID/Remote UID
Other Features
  • 4x 8-pin GPU power connectors
  • Chassis intrusion detection
  • Chassis intrusion header
  • SDDC Support
  • RoHS

Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature:
       -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)
