SuperServer 2029BZ-HNR (Complete System Only)

Super Micro Computer, Inc.
Contact Us

Search

MySupermicro

  Products   Systems   BigTwin   [ 2029BZ-HNR ]





Integrated Board
Super X11DPT-BH

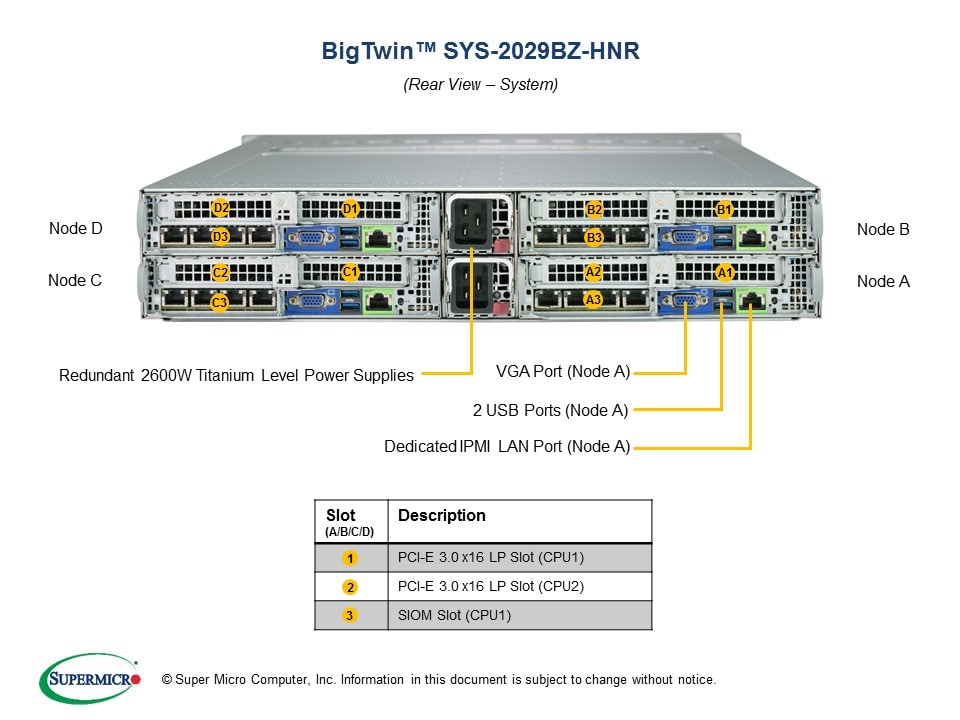

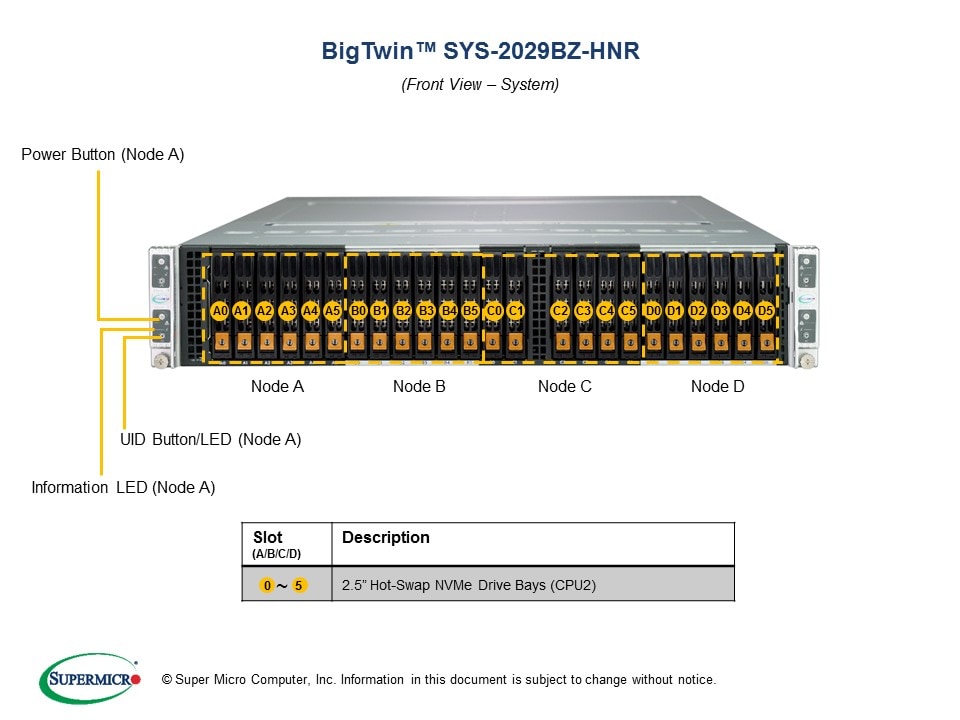

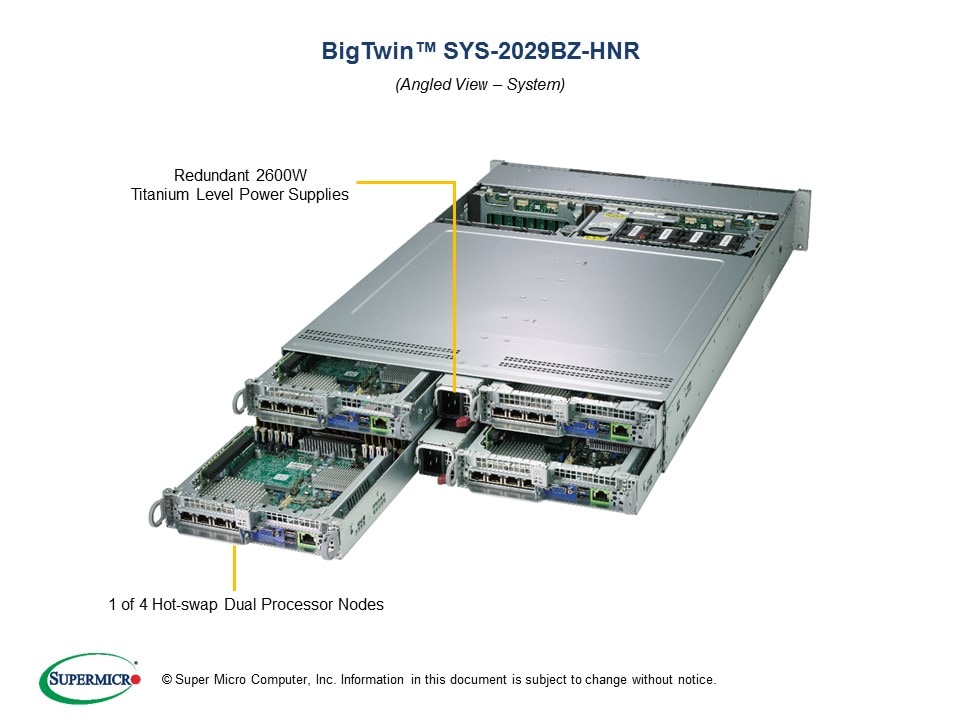

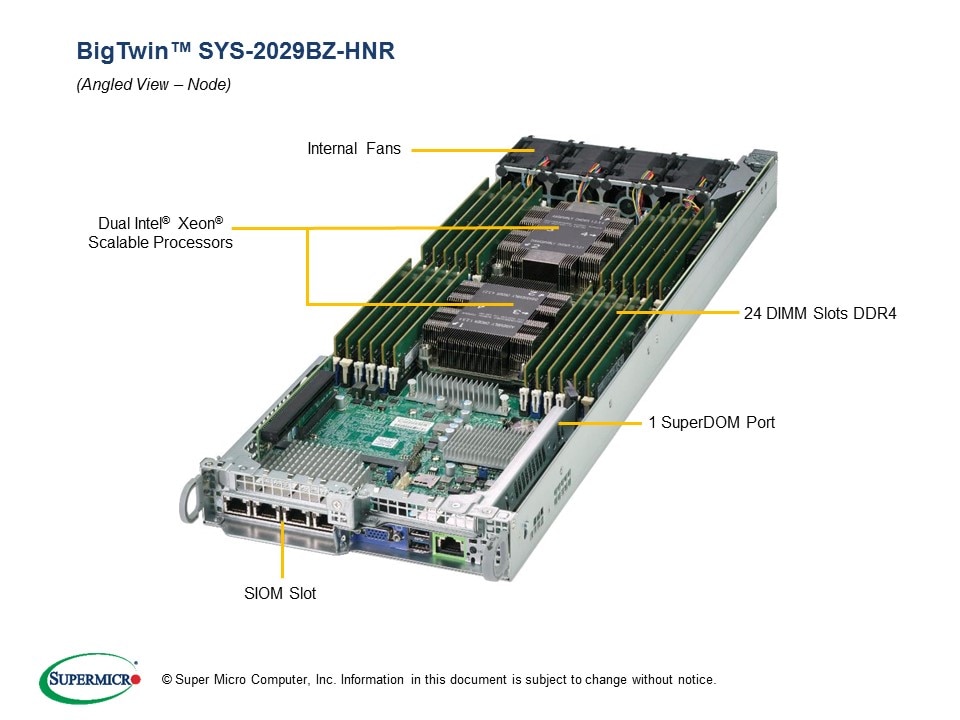

Views: | Angled View | Node View |
| Front View | Rear View |

Key Features
  - Compute Intensive Application
  - HPC, Data Center, Enterprise
    Server
  - Hyperscale / Hyperconverged

Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
1. Dual socket P (LGA 3647) supports
    Intel® Xeon® Scalable Processors,
    3 UPI up to 10.4GT/s
2. Up to 3TB ECC 3DS L/RDIMM, up to
    DDR4-2666MHz; 24 DIMM slots
3. 2 PCI-E 3.0 x16 (LP) slot; 1 SIOM
    card support (flexible networking)
    Note: must bundle with Network card
4. IPMI 2.0 + KVM with dedicated LAN
5. 6 Hot-swap 2.5" NVMe drive bays;
    2 M.2 SATA3 or NVMe support
6. Video via Aspeed AST2500 BMC
7. 16 Heavy duty 40x56mm fans
    with optimal fan speed control
    (4 fans per node)
8. 2600W Redundant Power Supplies
    Titanium Level (96%)

Due to the complexity of integration, this product is sold as a completely assembled system only (with minimum 2 CPUs, 2 DIMMs, 1 NVMe and 1 SIOM card per node). Please contact your Supermicro sales rep for special requirements.

 Drivers & Utilities   BIOS   IPMI   Tested Memory
 Tested M.2 List   NVMe Options   Manuals    OS Certification Matrix

Product SKUs
SYS-2029BZ-HNR
  • SuperServer 2029BZ-HNR (Black)

Motherboard

Super X11DPT-BH

Processor/Cache
CPU
  • Dual Socket P (LGA 3647)
  • Intel® Xeon® Scalable Processors,
    3 UPI up to 10.4GT/s
  • Support CPU TDP 70-205W*
Cores
  • Up to 28 Cores with Intel® HT Technology
Note * 200W/205W CPUs are supported under certain configurations. Please contact Supermicro Technical Support for additional information about specialized system optimization

System Memory
Memory Capacity
  • 24 DIMM slots
  • Up to 3TB ECC 3DS LRDIMM, 3TB ECC RDIMM, DDR4 up to 2666MHz
Memory Type
  • 2666/2400/2133MHz ECC DDR4 SDRAM

On-Board Devices
Chipset
  • Intel® C621 chipset
Network
  • Must bundle with at least one SIOM network card
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Video
  • ASPEED AST2500 BMC

Input / Output (per Node)
LAN
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 2 USB 3.0 ports (rear)
Video
  • 1 VGA port
DOM
  • 1 SuperDOM (Disk on Module) port
Others
  • M.2 and SATA DOM for boot drive only

System BIOS
BIOS Type
  • AMI 32Mb SPI Flash ROM

Management
Software
Power Configurations
  • ACPI / APM Power Management

PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 4+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-217BHQ+-R2K60FP

Dimensions and Weight
Width
  • 17.6" (447mm)
Height
  • 3.47" (88mm)
Depth
  • 28.75" (730mm)
Package
  • 24.65" (H) x 9.76" (W) x 45.28" (D)
Weight
  • Gross Weight: 85 lbs (38.6kg)
  • Net Weight: 54.5 lbs (24.7 kg)
Available Colors
  • Black

Front Panel
Buttons
  • Power On/Off button
  • UID button
LEDs
  • Power status LED
  • HDD activity LED
  • Network activity LEDs
  • Universal Information (UID) LED

Expansion Slots (per Node)
PCI-Express
  • 2 PCI-E 3.0 (x16) Low-profile slots
  • 1 SIOM card support
    (must bundle with network card)

Drive Bays / Storage (per Node)
Hot-swap
  • 6 Hot-swap 2.5" NVMe drive bays
M.2
  • 2 M.2 NVMe or SATA (2240/2260/2280) via optional AOC-SMG3-2H8M2-B

System Cooling
Fans
  • 16 Heavy duty 40x56mm PWM fans with air shroud (4 fans per node)

AC/DC240V Input Redundant Power Supply
2600W Redundant Power Supplies with PMBus
Total Output Power
  • 2600W
Dimension
(W x H x L)
  • 45 x 40 x 480 mm
Input
  • 208-240Vac/15-12.5A / 50-60Hz
  • 220-240Vdc/13.5-12.5A (CQC only)
+12V
  • Max: 216.6A / Min: 0A
12Vsb
  • Max: 4.5A / Min: 0A
Output Type
  • Gold Finger (4HP+2LP-20S output connector)
Certification Titanium Level96%  UL/CB/BSMI/CE/CQC
  Titanium Level
  [ Cert. in progress ]

Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
       -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)

See Parts List

Information in this document is subject to change without notice.
Other products and companies referred to herein are trademarks or registered trademarks of their respective companies or mark holders.
