SuperServer 2029U-TN24R4T (Complete System Only)

  Products  Systems  2U   [ 2029U-TN24R4T ]





Integrated Board
Super X11DPU

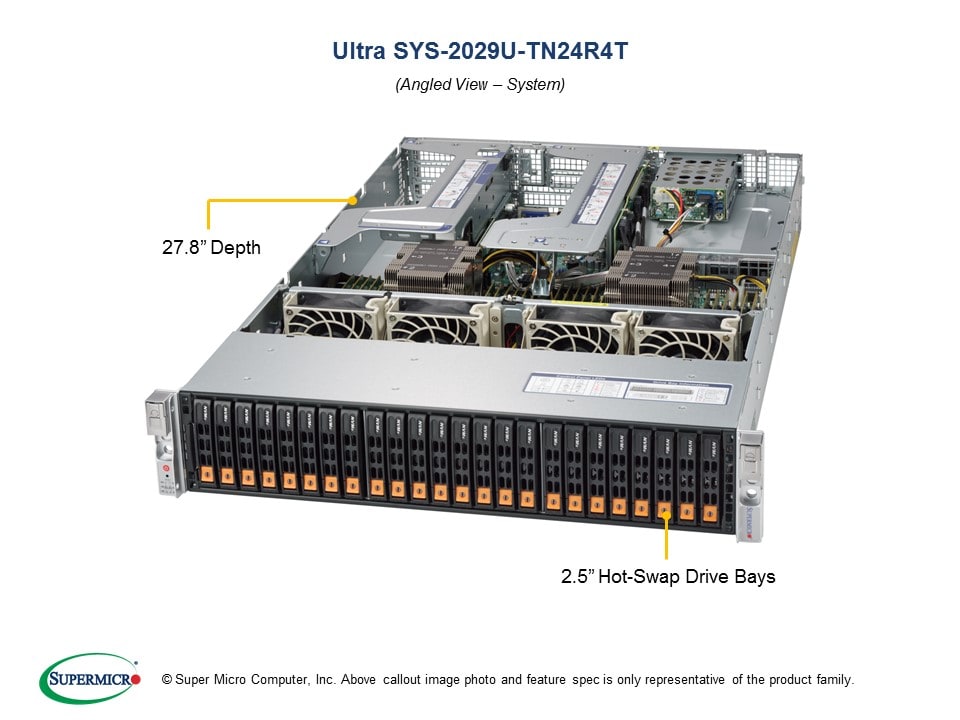

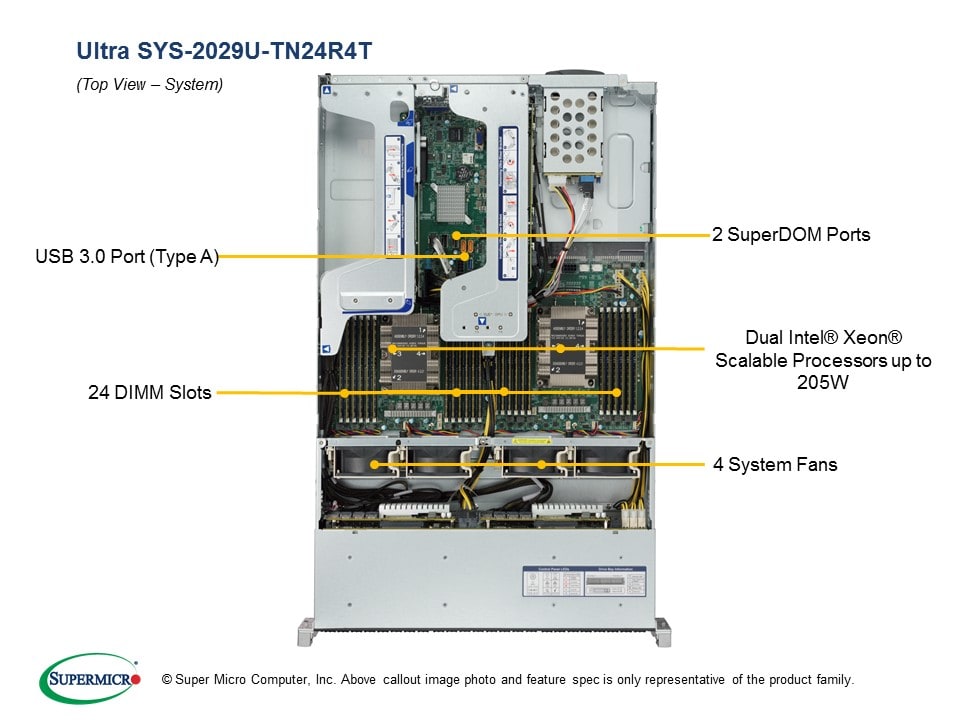

Views: | Angled View | Top View |

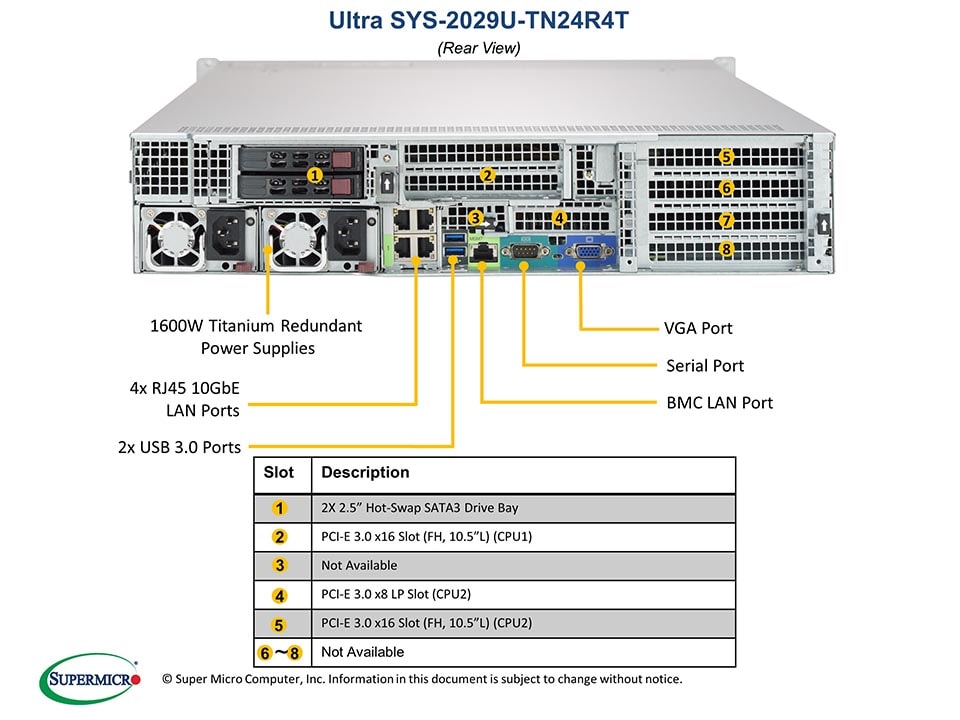

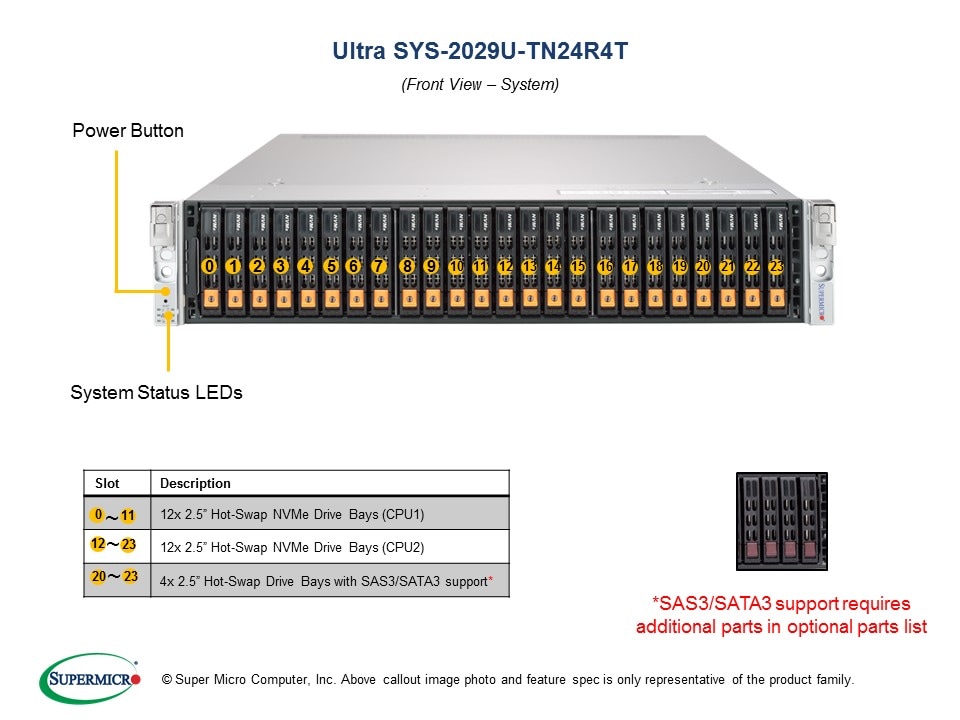

| Front View | Rear View |

Key Applications
• Virtualization
• Hyperconverge Storage
• Cloud Computing
• High End Enterprise Server


Key Features
1. Dual Socket P (LGA 3647) support
    2nd Gen Intel® Xeon® Scalable
    processors (Cascade Lake/Skylake)
2. 24 DIMMs; up to 6TB 3DS ECC
    DDR4-2933MHz RDIMM/LRDIMM,
    Supports Intel® Optane™ DCPMM††
3. 2 PCI-E 3.0 x16 slots (FH, 10.5" L),
    1 PCI-E 3.0 x8 slot (LP)
4. 4 10GBase-T LAN ports with Intel X550
5. 24 Hot-swap 2.5" drive bays;
    24 NVMe (4 hybrid ports - SAS3 via opt.
    AOC), 2 rear Hot-swap 2.5" drive bays;
    2 internal M.2 (1 SATA3, 1 NVMe);
    1 M.2 NVMe port, Optional extra
    M.2 NVMe and SATA3 ports
6. 4 Heavy duty 8cm PWM fans
7. 1600W High efficiency (96%)
    Redundant PSU; Titanium Level

Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (with minimum 2 CPUs, 4 DIMMs and 6 U.2 NVMe).

 Drivers & Utilities   BIOS   IPMI   Tested Memory  Tested M.2 List   NVMe Options   Manuals    OS Certification Matrix    Compatible GPU List  Quick-References Guide  Drive Options   Network Card (AOC) Matrix

Product SKUs - Discontinued SKU (EOL). Please contact sales-rep for alternative options.
SYS-2029U-TN24R4T
  • SuperServer 2029U-TN24R4T (Black)

Motherboard

Super X11DPU

Processor
CPU
  • Dual Socket P (LGA 3647)
  • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors,
    Dual UPI up to 10.4GT/s
  • Support CPU TDP 70-205W
Cores
  • Up to 28 Cores
Note BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)

System Memory
Memory Capacity
  • 24 DIMM slots
  • Up to 6TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM††
Memory Type
  • 2933/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
  • 2666 ECC DDR4 NVDIMM
Note 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
†† Cascade Lake only. Contact your Supermicro sales rep for more info.

On-Board Devices
Chipset
  • Intel® C621 chipset
Storage
  • SATA3 (6Gbps); RAID 0, 1, 5, 10 per node
Network Connectivity
  • 4x 10GBase-T ports via Intel® X550 Ethernet Controller
  • 1x Realtek RTL8211E PHY (dedicated IPMI)
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics
  • ASPEED AST2500 BMC

Input / Output
NVMe
  • 24 NVMe ports
LAN
  • 4 10GBase-T LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 3 USB 3.0 ports (2 rear, 1 Type A)
Video
  • 2 VGA ports (1 rear, 1 onboard)
Serial Port / Header
  • 1 Serial port
DOM
  • 2 SuperDOM (Disk on Module) ports

System BIOS
BIOS Type
  • AMI 32Mb SPI Flash ROM

Management
Software
Power Configurations
  • ACPI Power Management

PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 4+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-219UBTS-R1K62P-TN24

Dimensions and Weight
Width
  • 17.2" (437mm)
Height
  • 3.5" (89mm)
Depth
  • 27.76" (705.3mm)
Weight
  • Net Weight: 39 lbs (17.7 kg)
  • Gross Weight: 63 lbs (28.6 kg)
Available Colors
  • Black

Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power status LED
  • HDD activity LED
  • Network activity LEDs
  • System information (overheat/UID) LED

Expansion Slots
PCI-Express
  • 2 PCI-E 3.0 x16 (FH, 10.5" L)
  • 1 PCI-E 3.0 x8 (LP)


  • (Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram and AOC Support for details.)

Drive Bays / Storage
Hot-swap
  • 24 Hot-swap 2.5" drive bays: 24 NVMe (4 hybrid ports - SAS3 via opt. AOC)
  • 2 rear Hot-swap 2.5" SATA drive bays
M.2
  • 1 M.2 PCI-E 3.0 x4 M-Key NVMe (2240/2260/2280/22110) or 1 M.2 M-Key SATA3 (2240/2260/2280/22110) via optional parts
  • 2 M.2 PCI-E 3.0 x4 M-Key NVMe (2260/2280/22110) via optional add-on card AOC-SLG3-2M2

System Cooling
Fans
  • 4 Heavy duty 8cm PWM fans

Power Supply
1600W Redundant Power Supplies with PMBus
Total Output Power
  • 1600W/1000W
Dimension
(W x H x L)
  • 73.5 x 40 x 203 mm
Input
  • 100-127Vac / 13 - 9A / 50-60Hz
  • 200-240Vac / 10 - 8A / 50-60Hz
+12V
  • Max: 83.3A / Min: 0A (100-127Vac)
  • Max: 133A / Min: 0A (200-240Vac)
12Vsb
  • Max: 2.1A / Min: 0A
Output Type
  • 25 Pairs Gold Finger Connector
Certification Titanium Level96%  Titanium Level
  [ Test Report ]

Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)

See Parts List

Parts List - (Items Included)

Part Number
Qty
Description
Motherboard / Chassis MBD-X11DPU
CSE-219UBTS-R1K62P-TN24
1
1
Super X11DPU Motherboard
2U Chassis
Add-on Card / Module AOC-2UR6N4-i4XT-P 1 2U Ultra Riser with 4-port 10GbE RJ45 (10GBase-T)
Backplane BPN-NVME3-216EB 1 BPN-NVMe3-216A-S4 Backplane Base Board
Backplane BPN-NVME3-216EL 2 PCIe Gen3x16 input to PLX9765 to support 12x NVMe port
Backplane BPN-SAS3-826TQ-B2B 1 2-port 2U SAS3 12Gbps backplane, support up to 2x 2.5-inch SAS3/SATA3 HDD/SSD
Cable 1 CBL-0097L-03 1 MINI SAS-4 SATA,INT,51CM,51CM SB,30AWG
Cable 2 CBL-PWEX-0653 3 8 pin female to 4 pin female power, 37cm, 18AWG,RoHS/REACH
Cable 3 CBL-PWEX-0702 1 PWEX,2X4F/P4.2 TO 1X4F/P5.08/RA,32CM,18AWG,YEL,BLK*2,RED
Cable 4 CBL-PWEX-1008 2 BPN PWR,2x4F/CPU to 2x4F/PCIe,P4.2, 12V,40CM,16AWG, 10A/pin, 0~80C
Cable 5 CBL-SAST-0819 4 OCuLink v 1.0,INT,PCIe NVMe SSD, 65CM,34AWG,RoHS/REACH
Cable 6 CBL-SAST-0820 4 OCuLink v. 1.0,INT,PCIe NVMe SSD, 85CM,34AWG,RoHS/REACH
Parts MCP-110-00015-0N 8 Pan head screw, #6-32 x 6L
Air Shroud MCP-310-82921-0N 1 Plastic air shroud for SC829U, 219U (X11 24DIMM, left side)
Air Shroud MCP-310-82922-0N 1 Plastic air shroud for SC829U, 219U (X11 24DIMM, right side)
Riser Card RSC-U2N4-6 1 2U Ultra Riser Card with 4 NVME and PCI-Ex16,RoHS/REACH
Riser Card RSC-UMR-8 1 1U Ultra RHS Riser Card with 1 PCIE/SATA Hybrid M.2 &1 PCIE
Heatsink / Retention SNK-P0068PS 2 2U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism
* Power Supply PWS-1K62A-1R 2 AC-DC 1600W, Titanium Level, Redundancy, 1U, DC Output: +12V and +12Vs, 203 x 73.5 x 40 mm, AC Input: 90 - 264 VAC/47-63Hz, PMBus 1.2 with DSP controller,HF,RoHS/REACH
* Cable 7 CBL-0088L 4 4 PIN MIDDLE FAN POWER CABLE (PWM). 27cm, 24AWG
* Cable 8 CBL-0174L 2 PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,14AWG,15A,125V,RoHS/REACH
* Cable 9 CBL-0318L 1 CBL,FRONT CNTL,16 TO 16 PIN,RA,RND TUBE,24CM,28AWG
* FAN 1 FAN-0158L4 4 80x80x38 mm, 10.5K RPM, Optional Middle Cooling Fan for X10 2U Ultra and HFT Series Servers,RoHS/REACH
* Drive Tray(s) MCP-220-00117-0B 2 Black gen-3 hot-swap tool-less 2.5- inch HDD tray
* Drive Tray(s) MCP-220-00121-0B 24 Black gen-3 2.5 NVMe drive tray, Orange tab with lock (improved EMI for hotswap NVMe drive)
* Rail Set MCP-290-00053-0N-01 1 36"; Rail set for Auto-latch, quick/quick, 2, 3U 17.2";W
* Air Shroud MCP-310-81905-0B 1 Plastic air shroud for SC819U, 119U, 829U, 219U (PWS),RoHS/REACH
* Front Panel TB826 1 Front panel adaptor board (TB826) forSC826,213,216,219
* Rail Set MCP-290-00115-0N 1 Inner rail, quick-release type
Mounting Rails MCP-290-00053-0N-01
MCP-290-00060-0N
1
1
Auto-latch, inner/outer rail set, quick-release type, 26.9" to 36.4"
Threaded rail adapter default for round hole rack
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.

Optional Parts List
  Part Number Qty Description
Add-on card for internal M.2 NVMe AOC-SLG3-2M2 1 Low Profile PCIe x8 add-on card supports 2 PCI-E 3.0 x4 M-Key M.2 NVMe Modules
Cable for internal M.2 SATA CBL-SAST-0538 1 29cm 30AWG SATA S-RA cable
Cable for front bay SATA CBL-SAST-0657 1 55CM HD Mini SAS (S) to Mini SAS (RA) w/ SB 30AWG
2.5" SATA/SAS Drive Trays MCP-220-00147-0B
MCP-220-00117-0B
MCP-220-00047-0B
1~4 Tool-less black hot-swap 2.5" drive tray (Red tab, clip design)
Tool-less black hot-swap 2.5" drive tray (Red tab, button design)
Black hot-swap 2.5" drive tray (Red tab)
2U Cable Management Arm MCP-290-00128-0N &
MCP-290-00127-0N-01
1 2U Supermicro Cable Management Arm 2nd Gen (Compatible for racks that are 42" in depth)
Internal Drive Tray for Two 2.5" Drives MCP-120-82916-0N
CBL-PWEX-0650
CBL-0080L
CBL-0484L Or
CBL-SAST-0654 Or
CBL-SAST-0948
1
1
2
2
1
1
Internal drive plate Supports Two 2.5" Drive, PCI slots
Power cable for Two internal 2.5" drives

SATA3 S-S Cable
miniSAS(iPass) to 4 SATA Cable
miniSAS HD to 4 SATA Cable
Storage Control Card and Cable(s) AOC-S3008L-L8e &
1x CBL-SAST-0531
AOC-S3008L-L8i &
1x CBL-SAST-0531
AOC-S3108L-H8iR &
1x CBL-SAST-0531
AOC-S3108L-H8iR-16DD & 1x CBL-SAST-0531
1 Std LP, 8 internal ports, 12Gb/s per port- Gen3, 122HDD, HBA; MINI SAS HD,12G,INT,60CM,30AWG
Std LP, 8 internal ports, 12Gb/s per port- Gen3, 63HDD, RAID 0,1,1E; MINI SAS HD,12G,INT,60CM,30AWG
Std LP, 8 internal ports, 12Gb/s per port- Gen3, 240HDD, RAID 0, 1, 5, 6, 10, 50, 60; MINI SAS HD,12G,INT,60CM,30AWG
Std LP, 8 internal ports, 12Gb/s per port- Gen3, 16HDD, RAID 0, 1, 5, 6, 10, 50, 60; MINI SAS HD,12G,INT,60CM,30AWG
Network Card(s) AOC-SGP-i2/4
AOC-STGN-i1S/i2S
AOC-STGF-i2S
AOC-STG-i4S
AOC-STG-b4S
AOC-STG-i2T
AOC-STGS-i1/2T
AOC-STG-i4T
AOC-STG-i2
AOC-S25G-m2S
AOC-S40G-i2Q
More
-
-
-
-
-
-
-
-
-
-
-
-
Standard LP, 2/4x GbE RJ45, PCI-E x4, Intel i350
Standard LP, 1/2x 10GbE SFP+, PCI-E x8, Intel 82599EN
Standard LP, 2x 10GbE SFP+, PCI-E x8, Intel XL710-BM2
Standard LP, 4x 10GbE SFP+, PCI-E x8, Intel XL710
Standard LP, 4x 10GbE SFP+, PCI-E x8, Broadcom BCM57840S
Standard LP, 2x 10GbE RJ45, PCI-E x8, Intel X540
Standard LP, 1/2x 10GbE RJ45, PCI-E x8, Intel X550
Standard LP, 4x 10GbE RJ45, PCI-E x8, Intel XL710
Standard LP, 2x 10GbE CX4, PCI-E x8, Intel 82598EB
Standard LP, 2x 25GbE SFP28, Mellanox ConnectX-4 LX EN
Standard LP 2-port 40GbE controller, Intel Fortville XL710
AOC Compatibility Matrix
CacheVault(s) BTR-CV3108-U1 - CacheVault for Broadcom 3108 with Supercap mounting for 2U Ultra
TPM security module AOM-TPM-9670H-S
AOM-TPM-9671H-S
1
1
TCG 2.0 compliant trusted platform module (TPM), Horizontal FF
TCG 1.2 compliant trusted platform module (TPM), Horizontal FF
Intel VROC RAID Key AOC-VROCINTMOD
AOC-VROCSTNMOD
AOC-VROCPREMOD
1
1
1
Intel VROC, RAID 0, 1, 5, 10 (Intel SSD Only)
Intel VROC Standard, RAID 0, 1, 10
Intel VROC Premium, RAID 0, 1, 5, 10
Global Services & Support OS4HR3/2/1
OSNBD3/2/1
-
-
3/2/1-year onsite 24x7x4 service
3/2/1-year onsite NBD service
Software SFT-OOB-LIC 1 OOB Management Package (per node license)
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
Hide Parts List
