SuperServer 2029U-TRTP (Complete System Only)

Super Micro Computer, Inc.
Contact Us

Search

MySupermicro

  Products   Systems   Ultra   [ 2029U-TRTP ]





Integrated Board
Super X11DPU

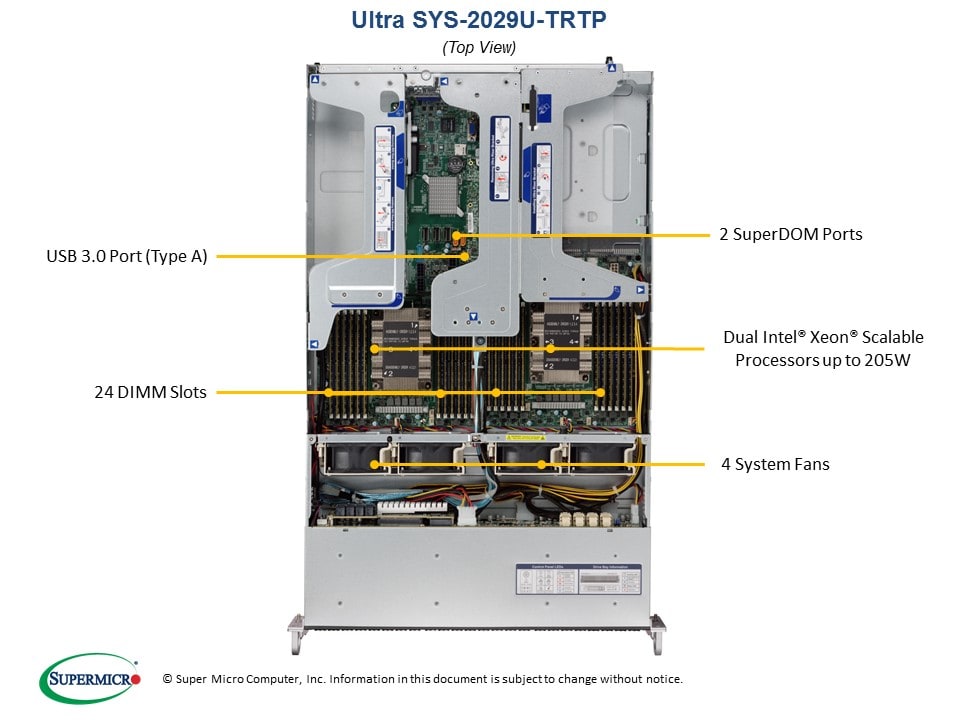

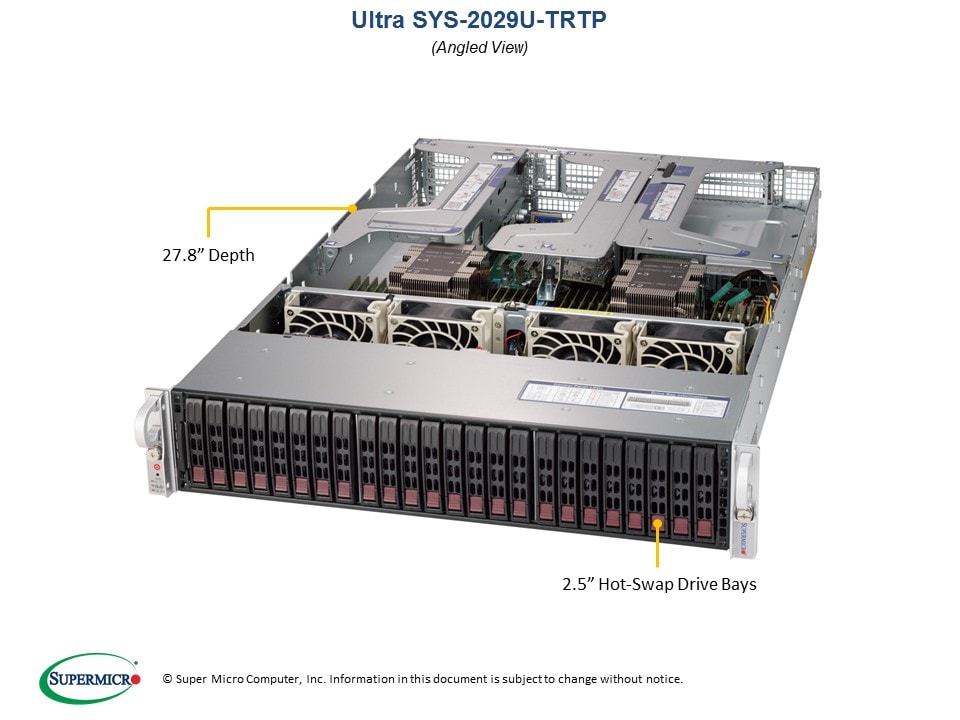

Views: | Angled View | Top View |

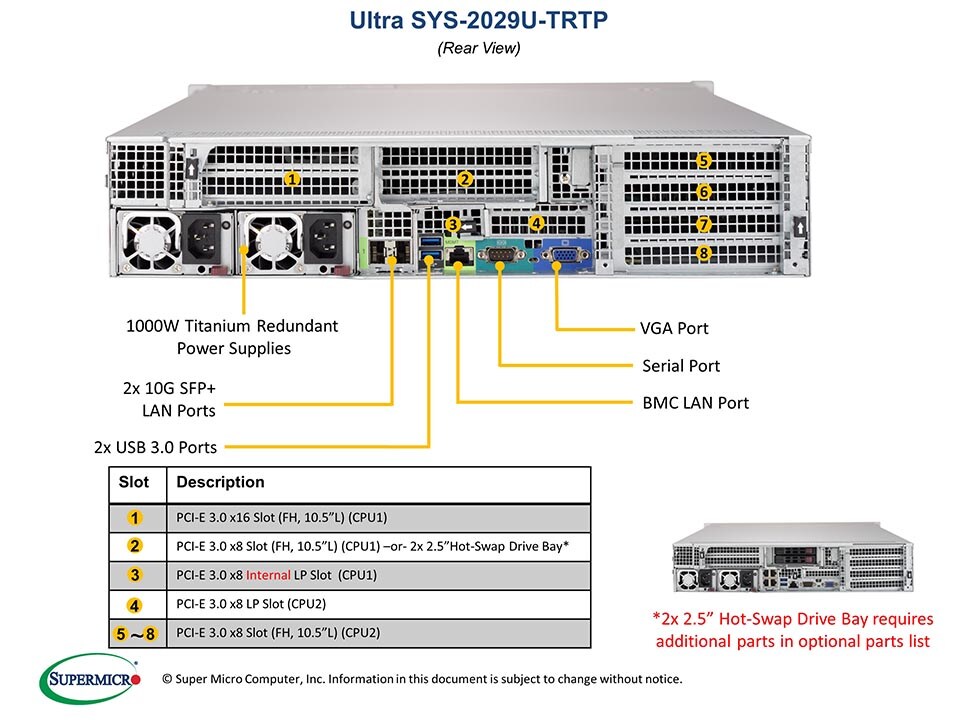

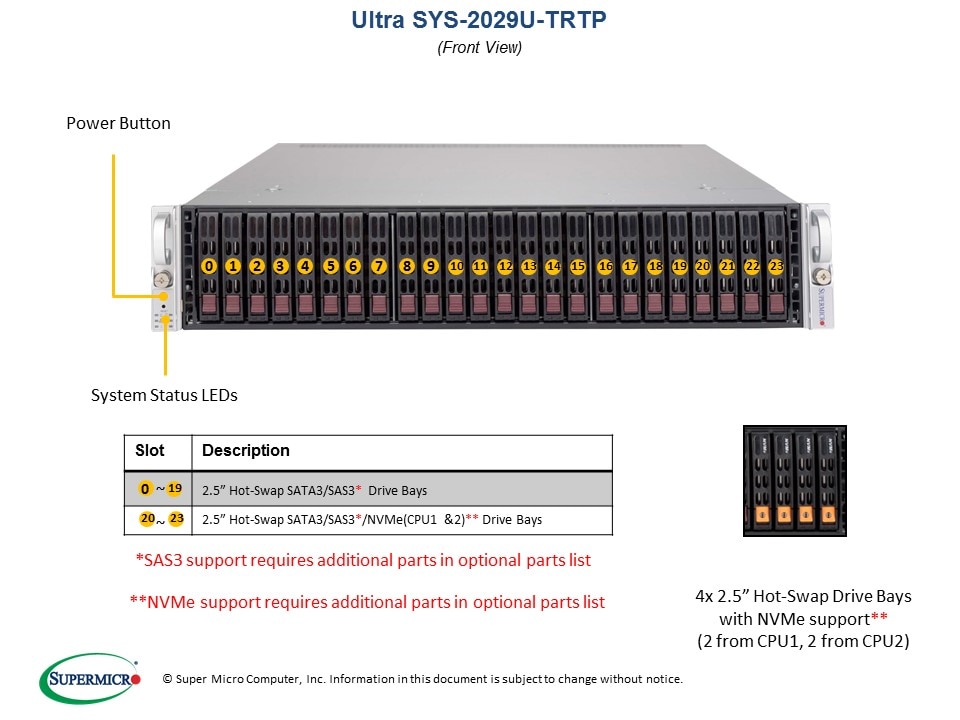

| Front View | Rear View |

Key Features
• Flexible Networking Options
1. Dual socket P (LGA 3647) supports
    Intel® Xeon® Scalable Processors,
    Dual UPI up to 10.4GT/s
2. Up to 3TB ECC 3DS LRDIMM or RDIMM,
    up to DDR4-2666MHz; 24 DIMM slots
3. 1 PCI-E 3.0 x16 slot (FH, 10.5" L),
    5 PCI-E 3.0 x8 slots (FH, 10.5" L),
    1 PCI-E 3.0 x8 slot (LP),
    1 PCI-E 3.0 x8 slot (internal LP)
4. 2 10G SFP+ Ethernet ports
5. 24 Hot-swap 2.5" drive bays; 14 SATA3
    (optional 20 SAS3 + 4 NVMe/SAS3)
6. 4 Heavy duty 8cm PWM fans
7. 1000W Redundant Power Supplies
    Titanium Level (96%)

Due to the complexity of integration, this product is sold as a completely assembled system only (with minimum 2 CPU and 4 DIMMs). Please contact your Supermicro sales rep for special requirements.

 Drivers & Utilities   BIOS   IPMI   Tested Memory  NVMe Options    OS Certification Matrix    Quick-References Guide  Drive Options

Product SKUs
SYS-2029U-TRTP
  • SuperServer 2029U-TRTP (Black)

Motherboard

Super X11DPU

Processor/Cache
CPU
  • Dual Socket P (LGA 3647)
  • Intel® Xeon® Scalable Processors,
    Dual UPI up to 10.4GT/s
  • Support CPU TDP 70-205W
Cores
  • Up to 28 Cores with Intel® HT Technology

System Memory
Memory Capacity
  • 24 DIMM slots
  • Up to 3TB ECC 3DS LRDIMM, 3TB ECC RDIMM, DDR4 up to 2666MHz
Memory Type
  • 2666/2400/2133MHz ECC DDR4 SDRAM

On-Board Devices
Chipset
  • Intel® C621 chipset
SATA
  • SATA3 (6Gbps); RAID 0, 1, 5, 10
Network Connectivity
  • 2 10G SFP+ ports via AOC-2UR68-i2XS (Intel® 82599ES)
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics
  • ASPEED AST2500 BMC

Input / Output
SATA
  • 14 SATA3 (6Gbps) ports
LAN
  • 2 10G SFP+ ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 5 USB 3.0 ports
    (2 rear, 2 onboard header, 1 Type A)
Video
  • 1 VGA Connector
Serial Header
  • 1 Serial header
DOM
  • 2 SuperDOM (Disk on Module) ports

System BIOS
BIOS Type
  • AMI 32Mb SPI Flash ROM

Management
Software
Power Configurations
  • ACPI Power Management

PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 4+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-219U2AC4-R1K02-T

Dimensions and Weight
Width
  • 17.2" (437mm)
Height
  • 3.5" (89mm)
Depth
  • 27.76" (705.3mm)
Weight
  • Net Weight: 36 lbs (16.4 kg)
  • Gross Weight: 72 lbs (32.7 kg)
Available Colors
  • Black

Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power status LED
  • HDD activity LED
  • Network activity LEDs
  • System information (overheat/UID) LED

Expansion Slots
PCI-Express
  • 1 PCI-E 3.0 x16 (FH, 10.5" L)
  • 5 PCI-E 3.0 x8 (FH, 10.5" L)
  • 1 PCI-E 3.0 x8 (LP)
  • 1 PCI-E 3.0 x8 (internal LP)


  • (Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram and AOC Support for details.)

Drive Bays
Hot-swap
  • 24 Hot-swap 2.5" drive bays;
    14 SATA3 (optional 20 SAS3 + 4 NVMe/SAS3)

Backplane
2U SAS/SATA backplane

System Cooling
Fans
  • 4 Heavy duty 8cm PWM fans

Power Supply
1000W Redundant Power Supplies with PMBus
Total Output Power
  • 800W/1000W
Dimension
(W x H x L)
  • 73.5 x 40 x 203 mm
Input
  • 100-127Vac / 9.8 - 7A / 50-60Hz
  • 200-240Vac / 7 - 5A / 50-60Hz
+12V
  • Max: 66.7A / Min: 0A (100-127Vac)
  • Max: 83A / Min: 0A (200-240Vac)
12Vsb
  • Max: 2.1A / Min: 0A
Output Type
  • 25 Pairs Gold Finger Connector
Certification Titanium Level96%  UL/cUL/CB/BSMI/CE/CCC
  Titanium Level
  [ Test Report ]

Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
       -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)

See Parts List
