SuperServer 5038ML-H12TRF

Super Micro Computer, Inc.
Contact Us

Search

Reseller Resource Center

  Products   Systems   MicroCloud   [ 5038ML-H12TRF ]





Integrated Board
Super X10SLE-F

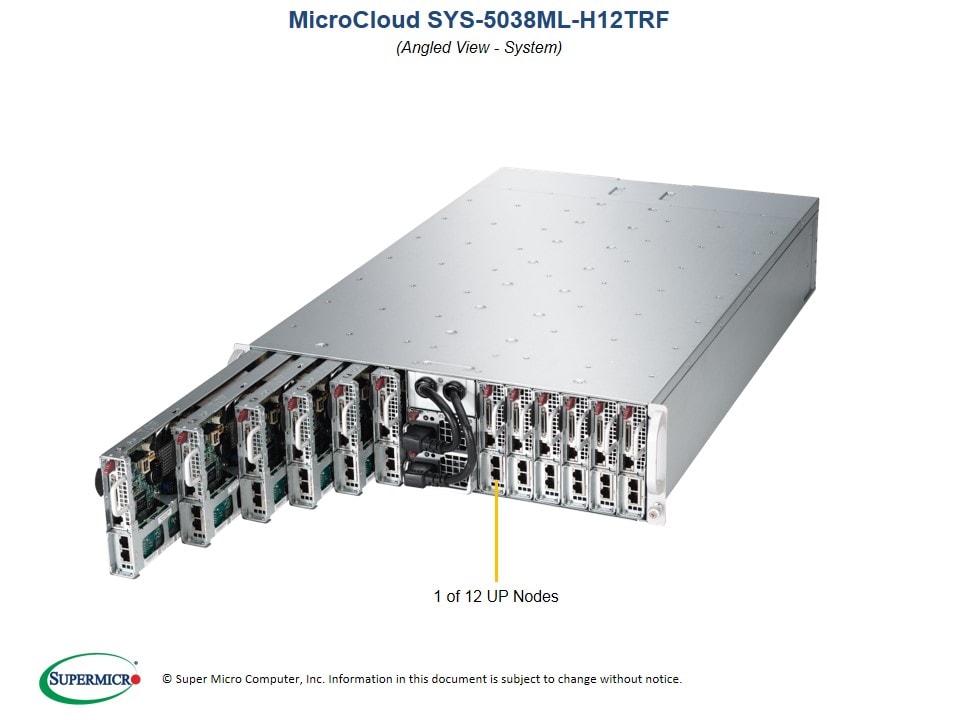

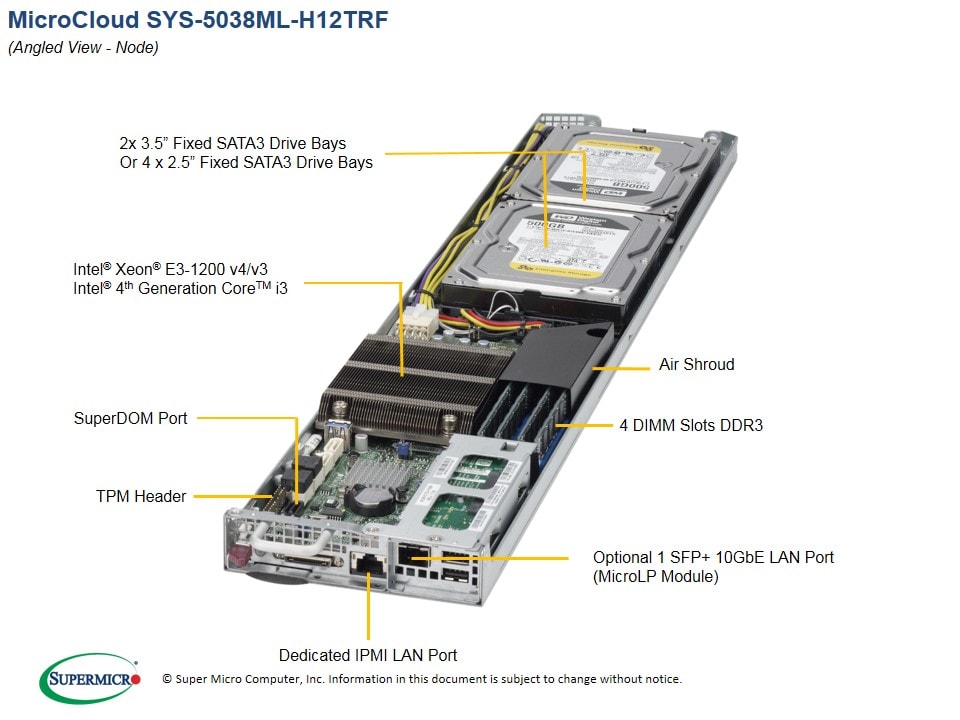

Views: | Angled View | Node View |

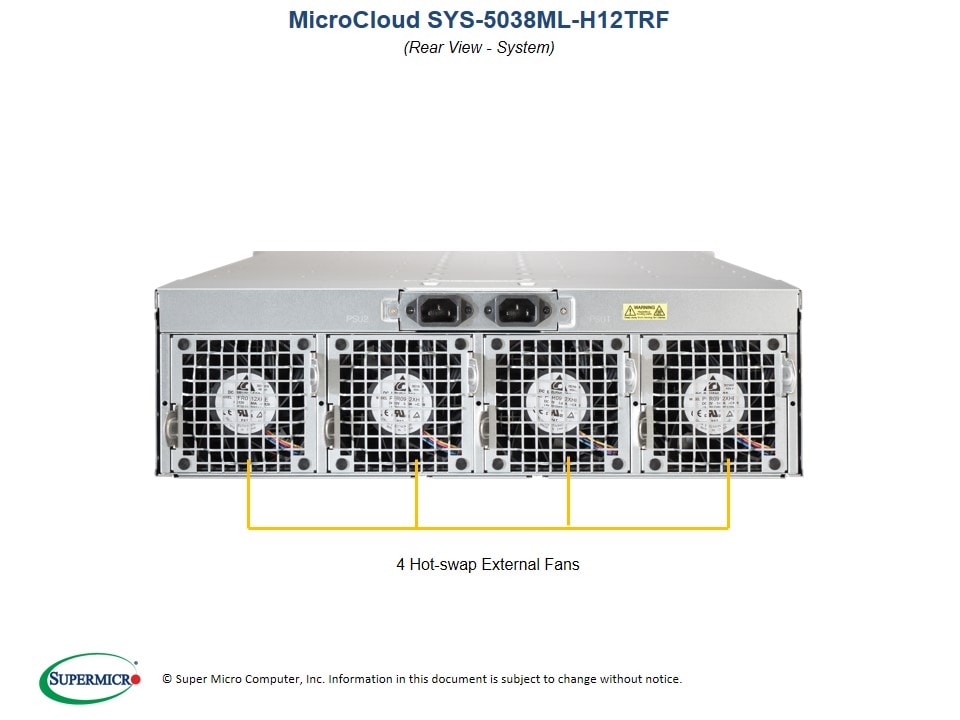

| Front View | Rear View |

Key Features (per node)
1. Single socket H3 (LGA 1150) supports
    Intel® Xeon® E3-1200 v3/v4, 4th/5th
    gen. Core™ i3, Pentium, Celeron
    processors; Socket H3 (LGA 1150)
2. 2x 3.5 or 4x 2.5" SATA3 HDDs
    with Optional kit
3. Up to 32GB DDR3 VLP ECC UDIMM
    1600/1333MHz support in 4 sockets
4. 2x GbE LAN (Intel i350), 1x Dedicated
    LAN for IPMI Remote Management
5. 1x VGA, 1x COM ports, 2x USB 2.0
    (with KVM dongle)
6. 4x 9cm heavy duty hot-swap fans with
    optimal cooling zone (per system)
7. 1620W Redundant power supplies
    Platinum Level Certified
    (per system)


 Drivers & Utilities   BIOS   IPMI   Tested Memory  Tested HDD   Manuals   OS Certification Matrix   Quick-References Guide

Product SKUs
SuperServer
  • SYS-5038ML-H12TRF (Black)

Motherboard
Motherboard

Alternative SKU
SuperServer
  • SYS-5038ML-H12TRFG (Black)
MB + Chassis
  • MBD-X10SLE-HF + CSE-939H-R1K63B
Features
  • Support Intel VHD Feature (With C226 PCH chipset)

Processor/Cache
CPU
  • Intel® Xeon® processor E3-1200 v3/v4 family, Intel® 4th/5th Gen Core™ i3, Pentium, Celeron processors
  • Up to 80W
  • Socket H3 (LGA 1150)

System Memory (per node)
Memory Capacity
  • 4x 240-pin DDR3 DIMM slots
  • Supports up to 32 GB DDR3 VLP ECC Un-Buffered memory (UDIMM)
Memory Type
  • 1333/1600MHz*** ECC DDR3 (VLP) SDRAM 72-bit, 240-pin gold-plated UDIMMs
DIMM Sizes
  • 8GB, 4GB, 2GB, 1GB
Memory Voltage
  • 1.5 V, 1.35 V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)

On-Board Devices (per node)
Chipset
  • Intel® C224 PCH chipset
SATA
  • 1x SATA DOM
  • 4x SATA3 (6Gbps) w/ RAID 0, 1, 10
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM over LAN support
  • ASPEED AST2400 BMC
Graphics
  • ASPEED AST2400 Graphics (BMC with Graphic controller)

Network Devices (per node)
Micro-LP NIC
  • Intel® i350 GbE controller
  • Dual RJ-45 connectors
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
  • Intel® I/O Acceleration Technology (I/O AT)
  • MicroLP Adapter Matrix (Networking options)

Input / Output (per node)
SATA
  • 4x SATA3 (6Gbps) ports
LAN
  • 2x RJ45 Gigabit Ethernet LAN ports
  • 1x RJ45 Dedicated IPMI LAN port
DOM
  • SATA DOM (Disk on Module) power connector support
KVM
  • 1x VGA, 1x COM and 2x USB 2.0 (with KVM dongle)

System BIOS
BIOS Type
  • 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
  • DMI 2.3
  • ACPI 1.0 / 2.0
  • USB Keyboard support
  • SMBIOS 2.3

Front Window (each node)
Switch
  • Power / UID
Chassis
Form Factor
  • 3U
Model
  • CSE-939H-R1K63B

Dimensions and Weight
Height
  • 5.21" (132.5 mm)
Width
  • 17.5" (444.5 mm)
Depth
  • 29.5" (749.3 mm)
Package
  • 16.1" (H) x 28.35" (W) x 42.36" (D)
Weight
  • Net Weight: 95.0 lbs (43.09 kg)
  • Net Weight w/ 2.5" HDDs: 115 lbs (52.16 kg)
  • Net Weight w/ 3.5" HDDs: 132 lbs (59.87 kg)
  • Gross Weight: 125 lbs (56.70 kg)
Color
  • Black

Drive Bays (per node)
Internal
  • 2x 3.5" SATA3 HDDs per node; up to 24x 3.5" HDDs total OR 4x 2.5" SATA3 HDDs per node; up to 48x 2.5" HDDs total
  • Enterprise SATA HDD only recommended

System Cooling
Fans
  • 4x 9cm Heavy duty fans with optimal cooling zone

Power Supply
1620W high-efficiency redundant power supply w/ PMBus
AC Input
  • 1000W Output @ 100-120V, 12-10A, 50-60Hz
  • 1200W Output @ 120-140V, 12-10A, 50-60Hz
  • 1620W Output @ 180-240V, 10.5-8A, 50-60Hz
DC Output
  • 1000W: +12V/84A; +5Vsb/4A
  • 1200W: +12V/100A; +5Vsb/4A
  • 1620W: +12V/135A; +5Vsb/4A
Certification Platinum Level94%+  Platinum Level
  [ Test Report ]

PC Health Monitoring
CPU
  • Monitors for CPU Cores, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages.
  • 3-Phase-switching voltage regulator with auto-sense from 0.5V-2.3V
FAN
  • Cooling zone
Temperature
  • Monitoring for CPU and chassis environment

Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)
See Parts List
