SuperServer F628R3-FT

Super Micro Computer, Inc.
Contact Us

Search

Reseller Resource Center

  Products   Systems   FatTwin   [ F628R3-FT ]





Integrated Board
Super X10DRFF

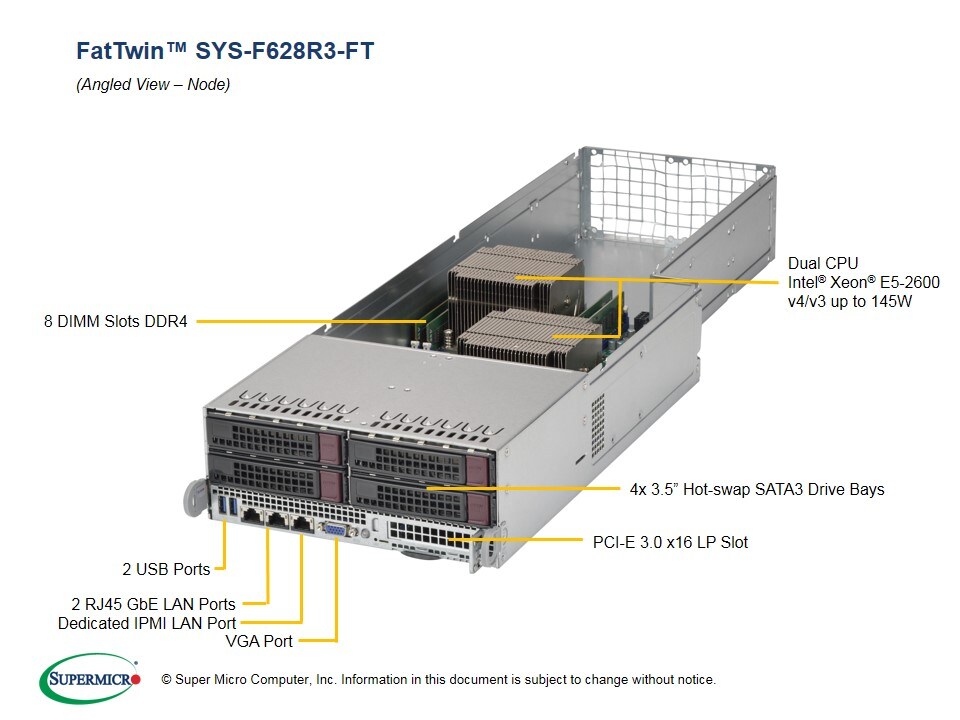

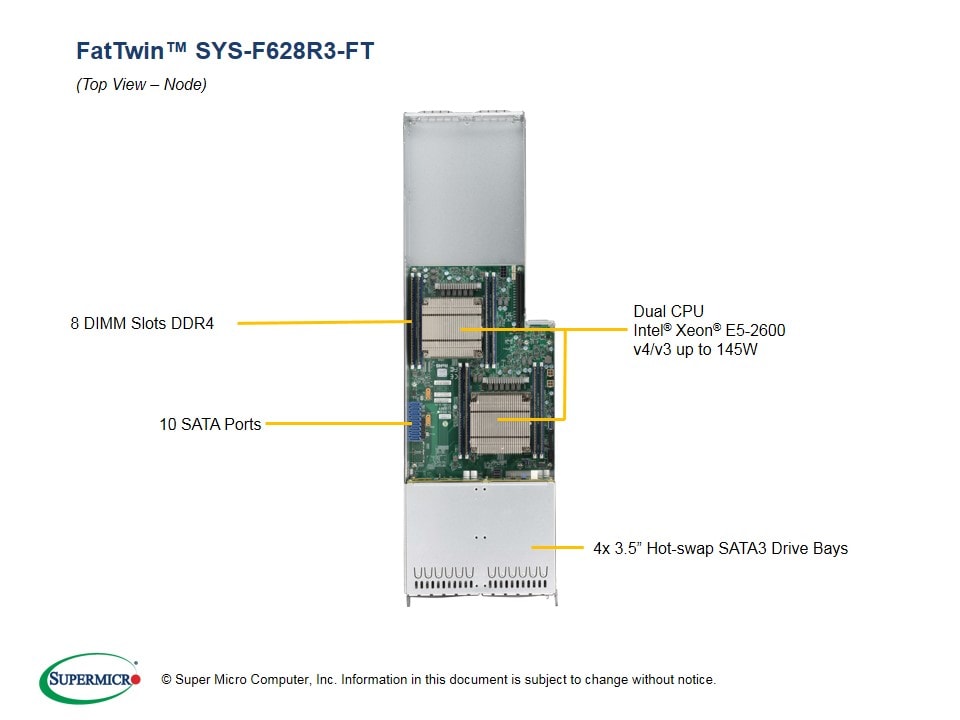

Views: | Angled (node) | Top (node) |

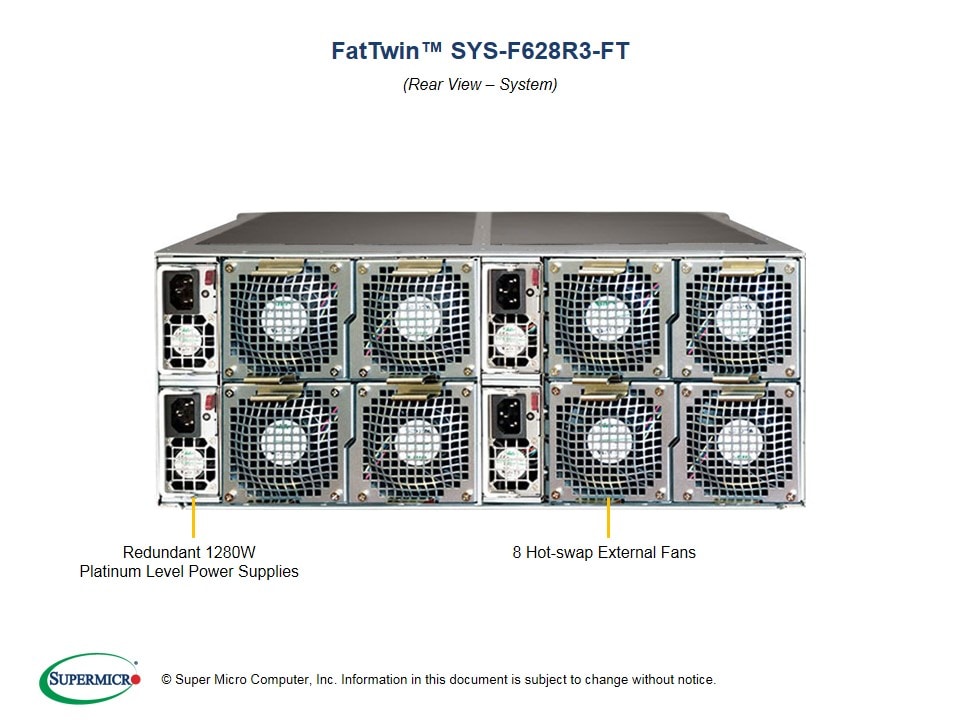

| Angled Front (system) | Rear (system) |

Key Features
4 Hot-plug System Nodes in 4U
Front I/O. Each node supports:


1. Dual socket R3 (LGA 2011) supports
    Intel® Xeon® processor E5-2600
    v4/ v3 family; QPI up to 9.6GT/s
2. Up to 1TB ECC 3DS LRDIMM , up to
    DDR4- 2400MHz ; 8x DIMM slots
3. 1x PCI-E 3.0 x16 (LP) slot
4. Front I/O ports: 2 GbE LAN, 2 USB 3.0,
    and 1 VGA connector
5. Built-in Server management tool
    (IPMI 2.0, KVM/media over LAN) with
    dedicated LAN port
6. 4x 3.5" Hot-swap SATA HDDs
7. 1280W Redundant Power Supplies
    Platinum Level (95%)


 Drivers & Utilities   BIOS   IPMI   Tested Memory  Manuals   OS Certification Matrix   Quick-References Guide  Drive Options

Product SKUs
SYS-F628R3-FT
  • SuperServer F628R3-FT (Black)

Motherboard

Super X10DRFF

Processor/Cache
CPU
  • Intel® Xeon® processor E5-2600 v4/ v3 family (up to 145W TDP) *
  • Dual Socket R3 (LGA 2011)
Cores / Cache
  • Up to 22 Cores / Up to 55MB Cache
System Bus
  • QPI up to 9.6 GT/s
Note BIOS version 2.0 or above is required
Note * Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization.

System Memory
Memory Capacity
  • 8x 288-pin DDR4 DIMM slots
  • Up to 1TB ECC 3DS LRDIMM, 512GB ECC RDIMM
Memory Type
  • 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes
  • RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB
  • LRDIMM: 64GB, 32GB
  • 3DS LRDIMM: 128GB
Memory Voltage
  • 1.2 V
Error Detection
  • Corrects single-bit errors

On-Board Devices
Chipset
  • Intel® C612 chipset
SATA
  • SATA3 (6Gbps) with RAID 0, 1
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2400 BMC
Network Controllers
  • Intel® i210 Single Port Gigabit Ethernet
  • Virtual Machine Device Queues reduce I/O overhead
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
  • 1x Realtek RTL8211E PHY (dedicated IPMI)
Graphics
  • ASPEED AST2400 BMC

Input / Output (per node)
SATA
  • 4x SATA3 (6Gbps) ports
LAN
  • 2x RJ45 Gigabit Ethernet LAN ports
  • 1x RJ45 Dedicated IPMI LAN port
USB
  • 2x USB 3.0 ports
VGA
  • 1x VGA port
Chassis
Form Factor
  • 4U Rackmount
Model
  • CSE-F424AF-R1K28BP

Dimensions and Weight
Width
  • 17.63" (448mm)
Height
  • 6.96" (177mm)
Depth
  • 29" (737mm)
Package
  • 28.3" (W) x 15.0" (H) x 42.4" (D)
Weight
  • Net Weight: 105 lbs (47.63 kg)
  • Gross Weight: 150 lbs (68.04 kg)
Available Colors
  • Black

Front Panel
Buttons
  • Power On/Off button
  • UID button
LEDs
  • Power status LED
  • Hard drive activity LED
  • 2x Network activity LEDs

Expansion Slots (per node)
PCI-Express
  • 1 PCI-E 3.0 x16 (LP) via riser card

Drive Bays (per node)
Hot-swap
  • 4x 3.5" Hot-swap SATA HDD trays

System Cooling
Fans
  • 8x 8cm 9.5K RPM Rear Fans and PWM fan speed control

Power Supply
1280W Redundant High-efficiency Digital Power Supplies w/ PMBus 1.2
AC Input
  • 1000W Output @ 100-140V, 8-12A, 50-60Hz
  • 1280W Output @ 180-240V, 6-8A, 50-60Hz
DC Output
  • 1000W: +12V/83A; +5Vsb/4A
  • 1280W: +12V/106.7A, +5Vsb/4A
Certification Platinum Level Certified95%+
  Platinum Certified
  [ Test Report ]

System BIOS
BIOS Type
  • 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
  • Plug and Play (PnP)
  • APM 1.2
  • PCI 2.2
  • ACPI 1.0 / 2.0
  • USB Keyboard support
  • SMBIOS 2.3
  • UEFI

Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       5°C to 40°C (41°F to 104°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)
See Parts List

Information in this document is subject to change without notice.
Other products and companies referred to herein are trademarks or registered trademarks of their respective companies or mark holders.
