SuperWorkstation 7038A-I

Super Micro Computer, Inc.
Contact Us

Search

MySupermicro

  Products   Systems   Mid-Tower   [ 7038A-I ]





Integrated Board
Super X10DAi

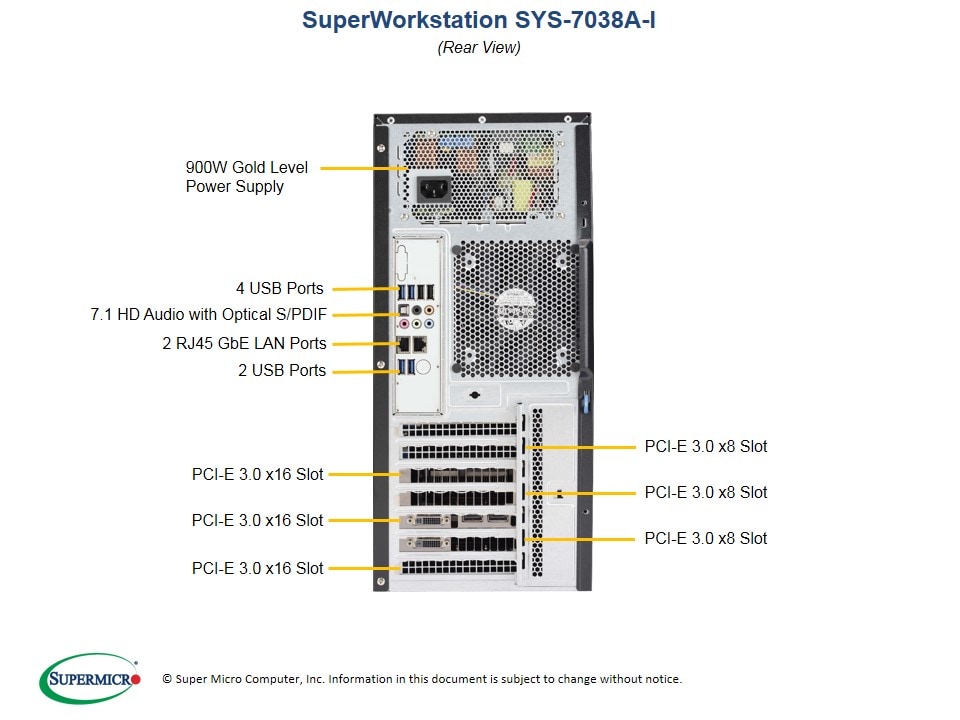

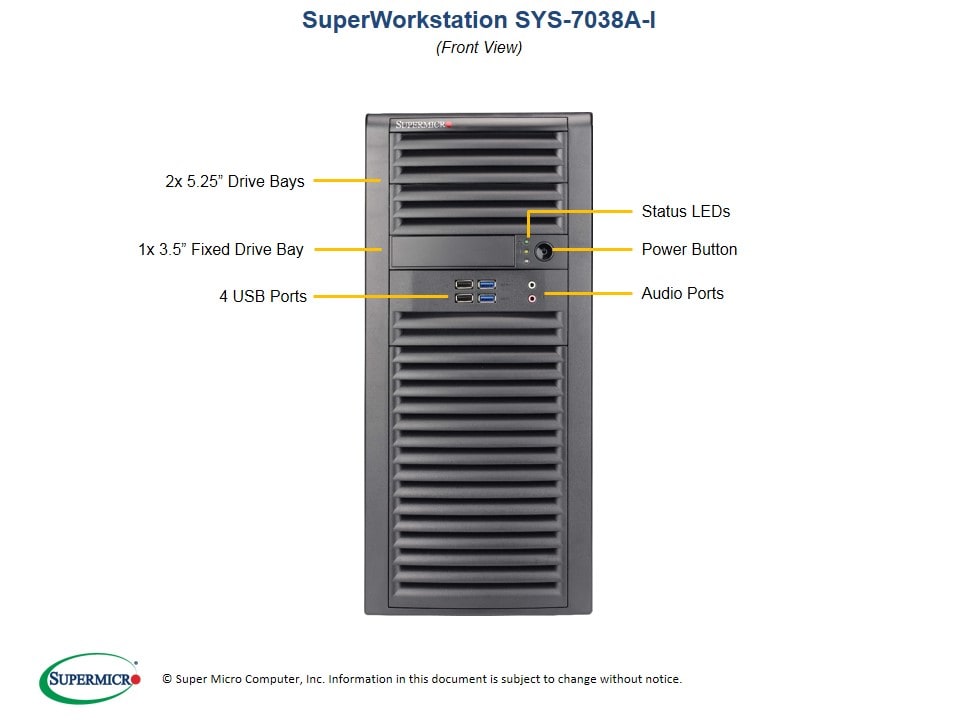

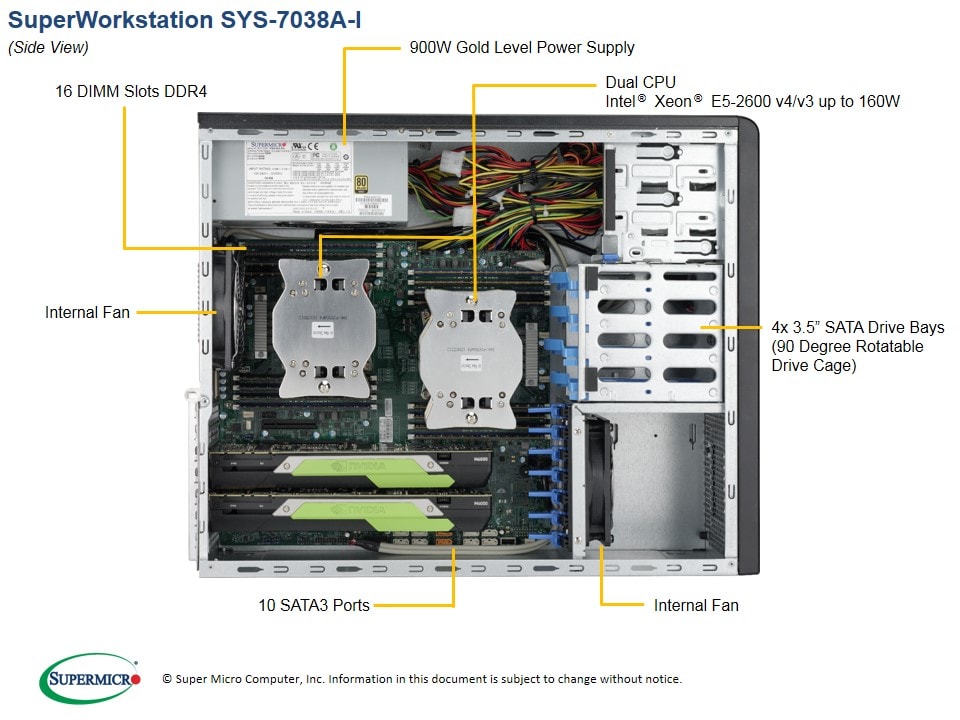

Views: | Angled View | Side View |
| Front View | Rear View |

Key Features
• Whisper Quiet Workstation
1. Dual socket R3 (LGA 2011) supports
    Intel® Xeon® processor E5-2600
    v4/ v3 family; QPI up to 9.6GT/s
2. Up to 2TB ECC 3DS LRDIMM , up to
    DDR4- 2400MHz ; 16x DIMM slots
3. 3x PCI-E 3.0 x16, 2x PCI-E 3.0 x8,
    1x PCI-E 2.0 x4 (in x8) slot supports
    Thunderbolt 2.0 AIC
4. Intel® i210 Dual port GbE LAN
5. 7.1 HD Audio
6. 4x 3.5" HDD bays (internal), 2x 5.25"
    drive bays, and 1x 3.5" internal fixed
    drive bay
7. 900W Multi-output Power Supply
    Gold Level Certified

 Drivers & Utilities   BIOS   IPMI   Tested Memory  Manuals    OS Certification Matrix    Quick-References Guide  Drive Options

Product SKUs
SuperWorkstation
  • SYS-7038A-I (Black)

Motherboard

Super X10DAi

Processor/Cache
CPU
  • Intel® Xeon® processor E5-2600 v4/ v3 family (up to 160W TDP) *
  • Dual Socket R3 (LGA 2011)
Cores / Cache
  • Up to 22 Cores / Up to 55MB Cache
System Bus
  • QPI up to 9.6 GT/s
Note BIOS version 2.0 or above is required
Note * Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization.

System Memory
Memory Capacity
  • 16x 288-pin DDR4 DIMM slots
  • Up to 2TB ECC 3DS LRDIMM, 512GB ECC RDIMM
Memory Type
  • 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes
  • RDIMM: 32GB, 16GB, 8GB, 4GB
  • LRDIMM: 64GB, 32GB
  • 3DS LRDIMM: 128GB
Memory Voltage
  • 1.2 V
Error Detection
  • Corrects single-bit errors

On-Board Devices
Chipset
  • Intel® C612 chipset
SATA
  • SATA3 (6Gbps); RAID 0, 1, 5, 10
Network Controllers
  • Intel® i210 Dual Port Gigabit Ethernet
  • Virtual Machine Device Queues reduce I/O overhead
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Audio
  • RealTek ALC888 7.1 High Definition Audio with S/PDIF header
Super I/O
  • Nuvoton W83627

Input / Output
SATA
  • 10x SATA3 (6Gbps) ports
LAN
  • 2x RJ45 Gigabit Ethernet LAN ports
USB
  • 6x USB 3.0 ports (4 rear + 2 via header)
  • 5x USB 2.0 ports (2 rear + 2 via header + 1 Type A)
Audio
  • 7.1 HD Audio with optical S/PDIF
DOM
  • 2x DOM (Disk on Module) power connectors
TPM
  • 1x TPM 1.2 20-pin Header

Expansion Slots
PCI-Express
  • 3x PCI-E 3.0 x16 slots
  • 2x PCI-E 3.0 x8 slots
  • 1x PCI-E 2.0 x4 (in x8) slot supports Thunderbolt 2.0 AIC

System BIOS
BIOS Type
  • 128Mb SPI Flash EEPROM with AMI® BIOS
BIOS Features
  • Plug and Play (PnP)
  • APM 1.2
  • PCI 2.3
  • ACPI 1.0 / 2.0 / 3.0 / 4.0
  • USB Keyboard support
  • SMBIOS 2.7.1
  • UEFI 2.3.1
Chassis
Form Factor
  • Mid-Tower
Model
  • CSE-732D4-903B

Dimensions and Weight
Height
  • 16.7" (424mm)
Width
  • 7.6" (193mm)
Depth
  • 20.68" (525.3mm)
Gross Weight
  • 40 lbs (18.1 kg)
Available Colors
  • Black

Front Panel
Buttons
  • Power On/Off button
LEDs
  • Power LED
  • Hard drive activity LED
  • Network activity LED
  • System Overheat LED
Ports
  • 2x front USB 3.0 Ports
  • 2x front USB 2.0 Ports
  • 2x front HD/AC97 Audio Ports

Drive Bays
Internal
  • 4x 3.5" SATA HDD Bays
    (90° rotatable drive cage)
  • Enterprise SATA HDD only recommended
Peripheral Bay
  • 2x 5.25" standard drive bays
  • 1x 3.5" internal fixed drive bay

System Cooling
Fans
  • 2x 12cm (1859rpm) cooling fans
  • Optimized cooling technology for Whisper-Quiet Operation
Heatsink
  • Optional 2x Active CPU Heat Sink (SNK-P0050AP4)

Power Supply
900W AC multi output power supply
AC Voltage
  • 100-240 V, 50-60 Hz, 10-6 Amp
+5V Standby
  • 3 Amp
+12V1
  • 25 Amp
+12V2
  • 25 Amp
+12V3
  • 25 Amp
+12V4
  • 25 Amp
+5V
  • 25 Amp
+3.3V
  • 25 Amp
-12V
  • 0.5 Amp
Certification Gold Level   Gold Level
Note: • Max. continuous combined load on +3.3V and +5V output shall not exceed 155W.
• Max. continuous combined load on +12V1, +12V2, +12V3 and +12V4 output shall not exceed 860W.

PC Health Monitoring
CPU
  • Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages.
  • 6-Phase-switching voltage regulator
FAN
  • 8x 4-pin fan headers (up to 8 fans)
  • 8x fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for 8x fan connectors
  • PECI

Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)
See Parts List
