Supermicro® Total Solution for Ceph



Designed for Reliable Large Scale Storage Deployments

With the advancement of large scale cloud computing platforms like OpenStack, the business of data storage has been forever changed. Scale out software defined storage solutions are rapidly becoming pervasive as the implementation model of choice for large scale deployments. Agile business models require equally agile platforms to build upon. By replacing the proprietary data silos of the past with flexible server hardware, cloud providers have more control of their environments resulting in better value for their customers. Supermicro has embraced this change, offering the widest selection of server hardware in the industry.

Ready to Deploy Configurations

  • Role specific cluster configurations – turn-key cluster configurations offer performance, capacity, and density to fit popular application workloads. Memory and networking options are easily customized to meet specific requirements

  • Optimized network configurations – cluster and rack level integration offers streamlined deployment of Red Hat Ceph Storage and infrastructure with consistency not attainable using improvised methods

  • Storage/Media Ratios to fit user applications – deployment of flash and rotating magnetic media allows the solution to meet workload tuned performance and density targets


Object-based Storage with Block and Object Interfaces

Organizations prefer object-based storage when deploying large-scale storage systems because it stores data more efficiently. Object-based storage systems separate the object namespace from the underlying storage hardware - This simplifies data migration.


The Ceph Storage Difference

Ceph's CRUSH algorithm liberates client access limitations imposed by centralizing the data table mapping typically used in scale-out storage. Ceph continuously re-balances data across the cluster-delivering consistent performance and massive scaling. The self-healing capabilities of Ceph provide aggressive levels of resiliency. Data redundancy is achieved by replication or erasure coding allowing for extremely efficient capacity utilization.

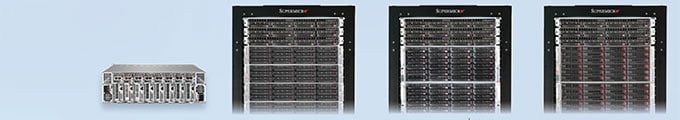

Supermicro Total Solution for Ceph Specifications

Supermicro's Total Solution for Ceph offers turn-key storage integration of Red Hat Ceph Storage on fully optimized SuperStorage hardware. The Total Solution for Ceph includes datacenter proven on-site service and support provided by Supermicro and is available for deployments in the US and Canada.


Workload /
Application
MySQL /
Database
Digital Media Serving - Small Digital Media Serving - Large Capacity-Archive
Solution SKUs SYS-5038MR-
OSD006P
SRS-42E112-Ceph-05
SRS- RCS112-Ceph-05
SRS-42E136-Ceph-05
SRS-RCS136-Ceph-05
SRS-42E172-Ceph-05
SRS-RCS172-Ceph-05
I/O profile / Protocol IOP / Block Throughput/Block & Object Capacity/Object Capacity/Object
Data Protection 2x Replication 3x Replication 3x Replication and Erasure code Erasure code
Form factor 3U 23U (with switches and 3x Monitor nodes) 41U (with switches and 3x Monitor nodes) 41U (with switches and 3x Monitor nodes)
Usable Capacity 3.2TB 240TB 1.5 PB using 7+2 Erasure Code 2.5 PB using 7+2 Erasure Code
Node count 8x OSD nodes 3x Mon, 10x OSD nodes 3x Mon, 9x OSD nodes 3x Mon, 9x OSD nodes
Network / Switches 10G SFP+ / NA 10G SFP+ / 1x SSE-X3348SR, 48 port SFP+ - Reverse Air Flow, 1x SSE-G24-TG4, 24x port switch 10G SFP+ / 2x SSE-X3348SR, 48 port SFP+ - Reverse Air Flow, 1x SSE-G24-TG4, 24x port switch 10G SFP+ / 2x SSE-X3348SR, 48 port SFP+ - Reverse Air Flow, 1x SSE-G24-TG4, 24x port switch
Rack dimensions & PDU NA / NA 42U (82.4"Hx 23.5"Wx 48"D) / 2x Metered Rack PDU,NEMA L6-30P,IEC 320 C13,C19 42U (82.4"Hx 23.5"Wx 48"D) / 2x Metered Rack PDU,NEMA L6- 30P,IEC 320 C13,C19 42U (82.4"Hx 23.5"Wx 48"D) / 2x Rack PDU 208V 50A 3-Phase
Subscription Capacity based subscription for Red Hat Ceph Storage 1.3 (includes Red Hat Enterprise Linux 7.1)


All-flash NVMe Ceph Ready Nodes


SYS-1028U-MON50M

SYS-1028U-MON50M (Cluster Role: Monitor Node)

• System: Ultra SuperServer 1028U-TNRT+
• 2x Intel® Xeon® E5-2630 v4 processors
• 4x 32GB DDR4-2400 RDIMM
• 2x 2.5" 240GB Micron 5100 PRO SATA SSD for OS
• Dual 50GbE QSFP28 via 2x Mellanox MCX413A-GCAT
• 1U w/ redundant Hot-swap 750W power supplies




SYS-1028U-OSD50M

SYS-1028U-OSD50M (Cluster Role: OSD Node)

• System: Ultra SuperServer 1028U-TN10RT+
• 2x Intel® Xeon® E5-2699 v4 processors
• 8x 32GB DDR4-2400 RDIMM
• 10x 2.5" 2.4TB Micron 9100 MAX NVMe SSDs
• 1x 64GB SATADOM for OS
• Dual 50GbE QSFP28 via 2x Mellanox MCX413A-GCAT
• 1U w/ redundant Hot-swap 1000W power supplies




For more information about Micron’s Solid Ready reference architecture for Ceph click here:
https://enterprisestorage.micron.com/~/media/documents/products/product-flyer/micron_solution_brief_ceph_supermicro_nvme_9100.pdf



Supermicro/Ceph Ready Systems

Supermicro leads the industry in user friendly options for the toughest IT challenges. Ceph Ready systems and racks offer a bare metal solution - ready for the open source community and validated through intensive testing under Red Hat Ceph Storage.


SSG-6018R-MON2

SSG-6018R-MON2 (Cluster Role: Monitor Node)

• System: SuperStorage Server 6018R-TDTPR
• 2x 2.5" 80GB SSD for OS
• 1 Internal 800GB NVMe SSD
• Dual port 10G SFP+ onboard
• 1U w/ redundant Hot-swap 500W power supplies




SSG-6028R-OSD072

SSG-6028R-OSD072 (Cluster Role: OSD Node)

• System: SuperStorage Server 6028R-E1CR12L
• 12x 3.5" 6TB SATA3 HDDs
• Rear 2.5" Hot-swap OS drives (mirrored 80GB SSD)
• Dual port 10G SFP+ via AOC-STGN-I2S
• 2U w/ redundant Hot-swap 920W power supplies




SSG-6028R-OSD072P

SSG-6028R-OSD072P (Cluster Role: OSD / Throughput Optimized Node)

• System: SuperStorage Server 6028R-E1CR12L
• 12x 3.5" 6TB SATA3 HDDs + 1x 800GB NVMe SSD
• Rear 2.5" Hot-swap OS drives (mirrored 80GB SSD)
• Dual port 10G SFP+ via AOC-STGN-I2S
• 2U w/ redundant Hot-swap 920W power supplies




SSG-6048R-OSD216

SSG-6048R-OSD216 (Cluster Role: OSD / Capacity Optimized Node)

• System: SuperStorage Server 6048R-E1CR36L
• 36x 3.5" 6TB SATA3 HDDs
• Internal 2.5" OS drives (mirrored 80GB SSD); Broadcom 3008 IT mode controller
• Quad port 10G SFP+ via 2 AOC-STGN-I2S
• 4U w/ redundant Hot-swap 1280W power supplies




SSG-6048R-OSD216P

SSG-6048R-OSD216P (Cluster Role: OSD Node)

• System: SuperStorage Server 6048R-E1CR36L
• 36x 3.5" 6TB SATA3 HDDs, 2x 800GB NVMe SSD
• Internal 2.5" OS drives (mirrored 80GB SSD); 2 Broadcom 3008 IT mode controllers
• Quad port 10G SFP+ via 2 AOC-STGN-I2S
• 4U w/ redundant Hot-swap 1280W power supplies




SSG-6048R-OSD432

SSG-6048R-OSD432 (Cluster Role: OSD /Capacity Optimized Node)

• System: SuperStorage Server 6048R-E1CR72L
• 72x 3.5" 6TB SATA3 HDDs
• Rear 2.5" Hot-swap OS drives (mirrored 80GB SSD); 3 Broadcom 3008 IT mode controllers
• Quad port 10G SFP+ via 2x AOC-STGN-I2S
• 4U w/ redundant Hot-swap 2000W power supplies




SSG-6048R-OSD360P

SSG-6048R-OSD360P (Cluster Role: OSD Node)

• System: SuperStorage Server 6048R-E1CR72L
• 60x 3.5" 6TB SATA3 HDDs, 12x 2.5" 400GB SSDs
• Rear 2.5" Hot-swap OS drives (mirrored 80GB SSD); 3 Broadcom 3008 IT mode controllers
• Quad port 10G SFP+ via 2x AOC-STGN-I2S
• Optional 40G Mellanox networking configurations available upon request
• 4U w/ redundant Hot-swap 2000W power supplies






Fully Integrated Rack and Servers for Ceph (X10 Generation)
Various X10 Generation models optimized for workloads and form factors

Supermicro Model # Description
SSG-6018R-MON2 1U Ceph Monitor Node
SSG-6028R-OSD072 2U-12 Ceph OSD Node, 72TB, Ceph-OSD-Storage Node
SSG-6028R-OSD072P 2U-12 Ceph OSD Node, 1x 800G NVMe, 72TB, Ceph-OSD-Storage Node
SSG-6048R-OSD216 4U-36 Ceph OSD Node, 216TB, Ceph-OSD-Storage Node
SSG-6048R-OSD216P 4U-36 Ceph OSD Node, 2x 800G NVMe, 216TB, Ceph-OSD-Storage Node
SSG-6048R-OSD432 4U-72 Ceph OSD Node, 432TB, Capacity Optimized Ceph-OSD-Storage Node
SSG-6048R-OSD360P 4U-72 Ceph OSD Node, 12x SSDs, 360TB, Ceph-OSD-Storage Node
Ceph Ready Racks
SRS-42E112-CEPH-03 42U-720TB Integrated Ceph Rack. 3x Mon, 10x 2U OSD, Networking & PDU
SRS-42E136-CEPH-03 42U-1.9PB Integrated Ceph Rack, 3x Mon, 9x 4U OSD, Networking & PDU
SRS-42E172-CEPH-03 42U-3.24PB Integrated Ceph Rack, 3x Mon, 9x 4U OSD, Networking & PDU

Red Hat Ceph Storage clusters on Supermicro storage servers:
https://www.redhat.com/en/resources/red-hat-ceph-storage-hardware-selection-guide


Ceph Networking Components




1Gb & 10Gb Ethernet Switches

• Layer 2/3 Ethernet Switching, link aggregation (LACP), Jumbo frames, VLAN support
• Configuration Flexibility:
  SSE-G24-TG4 - 24 ports of RJ45 1Gbps Ethernet with 4 SFP Combo ports,
    4 ports 10Gbps Ethernet (CX4, XFP, or SFP+), Stacking
  SSE-G48-TG4 - 48 ports of RJ45 1Gbps Ethernet with 4 SFP Combo ports,
    4 ports 10Gbps Ethernet (CX4, XFP, or SFP+), Stacking
  SSE-X24S / SSE-X3348S(R) - 24 ports 10Gbps Ethernet (SFP+), Reverse airflow option
• Management: Web-based management interface, Industry standard CLI with telnet
    SSH or local management port, Scripting, Logging
• Routing, Multicast: Quality of service and DiffServ - 8 priority queues per port; Adjusted
    WRR and Strict Priority Scheduling; Security - 802.1x port based authentication, RADIUS
    and TACACS+ authentication, SSH / SSL encryption
• Dimensions: 17.3"W x 15.2"D x 1.7"H (440mm x 386mm x 43mm)






Rack Integration Service




Supermicro Integration and Proof of Concept Laboratory Services

Supermicro Rack Integration Services provides a "one-stop shop" for your data center needs. Our team has the confidence, flexibility, and expertise to handle all phases of your data center integration project. From requirements gathering to the delivery of a turn-key solution - and all phases in between - you can rely on Supermicro Rack Integration Services as your central resource for project success. With our extensive portfolio of server, storage, switch and rack products, we can provide a wide range of solutions with a focus on customer satisfaction, quality, and energy efficiency. Our global footprint, dedicated and skilled professionals, and integrated supply-chain will ensure you get what you need, when you need it, no matter where in the world you are.
