A+ Server 2123BT-HNR (Complete System Only)

Super Micro Computer, Inc.
Contact Us
Search
MySupermicro

  A+ Products   Systems   2U   [ 2123BT-HNR ]





Integrated Board
Super H11DST-B
Key Features
  - Compute Intensive Application
  - HPC, Data Center, Enterprise
    Server
  - Hyperscale / Hyperconverged

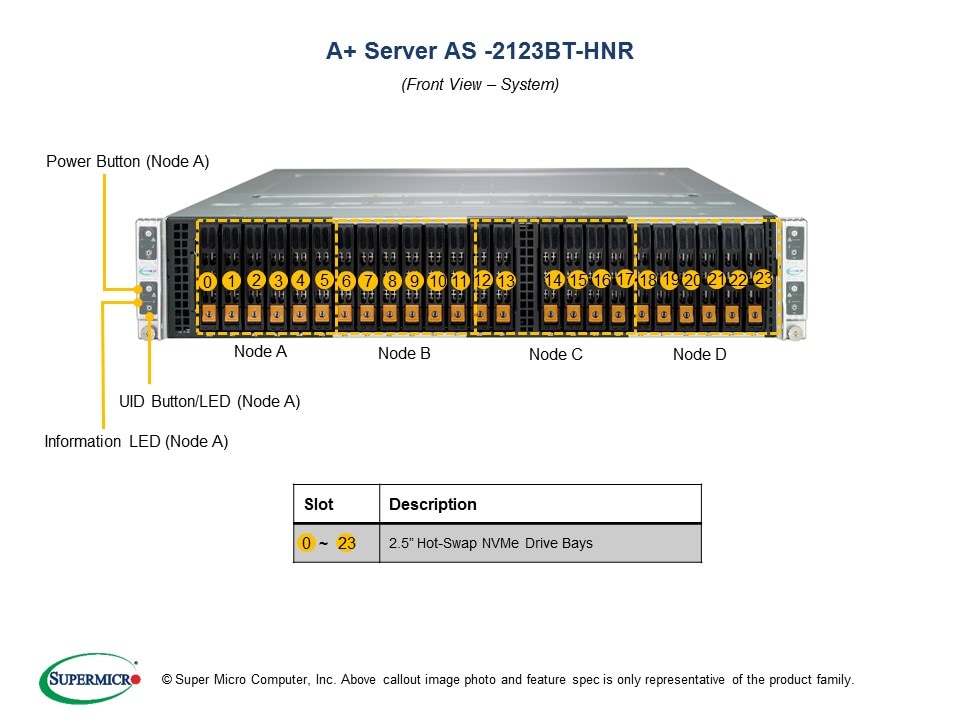

Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
1. Dual AMD EPYC™ 7000-Series     Processors
2. Up to 2TB ECC 3DS LRDIMM, up to
    DDR4-2666MHz; 16 DIMM slots
3. 2 PCI-E 3.0 x16 (LP) slot; 1 SIOM
    card support (flexible networking)
    Note: must bundle with Network card
4. IPMI 2.0 + KVM with dedicated LAN
5. 6 Hot-swap 2.5" NVMe drive bays
    M.2 Interface: 1 SATA/PCI-E 3.0 x4
    M.2 Form Factor: 2280, 22110
    M.2 Key: M-key
6. Video via Aspeed AST2500 BMC
7. 2600W Redundant Power Supplies
    Titanium Level (96%)
  (Full redundancy based on configuration
  and application load)

Due to the complexity of integration, this product is sold as a completely assembled system only (with minimum 2 CPUs, 8 DIMMs, 1 HDD/NVMe and 1 SIOM card per node). Please contact your Supermicro sales rep for special requirements.

 Drivers & Utilities   BIOS   IPMI   Tested Memory
 Tested M.2 List   NVMe Options   Manuals    OS Certification Matrix    Quick-References Guide  Tested Network Card (AOC)

Product SKUs
AS -2123BT-HNR
  • A+ Server 2123BT-HNR (Black)

Motherboard (per Node)

Super H11DST-B

Processor/Chipset (per Node)
CPU
  • Dual AMD EPYC™ 7000-series Processors
  • Socket SP3
Cores
  • Up to 32 Cores

System Memory (per Node)
Memory Capacity
  • 16 DIMM slots
  • Supports up to 2TB Registered ECC DDR4 2666MHz SDRAM in 16 DIMMs
  • 8-channel memory bus
  • For Dual CPUs: Recommended that memory be populated equally in adjacent memory banks
Memory Type
  • DDR4 2666 MHz Registered ECC, 288-pin gold-plated DIMMs
Memory Sizes
  • 8GB, 16GB, 32GB, 64GB, 128GB
Memory Voltage
  • 1.2V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)

On-Board Devices (per Node)
Chipset
  • System on Chip
Network
  • Must bundle with at least one SIOM network card
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Video
  • ASPEED AST2500 BMC

Input / Output (per Node)
LAN
  • Provided via SIOM (optional)
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 2 USB 3.0 ports (rear)
Video
  • 1 VGA port
DOM
  • 1 SuperDOM (Disk on Module) port
Others
  • 1 COM port (header)
  • 1 TPM 2.0 header

System BIOS (per Node)
BIOS Type
  • AMI 128Mb SPI Flash ROM

Management (per Node)
Software
Power Configurations
  • ACPI / APM Power Management
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-217BHQ+-R2K60BP

Dimensions and Weight
Width
  • 17.25" (438mm)
Height
  • 3.47" (88mm)
Depth
  • 28.5" (724mm)
Package
  • 26.4" (H) x 11.2" (W) x 39.8" (D)
Weight
  • Gross Weight: 85 lbs (38.6 kg)
  • Net Weight: 54.5 lbs (24.7 kg)
Available Colors
  • Black

Front Panel (per Node)
Buttons
  • Power On/Off button
  • UID button
LEDs
  • Power status LED
  • HDD activity LED
  • Network activity LEDs
  • Universal Information (UID) LED

Expansion Slots (per Node)
PCI-Express
  • 2 PCI-E 3.0 (x16) Low-profile slots
  • 1 SIOM card support
    (must bundle with network card)
M.2
  • Interface: 1 SATA/PCI-E 3.0 x4
  • Form Factor: 2280, 22110
  • Key: M-key

Drive Bays (per Node)
Hot-swap
  • 6 Hot-swap 2.5" NVMe drive bays

System Cooling
Fans
  • 4 Heavy duty 8cm PWM fans

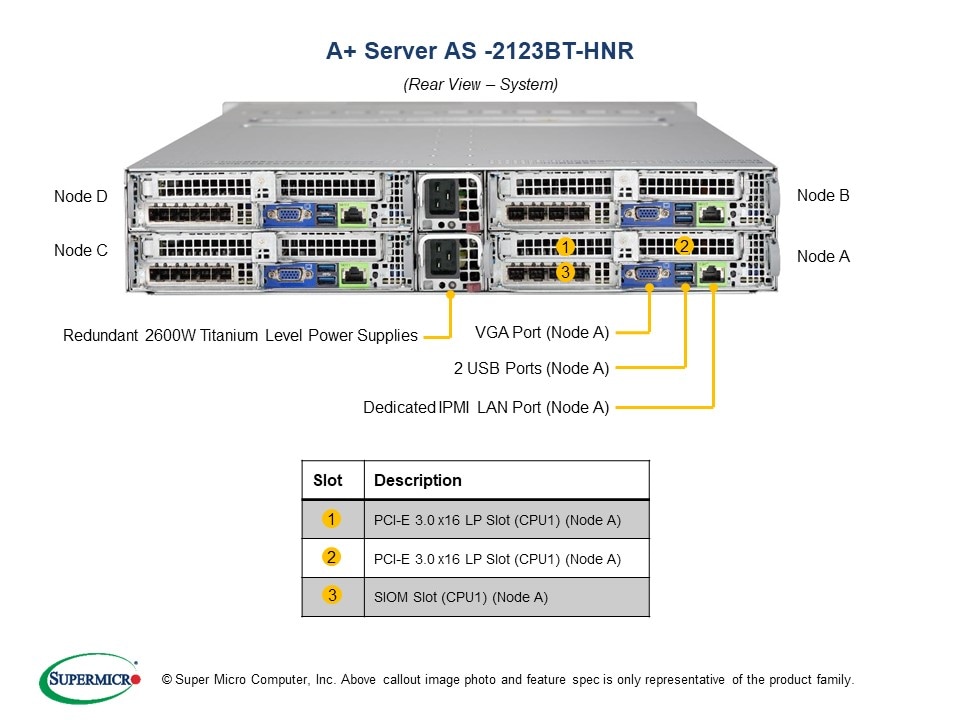

AC/DC240V Input Redundant Power Supply
2600W Redundant Power Supplies with PMBus
Total Output Power
  • 2600W
Dimension
(W x H x L)
  • 45 x 40 x 480 mm
Input
  • 208-240Vac/15-12.5A / 50-60Hz
  • 220-240Vdc/13.5-12.5A (CQC only)
+12V
  • Max: 216.6A / Min: 0A
12Vsb
  • Max: 4.5A / Min: 0A
Output Type
  • Gold Finger (4HP+2LP-20S output connector)
Certification Titanium Level96%  UL/CB/BSMI/CE/CQC
  Titanium Level
  [ Cert. in progress ]

Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C ~ 30°C (50°F ~ 85°F)
  • Non-operating Temperature:
       -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)

See Parts List
