A+ Server 2114GT-DNR (Complete System Only)

A+ Products Systems GPU [ 2114GT-DNR ]





Integrated Board
H12SSG-AN6 motherboard
H12SSG-AN6

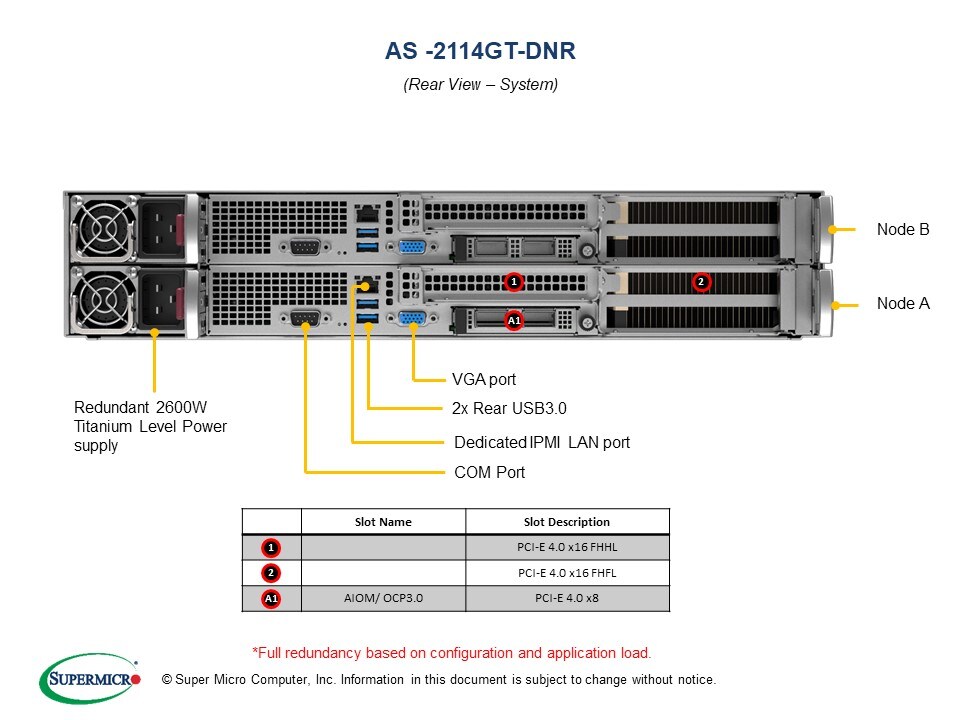

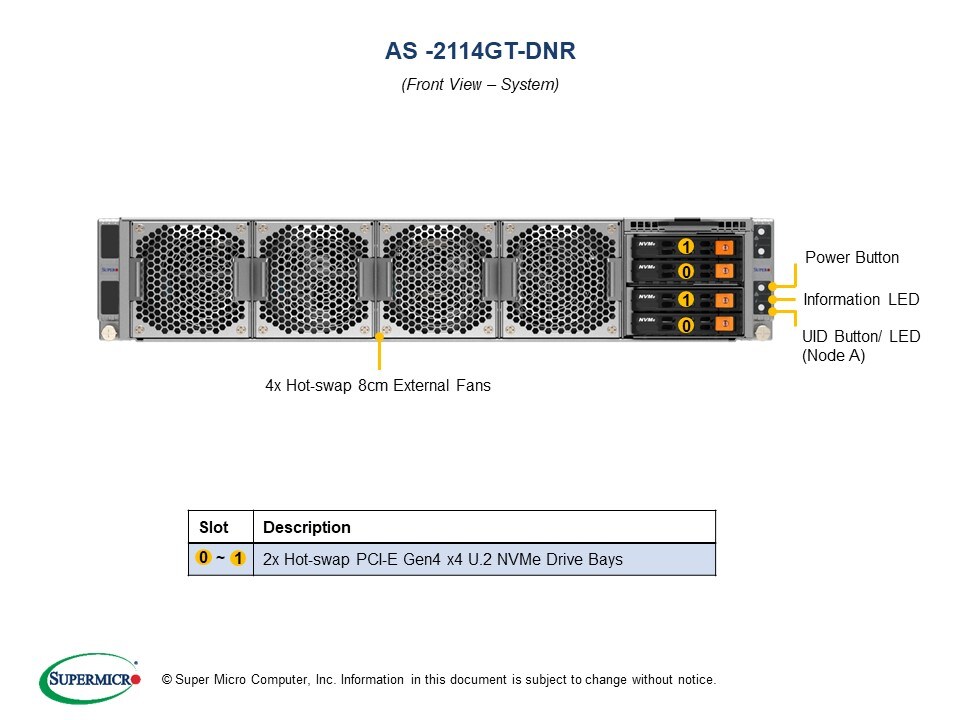

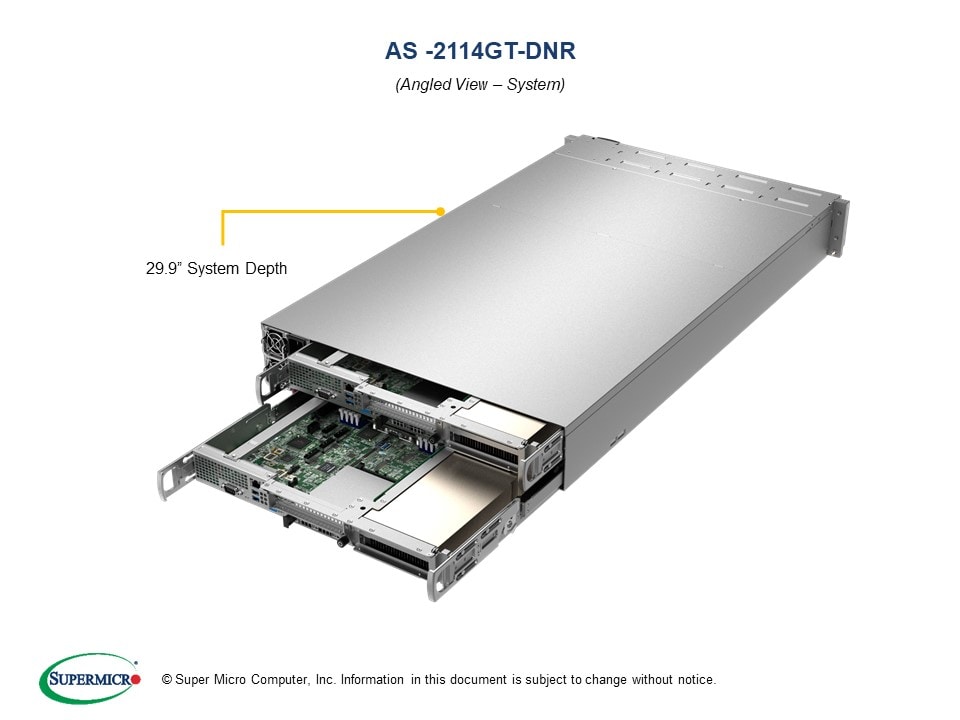

Views: | Angled View | Front View | Rear View |


Key Applications
- Media/Video Streaming
- AI Inference and Machine Learning
- Cloud Gaming
- Industrial Automation, Retail,
  Smart Medical Expert Systems

Key Features
Two hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
1. Single AMD EPYC™ 7003/7002 Series Processor
(The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
2. 2TB Registered ECC DDR4 3200MHz SDRAM in 8 DIMMs
3. Up to 6 PCI-E Gen 4 x16 (4 internal, 2 external) slots, 1 PCI-E 4.0 x8 AIOM slot
M.2 Interface: 2 PCI-E 4.0 x4
M.2 Form Factor: 2280, 22110
M.2 Key: M-key
4. Integrated IPMI 2.0 + KVM with 
dedicated LAN
• Software Out of Band License key
   (SFT-OOB-LIC) included for
   OOB BIOS management
5. 2 front Hot-swap 2.5" U.2 NVMe Gen4 drive bays
6. AST2600 BMC
7. 2600W Redundant (1+1) Power Supplies
Titanium Level (96%)
   (Full redundancy based on
   configuration and application load)

Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (Per node, minimum 1 CPU, 2 DIMMs, 1 NVMe drive, 1 GPU installed). Add on Cards (AOC) are recommended to be installed by Supermicro due to optimized density of the 2U form factor.
Service: OSNBD3 is highly recommended.

Drivers & Utilities BIOS IPMI Tested Memory Tested M.2 List NVMe Options Tested AOC Manuals OS Certification Matrix Compatible GPU List Quick-References Guide

Product SKUs
AS -2114GT-DNR
  • A+ Server 2114GT-DNR (Black)
Motherboard (per Node)

Super H12SSG-AN6
Processor (per Node)
CPU
  • Single EPYC™ 7003/7002 Series Processor
    (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
  • Socket SP3
  • Supports CPU TDP up to 280W*
Cores
  • Up to 64 Cores
Chipset
  • System on Chip (SoC)
Note * Certain CPUs with high TDP may be supported only under specific conditions. Please contact Supermicro Technical Support for additional information about specialized system optimization
GPU Support (per Node)
  • 3 double-width or 6 single-width GPUs
System Memory (per Node)
Memory Capacity
  • 8 DIMM slots
  • Up to 2TB 3DS ECC DDR4-3200MH SDRAM
Memory Type
  • 3200MHz ECC DDR4 SDRAM
On-Board Devices (per Node)
Network
  • Flexible networking via AIOM
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics & System Management
  • ASPEED AST2600 BMC
Input / Output (per Node)
SATA
  • SATA3 (6Gbps) via AMD EPYC
LAN
  • Flexible networking provided by AIOM
  • 1 RJ45 1GbE Dedicated IPMI management port
USB
  • 2 USB 3.0 ports (rear)
Video
  • 1 VGA Connector (rear)
Others
  • 1 COM port (header)
  • 1 TPM 2.0 (header)
System BIOS (per Node)
BIOS Type
  • AMI 256Mb SPI Flash ROM
Management (per Node)
Software
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 4+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 2U Rackmountable
Model
  • CSE-227GTS-R2K63P
Dimensions
Height
  • 3.47" (88mm)
Width
  • 17.6" (447mm)
Depth
  • 29.9" (760mm)
Available Colors
  • Black
Drive Bays / Storage (per Node)
Hot-swap
  • 2 front Hot-swap 2.5" U.2 NVMe Gen4 drive bays
Expansion Slots (per Node)
PCI-Express
  • 6 PCI-E Gen 4 x16 (4 internal, 2 external) slots
  • 1 PCI-E Gen 4 x8 AIOM networking slot
System Cooling
Fans
  • 4 Hot-swap heavy duty 80mm PWM fans
Power Supply
2600W Redundant Power Supplies with PM Bus
Total Output Power and Input
  • 2600W with Input 200-240Vac
  • 2600W with Input 200-240Vdc (for CQC only)
Dimension
(W x H x L)
  • 40 x 73.5 x 265 mm
+12V
  • Max: 216A / Min: 0A (200-240 Vac)
+12Vsb
  • Max: 4.5A / Min: 0A
Output Type
  • Gold Finger Connector
Certification (Pending) Titanium Level96% Titanium Level
Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
    10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
    -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
    8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
    5% to 95% (non-condensing)

See Parts List
Parts List - (Items Included)

Part Number
 Qty
 Description
Motherboard / Chassis MBD-H12SSG-AN6
CSE-227GTS-R2K63P 		2
1 		Super H12SSG-AN6 Motherboard
2U chassis
Cable CBL-CDAT-1056 1 2x5,PH2.54 to 2x5,PH2.54,7cm,28AWG,RoHS
Cable CBL-PWCD-0376-IS 2 PWCD,US,IEC60320 C19 TO C20,940mm (3ft),14AWG,15A,250V,Black
Cable CBL-PWEX-1026 2 GPU,2x4F/RA/CPU to 2x4F/CPU,P4.2, 35CM, 17AWG, 8A/pin,RoHS
Cable CBL-PWEX-1042 4 GPU,2x4F/CPU to 2x4F/CPU,P4.2, 50CM,16AWG,10A/pin, -40~105C,
Cable CBL-PWEX-1093-36 2 MicroFit,2x2, P3.0,F to MicroFit,2x2,P3.0,F,36CM,10A/pin
Cable CBL-PWEX-1257 1 2x4,PH3.0 to 2x4,PH3.0,7CM,4A,22AWG,RoHS
Cable CBL-SAST-1201LPB-85 2 3x SlimlineLP x8 (STR) to 3x SlimlineLP x8 (STR),BNDL,F
Cable CBL-SAST-1209F-85 2 Slimsas x8 (STR) to Slimsas x8 (STR),FFC,FOLD,85 OHM,Ro
Cable CBL-SAST-1235-85 2 Slimline x8 (STR) to Slimline x8 (STR),INT,35CM,85 OHM
Cable CBL-SAST-1289LP-85 2 SlimsasLP x8 (STR) to SlimsasLP x8 (STR),FOLD,85 OHM,Ro
Air Shroud MCP-310-22702-0B 2 Mylar air shroud sets H12SSG-AN6 for SC227G(2x GPU)
Riser Card RSC-GB-66G4 2 1U Rear LHS GPU Riser card with twoPCI-E4.0x16slots,HF,R
Riser Card RSC-GF-66G4 2 1U Front LHS GPU Riser card with two PCI-E 4.0x16slotsHF
Riser Card RSC-GF-6G4 2 1U Front LHS GPU Riser card with onePCI-E4.0x16slot,HF,R
Heatsink / Retention SNK-P0062P 2 1U Passive CPU Heat Sink for AMD Socket SP3 Processors
Power Supply PWS-2K63A-1R 2 1U 2600W redundant single output powersupply with wide range
Cable CBL-PWEX-1251 2 FAN,2x4 to 2x 1x4 and 1x4,5A/pin,42.5CM,22/24AWG
Bracket MCP-120-22709-0N 4 NVIDIA GPU universal internal bracket (w/ DW) for SC227G
Fan FAN-0219L4 4 80x80x80 mm, 14.2K-15K RPM Counter-rotating, Hot-swappable Fan
Backplane BPN-NVMe4-826N-B2B 2 1U 2-Port PCIe Gen 4 U.2 NVMe Backplane
Drive Tray MCP-220-00167-0B 4 2.5-inch Tool-less NVMe drive tray (clip design)
Software SFT-OOB-LIC • 1 OOB Management Package (per node license)


Optional Parts List
Part Number Qty Description
Up to 5x NVIDIA A10 per node RSC-GFR-66G4 1 per node 1U Front RHS GPU Riser card with two PCI-E4.0x16slots
CBL-PWEX-1059 1 per node GPU,2x4F/RA/CPU to two (2x3F+2x1F)/PCIe,P4.2, 36CM,17/20AWG
CBL-PWEX-1040 2 per node PWYCB,GPU,2x4M/CPU to two (2x3F+2x1F)/PCIe,P4.2, 5CM,16/20AW
CBL-SAST-1295LP-85 2 per node SlimlineLP x8 (RA) to SlimlineLP x8 (STR),12CM,85 OHM
CBL-SAST-1202LPB-85 1 per node 2x SlimSASLP x8 (STR) to 2x SlimSASLP x8 (STR),BNDL,FOL
CBL-SAST-1228LP-85 3 per node SlimlineLP x8 (STR) to Slimline x8 (STR),28CM,85 OHM
CBL-SAST-1224LP-85 1 per node SlimlineLP x8 (STR) to SlimlineLP x8 (RE),24CM,85 OHM
MCP-120-22710-0N 2 per node Nvidia GPU A10 PCIe internal bracket for SC227G
MCP-310-22713-0B 1 per node Sponge air block-B for SC227G
3x NVIDIA A40 per node MCP-310-22713-0B 1 per node Sponge air block-B for SC227G
MCP-120-22709-0N 1 per node NVIDIA GPU universal internal bracket (w/ DW) for SC227G
2x NVIDIA A100/A30 per node MCP-120-22709-0N 2 per node NVIDIA GPU universal internal bracket (w/ DW) for SC227G
3x NVIDIA A100/A30 per node MCP-120-22709-0N 2 per node NVIDIA GPU universal internal bracket (w/ DW) for SC227G
MCP-310-22713-0B 1 per node Sponge air block-B for SC227G
2x Nvidia A16 MCP-120-22709-0N 2 per node NVIDIA GPU universal internal bracket (w/ DW) for SC227G
3x Nvidia A16 MCP-120-22709-0N 2 per node NVIDIA GPU universal internal bracket (w/ DW) for SC227G
MCP-310-22713-0B 1 per node Sponge air block-B for SC227G
2x RTX A6000 per node MCP-120-22709-0N 2 per node NVIDIA GPU universal internal bracket (w/ DW) for SC227G
2x RTX A5000 per node CBL-PWEX-1059 1 per node GPU,2x4F/RA/CPU to two (2x3F+2x1F)/PCIe,P4.2, 36CM,17/20AWG
CBL-PWEX-1040 1 per node PWYCB,GPU,2x4M/CPU to two (2x3F+2x1F)/PCIe,P4.2, 5CM,16/20AW
MCP-120-22709-0N 2 per node NVIDIA GPU universal internal bracket (w/ DW) for SC227G
3x RTX A5000 per node CBL-PWEX-1059 1 per node GPU,2x4F/RA/CPU to two (2x3F+2x1F)/PCIe,P4.2, 36CM,17/20AWG
CBL-PWEX-1040 2 per node PWYCB,GPU,2x4M/CPU to two (2x3F+2x1F)/PCIe,P4.2, 5CM,16/20AW
MCP-310-22713-0B 1 per node Sponge air block-B for SC227G
MCP-120-22709-0N 2 per node NVIDIA GPU universal internal bracket (w/ DW) for SC227G
1x RTX A4500 per node CBL-PWEX-1040 1 per node PWYCB,GPU,2x4M/CPU to two (2x3F+2x1F)/PCIe,P4.2, 5CM,16/20AW
MCP-120-22709-0N 1 per node NVIDIA GPU universal internal bracket (w/ DW) for SC227G
CBL-SAST-1201LL4FB-85* 1 per node 2x (SlimSAS LP,x8 to x8,STR),BNDL,FLD,FFC,85 OHM,RoHS
Note:
* Add CBL-SAST-1201LL4FB-85 when using AIOM x 16 PCIe Lanes Card.
2x RTX A4500 per node CBL-PWEX-1059 1 per node GPU,2x4F/RA/CPU to two (2x3F+2x1F)/PCIe,P4.2, 36CM,17/20AWG
CBL-PWEX-1040 1 per node PWYCB,GPU,2x4M/CPU to two (2x3F+2x1F)/PCIe,P4.2, 5CM,16/20AW
MCP-120-22709-0N 2 per node NVIDIA GPU universal internal bracket (w/ DW) for SC227G
CBL-SAST-1201LL4FB-85* 1 per node 2x (SlimSAS LP,x8 to x8,STR),BNDL,FLD,FFC,85 OHM,RoHS
Note:
* Add CBL-SAST-1201LL4FB-85 when using AIOM x 16 PCIe Lanes Card.
3x RTX A4500 per node CBL-PWEX-1059 1 per node GPU,2x4F/RA/CPU to two (2x3F+2x1F)/PCIe,P4.2, 36CM,17/20AWG
CBL-PWEX-1040 2 per node PWYCB,GPU,2x4M/CPU to two (2x3F+2x1F)/PCIe,P4.2, 5CM,16/20AW
MCP-120-22709-0N 2 per node NVIDIA GPU universal internal bracket (w/ DW) for SC227G
MCP-310-22713-0B 1 per node Sponge air block-B for 3rd DW GPU in SC227G
CBL-SAST-1201LL4FB-85* 1 per node 2x (SlimSAS LP,x8 to x8,STR),BNDL,FLD,FFC,85 OHM,RoHS
Note:
* Add CBL-SAST-1201LL4FB-85 when using AIOM x 16 PCIe Lanes Card.
Up to 5x Nvidia A4000 (GPU-NVQRTX-A4000) RSC-GFR-66G4 1 per node 1U Front RHS GPU Riser 16 PCIe Lanes 16 PCIe Lanes Card with two PCI-E 4.0x16 slots
CBL-PWEX-1059 1 per node GPU,2x4F/RA/CPU to two (2x3F+2x1F)/PCIe,P4.2, 36CM,17/20AWG
CBL-PWEX-1040 2 per node PWYCB,GPU,2x4M/CPU to two (2x3F+2x1F)/PCIe,P4.2, 5CM,16/20AW
CBL-SAST-1295LP-85 2 per node SlimlineLP x8 (RA) to SlimlineLP x8 (STR),12CM,85 OHM
CBL-SAST-1202LPB-85 1 per node 2x SlimSASLP x8 (STR) to 2x SlimSASLP x8 (STR),BNDL,FOL
CBL-SAST-1228LP-85 3 per node SlimlineLP x8 (STR) to Slimline x8 (STR),28CM,85 OHM
CBL-SAST-1224LP-85 1 per node SlimlineLP x8 (STR) to SlimlineLP x8 (RE),24CM,85 OHM
MCP-120-22708-0N 2 per node Nvidia GPU RTX-A4000 PCIe internal bracket for SC227G
MCP-310-22713-0B* 1 per node Sponge air block-B for 3rd DW GPU in SC227G
Note:
* Add MCP-310-22713-0B for 3x GPUs. Sponge is installed in the rear of the GPU.
Up to 6x T4 RSC-GFR-66G4 1 per node 1U Front RHS GPU Riser card with two PCI-E4.0x16slots
CBL-SAST-1295LP-85 2 per node SlimlineLP x8 (RA) to SlimlineLP x8 (STR),12CM,85 OHM
CBL-SAST-1202LPB-85 1 per node 2x SlimSASLP x8 (STR) to 2x SlimSASLP x8 (STR),BNDL,FOL
CBL-SAST-1228LP-85 3 per node SlimlineLP x8 (STR) to Slimline x8 (STR),28CM,85 OHM
CBL-SAST-1224LP-85 1 per node SlimlineLP x8 (STR) to SlimlineLP x8 (RE),24CM,85 OHM
MCP-310-22713-0B 1 per node Sponge air block-B for SC227G
MCP-120-22705-0N 2 per node Nvidia GPU T4 PCIe internal bracket for SC227G
Up to 6x A2 RSC-GFR-66G4 1 per node 1U Front RHS GPU Riser card with two PCI-E4.0x16slots
CBL-SAST-1295LP-85 2 per node SlimlineLP x8 (RA) to SlimlineLP x8 (STR),12CM,85 OHM
CBL-SAST-1202LPB-85 1 per node 2x SlimSASLP x8 (STR) to 2x SlimSASLP x8 (STR),BNDL,FOL
CBL-SAST-1228LP-85 3 per node SlimlineLP x8 (STR) to Slimline x8 (STR),28CM,85 OHM
CBL-SAST-1224LP-85 1 per node SlimlineLP x8 (STR) to SlimlineLP x8 (RE),24CM,85 OHM
MCP-310-22713-0B 1 per node Sponge air block-B for SC227G
MCP-120-22710-0N 2 per node Nvidia GPU universal internal bracket(w/ SW) for SC227G
2x MI100 per node CBL-PWEX-1059 1 per node GPU,2x4F/RA/CPU to two (2x3F+2x1F)/PCIe,P4.2, 36CM,17/20AWG
CBL-PWEX-1040 1 per node PWYCB,GPU,2x4M/CPU to two (2x3F+2x1F)/PCIe,P4.2, 5CM,16/20AW
MCP-120-22711-0N 2 per node AMD GPU MI100 PCIe internal bracket for SC227G
3x MI100 per node CBL-PWEX-1059 1 per node GPU,2x4F/RA/CPU to two (2x3F+2x1F)/PCIe,P4.2, 36CM,17/20AWG
CBL-PWEX-1040 2 per node PWYCB,GPU,2x4M/CPU to two (2x3F+2x1F)/PCIe,P4.2, 5CM,16/20AW
MCP-310-22713-0B 1 per node Sponge air block-B for SC227G
MCP-120-22711-0N 2 per node AMD GPU MI100 PCIe internal bracket for SC227G
2x MI210 per node MCP-120-22711-0N 2 per node AMD GPU universal internal bracket(w/ DW) for SC227G
3x MI210 per node MCP-120-22711-0N 2 per node AMD GPU universal internal bracket(w/ DW) for SC227G
MCP-310-22713-0B 1 per node Sponge air block-B for SC227G
TPM security module AOM-TPM-9671V - TPM 1.2 module (Vertical) with Infineon 9671
AOM-TPM-9670V - TPM 2.0 module (Vertical) with Infineon 9670
Global Services & Support OS4HR3/2/1
OSNBD3/2/1 		-
- 		3/2/1-year onsite 24x7x4 service
3/2/1-year onsite NBD service
Hide Parts List
Terms & Conditions | Privacy | Investor Relations | Jobs | Site Map
SuperServer® | Motherboard | Chassis | Rack Cabinet | SuperBlade® | Embedded | Networking | Storage | Accessories | AMD Solution | Power Supplies
Copyright © 2019 Super Micro Computer, Inc.
Information in this document is subject to change without notice.
Other products and companies referred to herein are trademarks or registered trademarks of their respective companies or mark holders.
