A+ Server 2124BT-HTR (Complete System Only)

A+ Products Systems 2U [ 2124BT-HTR ]





Integrated Board
H12DST-B Motherboard
Super H12DST-B

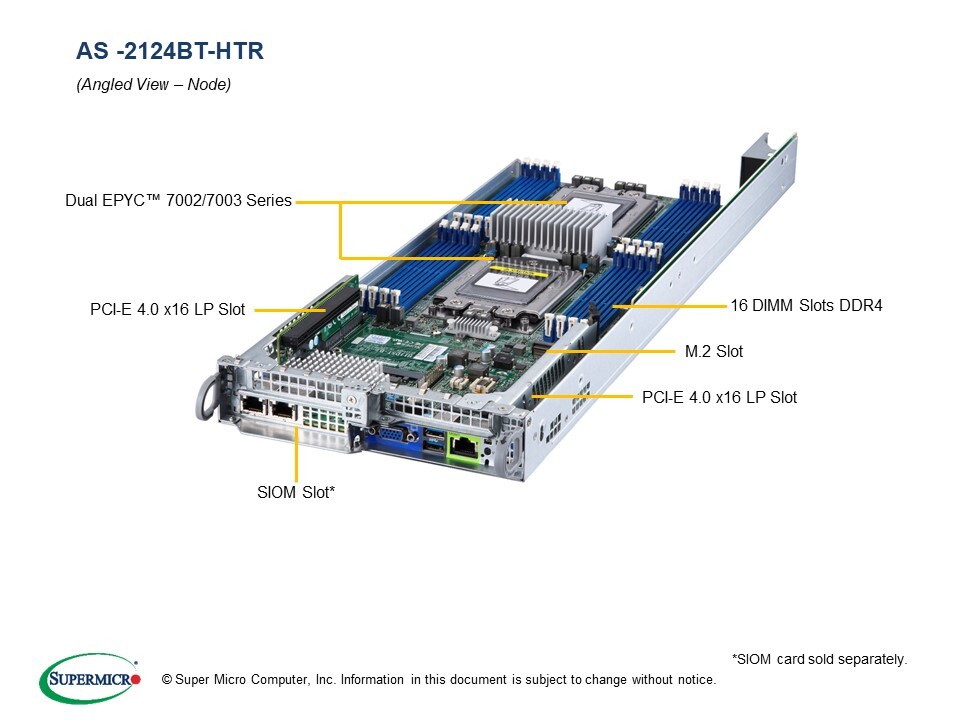

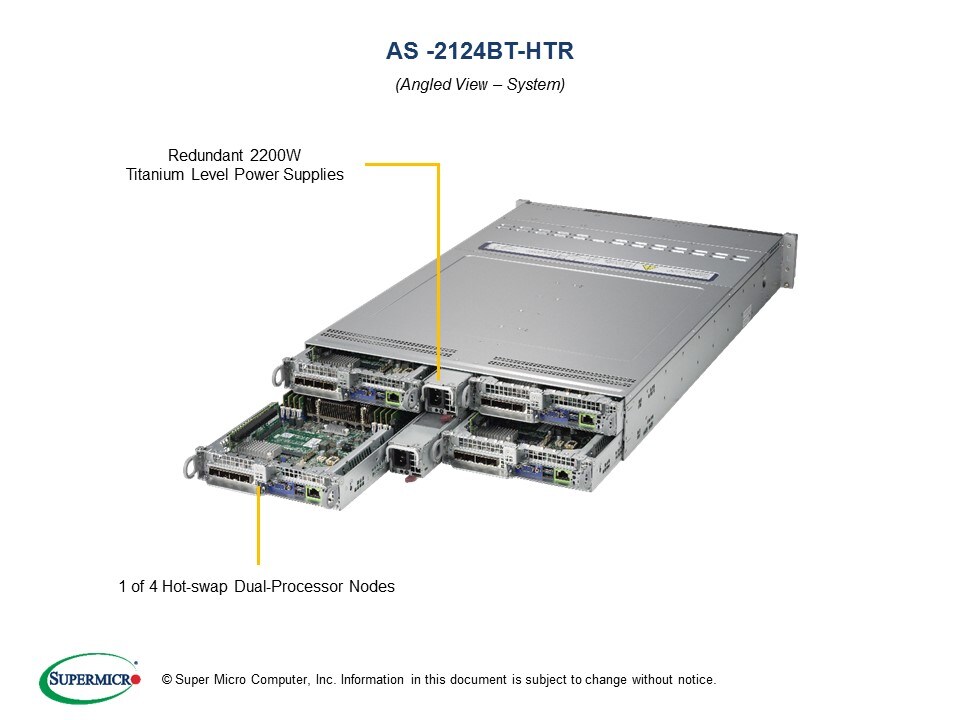

Views: Angled View | Node View |

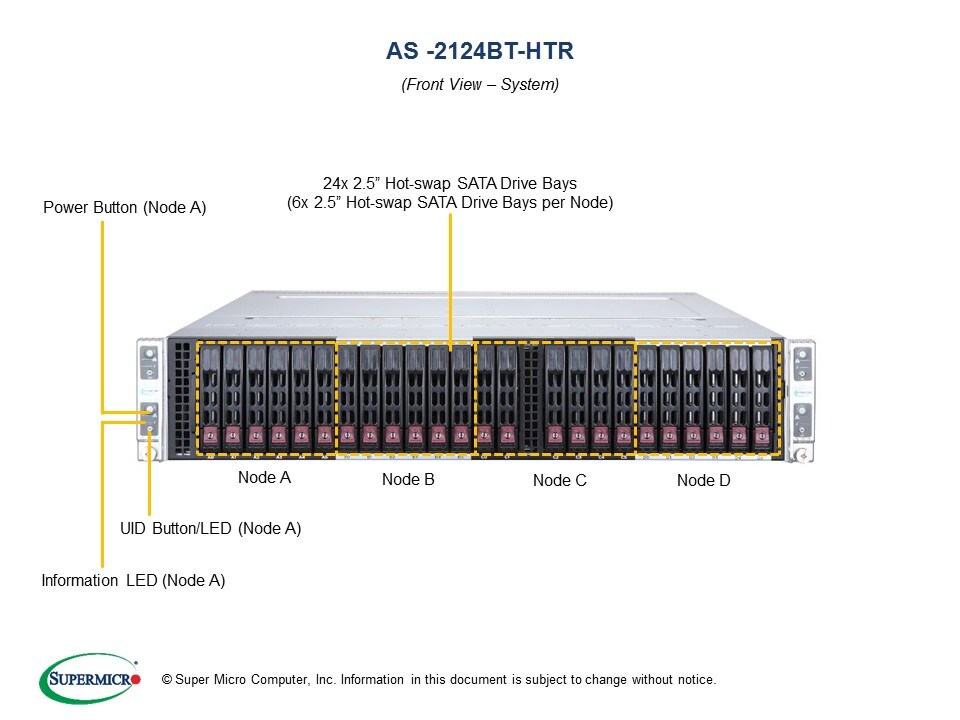

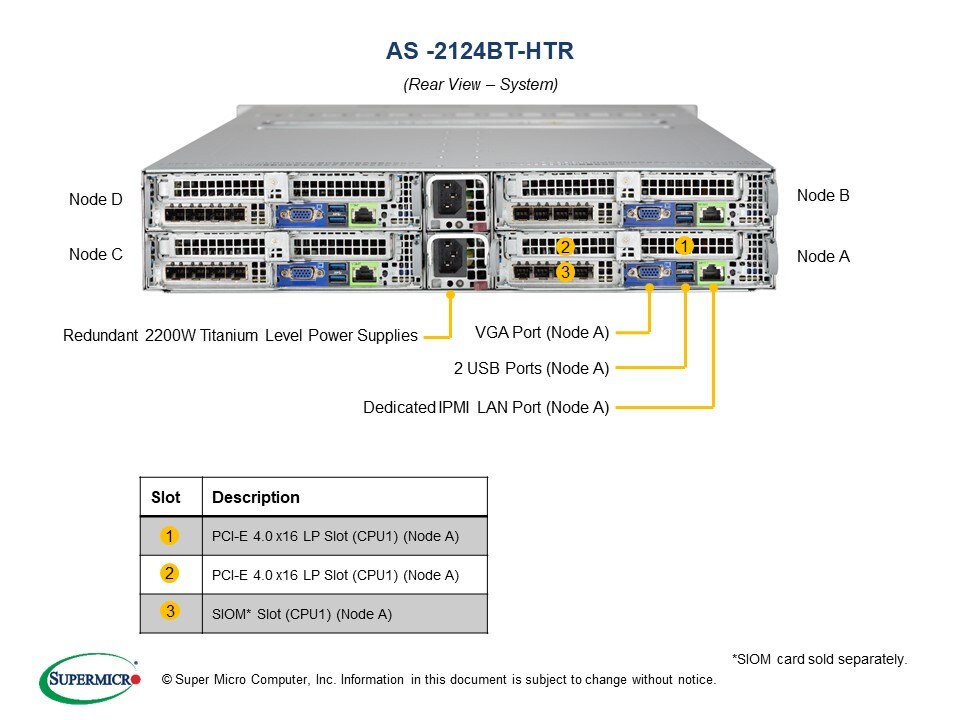

| Front View | Rear View |
Key Features
- Compute Intensive Applications
- HPC, Data Center, Enterprise Server
- Hyperscale / Hyperconverged

Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
1. Dual AMD EPYC™ 7003/7002 Series Processors
(7003 Series Processor drop-in support requires BIOS version 2.0 or newer)
2. Up to 4TB ECC 3DS LRDIMM,
up to DDR4-3200MHz; 16 DIMM slots
3. 2 PCI-E 4.0 x16 (LP) slot;
1 SIOM card support
(flexible networking)
   Note: must bundle with Network card
4. Integrated IPMI 2.0 + KVM with 
dedicated LAN
• Software Out of Band License key
   (SFT-OOB-LIC) included for
   OOB BIOS management
5. 6 Hot-swap 2.5" SATA3 drive bays
M.2 Interface: 1 SATA/PCI-E 3.0 x4
M.2 Form Factor: 2280, 22110
M.2 Key: M-key
6. Video via Aspeed AST2500 BMC
7. 2200W Redundant Power Supplies
Titanium Level (96%)
   (Full redundancy based on
   configuration and application load)

Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (with minimum 2 CPUs, 8 DIMMs, 1 HDD and 1 SIOM card per node).

Drivers & Utilities BIOS IPMI Tested Memory Tested M.2 List Tested AOC Manuals OS Certification Matrix Quick-References Guide Drive Options

Product SKUs
AS -2124BT-HTR
  • A+ Server 2124BT-HTR (Black)
Motherboard (per Node)

Super H12DST-B
Processor/Chipset (per Node)
CPU
  • Dual AMD EPYC™ 7003/7002 Series Processors
    (7003 Series Processor drop-in support requires BIOS version 2.0 or newer)
  • Socket SP3
  • Support CPU TDP / cTDP up to 200W*
Cores
  • Up to 64 Cores
Note * Certain CPUs with high TDP may be supported only under specific conditions. Please contact Supermicro Technical Support for additional information about specialized system optimization
System Memory (per Node)
Memory Capacity
  • 16 DIMM slots
  • Supports up to 4TB Registered ECC DDR4 3200MHz SDRAM in 16 DIMMs
  • 8-channel memory bus
  • For Dual CPUs: Recommended that memory be populated equally in adjacent memory banks
Memory Type
  • DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs
Memory Sizes
  • 8GB, 16GB, 32GB, 64GB, 128GB, 256GB
Memory Voltage
  • 1.2V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices (per Node)
Chipset
  • System on Chip
Storage
  • SATA3 (6Gbps) via AMD EPYC
Network
  • 1 PCI-E 4.0 x16 SIOM LAN Networking Slot for flexible networking, see SIOM LAN options support matrix (Must bundle with at least one SIOM network card)
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Video
  • ASPEED AST2500 BMC
Input / Output (per Node)
LAN
  • Provided via SIOM (optional)
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 2 USB 3.0 ports (rear)
Video
  • 1 VGA port
DOM
  • 1 SuperDOM (Disk on Module) port
Others
  • 1 COM port (header)
  • 1 TPM 2.0 header
System BIOS (per Node)
BIOS Type
  • AMI 32Mb SPI Flash ROM
Management (per Node)
Software
Power Configurations
  • ACPI / APM Power Management
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-217BHQ+-R2K22BP2
Dimensions and Weight
Width
  • 17.68" (449mm)
Height
  • 3.47" (88mm)
Depth
  • 28.75" (730mm)
Package
  • 24.33" (618mm) H x 9.57" (243mm) W x 45.08" (1145mm) D
Weight
  • Gross Weight: 85 lbs (38.6 kg)
  • Net Weight: 54.5 lbs (24.7 kg)
Available Colors
  • Black
Front Panel (per Node)
Buttons
  • Power On/Off button
  • UID button
LEDs
  • Power status LED
  • HDD activity LED
  • Network activity LEDs
  • Universal Information (UID) LED
Expansion Slots (per Node)
PCI-Express
  • 2 PCI-E 4.0 (x16) Low-profile slots
  • 1 SIOM card support
    (must bundle with network card)
M.2
  • Interface: 1 SATA/PCI-E 3.0 x4
  • Form Factor: 2280, 22110
  • Key: M-key
Drive Bays (per Node)
Hot-swap
  • 6 Hot-swap 2.5" SATA3 drive bays
System Cooling
Fans
  • 4 Heavy duty 8cm PWM fans
Power Supply
2200W Redundant Power Supplies with PMBus
Total Output Power
  • 1200W/1800W/1980W/2090/2200W
Dimension
(W x H x L)
  • 45 x 40 x 480 mm
Input
  • 1200W: 100-127Vac / 50-60Hz
  • 1800W: 200-220Vac / 50-60Hz
  • 1980W: 220-230Vac / 50-60Hz
  • 2090W: 230-240Vac / 50-60Hz
  • 2090W: 180-220Vac (for UL/cUL only)
  • 2200W: 220-240Vac (for UL/cUL only)
  • 2090W: 230-240Vdc (for CCC only)
+12V
  • Max: 100A / Min: 0A (100-127Vac)
  • Max: 150A / Min: 0A (200-220Vac)
  • Max: 165A / Min: 0A (220-230Vac)
  • Max: 174.17A / Min: 0A (230-240Vac)
  • Max: 174.17A / Min: 0A (180-220Vac, UL/cUL only)
  • Max: 183.33A / Min: 0A (220-240Vac, UL/cUL only)
  • Max: 174.17A / Min: 0A (230-240Vdc, CCC only)
12Vsb
  • Max: 2.1A / Min: 0A
Output Type
  • Gold Finger
Certification Titanium Level96% Titanium Level
[ Test Report ]
Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
    10°C ~ 30°C (50°F ~ 86°F)
    * Support for operating above 30°C is available in certain system configurations. Contact your Supermicro sales rep or Technical Support for more details.
  • Non-operating Temperature:
    -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
    8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
    5% to 95% (non-condensing)

See Parts List
Parts List - (Items Included)

Part Number
 Qty
 Description
Motherboard / Chassis MBD-H12DST-B
CSE-217BHQ+-R2K22BP2 		4
1 		Super H12DST-B Motherboard
2U Chassis
Backplane BPN-ADP-6SATA3-1UB 4 Support 6 SATA HDD adaptor card for Big Twin
Backplane BPN-SAS3-217BHQ 1 2U 4-Node 24-Port Backplane Supports 6x 2.5" SATA3/SAS3 SSD/HDD per Node
Drive Tray(s) MCP-220-00141-0B-BULK 24 Black Gen3 hot-swap 2.5 inch HDD tray with lock improved EMI
Parts MCP-240-21722-0N 1 217B/827B BigTwin type II (Edge card) BPN retention bkt assy
Riser Card RSC-P-6-X2 4 1U LHS TwinPro riser card with one PCI-E 4.0 x16 slot,HF,RoH
Riser Card RSC-PR-6-X2 4 1U RHS TwinPro Riser card with one PCI-E 4.0 x16 slot,HF,RoH
Software SFT-OOB-LIC 4 License key for enabling OOB BIOS management
Heatsink / Retention SNK-P0062PM 4 1U Passive Front CPU Heat Sink w/ a 30-mm Wide Middle Air Channel for AMD H11 2U4N Big Twin Series Servers
Heatsink / Retention SNK-P0062PW 4 1U Proprietary 93-mm Wide Passive Rear CPU Heat Sink for AMD H11 2U4N Big Twin Series Servers
Power Supply PWS-2K22A-1R 2 1U 2200W Redundant Power Supply Titanium, 45(W) X 40(H) X 48
FAN FAN-0183L4 4 80x80x38 mm, 16.5K RPM, Non-hot-swappable Middle Cooling Fan for X11 Twin Pro, X10 and X11 Big Twin Series Servers
Cable CBL-PWCD-0578-1 2 PWCD,US,IEC60320 C14 TO C13,3FT,14AWG,RoHS


Optional Parts List
Part Number Qty Description
Global Services & Support OS4HR3/2/1
OSNBD3/2/1 		-
- 		3/2/1-year onsite 24x7x4 service
3/2/1-year onsite NBD service
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
TPM security module AOM-TPM-9655V - TPM 1.2 module with Infineon 9655, RoHS/REACH,PBF;
AOM-TPM-9665V - TPM 2.0 module with Infineon 9665, RoHS/REACH,PBF;
SATADOM SSD-DM128-SMCMVN1 - SMC SATADOM, 128GB, SATA 6Gb/s, MLC, uSSD, 15nm,HF,RoHS/REACH
SSD-DM480-SMCMVN1 - SMC SATADOM,480GB,SATA 6Gb/s,3D TLC,uSSD,HF,RoHS
SSD-DM064-SMCMVN1 - SMC SATADOM,64GB,SATA 6Gb/s,MLC,uSSD,15nm,HF,RoHS
SSD-DM032-SMCMVN1 - SMC SATADOM,32GB,SATA 6Gb/s,MLC,uSSD,15nm,HF,RoHS
MEM-IDSAVS4-032G - SATA3DOM SL 3SE4 32GB SLC LP Pin8 VCC NH (L17725)
MEM-IDSAVM8A-128G - SATA3DOM SL 3ME3 V2 128GB MLC LP Pin8 VCC NH (S17411)
MEM-IDSAVM8A-256G - SATA3DOM ML 3ME3 V2 256GB MLC LP Pin8 VCC NH (S17411)
MEM-IDSAVE1-064G - SATA3DOM SL 3IE3 V2 64GB iSLC LP Pin8 VCC NH (S17411i)
MEM-IDSAVS3-032G - SATA3DOM SL 3SE 32GB SLC LP No Pin8 Vcc Support (S130710)
MEM-IDSAVT1-256G - IND SATA3DOM SL 3TE7 256GB 3D TLC Pin8VCC Vertical LP
SIOM - - Supermicro SIOM solutions [Details]
