Key Features

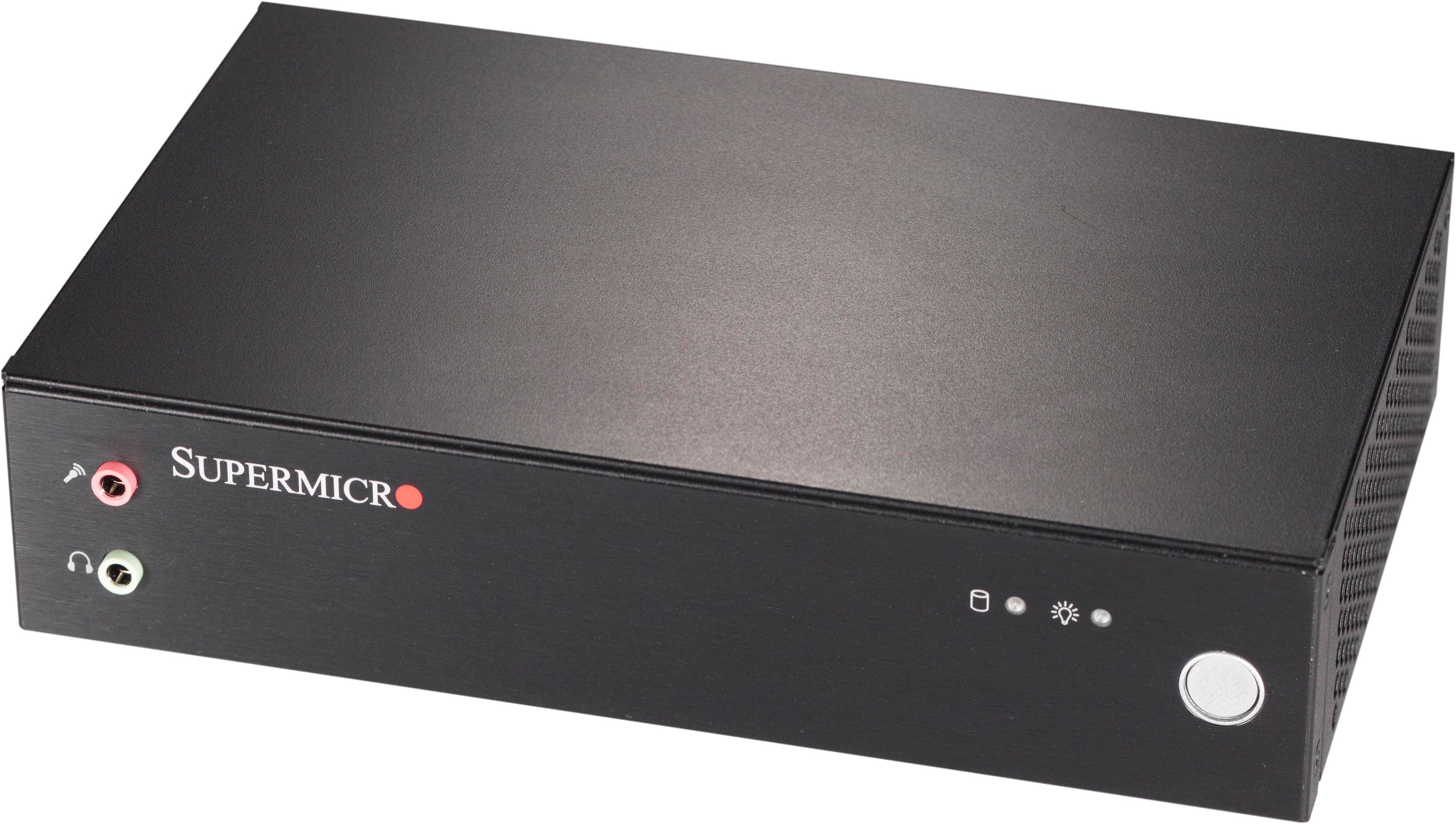

  1. Slim & Space-saving 3.5" SBC Chassis Design
  2. Embedded Appliance Chassis
  3. 1x 2.5" internal 7mm SSD support
  4. Support 3.5" SBC MBD form factor
  5. 1x 4cm Cooling Fan
  6. Optional VESA/Wall-mount ready
Resources
Specifications
Product SKUs
CSE-E102
  • SuperChassis E102

Form Factor
  • 3.5" SBC

Processor Support
  • Single Intel® and AMD processors

Dimensions
Height
  • 1.7" (43 mm)
Width
  • 7.6" (193 mm)
Depth
  • 5.2" (132 mm)
Packaging (W x H x L)
  • 15" (381 mm) x 10.87" (276 mm) x 5.59" (142 mm)
Available Color
  • Black

Drive Bays
  • Optional 1x 2.5" Internal drive bay

Front Panel
Button
  • Power On/Off button
LED
  • HDD activity LED
  • Power LED
Systems Cooling
Fans
  • 1x 4cm high performance PWM fan(s)

Operating Environment (System)
Operating Temperature Range
  • 0°C - 40°C (32°F - 104°F)
Non-Operating Temperature Range
  • -20°C - 60°C (-4°F - 140°F)
Operating Relative Humidity Range
  • 10% - 85% (non-condensing)
Non Operating Relative Humidity Range
  • 10% - 95% (non-condensing)
Components
Standard Parts List
  Part Number Qty Description
Part(s) MCP-230-10201-0B 1
Part(s) MCP-270-10201-0B 1
Part(s) MCP-270-10202-0B 1
Fan(s) FAN-0170L4 1 40x40x10 mm, 7K RPM, SC101S Chassis Fan
Part(s) MCP-160-10201-0B 1 CSE-E102 Default Front Panel mylar without any opening
Optional Parts List
  Part Number Qty Description
Cable CBL-CUSB-1045 - SERIAL, 2x DB9M TO 2X10F/P2.00,INT TO EXT,FLAT, 12CM, 28AWG
CBL-PWEX-0982 - PWR EXT,1X4F/P2.50 TO SATA POWER, 25CM, 22AWG
CBL-SAST-0881 - SATA,INT,6G,FLAT,ST-RA,25CM,30AWG,BLK,No Latch,RoHS
Chassis parts MCP-290-10113-0B - wall mount/VESA mount
MCP-160-10204-0B - CSE-E102 Optional FP mylar with Audio port only
MCP-160-10202-0B - CSE-E102 Optional FP mylar with 4x Comport opening only
MCP-160-10203-0B - CSE-E102 Optional FP mylar with 4x comport and Audio port

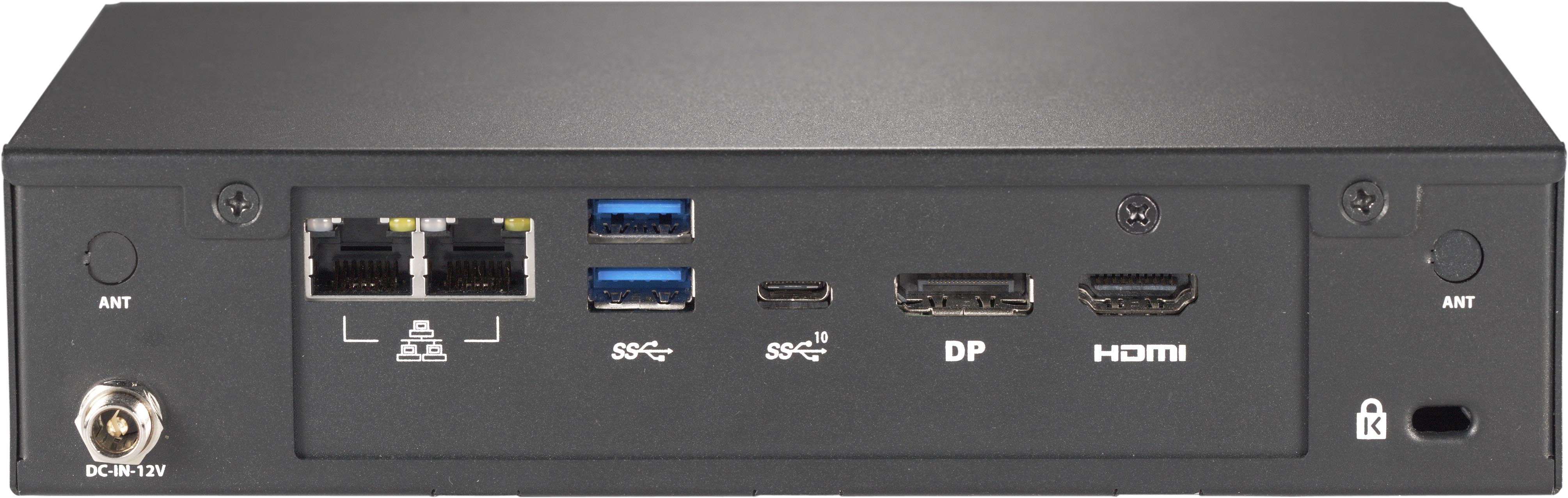

IO shield MCP-260-10202-0B - CSE-E102 I/O shield for X11SSN
MCP-260-10201-0B - CSE-E102 I/O shield for A2SAN and X11SAN
Power Adapter MCP-250-10117-0N - 60W DC power adapter with US power cord 18AWG 6ft
MCP-250-10124-0N - AC to DC 40W lockable power adapter
Motherboard (for CSE-E102)
X11SSN-L X11SWN-C X11SWN-E X11SWN-H
X11SWN-L A2SAN-H A2SAN-L X11SAN
= Most optimized Chassis for SuperServer Configuration
Blue color = Compatible
Green color = Global SKU & Compatible
Red dot & green color = Optimized + Global SKU
