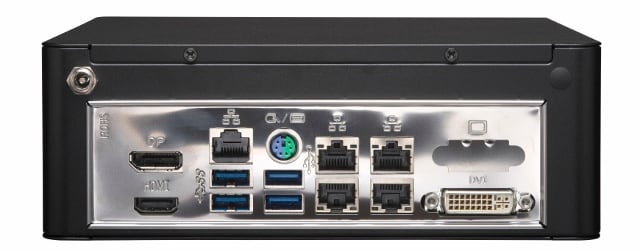

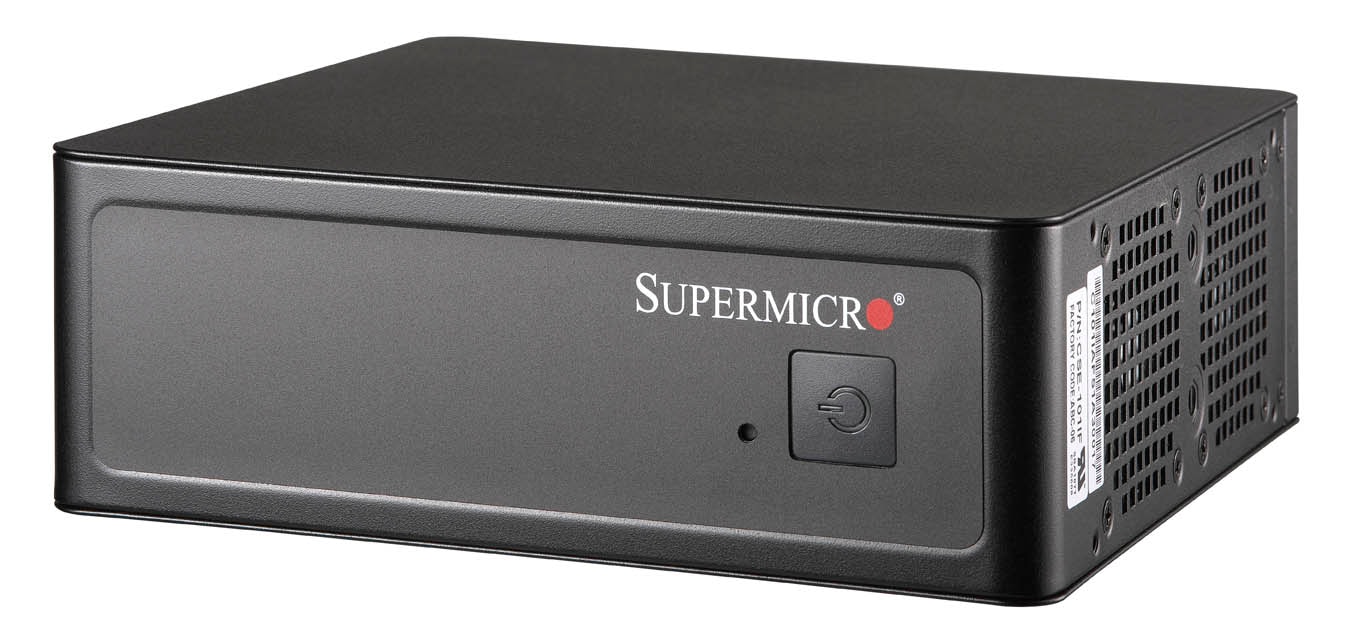

Note: Image above may show a varied configuration of optional parts. Please refer to parts list for standard parts included.
Key Features
  1. Slim & Space-saving Chassis Design
  2. Optional 60W/84W DC-in Power adapter
  3. 1x 2.5" internal HDD support
  4. 2x 6cm Cooling Fans
  5. Power switch w/ 1x LED
  6. VESA/Wall-mount ready

Specifications
Product SKUs
CSE-101iF
  • SuperChassis 101iF

Form Factor
  • Mini-ITX chassis support for motherboard size Mini-ITX 6.75" x 6.75"

Processor Support
  • Intel® Atom™ processors
  • Single Intel® and AMD processors

Dimensions
Height
  • 2.68" (68 mm)
Width
  • 7.68" (195 mm)
Depth
  • 7.68" (195 mm)
Gross Weight
  • 7.5 lbs (3.4 kg)
Net Weight
  • 2.76 lbs (1.25 kg)
Packaging (W x H x L)
  • 15" (381 mm) x 10.87" (276 mm) x 5.59" (142 mm)
Available Color
  • Black

Drive Bays
  • 1x 2.5" fixed drive bay
  • Enterprise SATA HDD only recommended

Front Panel
Button
  • Power On/Off button
  • System Reset button
LED
  • Power status LED
Systems Cooling
Fans
  • 2x 6cm 4-pin high performance cooling fan(s)

Operating Environment (System)
Operating Temperature Range
  • 0°C - 40°C (32°F - 104°F)
Non-Operating Temperature Range
  • -20°C - 60°C (-4°F - 140°F)
Operating Relative Humidity Range
  • 10% - 85% (non-condensing)
Non Operating Relative Humidity Range
  • 10% - 95% (non-condensing)

Power Supply
Optional 60W/84W, DC-DC Power Adapter
Certification
  • N/A

Regulatory (Power Supply)
Power Supply Safety / EMC
  • CCC
  • CE/EMC
  • FCC
  • TUV/CB
  • UL/CUL
Components
Standard Parts List
  Part Number Qty Description
Part(s) MCP-270-10104-0B 1 Chassis base for CSE-101iF
Part(s) MCP-290-10101-0B 1 Chassis
Part(s) MCP-290-10102-0N 1 CSE-101i HDD bracket support bar
Part(s) MCP-290-10103-0N 1 CSE-101i HDD bracket
Part(s) MCP-290-10104-0B 1 VESA and wall mount kit for CSE-101
Front Panel FPB-FP101S 1 Front panel for CSE-101S with Power and reset button
Optional Parts List
  Part Number Qty Description
Cable CBL-0296L - 9" 4 pin fan extension cord, for fan guide pin at 1&3 or 1&4
CBL-0080L - SATA Power Adapter Cable 6"
Chassis parts MCP-290-10108-0B - Dual system tray for Mini-ITX system
Power Adapter MCP-250-10117-0N - 60W DC power adapter with US power cord 18AWG 6ft
MCP-250-10122-0N - 84W DC power adapter with US power cord 18AWG 6ft
Servers (for CSE-101iF)
SYS-1019S-MP
Motherboard (for CSE-101iF)
A2SDi-8C+-HLN4F A2SDi-2C-HLN4F
= Most optimized Chassis for SuperServer Configuration
Blue color = Compatible
Green color = Global SKU & Compatible
Red dot & green color = Optimized + Global SKU
