Optimized for High-Density AI & HPC Data Center Racks
Supermicro’s Rear Door Heat Exchanger (RDHx) supports cooling capacities from 10 kW to 120 kW. Designed for high-density AI and HPC racks, it mounts quickly onto standard EIA, ORv3, and MGX racks, removes residual heat with N+1 redundant fans, and integrates seamlessly into new or existing data centers as part of the Data Center Building Block Solutions® (DCBBS) portfolio.
- Fast, Flexible Deployment
- Universal rack compatibility and simple mounting reduce installation time
- Cooling Capacity
- 10 kW to 120 kW to remove all residual heat
- Zero Downtime
- Redundant fans designs (3 to 12) keep cooling at peak performance
- High Reliability
- Smart anti-condensation system prevents moisture damage
Choose the Rear Door Heat Exchanger That Fits Your Needs
| Heat Removal | Supplementary | Advanced | Maximum |
|---|---|---|---|
| Cooling Capacity | Lowest | High | Highest |
| Recommendation | For rack-scale solutions with liquid cooling on the most critical components | For rack-scale solutions with liquid cooling on GPUs and CPUs only | For racks with only air-cooled servers |

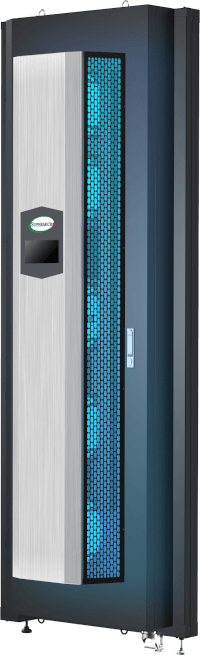

Supplementary Heat Removal
Purpose-built for rack solutions with low heat-removal requirements
- Cooling Capacity: Up to 25 kW
- Redundant fans designs (3 to 8) keep cooling at peak performance
- Power Consumption (Max): 1.25 kW to 2.84 kW
| Product(s) |
|
|
|
|---|---|---|---|
| Specification | EIA Rack | MGX Rack/EIA Rack/ORv3 Rack | MGX Rack/ORv3 Rack |
| Power Supply |
|
|
|
| DC Power Type | N/A | Direct DC Input/DC via Converter | Direct DC Input |
| Cooling Capacity | Up to 20 kW | Up to 25 kW | Up to 20 kW |
| Fan Quantity | 5 | 3 | 8 |
| Power Consumption (Max) | 2 kW | 1.25 kW | 2.84 kW |
| Dimensions |
|
|
|
| Weight | 120 kg (without coolant) | 64 kg (without coolant) | 110 kg (without coolant) |
| Protocols | Redfish®, SNMP, Web-based UI, and Supermicro SuperCloud Composer® (SCC) |

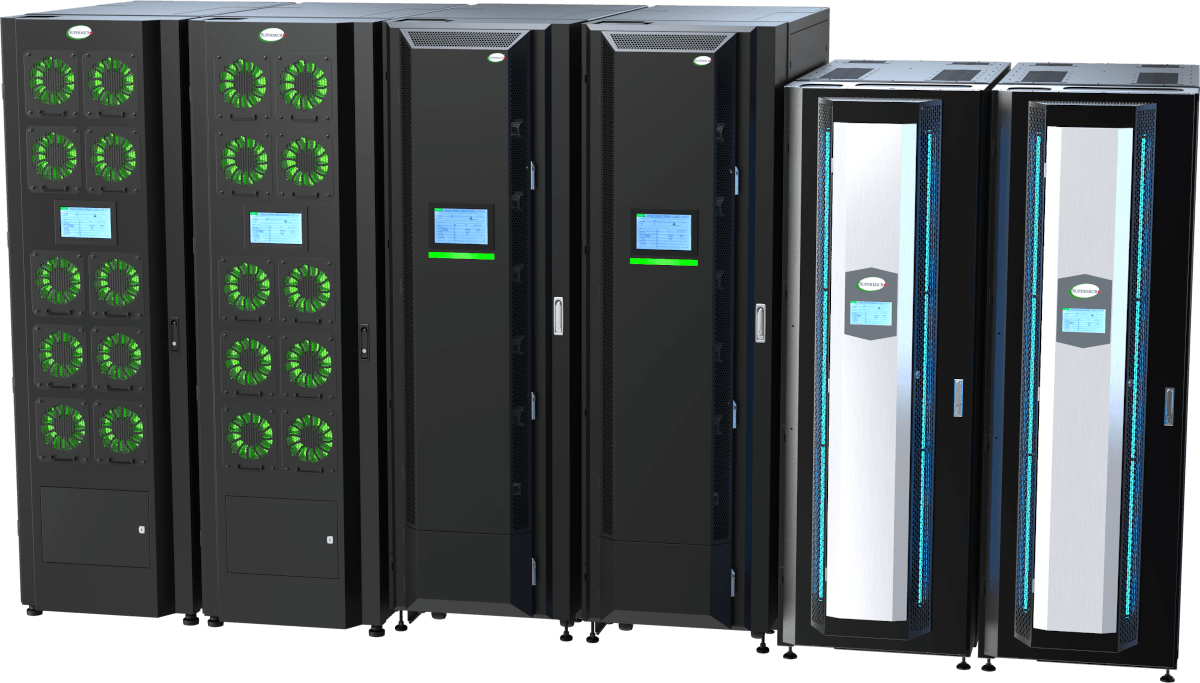

Advanced Heat Removal
Engineered for high-density rack solutions with elevated heat loads
- Cooling Capacity: Up to 50 kW
- Redundant fans designs (4 to 10) keep cooling at peak performance
- Power Consumption (Max): 1.7 kW to 3.3 kW
| Product(s) |
|
|
|
|---|---|---|---|
| Specification | EIA Rack | MGX Rack/EIA Rack/ORv3 Rack | MGX Rack |
| Power Supply |
|
|
|
| DC Power Type | N/A | Direct DC Input/DC via Converter | Direct DC Input |
| Cooling Capacity | Up to 50 kW | Up to 50 kW | Up to 50 kW |
| Fan Quantity | 6 | 4 | 10 |
| Power Consumption (Max) | 3.3 kW | 1.7 kW | 3.3 kW |
| Dimensions |
|
|
|
| Weight | 130 kg (without coolant) | 114 kg (without coolant) | 120 kg (without coolant) |
| Protocols | Redfish®, SNMP, Web-based UI, and Supermicro SuperCloud Composer® (SCC) |

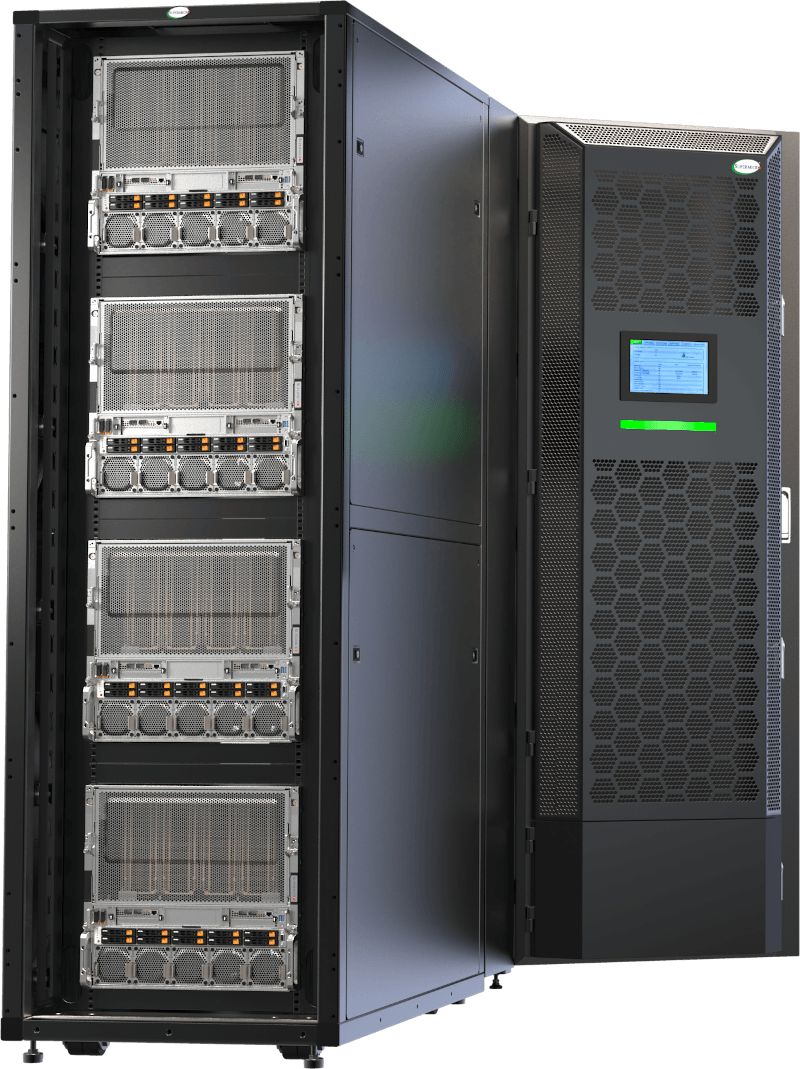

Maximum Heat Removal
Built for extreme heat loads, providing the highest cooling capacity to enable maximum compute density
- Cooling Capacity: Up to 120 kW
- Redundant fans designs (5 to 12) keep cooling at peak performance
- Power Consumption (Max): 2.1 kW to 5 kW
| Product(s) |
|
|
|
|---|---|---|---|
| Specification | MGX Rack/EIA Rack/ORv3 Rack | EIA Rack | MGX Rack/EIA Rack/ORv3 Rack |
| Power Supply | Alternating Current (AC) | Alternating Current (AC) | Alternating Current (AC) |
| Cooling Capacity |
|
|
|
| Fan Quantity | 5 | 12 | 6 |
| Power Consumption (Max) | 2.1 kW | 5 kW | 3.6 kW |
| Dimensions |
|
|
|
| Weight | 136 kg (without coolant) | 160 kg (without coolant) | 146 kg (without coolant) |
| Protocols | Redfish®, SNMP, Web-based UI, and Supermicro SuperCloud Composer® (SCC) |
Full Direct Current (DC) Design for More Efficient RDHx Cooling
In high-density AI data centers, every watt used and every degree of heat removal are critical. Our purpose-built DC fan for rear door heat exchangers uses a true full DC Design, drawing power directly from the MGX DC rack to eliminate conversion losses. Built-in MGX power redundancy keeps cooling online without extra backup hardware. The result is a simpler, more efficient architecture that cuts energy waste, improves power use, and supports dense AI racks.
