The Industry's Widest Variety of I/O Optimized Servers

1U WIO SuperServer

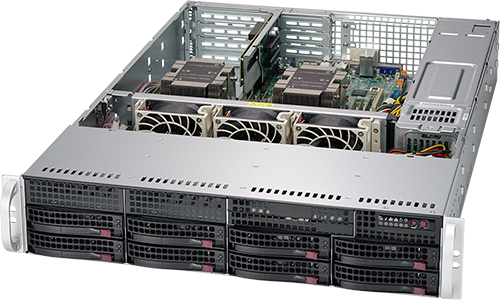

2U WIO SuperServer

WIO Servers

Supermicro WIO SuperServer® systems offer a wide range of I/O options to deliver truly optimized systems for specific requirements. Users can optimize the storage and networking alternatives to accelerate performance, increase efficiency and find the perfect fit for their applications. In addition to enabling customizable configurations and optimization for multiple application requirements, Supermicro WIO SuperServers also provide attractive cost advantages and investment protection.

The Supermicro WIO SuperServer® product family supports up to: 3TB DDR4-2933MHz ECC memory in 12 DIMM slots with support for Intel® Optane™ DC Persistent Memory, 3/6 Add-on Cards in 1U/2U, 12 SATA 3.0 (6Gbps) ports with Intel® C620 controller, hot-swap 2.5" or 3.5" drive bays, SATA3 and NVMe hybrid ports, optional NVMe drives, LAN options up to 2x 10GBase-T or 2x 1GbE ports, redundant Titanium Level (96%) power supplies, integrated IPMI 2.0 with KVM over dedicated LAN, and dual or single 2nd generation Intel® Xeon® Scalable processors up to 28 cores and 205W TDP.

Supermicro WIO SuperServers are optimized for General Purpose, ERP/MRP, and Network and Security Appliance Applications and used as Firewall, Mail and VPN servers.

Support up to:

  • 28 Cores per CPU
  • 3TB DDR4-2933MHz ECC memory in 12 DIMM slots with support for Intel® Optane™ DC Persistent Memory
  • 205W per socket
  • 3/6 PCI-E 3.0 x16 slots (1U/2U)
  • NVMe
  • Redundant 1200W high efficiency (96%) power supplies
New Generation of Computing Excellence
2nd generation Intel® Xeon® Scalable processors supported.
Intel, the Intel logo, Xeon, and Xeon Inside are trademarks of Intel Corporation or its subsidiaries in the U.S. and/or other countries.
WIO, Flexible I/O, UP • 10 Hot-swap 2.5" bays • 2 NVMe w/ AOC opt.
  • Database Processing and Storage, Data Center Applications
  • Single Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors
  • 6 DIMMs; up to 1.5TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • 10 Hot-swap 2.5" drive bays, M.2 mini-PCI-e support
  • 2 PCI-E 3.0 x16 (FHFL) slots, 1 PCI-E 3.0 x8 (LP) slot
  • 2x 10GBase-T ports via Intel X557, 1 Dedicated IPMI port
  • 1 VGA, 2 USB 3.0 (rear), 2 USB 2.0 (rear)
  • 5 Counter-rotating 4cm PWM cooling fans
  • 500W Redundant Platinum Level Power Supplies
X11SSW-F + • SC514-R407W
  • Appliance Server, WIO, Embedded Applications
  • Single Socket H4 (LGA 1151) supports: Intel® Xeon® processor E3-1200 v6/v5 family, Intel® 7th/6th Gen Core i3 series processor, Intel® Celeron® and Intel® Pentium processors
  • Intel® C236 chipset
  • 2x 2.5" internal fixed SATA3 drive bays
  • 1 PCI-E 3.0 x16 or 2 PCI-E 3.0 x8 Left Riser slot; 1 PCI-E 3.0 x4 (in x8); 1 M.2 connector
  • Up to 64GB DDR4 2400MHz ECC UDIMMs in 4 sockets
  • 2 RJ45 1GbE LAN ports (Intel® i210-AT)
  • Integrated IPMI 2.0 with KVM and Dedicated LAN
  • 1 VGA, 1 COM, 2 USB 3.0 (rear), 2 USB 2.0 (rear)
  • 2 SuperDOM ports with built-in power; TPM header
  • 400W Redundant High-efficiency Power Supplies
WIO, Flexible I/O • 8 Hot-swap 2.5" bays • 1 Slim DVD-ROM (Opt.)
  • Web Server, FireWall Applications, DNS, Print, Login, Gateway, Compact Network Appliance, Cloud Computing
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 12 DIMMs; up to 3TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 8 Hot-swap 2.5" drive bays; 1 slim DVD-ROM bay (option)
  • 2 PCI-E 3.0 x16 (FHHL), 1 PCI-E 3.0 x8 (LP), 1 PCI-E 3.0 x16 for AOM, 1 PCI-E 3.0 x4 NVMe M.2 slot
  • 2x 1GbE ports via Intel C621, 1 Dedicated IPMI port
  • 1 VGA, 6 USB 3.0 (4 rear, 2 via header)
  • 4 Counter-rotating 4cm PWM cooling fans
  • 600W Multi Output Platinum Level Power Supply

*Contact your Supermicro sales rep for more info.

WIO, Flexible I/O • 8 Hot-swap 2.5" bays • 1 Slim DVD-ROM (Opt.)
  • Web Server, FireWall Applications, DNS, Print, Login, Gateway, Compact Network Appliance, Cloud Computing
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 12 DIMMs; up to 3TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 8 Hot-swap 2.5" drive bays; 1 slim DVD-ROM bay (option)
  • 2 PCI-E 3.0 x16 (FHHL), 1 PCI-E 3.0 x8 (LP), 1 PCI-E 3.0 x16 for AOM, 1 PCI-E 3.0 x4 NVMe M.2 slot
  • 2x 1GbE ports via Intel C621, 1 Dedicated IPMI port
  • 1 VGA, 6 USB 3.0 (4 rear, 2 via header)
  • 4 Counter-rotating 4cm PWM cooling fans
  • 750W Redundant Platinum Level Power Supplies

*Contact your Supermicro sales rep for more info.

WIO, Flexible I/O • 10 Hot-swap 2.5" bays • 2 NVMe support
  • Cloud and other virtualization needs, hosting & application delivery, database processing & storage, simulation, automation
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 12 DIMMs; up to 3TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 10 Hot-swap 2.5" drive bays; 8 SATA3 + 2 NVMe/SATA3 hybrid ports
  • 2 PCI-E 3.0 x16 (FHHL), 1 PCI-E 3.0 x8 (LP), 1 PCI-E 3.0 x16 for AOM, 1 PCI-E 3.0 x4 NVMe M.2 slot
  • 2x 10GBase-T ports via Intel C622, 1 Dedicated IPMI port
  • 1 VGA, 6 USB 3.0 (4 rear, 2 front via header)
  • 4 Counter-rotating 4cm PWM cooling fans
  • 750W Redundant Platinum Level Power Supplies

*Contact your Supermicro sales rep for more info.

  • HA, High flexibility, VM, Communication, Application and data serving, Appliance Server
  • Single socket H4 (LGA 1151) supports Intel® Xeon® Processor E-2100 series, 8th Gen. Intel® Core™ i3/Pentium®/Celeron®; Intel ® C246 chipset
  • Up to 128GB unbuffered ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots
  • 2x 1GbE LAN ports (Intel i210-AT)
  • 1 PCI-E 3.0 x16 slot or 2 PCI-E 3.0 x8, 1 PCI-E 3.0 x4 (in x8) slot
  • 4 Hot-swap 3.5" drive bays
  • M.2: 1 SATA/PCI-E 3.0 x4 and 1 PCI-E 3.0 x4, 2260/2280/22110, M-Key
  • 2 USB 3.1 ports (rear), 2 USB 2.0 (rear)
  • 1 VGA port, 2 COM, 1 TPM 2.0 (header)
  • 500W Redundant Platinum Level power supplies
WIO, Flexible I/O, UP • 4 Hot-swap 3.5" bays
  • Database Processing and Storage, Data Center / Firewall Applications
  • Single Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors
  • 6 DIMMs; up to 1.5TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • 4 Hot-swap 3.5" drive bays, 1 slim DVD-ROM bay, M.2 mini-PCI-e support
  • 2 PCI-E 3.0 x16 (FHFL) slots, 1 PCI-E 3.0 x8 (LP) slot
  • 2x 10GBase-T ports via Intel X557, 1 Dedicated IPMI port
  • 1 VGA, 2 USB 3.0 (rear), 2 USB 2.0 (rear)
  • 5 Counter-rotating 4cm PWM cooling fans
  • 600W Multi Output Platinum Level Power Supply
WIO, Flexible I/O, UP • 4 Hot-swap 3.5" bays
  • Database Processing and Storage, Data Center / Firewall Applications
  • Single Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors
  • 6 DIMMs; up to 1.5TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • 4 Hot-swap 3.5" drive bays, M.2 mini-PCI-e support
  • 2 PCI-E 3.0 x16 (FHFL) slots, 1 PCI-E 3.0 x8 (LP) slot
  • 2x 10GBase-T ports via Intel X557, 1 Dedicated IPMI port
  • 1 VGA, 2 USB 3.0 (rear), 2 USB 2.0 (rear)
  • 5 Counter-rotating 4cm PWM cooling fans
  • 500W Redundant Platinum Level Power Supplies
X11SSW-F + • SC815TQC-R504WB
  • HA, VM, Communication, WIO, Flexible I/O
  • Single Socket H4 (LGA 1151) supports: Intel® Xeon® processor E3-1200 v6/v5 family, Intel® 7th/6th Gen Core i3 series processor, Intel® Celeron® and Intel® Pentium processors
  • Intel® C236 chipset
  • 4x 3.5" Hot-swap SATA3 bays w/ RAID
  • 2 PCI-E 3.0 x8, 1 PCI-E 3.0 x4 (in x8) AOC Slot; 1 M.2 connector
  • Up to 64GB DDR4 2400MHz ECC UDIMMs in 4 sockets
  • 2 RJ45 1GbE LAN ports (Intel® i210-AT)
  • Integrated IPMI 2.0 with KVM and Dedicated LAN
  • 1 VGA, 2 COM, 2 USB 3.0 (rear), 2 USB 2.0 (rear)
  • 2 SuperDOM ports with built-in power; TPM header
  • 500W (1+1) Redundant High-efficiency Power Supplies
WIO, Flexible I/O, UP • 8 Hot-swap 3.5" bays
  • Database Processing and Storage, Connectivity/Storage Computer Nodes, Data Warehouse
  • Single Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors
  • 6 DIMMs; up to 1.5TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • 8 Hot-swap 3.5" drive bays, 1 Slim DVD-ROM bay, M.2 mini-PCI-e support
  • 4 PCI-E 3.0 x8 (FHFL) slots, 1 PCI-E 3.0 x8 (LP) slot
  • 2x 10GBase-T ports via Intel X557, 1 Dedicated IPMI port
  • 1 VGA, 1 COM, 2 USB 3.0 (rear), 2 USB 2.0 (rear)
  • 3 Hot-swap 8cm PWM cooling fans
  • 500W Redundant Platinum Level Power Supplies
WIO, Flexible I/O • 4 Hot-swap 3.5" bays
  • Web Server, FireWall Applications, DNS, Print, Login, Gateway, Compact Network Appliance, Cloud Computing
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 12 DIMMs; up to 3TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 4 Hot-swap 3.5" drive bays
  • 2 PCI-E 3.0 x16 (FHHL), 1 PCI-E 3.0 x8 (LP), 1 PCI-E 3.0 x16 for AOM, 1 PCI-E 3.0 x4 NVMe M.2 slot
  • 2x 1GbE ports via Intel C621, 1 Dedicated IPMI port
  • 1 VGA, 4 USB 3.0 (rear)
  • 4 Counter-rotating 4cm PWM cooling fans
  • 600W Multi Output Platinum Level Power Supply

*Contact your Supermicro sales rep for more info.

WIO, Flexible I/O • 8x 3.5" + 2x 2.5" bays
  • Web Server, FireWall Applications, DNS, Print, Login, Gateway, Compact Network Appliance, Cloud Computing
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 12 DIMMs; up to 3TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 8 Fixed 3.5" + 2 Fixed 2.5" drive bays
  • 2 PCI-E 3.0 x16 (FHHL), 1 PCI-E 3.0 x8 (LP), 1 PCI-E 3.0 x16 for AOM, 1 PCI-E NVMe M.2 SSD
  • 2x 1GbE ports via Intel C621, 1 Dedicated IPMI port
  • 1 VGA, 4 USB 3.0 (rear)
  • 6 Counter-rotating 4cm PWM cooling fans
  • 650W/600W Multi-output Platinum Level Power Supply

*Contact your Supermicro sales rep for more info.

WIO, Flexible I/O • 4 Hot-swap 3.5" bays
  • Web Server, FireWall Applications, DNS, Print, Login, Gateway, Compact Network Appliance, Cloud Computing
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 12 DIMMs; up to 3TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 4 Hot-swap 3.5" drive bays
  • 2 PCI-E 3.0 x16 (FHHL), 1 PCI-E 3.0 x8 (LP), 1 PCI-E 3.0 x16 for AOM, 1 PCI-E 3.0 x4 NVMe M.2 slot
  • 2x 1GbE ports via Intel C621, 1 Dedicated IPMI port
  • 1 VGA, 4 USB 3.0 (rear)
  • 4 Counter-rotating 4cm PWM cooling fans
  • 750W Redundant Platinum Level Power Supplies

*Contact your Supermicro sales rep for more info.

WIO, Flexible I/O • 8 Hot-swap 3.5" and • 2 Fixed 3.5" bays
  • Web Server, FireWall Applications, DNS, Print, Login, Gateway, Compact Network Appliance, Cloud Computing
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 12 DIMMs; up to 3TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 8 Hot-swap 3.5" drive bays with SGPIO, 2 Fixed 3.5" drive bays
  • 4 PCI-E 3.0 x8 (FHHL), 2 PCI-E 3.0 x8 (LP), 1 PCI-E 3.0 x16 for AOM, 1 PCI-E 3.0 x4 NVMe M.2 slot
  • 2x 1GbE ports via Intel C621, 1 Dedicated IPMI port
  • 1 VGA, 4 USB 3.0 (rear)
  • 3 high-performance 8cm heavy duty PWM fans
  • 1000W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

WIO, Flexible I/O • 12 Hot-swap 3.5" bays
  • Web Server, FireWall Applications, DNS, Print, Login, Gateway, Compact Network Appliance, Cloud Computing
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 12 DIMMs; up to 3TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 12 Hot-swap 3.5" drive bays with SES2 and Mini-i-Pass: 8 SATA3 + 4 NVMe/SATA3 hybrid ports
  • 1 PCI-E 3.0 x16 (FHHL), 2 PCI-E 3.0 x8 (FHHL), 2 PCI-E 3.0 x8 (LP), 1 PCI-E 3.0 x16 for AOM, 1 PCI-E 3.0 x4 NVMe M.2 slot
  • 2x 10GBase-T ports via Intel C622, 1 Dedicated IPMI port
  • 1 VGA, 4 USB 3.0 (rear)
  • 3 high-performance 8cm heavy duty PWM fans
  • 1200W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.
