Supermicro NexentaEdge Solutions

Supermicro NexentaEdge Solutions

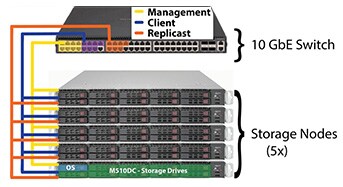

NexentaEdge Architecture

Reference Architecture Designs

  • Scale out, shared nothing architecture deployed on Linux standard x86 servers
  • Fully distributed data and metadata management
  • Multi-petabyte scale with low management overhead
  • Future proof design, ready for emerging storage media such as Key/Value drives, Ethernet drives and Shingled Magnetic Recording drives

Highlights

  • Next-Generation design
  • iSCSI with Cinder support
  • Swift and S3 Object API
  • End to end data integrity protection
  • Cluster wide inline deduplication
  • Fully distributed architecture with no single point of failure
  • Automatic load balancing based on least utilized resources (CPU, network, storage)
  • CLI and Horizon management plug-in
  • Container converged infrastructure, ready for cloud native applications

Benefits

  • Block Cinder, Swift and S3 APIs for OpenStack deployments
  • Next generation scale out design optimizing storage and network utilization
  • Fully distributed architecture eliminating single points of failure or hotspots
  • Minimize CAPEX by running on low cost industry standard servers
  • Minimize OPEX with dynamic self-balancing and self-healing capabilities
  • Reduce VM image storage footprint with cluster-wide inline deduplication

Functionality

  • High performance, low latency, iSCSI Block and Swift and S3 Object services
  • Simple scaling from 100’s of TB to 100’s of PBs
  • Patent pending FlexHash algorithms for continuous data placement optimization
  • Patent pending Replicast protocol for low latency network data transfers
  • Ultimate end to end data integrity with chunk level cryptographic checksums
  • Cloud Copy On Write powered unlimited space optimized snapshots and clones
  • Cluster-wide inline deduplication and compression

Data Protection & Optimizations

  • Cryptographic strength hashing and checksums of all data, with automated self-healing for ultimate data durability and integrity
  • Inline deduplication is performed on all written data across the entire cluster. Variable size chunking ensures maximum capacity savings
  • Object level replication policy control allows the application to set data specific protection levels

High Performance

  • Cloud Copy On Write of all content enables high performance data and metadata management
  • Replicast network protocol optimizes network utilization, minimizes data transfers and delivers faster response times
  • Flexhash dynamically optimizes data placement and data access and automatically ensures effective balancing of performance and capacity loads across the cluster
Cluster Role Storage Servers
SRS SKUs SRS-128UØØ-NE0T-ØØ SRS-128UØØ-NE0S-ØØ SRS-628RØØ-NE0T-ØØ SRS-628RØØ-NE0S-ØØ
System SKUs SYS-128UØØ-NEØT-ØØ SYS-128UØØ-NEØS-ØØ SYS-628RØØ-NEØT-ØØ SYS-628RØØ-NEØS-ØØ
Form Factor 1U 2U
CPU E5-2690 v4 2.6GHz, 14-core (x2) E5-2630 v4 2.2GHz, 10-core (x2)
Memory 256GB 64GB (Object Only) - 128GB (Block I/O)
Capacity 8.6TB 96TB
SSDs 2.5" SATA 6Gb/s SSD, 960GB, Data (x9)
2.5" SATA 6Gb/s SSD, 240GB, Boot (x1)
2.5" SATA SSD MLC (x2)
HDDs - 3.5" SATA 7.2k HDD (x10)
HBA controller AOC-S3008L-L8e or AOC-S3108L-L8IR
Network Interface AOC-STG-I2T (RJ45) AOC-STGN-I2S (SFP+)
AOC-E10GSFPSR (transceiver)
AOC-STG-I2T (RJ45) AOC-STGN-I2S (SFP+)
AOC-E10GSFPSR (transceiver)
Software Ubuntu 14.04 | CentOS 7.2 | RHEL 7.2 | NexentaEdge 1.1.0 or above
Cluster Role Storage Servers
SRS SKUs SRS-648RØØ-NE0T-ØØ SRS-648RØØ-NE0S-ØØ SRS-648RØØ-NE0T-ØØ SRS-648RØØ-NE0S-ØØ
System SKUs SYS-648RØØ-NEØT-ØØ SYS-648RØØ-NEØS-ØØ SYS-648RØØ-NEØT-ØØ SYS-648RØØ-NEØS-ØØ
Form Factor 4U
CPU E5-2630 v4 2.2GHz, 10-core (x2) E5-2660 v4 2.00GHz, 14-core (x2)
Memory 128GB 256GB
Capacity 288TB 576TB
SSDs 2.5" SATA SSD MLC (x6) 2.5" SATA SSD MLC (x12)
HDDs 3.5" SATA 7.2k HDD (x30) 3.5" SATA 7.2k HDD (x60)
HBA controller AOC-S3008L-L8e or AOC-S3108L-H8IR
Network Interface AOC-STG-I2T (RJ45) AOC-STGN-I2S (SFP+)
AOC-E10GSFPSR (transceiver)
AOC-STG-I2T (RJ45) AOC-STGN-I2S (SFP+)
AOC-E10GSFPSR (transceiver)
Software Ubuntu 14.04 | CentOS 7.2 | RHEL 7.2 | NexentaEdge 1.1.0 or above
* Memory, HDD and SSD configurations can vary depending on the form factor and workload profile
* Øs are defined based on the SSD brands and the quantity of nodes.
* Supermicro team will recommend the minimum quantity of nodes for clients according to the preferred replica method.
* For object storage only, HDDs can be substituted for SSDs to minimize the cost.

Supermicro-NexentaEdge Ready System

All-Flash Supermicro-NexentaEdge Ready Nodes
SYS-128UMI-NE0S-01
SYS-128UMI-NE0S-01

/ SYS-128UMI-NE0T-01

All-Flash • 8.6TB Raw Capacity
  • 1U Single Ready Node for Supermicro-NexentaEdge Scale-out Storage
  • 28 Cores (2 Intel Xeon E5-2690 v4) each Node
  • 256GB Memory (16x 16GB DDR4-2400) each Node
  • 2 PCI-E 3.0 x16 Expansion Slots
  • 8.6TB Data Storage (9x 960GB SSDs, 1x 240GB boot SSDs), Micron M510DC SSDs
  • Dual 10GbE SFP+ (NE0S model) or Dual 10GbE RJ45 (NE0T model)
  • 10X More IOPS (8K Random@75% Read / 25% Write) & 3X More IOPS (8K@100% Read) with iSCSI All-SSD vs. Hybrid Configurations
  • Supermicro 4-Hour Onsite Hardware Service for 3 Years (OS4HR3)
