Motherboard Layout

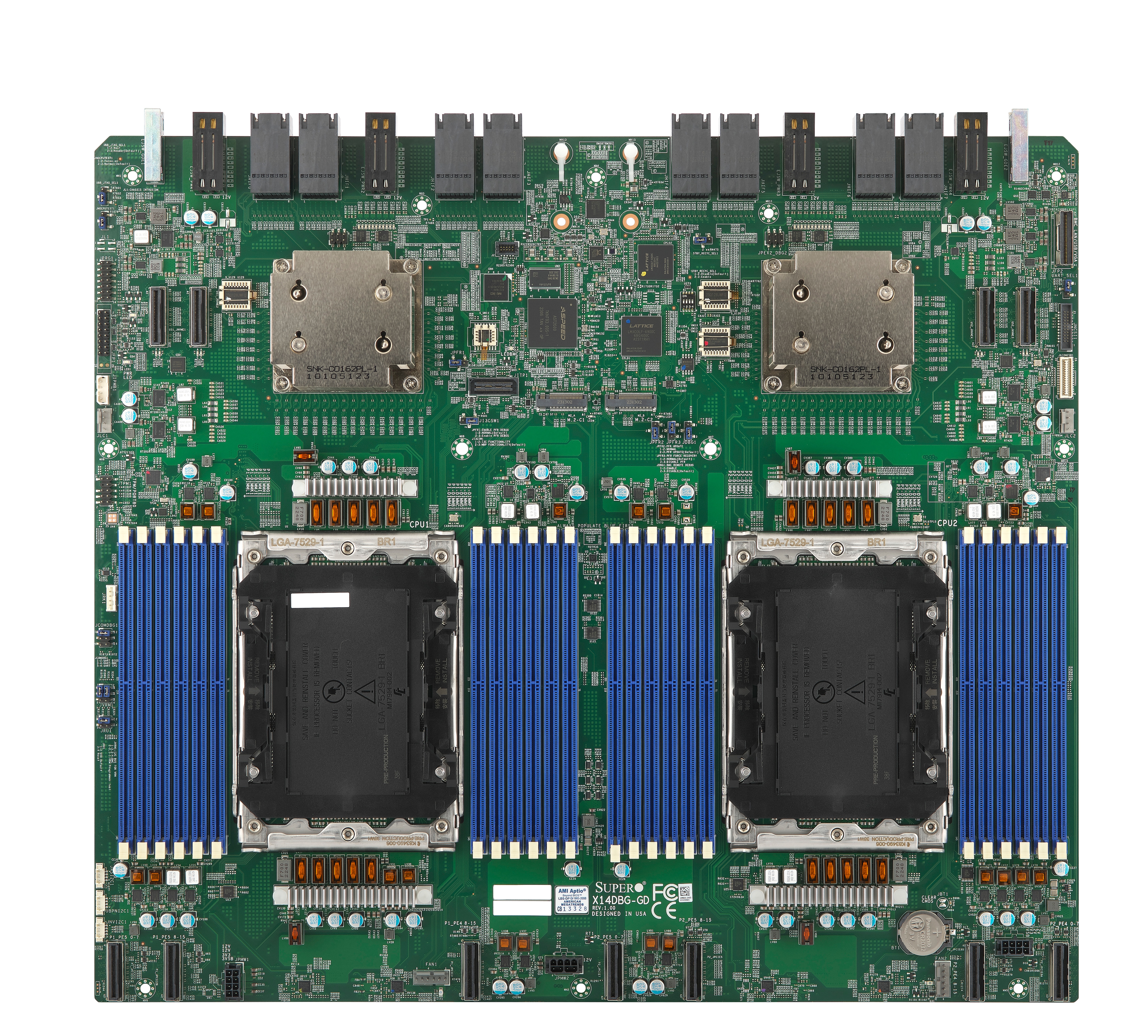

Figure 1. X14DBG-GD Motherboard Image



Figure 2. X14DBG-GD Motherboard Layout





Notes:

  • For detailed information on jumpers, connectors, and LED indicators, see Component Installation.

  • "■" indicates the location of pin 1.

  • "MH" indicates the location of a mounting hole.

  • Components not documented are for internal testing purposes only.

  • Use only the correct type of onboard CMOS battery as specified by the manufacturer. To avoid possible explosion, do not install the onboard battery upside down.
