SuperServer E102-9W-E

  Products  Systems   Embedded/IoT   [ E102-9W-E ]





Integrated Board
Super X11SWN-E

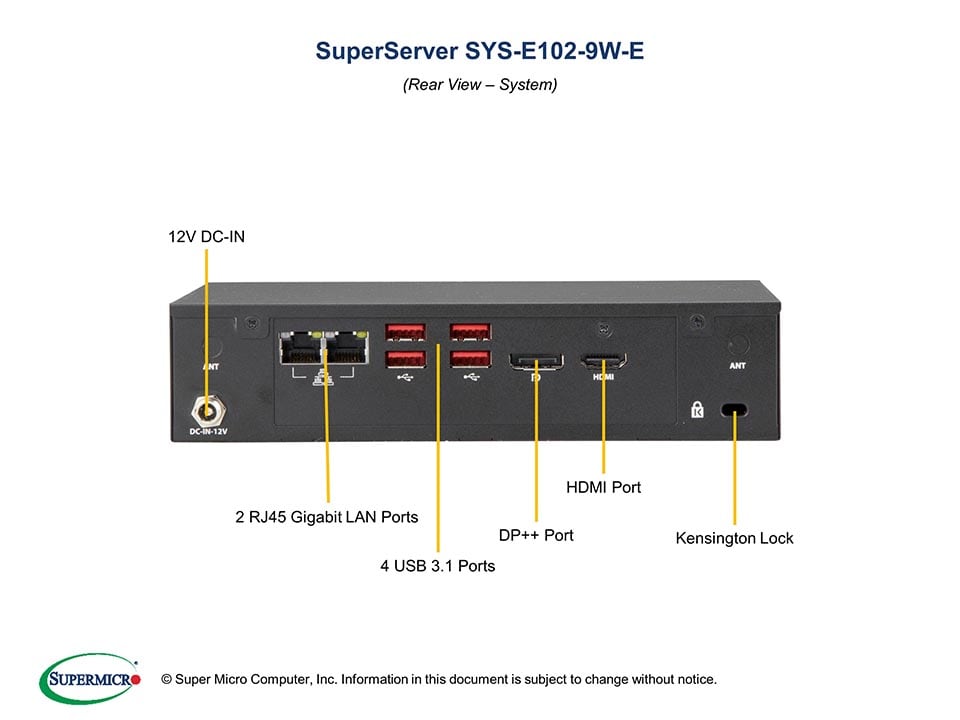

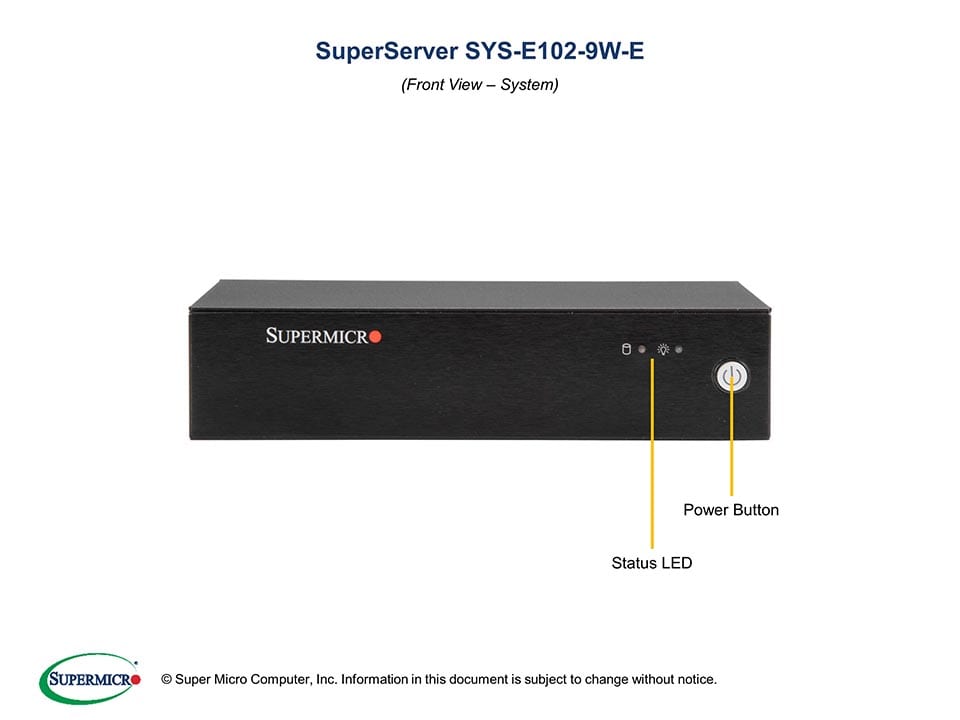

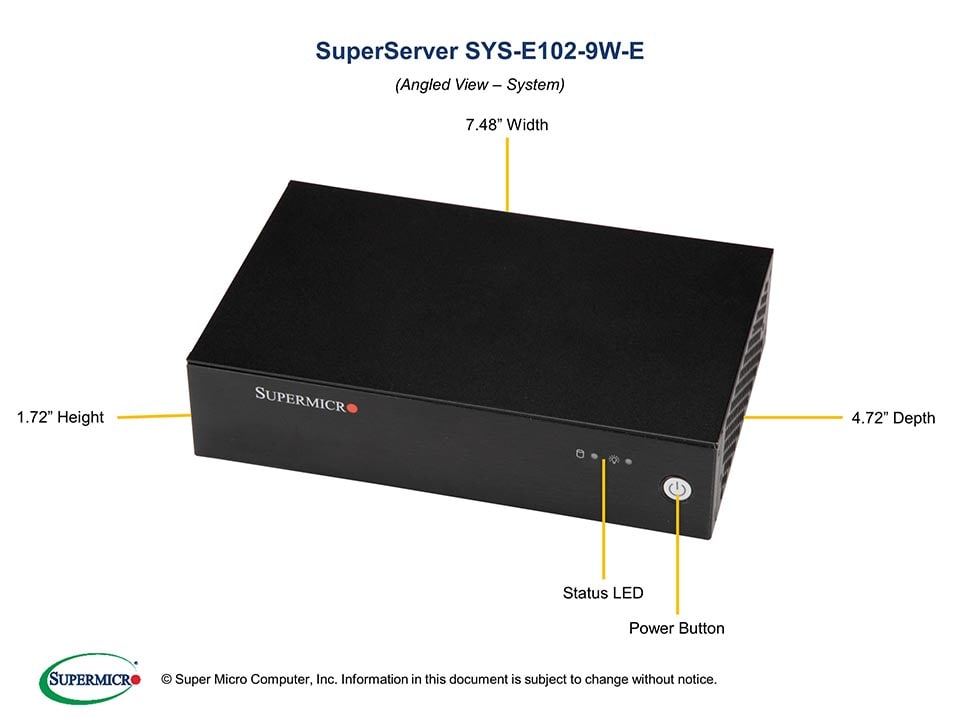

Views: | Angled View | Front View | Rear View |

 Key Features
  - Industrial Automation, Retail
  - Smart Medical Expert Systems
  - Kiosk, Interactive info system
  - Digital Signage

1. 8th Gen. Intel® Core™ i5-8365UE Processor;
    Single Socket FCBGA-1528
2. System-on-Chip
3. M.2: B-Key 2242/3042/2280,
    E-Key 2230, M-Key 2242/2280
4. Up to 64GB Unbuffered Non-ECC
    SO-DIMM DDR4 2400MHz;
    2 DIMM slots
5. 1x 1GbE LAN, Intel PHY i219LM
    1x 1GbE LAN, Intel i210IT
6. 4 COM (RS-232/422/485) Opt.,
    4 USB 3.1, TPM onboard
7. 1 HDMI and 1 Display Port
8. Passive CPU Heat Sink and
    1x 40mm Chassis Fan
9. Lockable 12V DC 60W power adapter

 Drivers & Utilities   BIOS   IPMI   Tested Memory  Tested M.2 List   Manuals    OS Certification Matrix

Product SKUs
SYS-E102-9W-E
  • SuperServer E102-9W-E (Black)

Motherboard

Super X11SWN-E

Processor/Cache
CPU
  • 8th Gen. Intel® Core™ i5-8365UE Processor
  • Single Socket FCBGA-1528
  • System-on-Chip
  • CPU TDP support 15W
Note BIOS version 2.0 or above is required

System Memory
Memory Capacity
  • Up to 64GB Unbuffered non-ECC SO-DIMM, DDR4-2400MHz, in 2 DIMM slots
Memory Type
  • DDR4 up to 2400MHz
DIMM Sizes
  • 32GB, 16GB, 8GB, 4GB
Memory Voltage
  • 1.2V

On-Board Devices
Chipset
  • System on Chip
Network Controllers
  • Single LAN with Intel® I210IT
  • Single LAN with Intel® PHY I219LM
Video
  • Intel® UHD Graphics 620

Input / Output
USB
  • 4 USB 3.1 Gen2 ports (Type A)
Video Output
  • 1 HDMI and 1 Display Port
COM Port
  • 4 COM ports: 2 RS232, 2 RS232/422/485, RS-485 supports auto flow control (option)
Others
  • TPM onboard
Chassis
Form Factor
  • 3.5" SBC
Model
  • CSE-E102

Dimensions
Width
  • 7.48" (190mm) / 11.81" (300mm) - pkg.
Height
  • 1.72" (44mm) / 5.12" (130mm) - pkg.
Depth
  • 4.72" (120mm) / 11" (279mm) - pkg.
Weight
  • Gross Weight: 4.5 lbs (2.04 kg)
  • Net Weight: 2.65 lbs (1.2 kg)
Available Colors
  • Black

Front Panel
Buttons
  • Power On/Off button
LEDs
  • Power LED and Hard drive activity LED

Expansion Slots
M.2
  • Key: B-Key, M-Key, E-Key
  • M.2 2242/3042/2280 B-Key (1 USB 3.0/2.0, 1 SATA Gen3) with nano SIM holder
  • M.2 2230 E-Key (CNVi/PCI-E 3.0 x1/USB2)
  • M.2 2242/2280 M-Key (PCI-E 3.0 x4, SATA Gen3 x 1), NVMe support

Drive Bays
Internal
  • 1 M.2 2242/2280 B-Key SATA
  • 1 M.2 2242/2280 M-Key (NVMe Support)
  • 1 SATA 2.5” 7mm SSD/HDD

System Cooling
Fans
  • Passive CPU Heat Sink and 1x 40mm Chassis Fan

Power Supply
Lockable 12V DC 60W power adapter

System BIOS
BIOS Type
  • AMI UEFI

Management
Software
Power Configurations
  • +12V ~ +24V DC Wide power range input
  • ACPI Power Management
  • Control of power-on for recovery from AC power loss
  • Force Power On by Jumper
  • CPU thermal trip support for processor protection

Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
    0°C ~ 50°C (32°F ~ 122°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)
See Parts List
Parts List - (Items Included)
  Part Number Qty Description
Motherboard / Chassis MBD-X11SWN-E
CSE-E102		 1
1		 Super X11SWN-E Motherboard
Embedded Enclosure for 3.5" SBC
Power Adapter MCP-250-10134-0N 1 60W DC power adapter with US power cord 18AWG 6ft (0-40°C)
Cooling Fan FAN-0170L4 1 40x40x10 mm, 7K RPM, SC101S Chassis Fan, RoHS
Cable CBL-0296L 1 4 pin to 4 pin fan extension cord, for PWM fan. 23cm. 24AWG
Cable CBL-PWEX-1029 1 PWR EXT,2X4F/P2.00 to 2x2M/P4.2, 12V,15CM,24AWG, 2.5A/pin, -20~80C, RoHS
I/O Shield MCP-260-10204-0B 1 CSE-E102 I/O shield for X11SWN
Hide Parts List
