Product Naming Convention - SuperBlade®/MicroBlade™ System

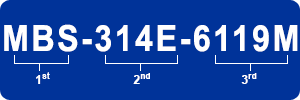

MBS-

3

1

4

E

-

6

1

1

9

M

Prefix

1st



2nd


Character (Set) Representation Options
Prefix Product Type         • SBS = SuperBlade System
        • MBS = MicroBlade System
1st Enclosure Type         • 820H
        • 314E
2nd Server Type         • 420P
        • 4114S
        • 6119M
        • 6219M



Product Naming Convention - MicroBlade™ Servers

MBI-

3

1

0

T

-

4

x

x

x

N

Prefix

1st

2nd

3rd

4th



5th

6th

7th

8th

9th


Character (Set) Representation Options
Prefix Product Type         • MBI = MicroBlade supporting Intel CPU
1st Blade Height         • 3 = 3U
        • 6 = 6U
2nd # of CPU per Node         • 1 = UP
        • 2 = DP
3rd Blade Generation         • 1 = B4
        • 0 = X12 / B3
4th Socket / Platform         • C = Catlow
        • T = Tatlow
        • A = Aldar Lake
        • I = Idaville
5th # of Node/Blade
Blade QTY / Row
        • 1 = 10
        • 4 = 14
6th, 7th, 8th
(Xeon E)
Node Density,
Storage Interface &
Drive Quantity
        • 7th: D = Dual nodes or M = Quad nodes per blade
          (Omit single node per blade)
        • 8th: C = SAS3 or T = SATA3
        • 9th: 2 = 2x 2.5" HDD/SSD
6th, 7th, 8th
(Xeon D SoC)
Node Density &
SOC CPU Type
        • 7th: S = Single / D = Dual / M = Quad nodes per blade
          (Omit single node per blade)
        • 8th & 9th: 96 = Xeon D-2796NT (Ice Lake)
9th Storage Type         • N = NVMe Support


MBI-

6

2

1

8

G

-

T

4

1

X

Prefix

1st

2nd

3rd

4th

5th



6th

7th

8th

9th


Character (Set) Representation Options

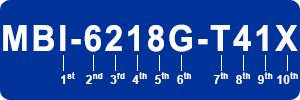

Prefix Product Type         • MBI = MicroBlade supporting Intel CPU
1st Enclosure Height         • 6 = 6U
        • 3 = 3U
2nd # of Nodes per Server         • 1
        • 2
        • 4
3rd # of CPUs per Server         • 1
        • 2
4th Blade Generation         • 9 = X11
        • 8 = X10 (Xeon E5-2600 v4/v3)
5th Socket Generation         • G = Xeon E3 series
        • R = Xeon E5 series
        • M = Xeon E-2100/2200 series
        • B = Xeon D-2100 series
6th Storage Interface         • T = SATA
        • C = SAS
7th # of Hot-plug Bays         • 2 = two 2.5" or 3.5"
        • 4 = four 2.5"
7th & 8th SOC CPU Type         • 41 = SOC Xeon D-1541 (X10)
        • 41 = SOC Xeon D-2141 (X11)
        • 81 = SOC Xeon D-1581
        • 7L = SOC Xeon E3-1578L v5
        • 8H = SOC Xeon E3-1585 v5
        • 63 = Xeon D-2163
        • 83 = Xeon D-2183
9th NVMe Support or
Networking Type
        • N = NVMe Support
        • X = 10GbE connection



Product Naming Convention - MicroBlade™ Enclosures

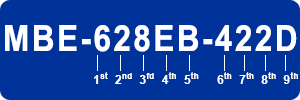

MBE-

6

2

8

E

B

-

4

2

2

D

Prefix

1st

2nd

3rd

4th

5th



6th

7th

8th

9th


Character (Set) Representation Options
Prefix Product Type         • MBE = MicroBlade Enclosure
1st Form Factor         • 6 = 6U enclosure
        • 3 = 3U enclosure
2nd & 3rd Number of Blades         • 28 = 28 blades
        • 14 = 14 blades
        • 20 = 20 blades
4th Enclosure Type         • E = Enterprise
5th Battery Backup         • B = Battery Backup Enable
6th # of Power Supplies         • 8 = Eight Power Supplies
        • 6 = Six Power Supplies
        • 4 = Four Power Supplies
        • 2 = Two Power Supplies
7th & 8th Power Supply (Watt)         • 20 = 2000
        • 22 = 2200
9th DC Power Supply         • D = DC Power Supply



Product Naming Convention - MicroBlade™ Modules

MBM-

X

E

M

-

0

0

2

+

Prefix

1st

2nd

3rd



4th

5th

6th

7th


Character (Set) Representation Options

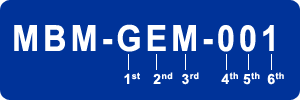

1st - 3rd MBM Initials         • CMM = Chassis Management Module
        • GEM = 1 Gigabit Ethernet Switch
        • XEM = 10 Gigabit Ethernet Switch
4th - 7th MBM Description         • 001 = (XEM) Intel Based Layer 2
        • 001 = (CMM) DB9 Console Port
        • 002 = Broadcom Based Layer 2
        • 002+ = Broadcom Based Layer 2 + RJ45
        • 004 = Broadcom Based Gigabit Layer 2
        • 100 = Marvell Based 10 Gigabit
        • FIO = Front I/O
        • FIO-V = Front I/O (signed FW)
