Product Naming Convention - Motherboards (Intel DP)

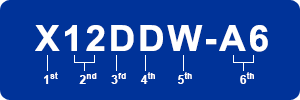

MBD-

X

12

D

D

W

-

A6

Prefix

1st

2nd

3rd

4th

5th



6th


Character Representation Options
Prefix Product Type         • MBD = Motherboard
1st CPU Type Supported         • X = Intel Xeon processors
1st + 2nd Generation & CPU         • X13 = 13th gen. Xeon Scalable Processors
        • X12 = 12th gen. Xeon Scalable Processors
        • X11 = 11th gen. Xeon Scalable Processors
        • X10 = 10th gen. Xeon (E5-2600 v4/v3)
3rd Number of
CPU Supported
        • D = Dual
4th CPU socket /
Chipset /
Board Type
        • A = Workstation
        • D = Datacenter Optimized
        • G = GPU Optimized
        • S = Storage Optimized
        • P = Socket P4 (LGA-4189 - X12)
        • P = Socket P0 (LGA 3647 - X11)
        • R = Socket R3 (LGA 2011 - X10)
        • B = Socket B3 (LGA 1356)
5th Controller Support         • C = SAS3 12Gb (Broadcom)
        • D = Datacenter Optimized
        • FF = FatTwin Front I/O
        • FR = FatTwin Rear I/O
        • G = GPU Optimized
        • i = SATA
        • L = Cost Optimized
        • M = Modular
        • Q/O = Four/Eight GPUs
        • S = Storage Optimized
        • T = Twin Architecture
        • U = Ultra Architecture
        • W = WIO Architecture
        • X = Max Expansion
6th Controller Support         • 6 = ASPEED 2600
        • A = AIOM Support
        • B = BigTwin
        • BH = BigTwin with 3 UPI
        • P = TwinPro
        • C = SAS3 12Gb (Broadcom)
        • E = BMC Enhancement (64MB)
        • HGX2 = HGX2 Optimized
        • i/E = SATA only
        • IBQ = Infiniband QDR
        • IBF = Infiniband FDR
        • IBE = Infiniband EDR
        • JBOD = JBOD Support
        • L = Cost Optimized
        • LN4 = Four LAN
        • M25 = 25G SFP+
        • N = NVMe Support
        • R = Intel Ruler NVMe
        • S = SIOM Support
        • T = 10GBase-T
        • T4 = Four 10GBase-T
        • TP = 10G SFP+
        • FP = 40G SFP+
        • Q/H/O = Four/Six/Eight GPUs
        • q = QAT Support
        • XLL = Hyper-Speed Technology
        • Z = Extra Features
        • + = Extra DIMMs
