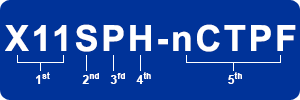

Product Naming Convention - UP Motherboards (Server)

MBD-

X

12

S

P

W

-

TF

Prefix

1st

2nd

3rd

4th

5th



6th


Section Representation Options
Prefix Product Type         • MBD = Motherboard
1st CPU Type Supported         • X = Intel Xeon processors
1st + 2nd Generation & CPU         • X13 = 13th gen. Xeon® Scalable Processors
        • X12 = 12th gen. Xeon® Scalable Processors
        • X11 = 11th gen. Xeon® Scalable Processors
        • X10 = 10th gen. Xeon® (E5-2600 v4/v3, E5-1600 v4/v3)
        • X12 = 12th gen. Xeon® (E-2300 Rocket Lake)
        • X11 = 11th gen. Xeon® (E-2100/2200 Coffee Lake)
        • X11 = 11th gen. Xeon® (E3-1200 v6/v5)
        • X10 = 10th gen. Xeon® (E3-1200 v4/v3)
3rd Number of
CPU Supported
        • S = Single processor
4th CPU socket / Chipset (Platform)         • P = Socket P4 (LGA-4189 X12SP_ series Whitley)
        • P = Socket P0 (LGA-3647 X11SP_ series Purley)
        • R = Socket R4 (LGA-2066 X11SR_ series Basin Fall)
        • R = Socket R3 (LGA-2011 X10SR_ series Grantley)
        • T = Rocket Lake (LGA-1200 X11ST_ series Tatlow)
        • C = Coffee Lake (LGA-1511 X11SC_ series Mehlow)
        • S = Skylake (LGA-1511 X11SS_ series Greenlow)
        • L = Lynx Point (LGA-1150 X10SL_ series Denlow)
5th Architecture
Application/Feature
        • I = Mainstream
        • L = Cost Optimized
        • M = Micro ATX
        • G = GPU Optimized
        • O = Optimized for high-performance storage
        • W = WIO Architecture
        • T = Twin Architecture
        • FR / FF = Rear IO / Front IO of FatTwin Architecture
        • DW = CloudDC
        • A = Legacy PCI support (as in X10SSA-F)
        • H = Alternative 1
6th Feature         • F = IPMI
        • LN4 = Four LANs
        • LN6 = Six LANs
        • 7 = Broadcom SAS 6Gbps
        • C = Broadcom SAS 12Gbps
        • T = 10Gb LAN
        • TP = 10G SFP+
        • I = mini-ITX form factor
        • S = Cost Optimized
        • N = NVMe support
        • G = Grand Twin
        • B = Big Twin
        • A = AIOM
        • V = VMD/VROC


MBD-

X

11

S

P

H

-

nCTPF

Prefix

1st

2nd

3rd

4th

5th



6th


Section Representation Options
Prefix Product Type         • MBD = Motherboard
1st CPU Type Supported         • X = Intel Xeon processors
1st + 2nd Generation & CPU         • X11 = 11th gen. Xeon Scalable Processors
        • X11 = 11th gen. Xeon® (E3-1200 v6/v5)
        • X10 = 10th gen. Xeon® (E5-2600 v4/v3, E5-1600 v3)
        •   X9 = 9th gen. Xeon® (E5-2600 v2/E5-2600, E5-1600 v2)
        •   X8 = 8th gen. Xeon® (QPI 6.4 GT/s)
3rd Number of
CPU Supported
        • S = Single processor
4th Chipset /
Board Type
        • A = Workstation
        • P = Purley with Socket P (X11)
        • S = SkyLake (X11 Greenlow)
        • R = Patsburg with Socket R (X9)
        • R = Grantley with Socket R3 (X10)
        • L = Lynx Point
        • I = Ibex Peak (3420/3400)
        • T = Tylersburg (X58)
        • C = Cougar Point
5th Architecture
Application/Feature
        • i = SATA only
        • L = Low Cost
        • M = Micro ATX
        • G = GPU Optimized
        • T = Twin Architecture
        • D = MicroCloud Architecture
        • W = WIO Architecture
        • U = UIO Architecture
        • A = Legacy / WS for Socket B2/R/H2/H3/H4
        • H = Alternative 1
        • E = Alternative 2
        • V = Alternative 3
6th Feature         • F = IPMI
        • LN4 = Four LANs
        • LN6 = Six LANs
        • X = PCIX
        • 6 = SAS2 (6Gbps)
        • 7 = Broadcom SAS 6Gbps
        • C = Broadcom SAS 12Gbps
        • T = 10Gb LAN
        • TP = 10G SFP+
        • D = Dual Nodes
        • S = Cost Optimized
        • N = NVMe support
        • G = Intel Graphics
        • V = VMD/VROC

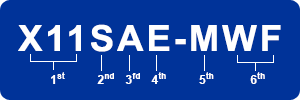

Product Naming Convention - UP Motherboards (Workstation)

MBD-

X

11

S

A

E

-

M

WF

Prefix

1st

2nd

3rd

4th

5th



6th

7th


Section Representation Options
Prefix Product Type         • MBD = Motherboard
1st CPU Type Supported         • X = Intel Xeon processors
1st + 2nd Platform         • X11 = 11th gen. Workstation
        • X10 = 10th gen. Xeon® (E3-1200 v4/v3)
        •   X9 = 9th gen. Xeon® (E5-2600 v2/E5-2600, E5-1600 v2)
        •   X8 = 8th gen. Xeon® (QPI 6.4 GT/s)
3rd Number of
CPU Supported
        • S = Single processor
4th Socket Type         • A, C = Socket H
        • R = Socket R
5th Product Line         • A, E = Workstation
6th Form factor         • M = uATX
        • I = mini ITX
        • "none" = ATX
7th Feature         • F = IPMI
        • W = WiFi

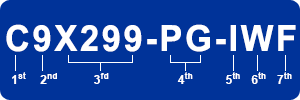

Product Naming Convention - UP Motherboards (Desktop)

MBD-

C

9

X299

-

PG

-

I

WF

Prefix

1st

2nd

3rd



4th



5th

6th


Section Representation Options
Prefix Product Type         • MBD = Motherboard
1st Platform         • C = Desktop
2nd Socket Type         • 7 = Socket H
        • 9 = Socket R
        Note: C7X99 series is exception, it is Socket R
3rd Chipset         • Chipset
4th Product Line         • PG = Pro Gaming
        • CG = Core Gaming
        • CB = Core Business
5th Form factor         • M = uATX
        • I = mini ITX
        • "none" = ATX
6th Feature         • F = IPMI
        • W = WiFi

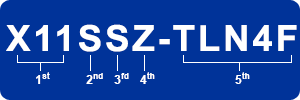

Product Naming Convention - UP Motherboards (Embedded)

MBD-

X

11

S

S

Z

-

TLN4F

Prefix

1st

2nd

3rd

4th

5th



6th


Section Representation Options
Prefix Product Type         • MBD = Motherboard
1st CPU Type Supported         • X = Intel Xeon processors
        • A = Intel Atom processors
1st + 2nd Generation & CPU         • X11 = 11th gen. Xeon® D-2100, E-2100, Core, Pentium or Celeron
        • X10 = 10th gen. Xeon® D-1500, E3 v6/v5, Core, Pentium or Celeron
        • A1 = Intel® Atom™ Processor C2000 Series
        • A2 = Intel® Atom™ Processor C3000 or E3900 SoC Series
3rd Number of
CPU Supported
        • S = Single processor
4th Chipset /
Board Type
        • D = Xeon D or Atom C3000
        • C = Coffee Lake
        • S = Sky Lake or Kaby Lake
        • L = Lynx Point, Haswell
        • A = Apollo Lake for A2 or Avoton for A1
        • R = Rangeley
        • B = Bay Trail for X10, Braswell for X11
5th Form Factor
Application/Feature
        • i = Mini-ITX
        • A = Mini-ITX
        • V = Mini-ITX or Flex ATX
        • N = 3.5" SBC, 4" x 5.75"
        • P = 2.5" SBC
        • E = MicroCloud Architecture
        • D = MicroCloud Architecture
        • Z = Micro ATX, 1U Optimized
        • Q = Miro ATX Core i7, 2U Application
6th Feature         • TLN2F = Dual 10GBase-T, w/ IPMI
        • TLN4F = Dual 10GBase-T & Dual GbE LAN, w/ IPMI
        • TLN4F+ = Dual 10GSFP+ & Dual GbE LAN, w/ IPMI
        • TLN5F = Quad 10GBase-T & 1 GbE LAN, w/ IPMI
        • TP4F = Dual 10GSFP+, 4 LAN ports, w/ IPMI
        • TP8F = Dual 10GSFP+, 8 LAN ports
          (X11/A2 with dual 10GBase-T), w/ IPMI
        • LN8F = 8 GbE LAN Ports, w/ IPMI
        • LN10PF = Dual SFP, 10x 1GbE LAN ports, w/ IPMI
        • LN4F = Quad 1GbE LAN ports, w/ IPMI
        • M4 = Quad 1GbE LAN ports, w/ AMT
        • M4F = Quad 1GbE LAN ports, w/ IPMI
        • F = Dual LAN ports, w/ IPMI
        • Q = Q170 or Q370 PCH with AMT support
        • L = Low cost SKU
        • H = High Performance SKU
        • E = Extended Temperature Support

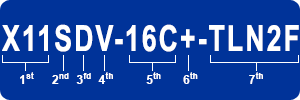

MBD-

X

11

S

D

V

-

16C

+

-

TLN2F

Prefix

1st

2nd

3rd

4th

5th



6th

7th



8th


Section Representation Options
Prefix Product Type         • MBD = Motherboard
1st CPU Type Supported         • X = Intel Xeon processors
        • A = Intel Atom processors
1st + 2nd Generation & CPU         • X11 = 11th gen. Xeon® D-2100, E-2100 SoC
        • X10 = 10th gen. Xeon® D-1500, E3 v6/v5 SoC
        • A1 = Intel® Atom™ Processor C2000 SoC Series
        • A2 = Intel® Atom™ Processor C3000 or E3900 SoC Series
3rd Number of
CPU Supported
        • S = Single processor
4th Chipset /
Board Type
        • D = Xeon D or Atom C3000
        • C = Coffee Lake
        • S = Sky Lake or Kaby Lake
        • L = Lynx Point, Haswell
        • A = Apollo Lake
        • B = Bay Trail for X10, Braswell for X11
5th Form Factor
Application/Feature
        • i = Mini-ITX
        • A = Mini-ITX
        • V = Mini-ITX or Flex ATX
        • N = 3.5" SBC, 4" x 5.75"
        • P = 2.5" SBC
        • E = MicroCloud Architecture
        • D = MicroCloud Architecture
        • Z = Micro ATX, 1U Optimized
        • Q = Miro ATX Core i7, 2U Application
6th Core Count         • Core Number 2-18C or more
7th Heat Sink Type         • + = with CPU Fan active thermal module
8th Feature         • TLN2F = Dual 10GBase-T, w/ IPMI
        • TLN4F = Dual 10GBase-T & Dual GbE LAN, w/ IPMI
        • TLN4F+ = Dual 10GSFP+ & Dual GbE LAN, w/ IPMI
        • TLN5F = Quad 10GBase-T & 1 GbE LAN, w/ IPMI
        • TP4F = Dual 10GSFP+, 4 LAN ports, w/ IPMI
        • TP8F = Dual 10GSFP+, 8 LAN ports
          (X11/A2 with dual 10GBase-T), w/ IPMI
        • LN8F = 8 GbE LAN Ports, w/ IPMI
        • LN10PF = Dual SFP, 10x 1GbE LAN ports, w/ IPMI
        • LN4F = Quad 1GbE LAN ports, w/ IPMI
        • M4 = Quad 1GbE LAN ports, w/ AMT
        • M4F = Quad 1GbE LAN ports, w/ IPMI
        • F = Dual LAN w/ IPMI
        • Q = Q170 or Q370 PCH with AMT support
        • L = Low cost SKU
        • H = High Performance SKU
        • E = Extended Temperature Support
