Product Naming Convention - SuperServer® with 2.5" HDDs

SYS-

1

2

0

C

-

TN10

R

SYS-

1

2

0

H

-

TN

R

Prefix

1st

2nd

3rd

4th



5th

6th


Character Representation Options
Prefix Product Category         • SYS = Intel SuperServer
1st Drive Form Factor         • 1 = 1U 2.5"
        • 2 = 2U 2.5"
2nd CPU/Socket Quantity         • 1 = Single Processor (UP)
        • 2 = Dual Processor (DP)
3rd Generation         • 1 = X13 Series
        • 0 = X12 Series
4th Chipset / System Platform         • C = CloudDC
        • H = Hyper
        • HE = Hyper-E
        • U = Ultra
        • P = Pxx
5th Storage / IO Features         • T = SATA/SAS (via HBA/SAS controller)
        • TN = NVMe/SATA/SAS (via HBA/SAS controller)
        • TN10 = 10 NVMe/SATA/SAS (via HBA/SAS controller)
        • FTN = Front IO, Short Depth (22.6"),
          NVMe/SATA/SAS (via HBA/SAS controller)
        • RTN = Rear IO, Short Depth (22.6"),
          NVMe/SATA/SAS (via HBA/SAS controller)
        • MTN = Short Depth (22.6"), NVMe/SATA/SAS
          (via HBA/SAS controller)
6th Power Type         • R = Redundant Power Supplies
        • RD = Redundant DC Power Supplies


SYS-

1

1

0

P

-

W

T

R

Prefix

1st

2nd

3rd

4th



5th

6th

7th


Character Representation Options
Prefix Product Category         • SYS = Intel SuperServer
1st Chassis/HDD Form Factor         • 1 = 1U 2.5"
        • 2 = 2U 2.5"
2nd CPU/Socket Quantity         • 1 = Single Processor (UP)
        • 2 = Dual Processor (DP)
3rd Generation         • 1 = X13 Series
        • 0 = X12 Series
4th Chipset / System Platform         • U = Ultra
        • P = Pxx
5th Features         • M = Short Depth
        • W = WIO
        • L = Low cost
6th Connectivity         • T = 10GbE
7th Power Type         • R = Redundant Power Supplies

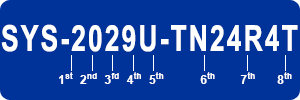

SYS-

2

0

2

9

U

-

TN24

R

4T

Prefix

1st

2nd

3rd

4th

5th



6th

7th

8th


Character Representation Options
Prefix Product Category         • SYS = Intel SuperServer
1st Form Factor         • 1 = 1U
        • 2 = 2U
        • 3 = 3U
        • 4 = 4U
2nd Reserved         • 0 = Reserved
3rd CPU         • 1 = Single processor
        • 2 = Dual processor
4th Generation         • 9 = X11 Series
        • 8 = X10 Series
        • 7 = X9 Series
        • 6 = X8 Series
        • 5 = X7 Series
5th Chipset / System Platform         • P = Socket P (X11) / Panther Point (X7)
        • K = Xeon Phi / Socket P
        • GQ = Quad GPGPU
        • GR = GPGPU
        • A = Workstation
        • B = Bigby / Socket B2
        • C = Cougar Point
        • D = Denlow platform
        • I = Foxhollow
        • M = Mukilteo
        • R = Socket R
        • S = Skylake
        • T = Tylersburg
        • U = Ultra
        • UT = EX DP 32 DIMM (X9)
        • UX = Ultra Hyper-Speed
        • AX = Overclocking
6th Interface / Other         • 3 = SAS (SCU) (X8)
        • 6 = SAS2 (X8)
        • 70 = LSI 2008
        • 71 = LSI 2108
        • 72 = LSI 2208
        • 73 = LSI 2308
        • B = Brickland
        • C = SAS3
        • C0 =SAS3 IT Mode
        • C1 = SAS3 HW RAID
        • D = Data Center Optimized (X10) / Desktop (X8)
        • E = Extension Slot with Riser
        • E1C = Single SAS3 Expander
        • H = Hot Swap (X8) / Support x16 device (GPGPU)
        • LL# = Low Latency Model#
        • M = Mini-Chassis
        • N = NVMe (X10)
        • N# = # of NVMe drives (X10, X11)
        • N3 = SAS without UIO (X8)
        • NT = SATA without UIO (X8)
        • P = Internal slot / Passive
        • T = SATA
        • U = UIO (X8)
        • W = WIO
        • X = MaxIO (Socket R) / NVLink (GPGPU)
7th Power Type         • R = Redundant Power Supplies
8th Connectivity         • + = 18 DIMM (X8) / 24 DIMM (X9,X10) / FPGA (X11)
        • 25M = 25GbE Mellanox
        • 2 = 2 LAN ports
        • 4 = 4 LAN ports
        • B8 = Broadwell CPU with 8GB memory
        • F = IPMI (onboard BMC) (X7,X8)
        • LL# = Low Latency Model#
        • P = SFP+
        • T = 10GbE


Product Naming Convention - Twin/TwinPro/BigTwin (2.5" HDD)

SYS-

2

2

0

BT

-

H

NC8

R



Prefix

1st

2nd

3rd

4th



5th

6th

7th

8th


Character Representation Options
Prefix Product Category         • SYS = Intel SuperServer
1st Drive Form Factor         • 2 = 2.5"
        • 6 = 3.5"
2nd CPU/Socket Quantity         • 1 = Single Processor (UP)
        • 2 = Dual Processor (DP)
3rd Generation         • 1 = X13 Series
        • 0 = X12 Series
4th Chipset / System Platform         • BT = BigTwin
        • TP = TwinPro
        • P = Pxx
5th # of Nodes         • D: 2 Nodes
        • H: 4 Nodes
6th Interface / Other
        • C1 = SAS3 (LSI 3108) 12Gb
        • C8 = Broadcom 3808 / 3816
        • C9 = Broadcom 3908
        • N = NVMe
        • T = SATA
        • E = EDSFF
7th Power Type         • R = Redundant Power Supplies
8th Connectivity         • 4: 4-port 1GbE
        • T: 2-port 10GBase-T

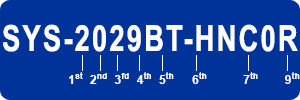

SYS-

2

0

2

9

BT

-

H

NC0

R

Prefix

1st

2nd

3rd

4th

5th



6th

7th

9th


Character Representation Options
Prefix Product Category         • SYS = Intel SuperServer
1st Form Factor         • 1 = 1U
        • 2 = 2U
2nd Reserved         • 0 = Reserved
3rd CPU         • 2 = Dual processor
4th Generation         • 9 = X11 Series
        • 8 = X10 Series
        • 7 = X9 Series
5th Chipset / System Platform         • BT = BigTwin
        • TP = TwinPro (X10, X11)
        • PR = TwinPro (X9)
        • TK = TwinPro (Xeon Phi)
        • TR = Twin
6th # of Nodes         • D: 2 nodes
        • H: 4 nodes
7th Interface / Other
        • 70 = Broadcom 2008
        • 71 = Broadcom 2108
        • 72 = Broadcom 2208
        • 73 = Broadcom 2308
        • C0 = SAS3 IT Mode, Broadcom 3008
        • C1 = SAS3 HW RAID, Broadcom 3108
        • N = NVMe
        • T = SATA
8th Connectivity         • F: IB FDR / 40G Ethernet
        • Q: QDR
        • T: 10GBase-T
9th Power Type         • R = Redundant Power Supplies
10th Others         • + = 24 DIMM (X10) / 16 DIMM (older X9)
        • F = Onboard BMC (older X9)
        • -SIOM = SIOM slot (X10)


Product Naming Convention - FatTwin (2.5" HDD)

SYS-

F

6

1

0

P

2

-

R

T

N

Prefix

1st

2nd

3rd

4th

5th

6th



7th

8th

9th


Character Representation Options
Prefix Product Category         • SYS = Intel SuperServer
1st Product Series         • F = FatTwin
2nd CPU/Socket Quantity         • 6 = Dual Processor (DP)
3rd Tray Height /
Form Factor
        • 1 = 1U
        • 2 = 2U
4th Generation         • 1 = X13 Series
        • 0 = X12 Series
5th Chipset / System Platform         • E = Socket E
        • P = Purley / Whitley
6th HDD/Tray Form Factor         • 2 = 2.5"
7th I/O Direction         • F = Front I/O
        • R = Rear I/O
8th Controller Interface         • T = SATA
        • C0 = HBA
        • C1 = HW RAID
9th and 10th Additional         • B = Rear HDDs
        • N = NVMe drives
        • BN = Rear HDDs + NVMe

SYS-

F

6

1

9

P

2

-

R

C1



Prefix

1st

2nd

3rd

4th

5th

6th



7th

8th

9th


Character Representation Options
Prefix Product Category         • SYS = Intel SuperServer
1st Product Series         • F = FatTwin
2nd Number of processor(s)         • 5 = UP
        • 6 = DP
        • 8 = QP
3rd Tray Height /
Form Factor
        • 1 = 1U
        • 2 = 2U
        • 4 = 4U
4th System Generation         • 9 = X11 Series
        • 8 = X10 Series
        • 7 = X9 Series
5th Chipset / Socket / Platform         • P = Socket P
        • R = Socket R
        • B = Socket B2
        • G = GPU node
        • H = Hadoop node
6th HDD/Tray Form Factor         • 2 = Half width tray with 2.5" drives
        • 4 = Full width tray with 2.5" drives
7th I/O Direction         • F = Front I/O
        • R = Rear I/O
8th Controller Interface         • 72 = Broadcom 2208 controller
        • 73 = Broadcom 2308 controller
        • T = Intel SATA
        • C0 = Broadcom 3008 controller
        • C1 = Broadcom 3108 controller
9th and 10th Additional         • B = Rear HDDs
        • PT = 10G LAN
        • + = 16 DIMMs (X9, X10)
        • L = Cost effective
        • N = NVMe drives
        • F = Infiniband 56Gbps


Product Naming Convention - GPU (2.5" HDD)

SYS-

4

2

0

GP

-

TN

A

R

T

Prefix

1st

2nd

3rd

4th



5th

6th

7th

8th


Character Representation Options
Prefix Product Category         • SYS = Intel SuperServer
1st Chassis Form Factor         • 1 = 1U
        • 2 = 2U
        • 4 = 4U
        • 7 = Tower
2nd CPU/Socket Quantity         • 1 = Single Processor (UP)
        • 2 = Dual Processor (DP)
        • 4 = Dual Processor (DP), 4U
3rd Generation         • 1 = X13 Series
        • 0 = X12 Series
4th GPU Info.         • GP = GPU
        • GQ = Quad GPU
5th Storage Features         • T = SATA
        • N = NVMe
6th GPU (Optional)         • A = A100 SXM4
7th Power Type         • R = Redundant Power Supplies
8th Connectivity         • T = 10GbE



Product Naming Convention - SuperStorage (2.5" HDD)

SSG-

1

2

0

SP

-

NEL

R

32L

Prefix

1st

2nd

3rd

4th



5th

6th

7th


Character Representation Options
Prefix Product Category         • SSG = SuperStorage
1st Server Rack Height, Number = Rack Unit         • 1 = 1U
        • 2 = 2U
2nd Socket Quantity         • 1 = UP
        • 2 = DP
3th System Generation         • 1 = X13 Series
        • 0 = X12 Series
4th Chipset / System Platform         • E = Socket E
        • P = Socket P
        • SP = Service Optimized Socket P
5th Storage Architecture         • D = 2 Nodes
        • N = NVMe
        • U = U.2 / U.3
        • EL = EDSFF Long
        • ES = EDSFF Short
        • 3L/3S = EDSFF 3
        • E1 = Single Expander
        • E2 = Dual Expander
        • A = Direct Attached
        • C = SAS3
6th Power Redundancy         • S = Single Power Supply
        • R = Redundant Power Supplies
7th Bay count, Disk Controller         • L = IT Mode
        • H = Hardware RAID

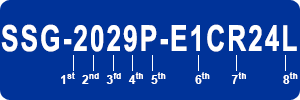

SSG-

2

0

2

9

P

-

E1C

R

24L

Prefix

1st

2nd

3rd

4th

5th



6th

7th

8th


Character Representation Options
Prefix Product Category         • SSG = SuperStorage
1st Form Factor         • 1 = 1U
        • 2 = 2U
        • 3 = 3U
        • 4 = 4U
2nd Reserved         • 0 = Reserved
3rd CPU         • 1 = UP
        • 2 = DP
4th System Generation         • 9 = X11 Series
        • 8 = X10 Series
        • 7 = X9 Series
5th Socket / Family         • P = Socket P
        • R = Socket R
        • D2 = Socket F / 2-Core
        • D4 = Socket F / 4-Core
        • D8 = Socket F / 8-Core
        • T = Tylersberg
        • A = Atom SoC
6th Interface Type         • A = Direct Attached
        • AC = Direct Attached SAS3
        • D = Dual Motherboard
        • DC = Dual Motherboard SAS3
        • E1 = Single Expander
        • E1C = Single SAS3 Expander
        • E2 = Dual Expander
        • E2C = Dual SAS3 Expander
        • N = NVMe
7th Power Redundancy         • R = Redundant Power Supplies
8th Additional         • ## = Number of drive bays
        • 4 = 4 LAN ports
        • L = IT Mode
        • H = Hardware RAID
        • N = Hardware RAID & 24 DIMMs (X9/X10) /
          NVMe (X10 Simply Double)
        • NV = NVDIMM
        • T = HW RAID up to 16 drives
