Product Naming Convention - SuperServer® with 3.5" HDDs
SYS- |
6 |
2 |
0 |
C |
- |
TN12 |
R |
SYS- |
6 |
2 |
0 |
H |
- |
TN |
R |
Prefix |
1st |
2nd |
3rd |
4th |
5th |
6th |
| Character | Representation | Options |
| Prefix | Product Category | • SYS = Intel SuperServer |
| 1st | Drive Form Factor | • 6 = Dual Processor (DP) |
| 2nd | CPU/Socket Quantity |
• 1 = 1U, 3.5" • 2 = 2U, 3.5" |
| 3rd | Generation | • 0 = X12 Series |
| 4th | Chipset / System Platform |
• C = CloudDC • H = Hyper • U = Ultra |
| 5th | Storage / IO Features |
• T = SATA/SAS (via HBA/SAS controller) • TN = NVMe/SATA/SAS (via HBA/SAS controller) • TN12 = 12 NVMe/SATA/SAS (via HBA/SAS controller) |
| 6th | Power Type |
• R = Redundant Power Supplies |
SYS- |
5 |
2 |
0 |
P |
- |
W |
T |
R |
Prefix |
1st |
2nd |
3rd |
4th |
5th |
6th |
7th |
| Character | Representation | Options |
| Prefix | Product Category | • SYS = Intel SuperServer |
| 1st | CPU/Socket Quantity |
• 5 = Single Processor (UP) 3.5" • 6 = Dual Processor (DP) 3.5" |
| 2nd | Chassis Form Factor |
• 1 = 1U • 2 = 2U • 4 = 4U |
| 3rd | Generation | • 0 = X12 Series |
| 4th | Chipset / System Platform |
• U = Ultra • P = Pxx |
| 5th | Features |
• M = Short Depth • W = WIO • L = Low cost |
| 6th | Connectivity | • T = 10GbE |
| 7th | Power Type | • R = Redundant Power Supplies |

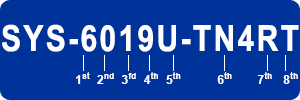

SYS- |
6 |
0 |
1 |
9 |
U |
- |
TN4 |
R |
T |
Prefix |
1st |
2nd |
3rd |
4th |
5th |
6th |
7th |
8th |
| Character | Representation | Options |
| Prefix | Product Category | • SYS = Intel SuperServer |
| 1st | CPU |
• 5 = Single processor • 6 = Dual processor • 7 = Dual processor (Tower) |
| 2nd | Reserved | • 0 = Reserved |
| 3rd | Form Factor |
• 1 = 1U • 2 = 2U • 3 = 3U • 4 = 4U |
| 4th | Generation |
• 9 = X11 Series • 8 = X10 Series • 7 = X9 Series • 6 = X8 Series • 5 = X7 Series |
| 5th | Chipset / System Platform |
• P = Socket P (X11) / Panther Point (X7) • K = Xeon Phi / Socket P • GP = GPU/Coprocessor (X11) • GQ = Quad GPGPU • GR = GPGPU • A = Workstation • B = Bigby / Socket B2 • C = Cougar Point • D = Denlow platform • I = Foxhollow • M = Mukilteo • R = Socket R • S = Skylake • T = Tylersburg • U = Ultra • UX = Ultra Hyper-Speed • AX = Overclocking |
| 6th | Interface / Other |
• 3 = SAS (SCU) (X8) • 6 = SAS2 (X8) • 70 = LSI 2008 • 71 = LSI 2108 • 72 = LSI 2208 • 73 = LSI 2308 • C0 =SAS3 IT Mode • C1 = SAS3 HW RAID • D = Data Center Optimized (X10) / Desktop (X8) • E = Extension Slot with Riser • E1C = Single SAS3 Expander • H = Hot Swap (X8) / Support x16 device (GPGPU) • I = Internal Drives • M = Mini-Chassis • N = NVMe (X10, X11) • N# = # of NVMe drives (X10, X11) • N3 = SAS without UIO (X8) • NT = SATA without UIO (X8) • P = Internal slot / Passive • T = SATA • U = UIO (X8) • W = WIO • X = MaxIO (Socket R) / NVLink (GPGPU) |
| 7th | Power Type | • R = Redundant Power Supplies |
| 8th | Connectivity |
• + = 18 DIMM (X8) / 24 DIMM (X9,X10) / FPGA (X11) • 25M = 25GbE Mellanox • 2 = 2 LAN ports • 4 = 4 LAN ports • 8 = 8 Internal Drives • F = IPMI (onboard BMC) (X7, X8) • -NF# = Xeon Phi 72## Processor • P = SFP+ • T = 10GbE |
Product Naming Convention - Twin/TwinPro/BigTwin
(3.5" HDD)
SYS- |
2 |
2 |
0 |
BT |
- |
H |
NC8 |
R |
|
Prefix |
1st |
2nd |
3rd |
4th |
5th |
6th |
7th |
8th |
| Character | Representation | Options |
| Prefix | Product Category | • SYS = Intel SuperServer |
| 1st | Drive Form Factor |
• 2 = 2.5" • 6 = 3.5" |
| 2nd | CPU/Socket Quantity |
• 1 = Single Processor (UP) • 2 = Dual Processor (DP) |
| 3rd | Generation | • 0 = X12 Series |
| 4th | Chipset / System Platform |
• BT = BigTwin • TP = TwinPro • P = Pxx |
| 5th | # of Nodes |
• D: 2 Nodes • H: 4 Nodes |
| 6th |
Interface / Other |
• C1 = SAS3 (LSI 3108) 12Gb • C8 = Broadcom 3808 / 3816 • C9 = Broadcom 3908 • N = NVMe • T = SATA • E = EDSFF |
| 7th | Power Type | • R = Redundant Power Supplies |
| 8th | Connectivity |
• 4: 4-port 1GbE • T: 2-port 10GBase-T |

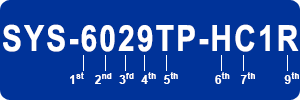

SYS- |
6 |
0 |
2 |
9 |
TP |
- |
H |
C1 |
R |
Prefix |
1st |
2nd |
3rd |
4th |
5th |
6th |
7th |
9th |
| Character | Representation | Options |
| Prefix | Product Category | • SYS = Intel SuperServer |
| 1st | CPU |
• 6 = Dual processor |
| 2nd | Reserved | • 0 = Reserved |
| 3rd | Form Factor |
• 1 = 1U • 2 = 2U |
| 4th | Generation |
• 9 = X11 Series • 8 = X10 Series • 7 = X9 Series |
| 5th | Chipset / System Platform |
• BT = BigTwin • TP = TwinPro (X10, X11) • PR = TwinPro (X9) • TK = TwinPro (Xeon Phi) • TR = Twin |
| 6th | # of Nodes |
• D: 2 nodes • H: 4 nodes |
| 7th |
Interface / Other |
• 70 = Broadcom 2008 • 71 = Broadcom 2108 • 72 = Broadcom 2208 • 73 = Broadcom 2308 • C0 = SAS3 IT Mode, Broadcom 3008 • C1 = SAS3 HW RAID, Broadcom 3108 • N = NVMe • T = SATA |
| 8th | Connectivity |
• F: IB FDR / 40G Ethernet • Q: QDR • T: 10GBase-T |
| 9th | Power Type | • R = Redundant Power Supplies |
| 10th | Others |
• + = 24 DIMM (X10) / 16 DIMM (older X9) • F = Onboard BMC (older X9) • -SIOM = SIOM slot (X10) |
Product Naming Convention - FatTwin (3.5" HDD)

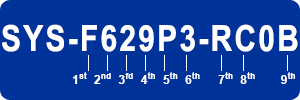

SYS- |
F |
6 |
2 |
0 |
P |
3 |
- |
R |
T |
BN |
Prefix |
1st |
2nd |
3rd |
4th |
5th |
6th |
7th |
8th |
9th |
| Character | Representation | Options |
| Prefix | Product Category | • SYS = Intel SuperServer |
| 1st | Product Series | • F = FatTwin |
| 2nd | CPU/Socket Quantity | • 6 = Dual Processor (DP) |
| 3rd |
Tray Height / Form Factor |
• 1 = 1U • 2 = 2U |
| 4th | Generation | • 0 = X12 Series |
| 5th | Chipset / System Platform |
• P = Purley / Whitley |
| 6th | HDD/Tray Form Factor |
• 3 = 3.5" |
| 7th | I/O Direction |
• F = Front I/O • R = Rear I/O |
| 8th | Controller Interface |
• T = SATA • C0 = HBA • C1 = HW RAID |
| 9th and 10th | Additional |
• B = Rear HDDs • N = NVMe drives • BN = Rear HDDs + NVMe |
SYS- |
F |
6 |
2 |
9 |
P |
3 |
- |
R |
C0 |
B |
Prefix |
1st |
2nd |
3rd |
4th |
5th |
6th |
7th |
8th |
9th |
| Character | Representation | Options |
| Prefix | Product Category | • SYS = Intel SuperServer |
| 1st | Product Series | • F = FatTwin |
| 2nd | Number of processor(s) |
• 5 = UP • 6 = DP • 8 = QP |
| 3rd |
Tray Height / Form Factor |
• 1 = 1U • 2 = 2U • 4 = 4U |
| 4th | System Generation |
• 9 = X11 Series • 8 = X10 Series • 7 = X9 Series |
| 5th | Chipset / Socket / Platform |
• P = Socket P • R = Socket R • B = Socket B2 • G = GPU node • H = Hadoop node |
| 6th | HDD/Tray Form Factor |
• 3 = Half width tray with 3.5" drives • 6 = Full width tray with 3.5" drives |
| 7th | I/O Direction |
• F = Front I/O • R = Rear I/O |
| 8th | Controller Interface |
• 72 = Broadcom 2208 controller • 73 = Broadcom 2308 controller • T = Intel SATA • C0 = Broadcom 3008 controller • C1 = Broadcom 3108 controller |
| 9th and 10th | Additional |
• B = Rear HDDs • PT = 10G LAN • + = 16 DIMMs (X9, X10) • L = Cost effective • N = NVMe drives • F = Infiniband 56Gbps |
Product Naming Convention - GPU (3.5" HDD)
SYS- |
7 |
4 |
0 |
GP |
- |
TN |
R |
T |
|
Prefix |
1st |
2nd |
3rd |
4th |
5th |
6th |
7th |
8th |
| Character | Representation | Options |
| Prefix | Product Category | • SYS = Intel SuperServer |
| 1st | Chassis Form Factor |
• 1 = 1U • 2 = 2U • 4 = 4U • 7 = Tower |
| 2nd | CPU/Socket Quantity |
• 1 = Single Processor (UP) • 2 = Dual Processor (DP) • 4 = Dual Processor (DP), 4U |
| 3rd | Generation | • 0 = X12 Series |
| 4th | GPU Info. |
• GP = GPU • GQ = Quad GPU |
| 5th | Storage Features |
• T = SATA • N = NVMe |
| 6th | GPU (Optional) | • A = A100 SXM4 |
| 7th | Power Type | • R = Redundant Power Supplies |
| 8th | Connectivity | • T = 10GbE |
Product Naming Convention - SuperStorage (3.5" HDD)
SSG- |
6 |
4 |
0 |
SP |
- |
DE1C |
R |
60L |
Prefix |
1st |
2nd |
3rd |
4th |
5th |
6th |
7th |
| Character | Representation | Options |
| Prefix | Product Category | • SSG = SuperStorage |
| 1st | Socket Quantity |
• 5 = UP • 6 = DP |
| 2nd | Server Rack Height, Number = Rack Unit |
• 1 = 1U • 2 = 2U • 3 = 3U • 4 = 4U |
| 3th | System Generation | • 0 = X12 Series |
| 4th | Chipset / System Platform |
• P = Socket P • SP = Service Optimized Socket P |
| 5th | Storage Architecture |
• D = 2 Nodes • N = NVMe • U = U.2 / U.3 • EL = EDSFF Long • ES = EDSFF Short • 3L/3S = EDSFF 3 • E1 = Single Expander • E2 = Dual Expander • A = Direct Attached • C = SAS3 |
| 6th | Power Redundancy |
• S = Single Power Supply • R = Redundant Power Supplies |
| 7th | Bay count, Disk Controller |
• L = IT Mode • H = Hardware RAID |

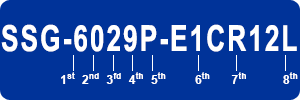

SSG- |
6 |
0 |
2 |
9 |
P |
- |
E1C |
R |
12L |
Prefix |
1st |
2nd |
3rd |
4th |
5th |
6th |
7th |
8th |
| Character | Representation | Options |
| Prefix | Product Category | • SSG = SuperStorage |
| 1st | CPU |
• 5 = UP • 6 = DP • 7 = DP (Tower) |
| 2nd | Reserved | • 0 = Reserved |
| 3rd | Form Factor |
• 1 = 1U • 2 = 2U • 3 = 3U • 4 = 4U |
| 4th | System Generation |
• 9 = X11 Series • 8 = X10 Series • 7 = X9 Series |
| 5th | Socket / Family |
• P = Socket P • R = Socket R • D2 = Socket F / 2-Core • D4 = Socket F / 4-Core • D8 = Socket F / 8-Core • T = Tylersberg • A = Atom SoC |
| 6th | Interface Type |
• A = Direct Attached • AC = Direct Attached SAS3 • D = Dual Motherboard • DC = Dual Motherboard SAS3 • E1 = Single Expander • E1C = Single SAS3 Expander • E2 = Dual Expander • E2C = Dual SAS3 Expander • N = NVMe |
| 7th | Power Redundancy |
• R = Redundant Power Supplies |
| 8th | Additional |
• ## = Number of drive bays • 4 = 4 LAN ports • L = IT Mode • H = Hardware RAID • N = Hardware RAID & 24 DIMMs (X9/X10) / NVMe (X10 Simply Double) • NV = NVDIMM • T = HW RAID up to 16 drives |
