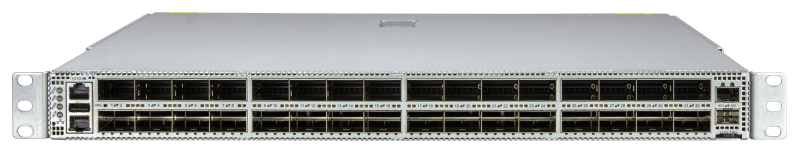

SSE-T8032S – coming soon
  Products  Networking     Switches [ SSE-C4632SB/SRB ]
High-performance Open Networking 400GbE Spine and Leaf Switch

Supermicro’s next generation high port density 400Gbps Open Networking Switch SSE-T8032 is designed to meet low latency high performance applications and large scale cluster deployments.

In the realm of cutting-edge applications like hyper-scale cloud computing and AI/ML clusters, the backbone lies in the robustness of 400 Gigabit Ethernet technology. With the relentless pursuit of faster CPU, NIC, GPUs, and lightning-fast storage solutions, the landscape is primed for the evolution of larger, more sophisticated clusters. These clusters demand nothing short of high bandwidth, low latency, and expansive network capabilities to unleash their full potential. With the capability of its 25.6 Tbps throughput Supermicro SSE-T8032 delivers the highest density of 400G switching in a 1U platform. SSE-T8032 will be an ideal choice for high performance applications and large scale cluster requirements.

SSE-T8032 comes with twin port 2x400G with 32 physical OSFP ports, offering denser 64x400G in just 1U form factor. The interface provides flexibility to meet variety of speed and used cases such as 400G, 200G, 100G, 50G, 40G and 25G using splitter cables appropriate transceivers. Switch has an additional 10G SFP+ to meet the legacy connectivity.

With emerging Broadcom Advanced Enterprise SONiC OS support on SSE-T8032S switch provides greater flexibility to applications such as large-scale enterprises, AI/MI and high performance cloud computing. Supermicro provides user friendly enhancements to the OS that suits to the various data center application and deployment.
SSE-T8032S model provides a data-center-friendly standard (front to back) air-flow model along with AC Power supply option and the included rail kit facilitates rack-mounting installations.
Open Networking 100GbE Aggregation Switch SSE-T8032S
Operating System / NOS
The SSE-T8032 series switch comes with preloaded Broadcom Advanced Enterprise SONiC OS.
No additional licensing is required.
  • Standard ToR Ethernet Switches [ Download ]

  • Key Switch Specs / Advantages
    • Form Factor: 1 RU
    • Capacity: 25.6Tbps
    • Interfaces Speeds: 10, 25, 40, 50, 100, 200 & 400GbE
    • Operating System: Broadcom Advanced Enterprise SONiC OS

Hardware Features
  • Physical Ports
    • 32 x 2x400G OSFP Ports
    • RJ45 console and OOB Ethernet management ports
    • 1x USB 2.0 Type A interface
    • 1+1 hot swappable AC PSUs
    • 6+1 field replaceable fans

  • Onboard CPU Engine
    • Intel Xeon-D x86 CPU, 4C / 8C at 2.9GHz / 2.3GHz
    • 32GB DDR4
    • 128GB SSD

  • Data Forwarding
    • 25.6Tbps switching capacity
    • Non-Blocking, wire-speed

  • Power
    • 1+1 Hot-pluggable, load sharing, and redundant 2000W power supply
    • Input Voltage: 100-240VAC, 50/60Hz
    • Optics/Cables: Up to 20W/26W transceivers

  • Physical and Environmental
    • 1RU, Mountable in 19” or 21” racks
    • Dimensions: (WxDxH) 438.5 x 657.5 x 43.1mm
    • Weight: 14kg
    • Front airflow
    • Hot Swappable 6+1 redundant Fan Modules
    • Temperature: Operating 0C to 40C
    • Humidity: Operating: 5% to 95%

  • IEEE compliance
    • 802.1p QOS/COS
    • 802.1Q VLAN Tagging
    • 802.1AB Link Layer Discovery Protocol
    • 802.3ad Link Aggregation with LACP
    • 802.3ae 10 Gigabit Ethernet
    • 802.3ba 100 Gigabit Ethernet
    • 802.3bs 400 and 200 Gigabit Ethernet
    • 802.3cm 400 Gigabit over multimode fiber
    • 802.1Qbb PFC 802.1Qaz ETS
    • 802.1X Network Access Control
    • 802.3x Flow Control
  • EU:
    • EN 60950-1
    • IEC 60950-1
    • EN 62368-1
    • IEC 62368-1

  • North America:
    • UL 60950-1
    • CAN/CSA-C22.2 No. 60950
    • UL 62368-1
    • CAN/CSA-C22.2 No. 62368-1

  • China (CCC):
    • GB4943.1

Electromagnetic Compatibility
  • EU:
    • CISPR 32
    • EN 55032
    • BS EN 55032
    • CISPR 35
    • EN 55035
    • BS EN 55035
    • EN6100-3-2
    • BS EN 6100-3-2
    • EN6100-3-3
    • BS EN 6100-3-3
    • EN 300 386

  • North America:
    • 47CFR Part 15(CFR 47) Class A
    • ICES003 issue7 Class A

  • Japan (VCCI):
    • VCCI CISPR 32-1

  • EU (RoHS)
  • EU (REACH)
  • EU (WEEE)
  • China (RoHS)
Software Features
  • System and Platform Infrastructure Features
    • Dynamic Port Breakout
    • DOM Information Display
    • System Locator LED Support (Beacon)
    • CMIS 4.0 Optics Support
    • Hardware Watchdog
    • CoPP (Control Plane Policing)
    • Transceiver Parameter Tuning
    • Third-Party Container Management
    • PDDF and PDK Framework
    • Interface Aliasing (IS-Standard and IS-Standard-Extended Interface Naming)
    • Kdump Support
    • Maintenance Mode
      • LACP Graceful Shut
      • BGP Graceful Shut
      • OSPFv2 Maximum Metrics
    • Multi-Instance Redis DB
    • Hardware Resource Allocation and Reservation
    • Zero Touch Provisioning (ZTP)
    • Auto Negotiation and Link Training
    • Link Statistics Enhancements
    • Link-Down Reason Codes
    • Link Flap Error-Disable
    • Forwarding Plane Drop Counters
    • Time Zone Command Support
    • 2 × 50G Speed Support
    • Broadcom Debug Tool
    • Memory Histogram
    • System Ready for Services and Applications
    • Secure Boot Process and Reference Implementation
    • Syslog High Threshold notifications and clear for CPU/Temperature
    • Per Platform CoPP
    • Interface Beacon LED
    • ZTP Provisioning using a USB Drive
    • Flexible DPB
    • Support Option to Bind the Third Party Container to the Management VRF
    • Limiting CPU/Memory/Disk Usage for Third Party Containers
    • Patching Support in SONiC (Patch Host/Containers)
    • Option to Send Audit Log Messages to Syslog Server
    • Ability to Filter Logs based on Facility and Severity
    • Media AutoFEC for FEC Type automation

  • Layer 2 Features
    • VLAN Auto-state
    • Interface Hold-Down
    • LACP Graceful Shutdown
    • link Tracking
    • LACP Fast Rate and LACP Fallback
    • Static LAG
    • LLDP
    • UDLD
    • PVST and RPVST+
    • MSTP
    • DHCP snooping
    • Port Channel Min-Links configuration enhancement

  • Layer 3 Features
    • DHCP Relay Enhancements
      • Overlay Interfaces
      • DHCP Relay Source Interface Selection (e.g. loopback)
      • DHCP Relay over IPv6 Link-Local Interfaces with RFC5549 Routes
      • DHCP Relay Hop Count Configuration
      • DHCP Relay Over IPv4 Unnumbered Interfaces
      • DHCP Relay Option 82, Sub Option 151 VRF Name/ID Option
      • DHCP Relay Option 82, Sub Option 5 Link-Selection Option RFC3527
      • Support for Circuit-Id Formats
      • DHCP Relay Circuit-Id Option
      • DHCP Relay and DHCP snooping support on the same VLAN
    • Dynamic BGP Neighbor
    • IP Fabric over IPv6 underlay RFC5549
    • IP Helper
    • Route Leaking across VRFs including Management VRF
    • BGP Docker Warm Restart
    • Avoid Netlink for Handling IPv6 Link-Local Address
    • BFD Optimizations to Support 5x100msec Aggressive Timers in SW
    • IP SLA (ICMP and TCP tracker)
    • IPv4 Unnumbered Interfaces
    • RPVST+ over MC-LAG
    • RPVST+ Scaling to 3500 VLAN Ports
    • Symmetric Hashing
    • BFD IS-CLIs
    • BFD with VRF
    • VRF support for syslog
    • VRF support for
    • VRRPv3, VRRP/VRRPv3 over VRF
    • Management VRF Hardening
    • OSPFv2
    • Multi Site Data Center Interconnect (DCI)
    • RIB/FIB Consistency Checker
    • Next Hop Group (NHG) Support
    • RIF Counters for L3 Interfaces
    • BFD Profile
    • 1 Million Route Scale
    • Route Updates Performance Improvements
    • Drop Neighbor Entry to Protect CPU from Unknown IP Packets Hitting the CPU
    • CPU Offload for Neighbor Suppression
    • CPU Offload for Slowpath ARP Flooding
    • OSFPv2 GR
    • Router Advertisement
    • KLISH/REST/gNMI Support
      • CLI Commands for RA Retransmission Interval, RADv Disable
      • RFE-8106

  • ACL and Flow-Based Services
    • PBR Enhancements for Service Chaining
    • ACL-based CoPP
    • ACL DSCP Map/Remarking
    • ACL Rate Limiting
    • Control Plane ACL
    • Policy-based Routing (IPv4 and IPv6)
    • ACL-based Packet Replication
    • ACL Consistency Checker

  • Security Features
    • RADIUS/TACACS Password Obfuscation
    • NTP Server and NTP Authentication
    • NTP Prefer Option
    • LDAP Integration
    • AAA Authorization support with TACACS+

  • Manageability Features
    • Industry Standard CLI (IS-CLI)
    • REST and gNMI Interfaces via OpenConfig YANG (OC-YANG)
    • Role-Based Access Control (RBAC)
    • RBAC and HAMd Enhancements
    • SNMP Configuration Traps and OIDs
    • gNMI Subscription Support for Limited YANG Paths (OnChange, Interval, Once, Poll, Target defined)
    • Bulking support in both REST(YANG patch) and gNMI
    • Query parameter for REST and filtering support for gNMI
    • Scalar encoding support for gNMI
    • Support to Read Service Tag via SNMP
    • SNMP Trap Enablement on Interface Instead of Global

  • Multicast Features / Enhancements
    • L3 Multicast with PIM operates on L3 interfaces only
    • IGMP
    • IGMP Snooping (v1, v2, v3) (with MLAG)
    • IPv4 PIM-SSM Support

  • Debuggability / Serviceability features
    • In-memory Debug Logging
    • Audit Logging and Syslogs
    • Command to Return Interfaces to the Default Configuration
    • Port Mirroring on Port Channel and VLAN

  • Scalability improvements
    • L3 VLAN Scale to 4K (for TD3-X7 based Platforms)
    • Host Table Resource Reservation for Local Hosts

  • QoS
    • QoS Map Support for Remarking and SVI
    • Port and Priority Shaping

  • Telemetry and Instrumentation
    • sFlow on Management VRF
    • BST – Watermarks,
    • Port MAC Security
    • LLDP-MED

  • Warmboot
Available SKUs
  Part Number Description
Layer 2/3 64x400G
Ethernet Switch
SSE-T8032S   AC Power Supply with Regular Airflow (front to back)

Optics & Cables Supported
Cable Type Cable Model Length SMC P/N
DAC Splitter 800G OSFP to 2x400G QSFP112 Splitter 1.5M CBL-NTWK-0976-15
Transceiver OSFP Multimode SR8 Transceiver Up to 50M TRX-MMA4Z00-NS
Transceiver OSFP single-mode DR4 Transceiver Up to 500M TRX-800G-DR4
Transceiver OSFP Multimode Up to 100M TRX-800G-SR8-02
Global Services & Support OS4HR3/2/1
3/2/1-year onsite 24x7x4 service
3/2/1-year onsite NBD service
