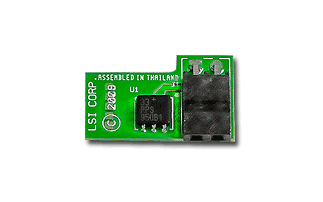

AOC-SAS2-RAID5-KEY

Common Features
  • Enables RAID 5 in IMR mode for Broadcom 2008 based controller
  • Supports up to 16 devices
  • IMR mode supports RAID 0,1,10 and 5
  • Supports 6Gb/s SAS (SAS 2.0)

Downloads
Driver [ Download ]
MSM [ Download ]
Firmware [ Download ]


Key Specifications
Part Number
  • AOC-SAS2-RAID5-KEY
Memory Type
  • EEPROM
Memory Size
  • 1K bits
Features
  • 1128 bits of 5V EEPROM memory partitioned
  • Up to 5 general purpose read/write registers
  • On-chip 512-bit SHA-1
  • 160-bit Message Authentication Codes
  • Reads and writes over a wide voltage range of 2.8V to 5.25V from -40°C to +85°C

Key Features
  • 1128 bits of 5V EEPROM memory partitioned into four pages of 256 bits, a 64-bit write-only secret and up to 5 general purpose read/write registers
  • On-chip 512-bit SHA-1 engine to compute 160-bit Message Authentication Codes (MAC) and to generate secrets
  • Write access requires knowledge of the secret and the capability of computing and transmitting a 160-bit MAC as authorization
  • Secret and data memory can be write-protected (all or page 0 only) or put in EPROM emulation mode (�write to 0? page 1)
  • Low cost 6-lead TSOC surface mount package, or solder-bumped Flipchip package
  • Reads and writes over a wide voltage range of 2.8V to 5.25V from -40°C to +85°C
