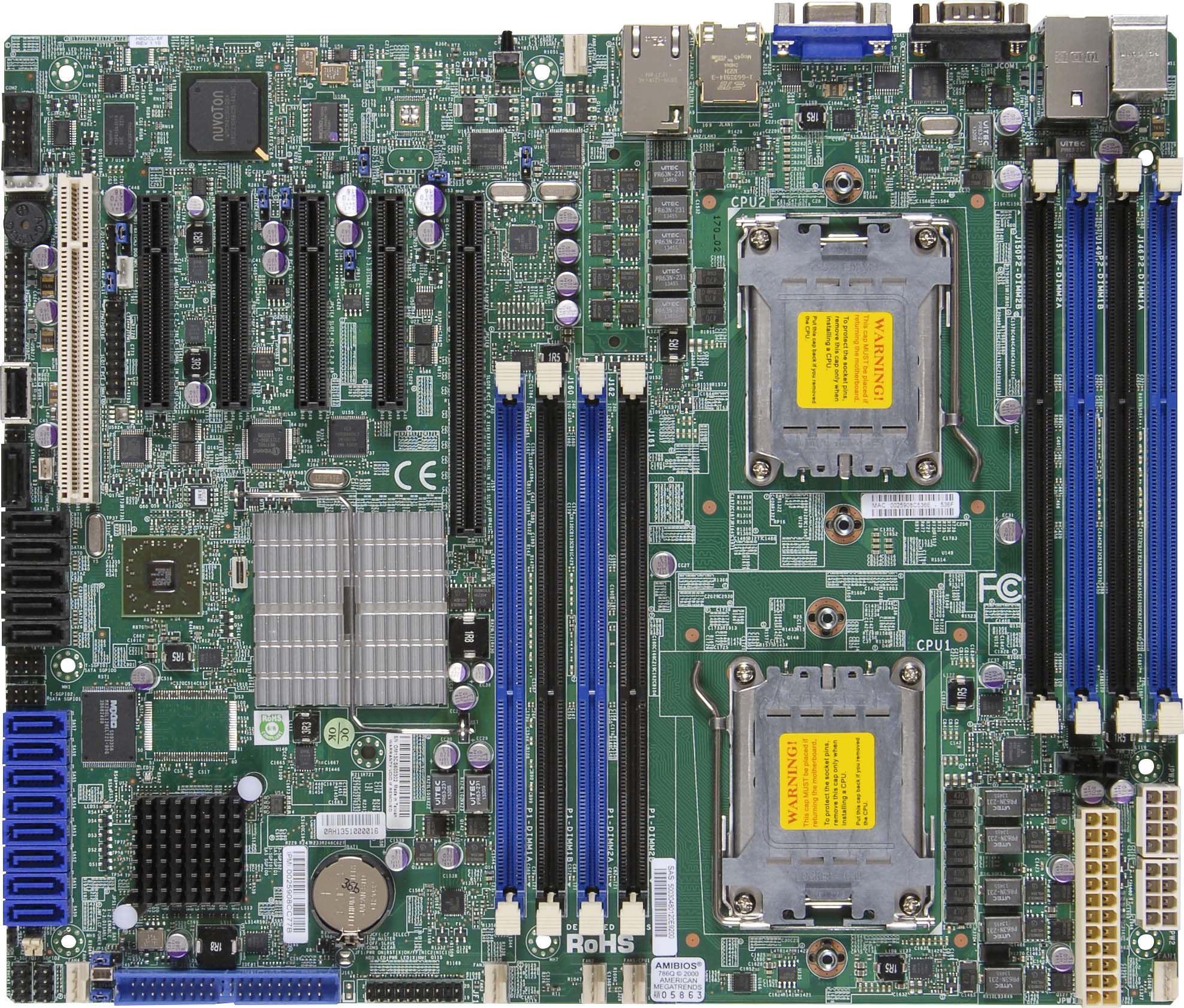

| | MBD-H8DCL-6F | - H8DCL-6F (Standard Retail Pack)
| | | Form Factor | | Dimensions | | | | CPU | - Dual 1207-pin Socket C32
- Supports two 8/6/4-Core ready AMD Opteron 4000 Series processors
- HT3.0 Link support
| Chipset | - AMD chipset SR5690 + SP5100
| | | Memory Capacity | - 8 DIMM sockets
- Supports up to 256GB Registered ECC or 64GB Unbuffered ECC/non-ECC DDR3 1600/1333/1066 SDRAM in 8 DIMMs
- Dual channel memory bus
- For Dual CPUs: Recommended that memory be populated equally in adjacent memory banks
- See Detailed Memory Support Matrix
| Memory Type | - Registered ECC or unb. ECC / non-ECC DDR3 1600/1333/1066 MHz SDRAM 72-bit, 240-pin gold-plated DIMMs
| DIMM Sizes | - 1GB, 2GB, 4GB, 8GB, 16GB, 32GB
| Memory Voltage | | | | SATA | - AMD SP5100 (RAID 0, 1, 10)
| SAS | - LSI 2008 8 port SAS controller
- RAID 0, 1, 10; RAID 5 Optional
- Optional: AOC-SAS2-RAID5-KEY
RAID 5 support | IPMI | - Support for Intelligent Platform Management Interface v.2.0
- IPMI 2.0 with virtual media over LAN and KVM over LAN support
- Winbond® WPCM450 BMC
| Network Controllers | - 2 Intel® 82574L single-port Gigabit Ethernet Controllers
- 10/100/1000BASE-T support
| VGA | | Super I/O | | | | SATA | | SAS | - Integrated LSI 2008 SAS2 Controller
- Eight Serial Attached SCSI (SAS) ports
| LAN | - 2 RJ45 LAN ports
- 1 RJ45 Dedicated LAN supports IPMI
| USB | - 7x USB 2.0 ports
- 2 rear, 1 Type-A, 2 headers for 4 ports
| VGA | | Serial Ports | - 2x Fast UART 16550 serial port (one header & one port)
| Power | - SSI 24-pin + 8-pin + 8-pin power connectors / EPS12V
Note: Two 8-pin connectors are required to support 2 CPUs due to SSI spec | Others | - 1 SATA DOM power connector, TPM header
| | | PCI-E | - 1 PCI-E 2.0 x8 (in x16 slot)
- 3 PCI-E 2.0 x8
- 1 PCI-E 2.0 x4 (in x8 slot)
- 1 PCI
| | | | | 3U/Mid Tower | | Tower/4U Rackmount | | - Recommendation:
- 1. Strongly suggest using Supermicro recommended chassis
- 2. Active Heatsink SNK-P0024AP4 is recommend used on tower and 4U chassis
| | | BIOS Type | - 16Mb SPI Flash ROM with AMI® BIOS
| BIOS Features | - Plug and Play (PnP)
- DMI 2.3
- PCI 2.2
- ACPI 2.0
- USB Keyboard Support
- SMBIOS 2.3
| | | Software | | Power Configurations | - ACPI Power Management
- Wake-On-LAN (WOL) header
- Keyboard Wakeup from Soft-Off
- Power-on mode control for AC power loss recovery
| | | CPU | - Monitors CPU Core Voltages, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, VBAT, HT, memory, chipset
- CPU switching voltage regulator
| FAN | - Up to 6-fan status tachometer monitoring
- Up to 6x 4-pin fan headers
- Status monitor for speed control
- 4-pin fan support (w/o speed control)
- Low noise fan speed control
(4-pin fan only) - Pulse Width Modulated (PWM) fan connectors
| Temperature | - Monitoring for CPU and chassis environment
- CPU Thermal Trip Support
- Thermal control for 8x Fan connectors
- I2C Temperature Sensing Logic
| LED | - CPU / System Overheat LED
- +5V Standby Alert LED
| Other Features | - Chassis Intrusion Detection
- Chassis Intrusion Header
| | | RoHS | | Environmental Specifications | - Operating Temperature:
10°C to 35°C (50°F to 95°F) - Non-operating Temperature:
-40°C to 70°C (-40°F to 158°F) - Operating Relative Humidity:
8% to 90% (non-condensing) - Non-operating Relative Humidity:
5% to 95% (non-condensing) | | | FCC | - Passed to meet FCC standard requirement
| |
