Single-Port, Low Latency InfiniBand Adapter Cards For SuperBlade

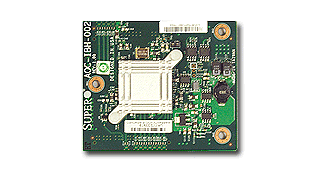

AOC-IBH-002 This InfiniBand mezzanine card for the SuperBlade delivers low-latency and high-bandwidth for performance-driven server and storage clustering applications in Enterprise Data Centers, High-Performance Computing, and Embedded environments. Clustered data bases, parallelized applications, transactional services and high-performance embedded I/O applications will achieve significant performance improvements resulting in reduced completion time and lower cost per operation. AOC-IBH-002 simplifies network deployment by consolidating clustering, communications, storage, and management I/O and by providing enhanced performance in virtualized server environments. |
|
| |
|
|
RoHS
|
|
| |
|
|
| User's Guide |
See Appendix A of the SuperBlade Network Modules User's Manual for Installation Instructions [ Download ] |
| Firmware |
Firmware [ Download ] |
|
|
|
|
|
- 3.10us latency (ib_write_bw)
- Single 20Gb/s InfiniBand port
- CPU offload of transport operations
- End-to-end QoS and congestion control
- Hardware-based I/O virtualization
- TCP/UDP/IP stateless offload
- Full support for Intel I/OAT
- Support both AMD and Intel platforms
|
| |
|
|
- InfiniBand:
- Mellanox InfiniHost III LX IB
DDR Chip
- Single 4X InfiniBand port
- 20Gb/s port speed
- RDMA, Send/Receive semantics
- Hardware-based congestion
control
- Atomic operations
- Interface:
- SuperBlade Mezzanine Card
- Connectivity:
- Interoperable with InfiniBand
switches through SuperBlade
InfiniBand Switch (SBI-IBS-001)
- Hardware-based I/O Virtualization:
- Address translation and
protection
- Multiple queues per virtual
machine
- Native OS performance
- Complimentary to Intel and AMD
I/OMMU
- CPU Offloads:
- TCP/UDP/IP stateless offload
- Intelligent interrupt coalescence
- Full support for Intel I/OAT
- Compliant to Microsoft RSS and
NetDMA
- Operating Systems/Distributions:
- Novell, RedHat, Fedora and
others
- Microsoft Windows Server
- Operating Conditions:
- Operating temperature: 0 to 55°C
|
| |
|
|
|
All Enterprise Blade Servers EXCEPT Tylersburg Blade Servers
|
|
