SYS-1019C-FHTN8



Integrated Board
Super X11SCM-LN8F
Key Features
• uCPE Network Appliance
• Network Security Appliance
• Virtualization

1. Single Socket H4 (LGA 1151) supports
    Intel® Xeon® processor E-2100,
    8th Gen. Intel® Core™ i3 Processors,
    Intel® Celeron®, Intel® Pentium®
2. Intel® C246 chipset
3. Up to 128GB unbuffered ECC
    UDIMM, DDR4-2666MHz;
    4 DIMM slots
4. 1 PCI-E 3.0 x16 (FHFL) slot

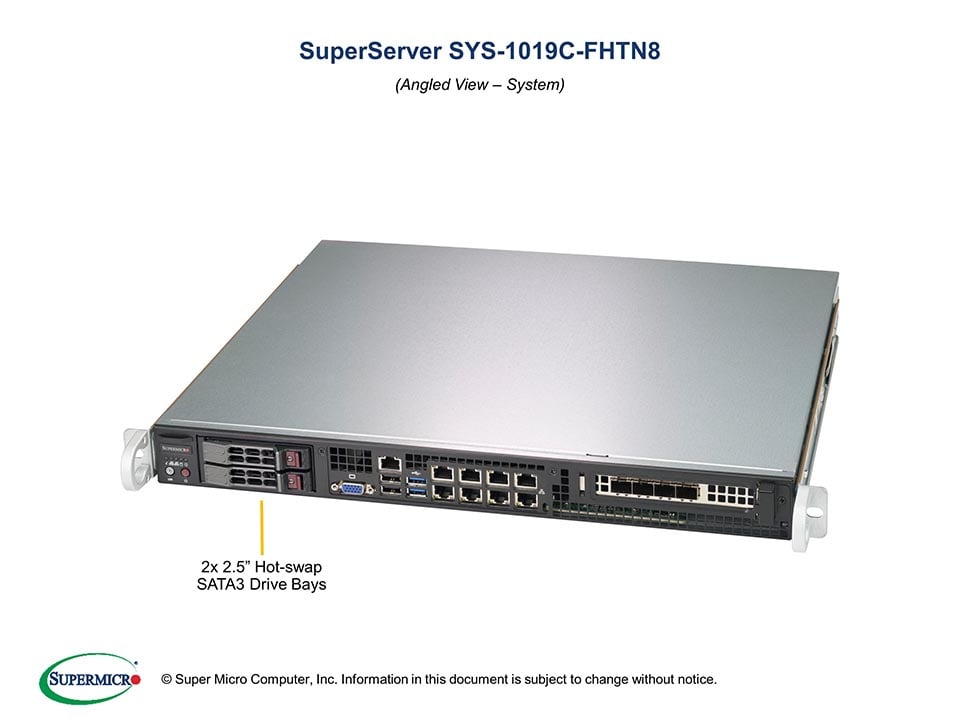

5. 2 Hot-swap 2.5" SATA3 drive bays,
    2 Internal 2.5" SATA3 drive bays
    (SSD only)
6. M.2 Interface:
    1 SATA/PCI-E 3.0 x4 and 1 PCI-E 3.0 x4
    M.2 Form Factor: 2280/22110
    M.2 Key: M-Key
7. 8 GbE LAN ports, 1 Dedicated IPMI LAN
8. 2 USB 3.1, 2 USB 2.0, 1 VGA
9. 350W AC-DC multiple output
    Platinum Level Power Supply


 Drivers & Utilities   BIOS   IPMI   Tested Memory  Tested M.2 List   Manuals    OS Certification Matrix    Drive Options

Product SKUs
SYS-1019C-FHTN8
  • SuperServer 1019C-FHTN8 (Black)

Motherboard

Super X11SCM-LN8F

Processor
CPU
  • Single Socket H4 (LGA 1151),
    CPU TDP support up to 80W
  • Support Intel® Xeon® E-2100 processors,
    8th Gen. Intel® Core™ i3 Processors,
    Intel® Celeron®, Intel® Pentium®

System Memory
Memory Capacity
  • 4 DIMM slots
  • Up to 128GB Unbuffered ECC UDIMM
Memory Type
  • 2666/2400/2133MHz ECC DDR4 SDRAM
DIMM Sizes
  • 32GB, 16GB, 8GB, 4GB
Note
  • 128GB system memory capacity will be available in 2019 through a published BIOS update.

On-Board Devices
Chipset
  • Intel® C246 chipset
SATA
  • Intel® C246 controller for SATA3 (6 Gbps) ports; RAID 0, 1, 5, 10
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2500 BMC
Network Controllers
  • Eight LAN with Intel® I210-AT
Video
  • VGA via Aspeed AST2500 BMC

Input / Output
SATA
  • 5 SATA3 (6Gbps) ports
LAN

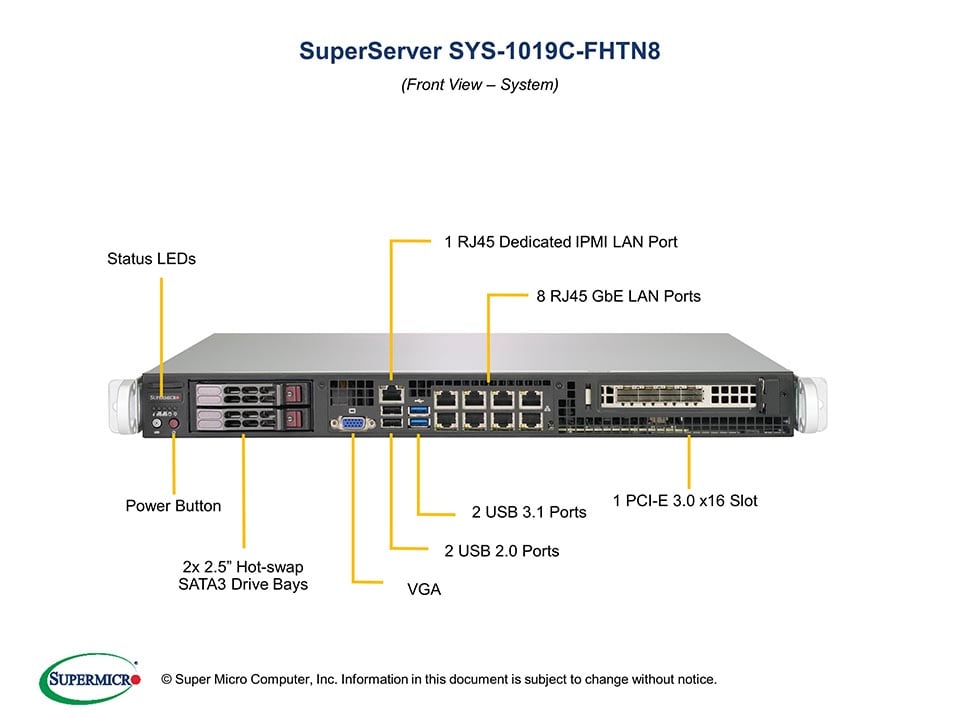

  • 8 RJ45 Gigabit Ethernet LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 2 USB 3.1 ports (front)
  • 2 USB 2.0 ports (front)
Video
  • 1 VGA port
Serial Port / Header
  • 1 COM port (option)

System BIOS
BIOS Type
  • UEFI 256Mb

Management
Software
Chassis
Form Factor
  • 1U Rackmount
Model

Dimensions and Weight
Height
  • 1.7" (43mm)
Width
  • 17.2" (437mm)
Depth
  • 15" (381mm)
Package
  • 8" (H) x 24" (W) x 27" (D)
Weight
  • Gross Weight: 14.1 lbs (6.4 kg)
  • Net Weight: 10.0 lbs (4.54 kg)
Available Colors
  • Black front panel with silver chassis

Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power LED
  • Hard drive activity LED
  • Network activity LEDs
  • System Information LED

Expansion Slots
PCI-Express

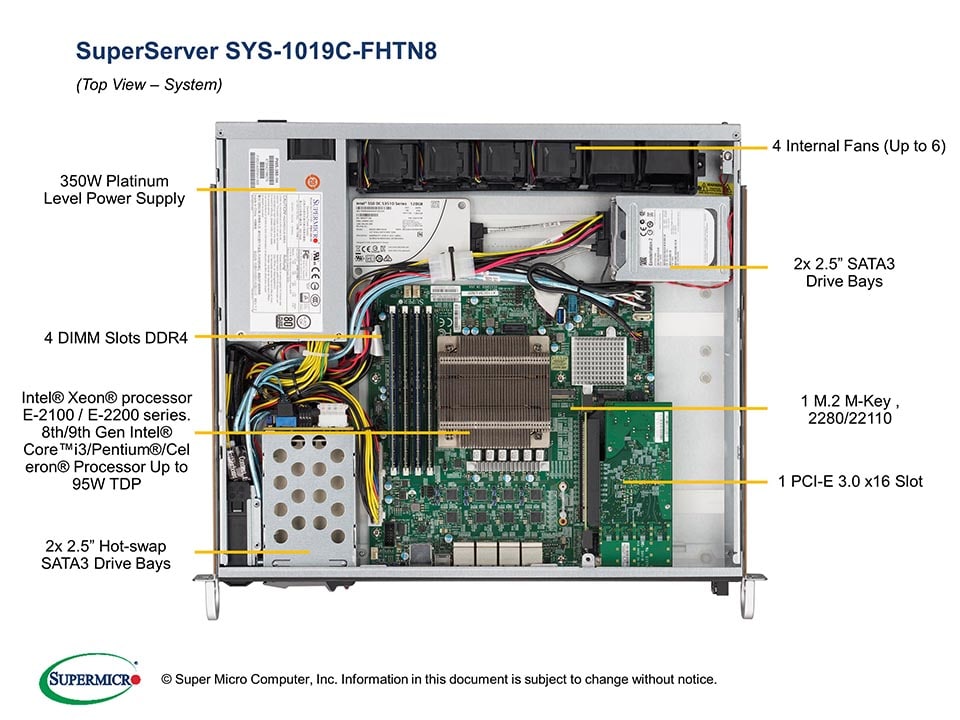

  • 1 PCI-E 3.0 x16 (FHFL) slot
M.2
  • M.2 Interface: 1 SATA/PCI-E 3.0 x4 and 1 PCI-E 3.0 x4
  • M.2 Form Factor: 2280/22110
  • M.2 Key: M-Key

Drive Bays
Hot-swap
  • 2 Hot-swap 2.5" SATA3 drive bays
Internal
  • 2 Internal 2.5" SATA3 drive bays (SSD only)

System Cooling
Fans

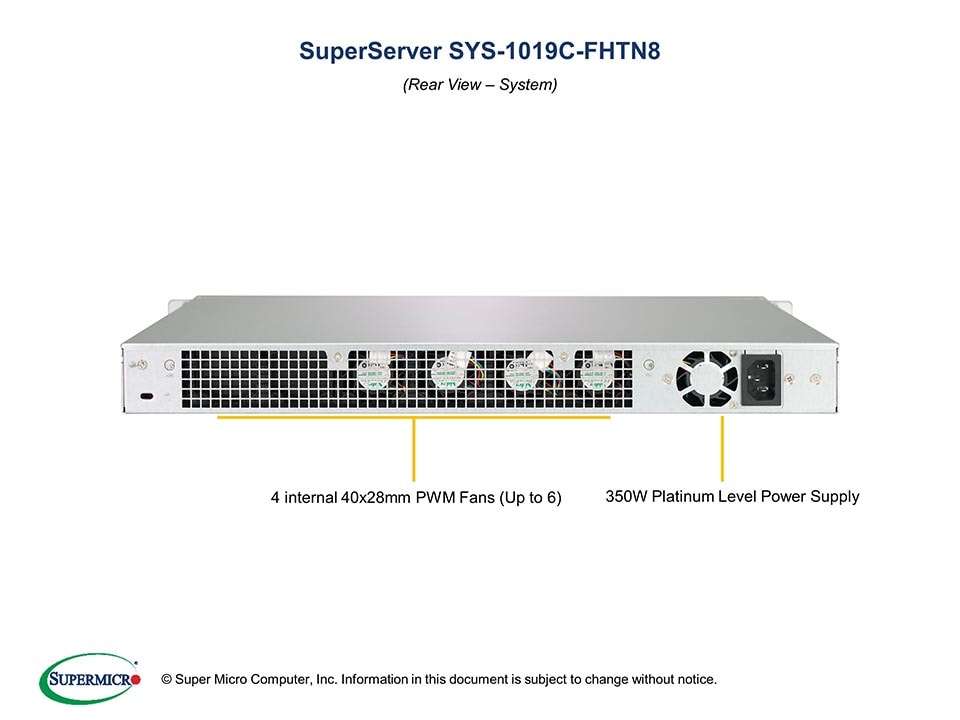

  • 4x 40x28mm 4-pin PWM fans (optional: 2 additional fans)

Power Supply
350W AC power supply w/ PFC
AC Voltage
  • 100-240 V, 50-60 Hz, 4.2-1.8 Amp
+5V
  • Max.: 15 Amp
  • Min.: 0.2 Amp
+5V standby
  • Max.: 3 Amp
  • Min.: 0 Amp
+12V
  • Max.: 29 Amp
  • Min.: 0.5 Amp
-12V
  • Max.: 0.2 Amp
  • Min.: 0 Amp
+3.3V
  • Max.: 12 Amp
  • Min.: 0.2 Amp
Certification Platinum Level Certified     Platinum Level Certified
  [ Test Report ]

Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       0°C to 40°C (32°F to 104°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)
See Parts List

Parts List - (Items Included)

Part Number
Qty
Description
Motherboard / Chassis MBD-X11SCM-LN8F
CSE-513BTQC-350B
1
1
Super X11SCM-LN8F Motherboard
1U Chassis
Backplane BPN-SAS3-826TQ-B2B 1 2-port 2U SAS3 12Gbps backplane, support up to 2x 2.5-inch SAS3/SATA3 HDD/SSD
Cable 1 CBL-0206L 2 SATA,INT,ROUND,ST-ST,48CM,26AWG
Cable 2 CBL-0296L 1 4 pin to 4 pin fan extension cord, for PWM fan. 23cm. 24AWG
Cable 3 CBL-CDAT-0662 1 CBL,SGPIO,2X4F TO 2X4F,P2.54,ROUND CABLE,61.5CM,28AWG
Parts MCP-150-00015-0B 1 Rubber pad, 3.0mm H, 10x10mm
Parts MCP-260-00131-0B 1 1U I/O Shield for SC513B & X11SCL-LN4F with EMI Gasket, black color
Air Shroud MCP-310-51302-0B 1 Mylar Air shroud for SC513B with UP X11SCM MB
Riser Card RSC-RR1U-E16 1 RSC-RR1U-E16 with PIC-E x16 output
Heatsink / Retention SNK-P0049P 1 1U Passive Enhanced Performance CPU Heat Sink for Intel Socket H Series Processors
* Power Supply PWS-350-1H 1 1U Single AC-DC 350W Platinum Level, multiple output power supply (180mm)
* Cable 4 CBL-0160L 1 NEMA5-15P to C13 US power cord 16AWG 6ft, PBF (default for high watt)
* Cable 5 CBL-0335L 1 CBL,FRONT CNTL,20 TO 20 PIN,RA,RND TUBE,73CM,28AWG
* FAN 1 FAN-0154L4 4 40x40x28 mm, 22.5K RPM, SC813MF Middle Cooling Fan,RoHS/REACH
* Drive Tray(s) MCP-220-00180-0B 2 2.5\" New ID gen 3 hot-swap HDD tray with lock feature (with plastic bracket)
* Parts MCP-260-00078-0B 1 1U I/O shield for X11 Server MB with 5X5mm vent hole and EMI Gasket, Black
* Front Panel MCP-280-80901-0N 1 SC809 FRONT CONTROL PANEL ASSY
* Rail Set MCP-290-00102-0N 1 set Outer rail, quick-release type, 25.6\" to 33.05\"
* Rail Set MCP-290-00108-0B 1 set Inner rail, front, short (quick) for 1U 17.2
* Fan Holder MCP-320-00060-0N 1 Fan tray for six 40x28 fans in SC813M (for X11DPL-i 12\"x10.15\")
* Parts MCP-340-00001-01 2 Dummy fan 40x28mm
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
