| SSG-6049P-E1CR45L |
- SuperServer 6049P-E1CR45L (Black)
|
| |
|
| CPU |
- Dual Socket P (LGA 3647)
- Intel® Xeon® Scalable Processors,
3 UPI up to 10.4GT/s
- Support CPU TDP 70-205W
|
| Cores |
- Up to 28 Cores with Intel® HT Technology
|
| |
|
| Memory Capacity |

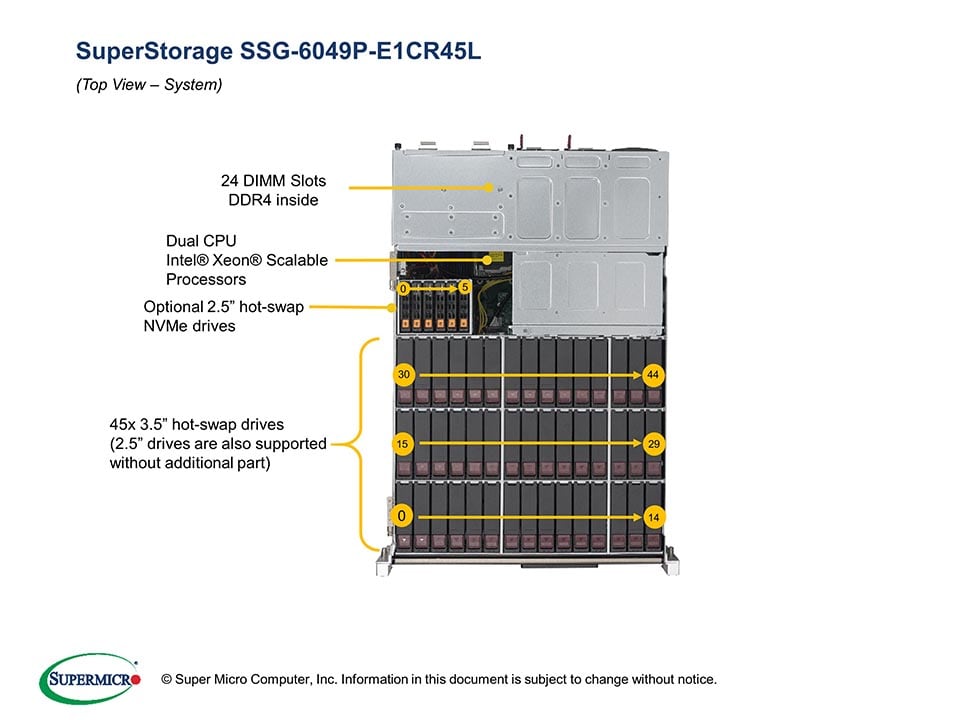

- 24 DIMM slots
- Up to 3TB ECC 3DS LRDIMM, 512GB ECC RDIMM, DDR4 up to 2666MHz
|
| Memory Type |
- 2666/2400/2133MHz ECC DDR4 SDRAM
|
| |
|
| Chipset |
|
| SAS |
- SAS3 (12Gbps) via Broadcom 3008 AOC; IT Mode
|
| SATA |
- SATA3 (6Gbps) with RAID 0, 1, 5, 10
|
| IPMI |
- Support for Intelligent Platform Management Interface v.2.0
- IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
|
| Graphics |
|
| |
|
| Serial ATA |
|
| LAN |
- 1 RJ45 Dedicated IPMI LAN port
|
| USB |
- 2 USB 3.0 ports (rear)
- 1 Type A
|
| VGA |
- 1 VGA D-Sub connector port
|
| Serial Port / Header |
- 1 Fast UART 16550 port / 1 Header
|
| |
|
| BIOS Type |
|
| |
|
| Software |
|
| |
|
| CPU |
- Monitors for CPU Cores, Chipset Voltages, Memory.
- 4+1 Phase-switching voltage regulator
|
| FAN |
- Fans with tachometer monitoring
- Status monitor for speed control
- Pulse Width Modulated (PWM) fan connectors
|
| Temperature |
- Monitoring for CPU and chassis environment
- Thermal Control for fan connectors
|
|
|
|
|
|
| Form Factor |
|
| Model |
|
| |
|
|
| Width |
|
| Height |
|
| Depth |
|
| Package |
- 28" (W) x 23" (H) x 42.5" (D)
|
| Weight |
- Gross Weight: 120 lbs (54.43 kg)
- Net Weight: 85 lbs (38.56 kg)
|
| Available Colors |
|
| |
|
|
| Buttons |

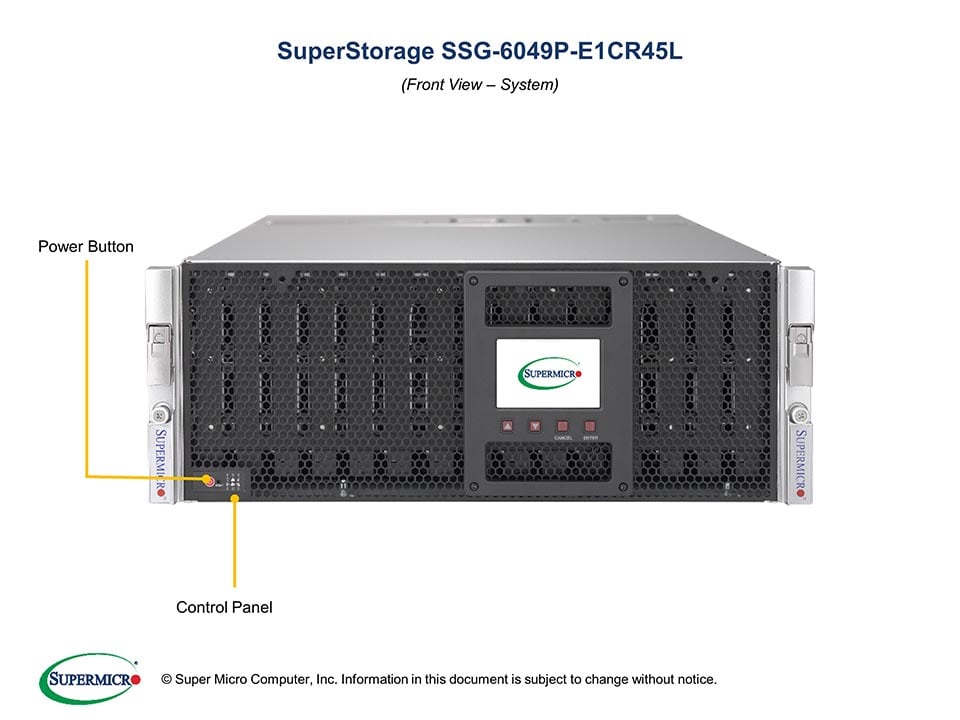

- Power On/Off button
- System Reset button
|
| LEDs |
- Power status LED
- Hard drive activity LED
- Network activity LEDs
- System Overheat LED
- Power fail LED
|
| |
|

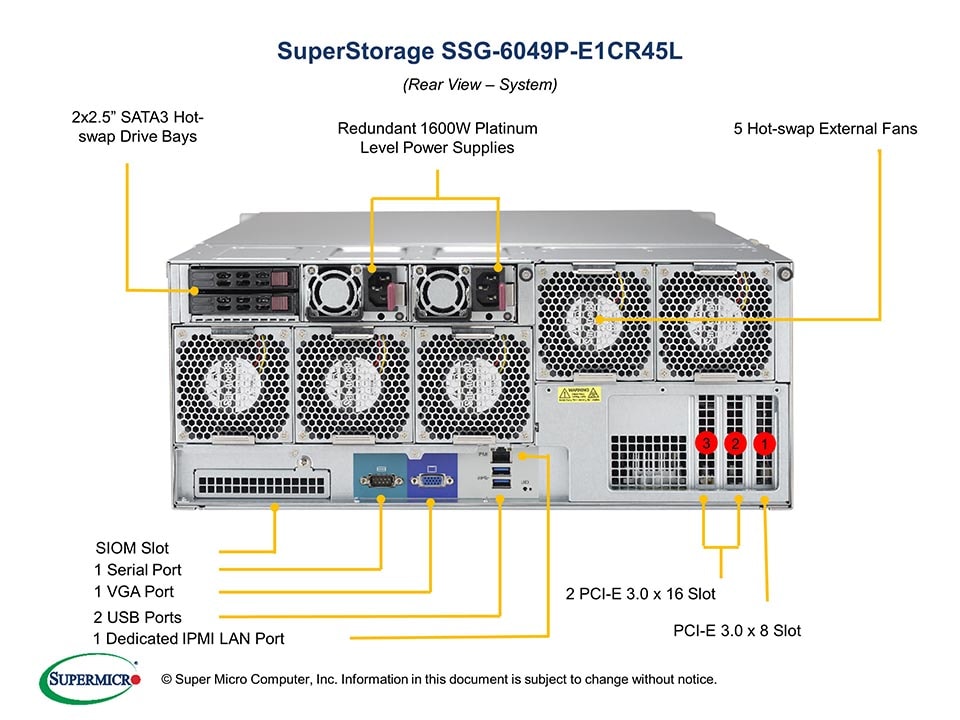

| PCI-Express |
- 2 PCI-E 3.0 x16 slots
- 1 PCI-E 3.0 x8 slot
- 1
SIOM
card support
(must bundle with network card)
|
| |
|
|
| Hot-swap |

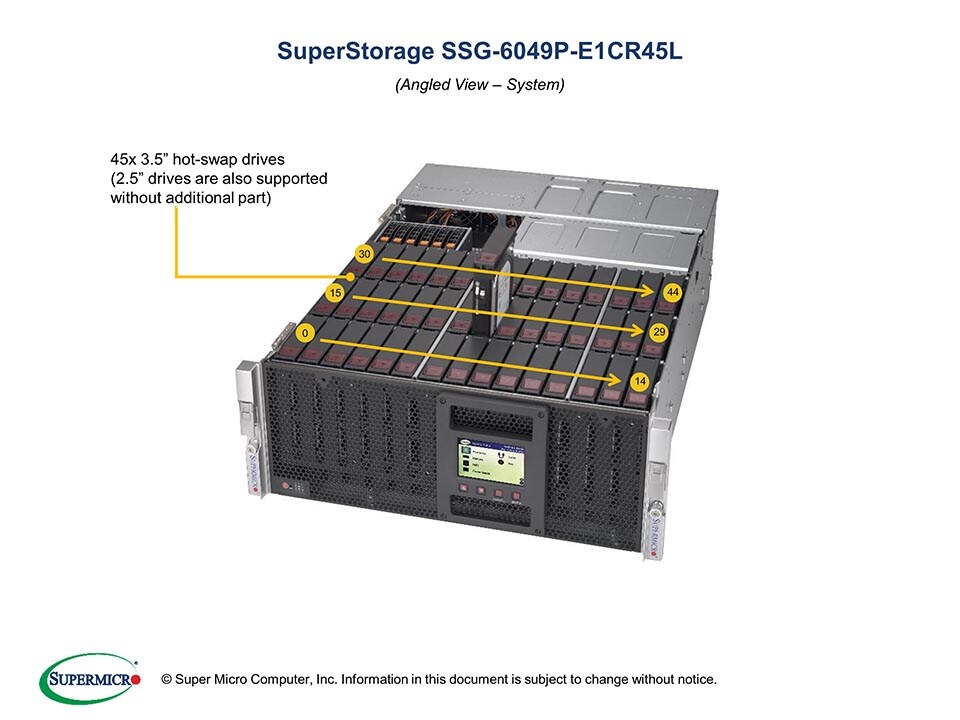

- 45 Hot-swap 3.5" SAS3/SATA3 drive bays
- 2 Rear Hot-swap 2.5" SATA drive bays
|
| Optional |
|
| |
|
|
| SAS3/SATA3 single expander per backplane |
| |
|
|
| Fans |
- 5 Hot-swap 8cm rear exhaust PWM fans
|
| |
|
|
| 1600W 1U Redundant Power Supplies with PMBus |
| Total Output Power |
|
Dimension
(W x H x L) |
|
| Input |
- 100-127Vac / 12.9A Max / 50-60Hz
- 200-240Vac / 9.5A Max / 50-60Hz
|
| +12V |
- Max: 82A / Min: 0.1A (100-127Vac)
- Max: 132A / Min: 0.1A (200-240Vac)
|
| 12V SB |
|
| Output Type |
- 25 Pairs Gold Finger Connector
|
| Certification |
  Platinum Level
[ Test Report ]
|
| |
|
|
| RoHS |
|
| Environmental Spec. |
- Operating Temperature:
10°C ~ 35°C (50°F ~ 95°F)
- Non-operating Temperature:
-40°C to 60°C (-40°F to 140°F)
- Operating Relative Humidity:
8% to 90% (non-condensing)
- Non-operating Relative Humidity:
5% to 95% (non-condensing)
|
|
|
| FCC, CE, RCM, VCCI, UL and CB |
|
