Question
If I want to use M.2 PCIe NVMe drives as the storage on X10DRX MB through AOC-SLG3-2M2 adapter, what should I do?
Answer
Users have to bifurcate PCIe to x4x4 under BIOS for each M.2 drive.

Path: Advanced >> Chipset Configuration >> North Bridge >> IIO Configuration >> IIO1 / IIO2 configuration.


For example,

>> If you want to bifurcate CPU1 Slot3 to x4x4, please change IOU2 from [Auto] to [x4x4].

>> If you want to bifurcate CPU1 Slot1 and CPU1 Slot2 to x4x4, please change IOU0 from [Auto] to [x4x4x4x4].

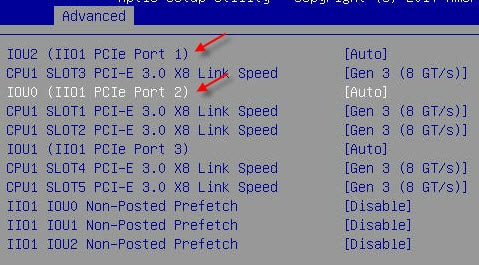

[IIO1 Configuration]

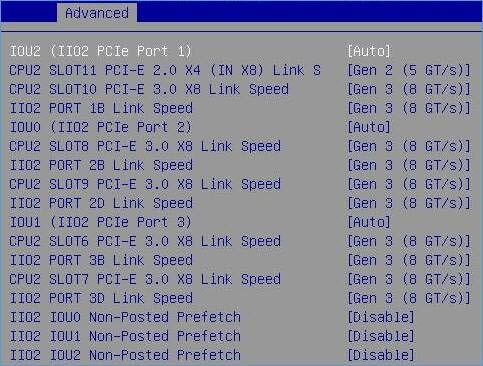

[IIO2 Configuration]
