VROC RAID Key Header

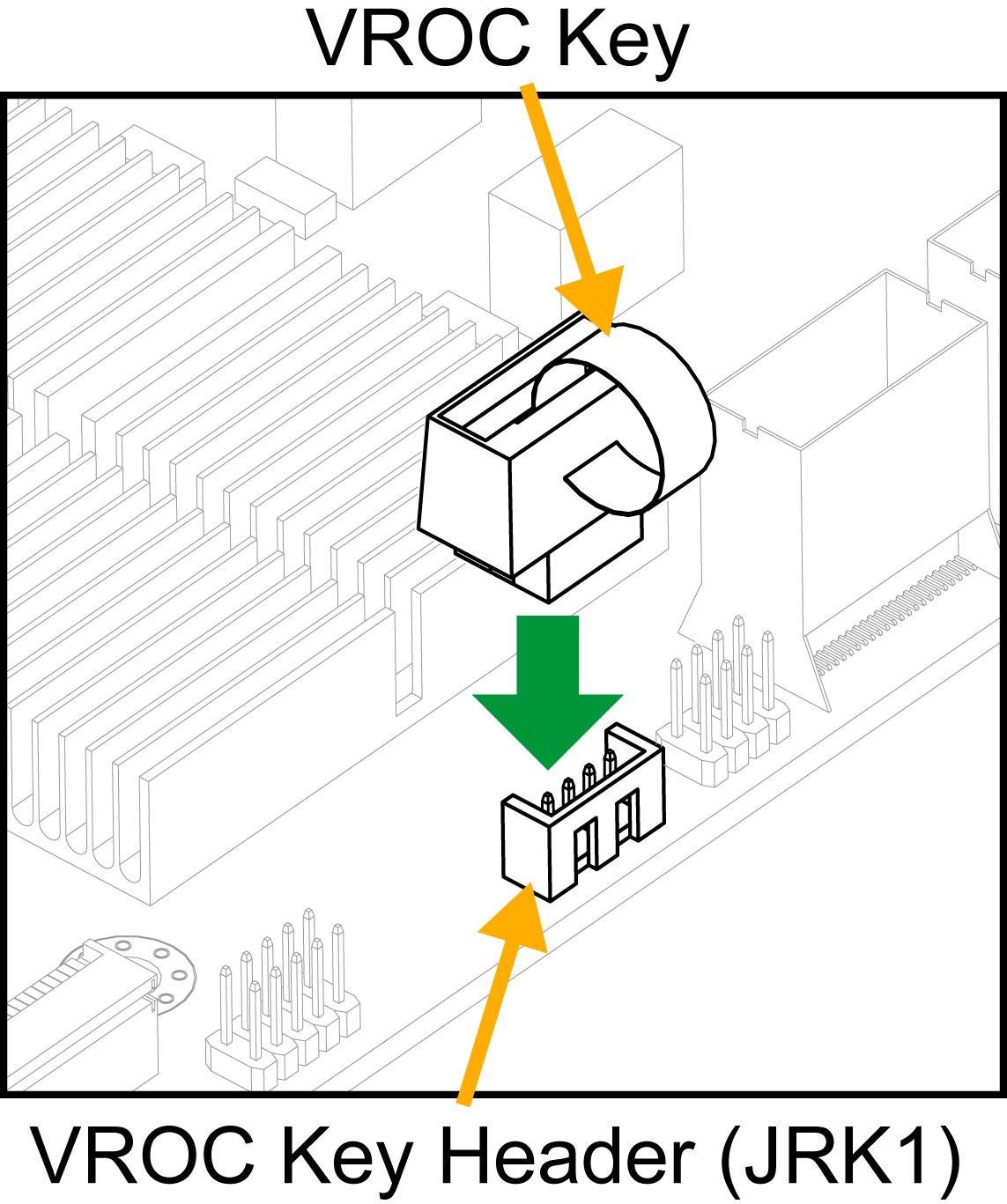

A VROC RAID Key header is located at JRK1 on the X14SBH-AP motherboard. Install a VROC RAID key on JRK1 for NVMe RAID support as shown in the illustration below.

For a detailed diagram of the X14SBH-AP motherboard, see the layout under Quick Reference.

Intel VROC Key

Pin Definitions: Four Total

Pin#

Definition

1

GND

2

+3.3 V Standby

3

GND

4

CPU RAID Key

Note: Images displayed are for illustrative purposes only. The components installed in your system may or may not look exactly the same as the graphics shown in the manual.

Note: For detailed instructions on how to configure VROC RAID settings, refer to the VROC RAID Configuration User's Guide posted on the web page under the following link: https://www.supermicro.com/support/manuals.
