SYS-E50-14AM System Views
The following features are located on the front and rear of the SYS-E50-14AM server.

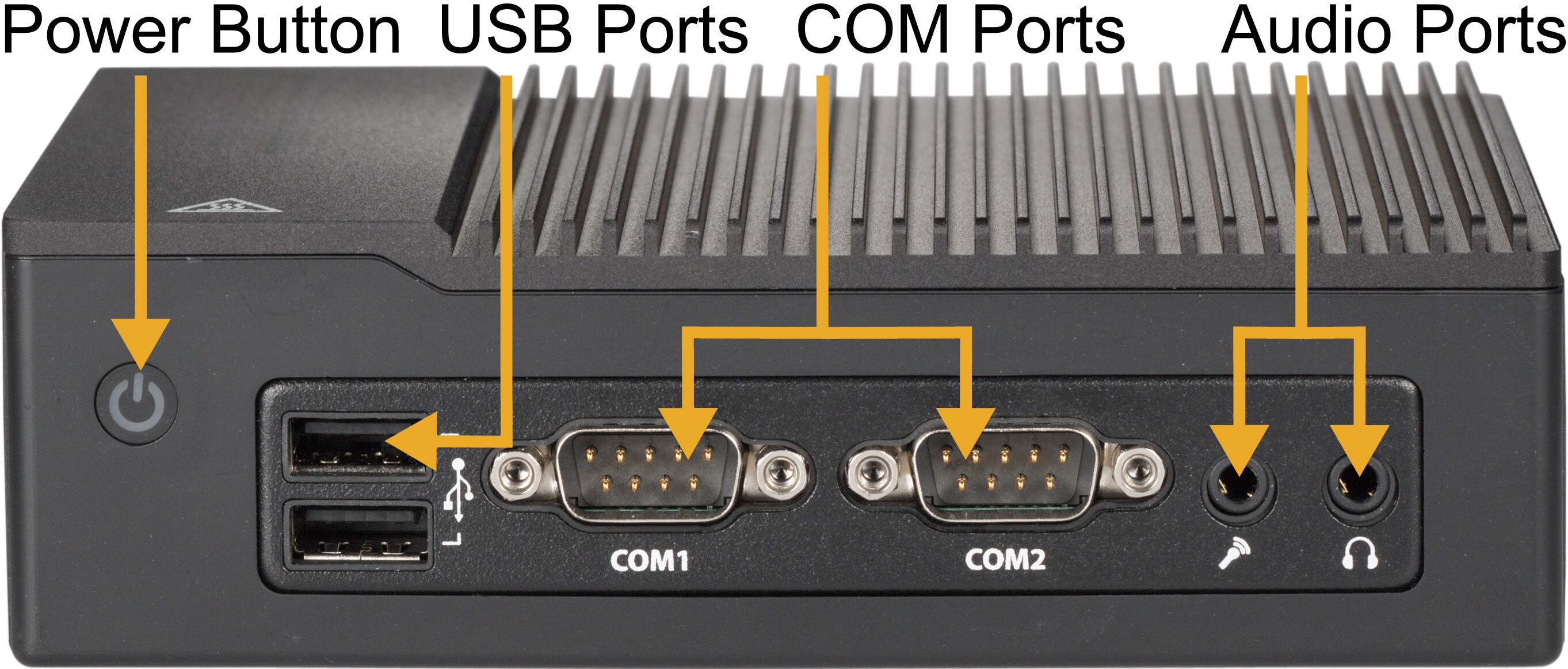

Figure 1. SYS-E50-14AM Front View
|
SYS-E50-14AM System Features: Front |
|
|---|---|
|
Feature |
Description |
|
Power button |
One system power button |
|
USB ports |
Two USB 2.0 ports |
|
COM ports |
Two COM ports |
|
Audio ports |
Two audio ports (one mic-in, one line-out) |

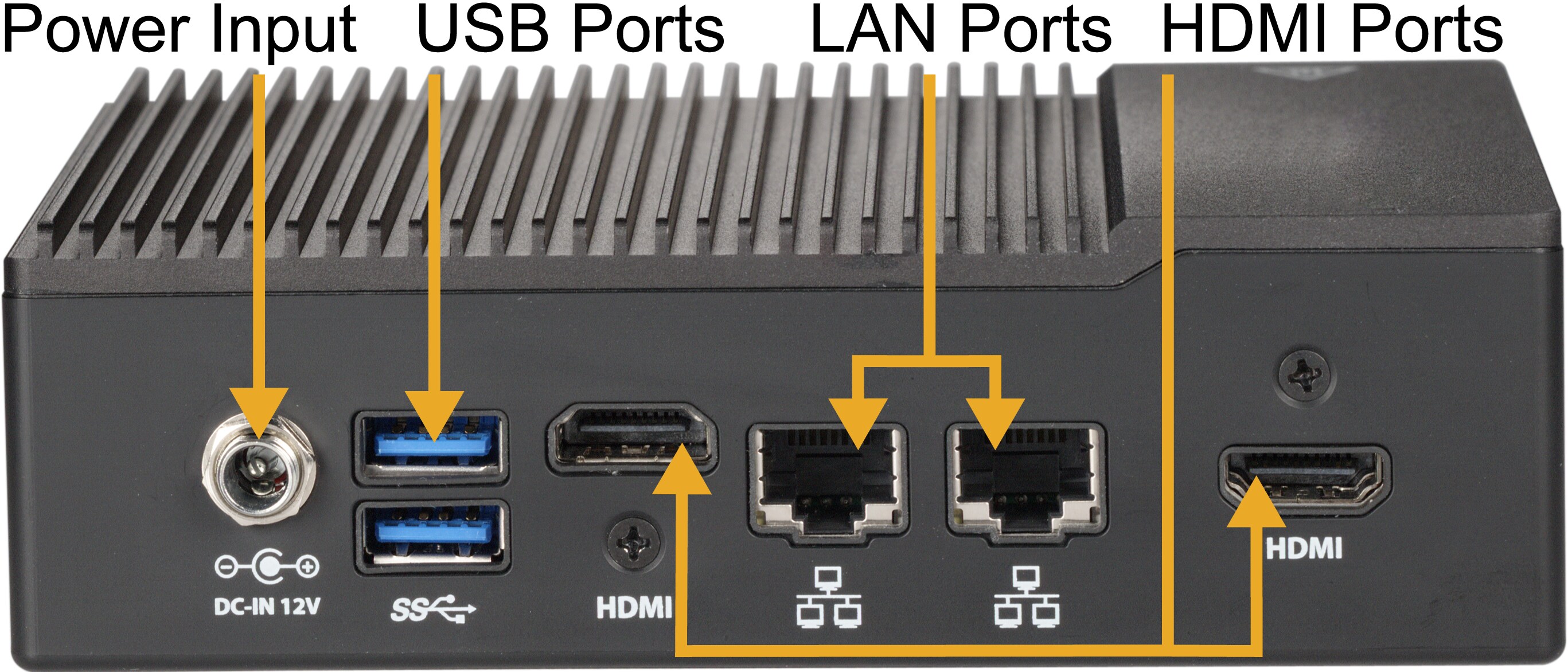

Figure 2. SYS-E50-14AM Rear View
|
SYS-E50-14AM System Features: Rear |
|
|---|---|
|
Feature |
Description |
|
Power input |
One 12 VDC power input socket |
|
HDMI ports |
Two HDMI 1.4 ports |
|
USB ports |
Two USB 3.2 ports |
|
LAN ports |
Two RJ45 2.5GbE LAN ports |
