A+ Server 2013S-C0R
A+ Products Systems 2U [ 2013S-C0R ]




Integrated Board
H11SSL-C

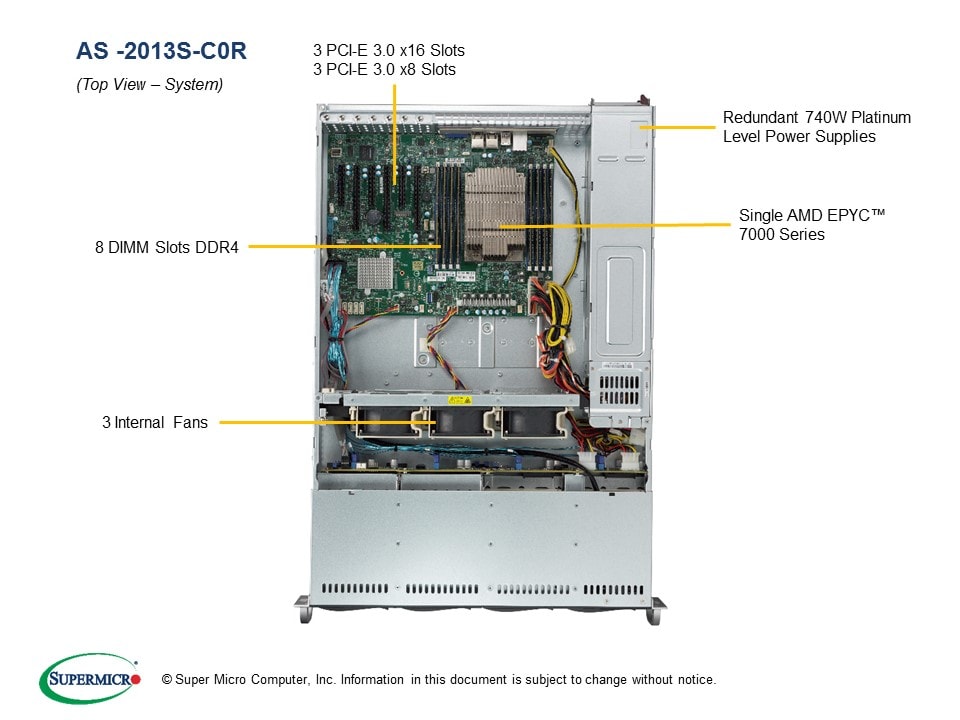

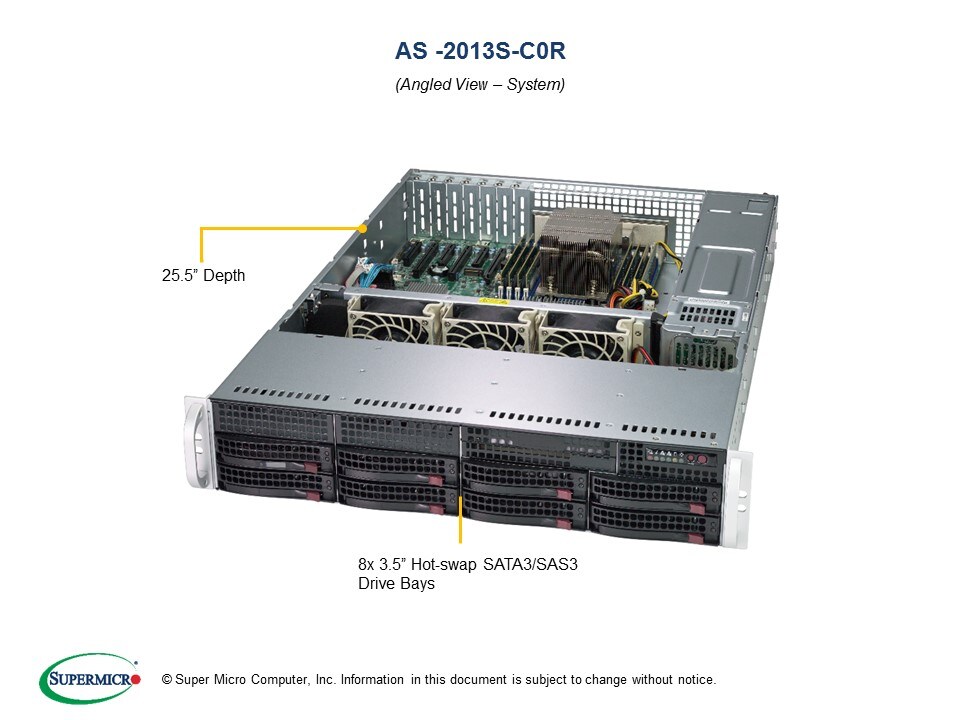

Views: | Angled View | Top View |

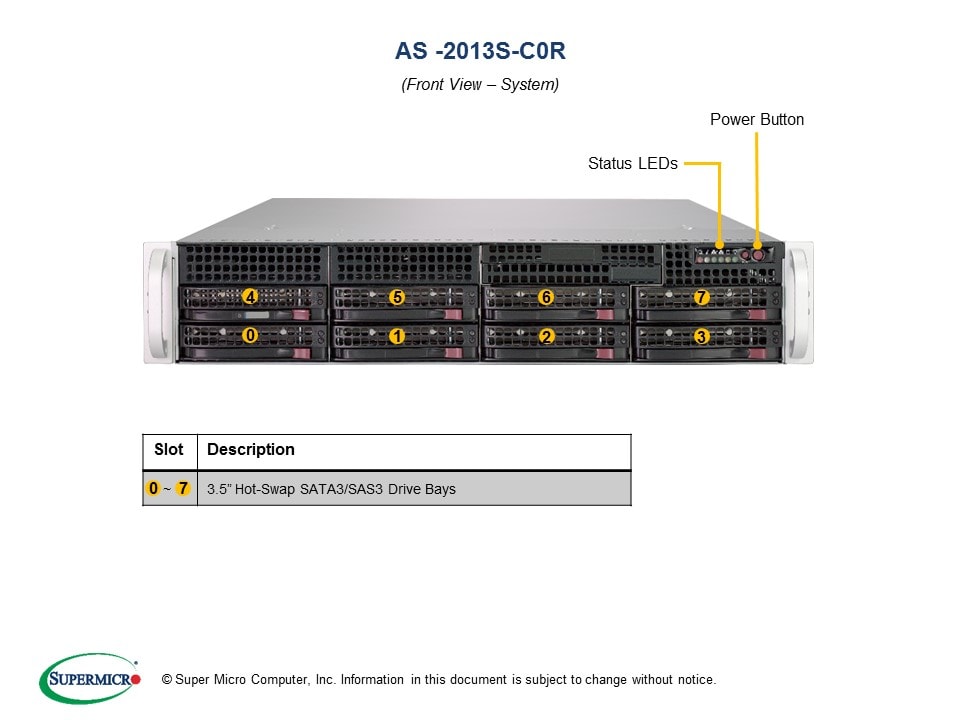

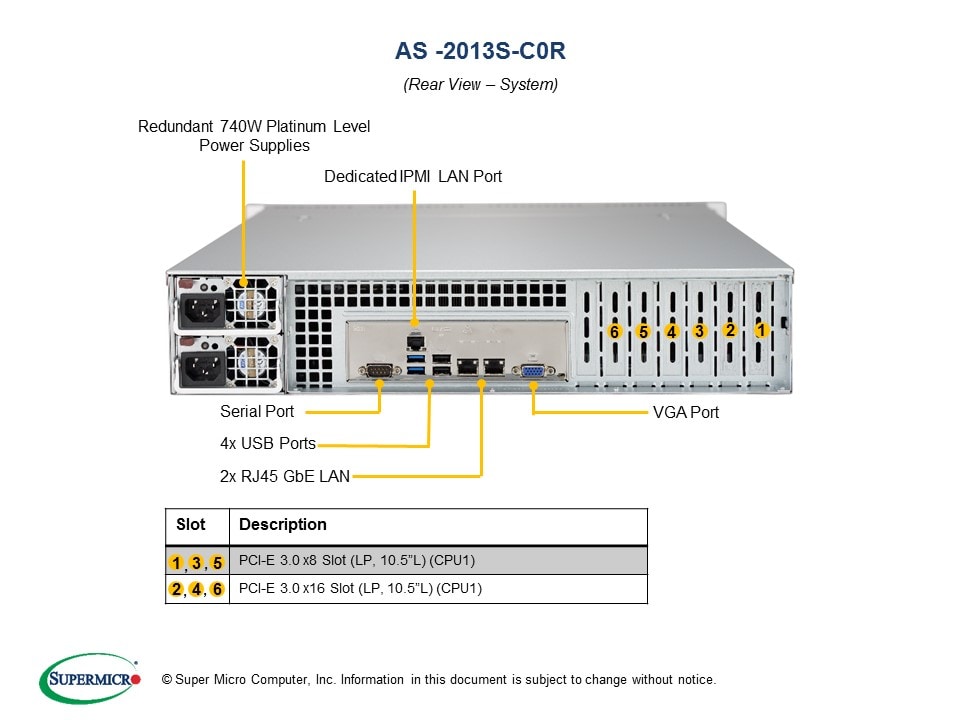

| Front View | Rear View |


Key Features
• Cloud and Virtualization needs
• Connectivity/Storage
  Computer Nodes
• Database Processing & Storage
• High End Enterprise Server
• Hosting & Application delivery

1. Single AMD EPYC™ 7001/7002* Series Processor (*AMD EPYC 7002 series drop-in support requires board revision 2.x)
2. 1TB Registered ECC DDR4 2666MHz SDRAM in 8 DIMMs
2TB Registered ECC DDR4 3200MHz SDRAM in 8 DIMMs (Board revision 2.x required)
3. Expansion slots:
3 PCI-E 3.0 x16 (low profile);
3 PCI-E 3.0 x8 (low profile)
M.2 Interface: PCI-E 3.0 x4 (NVMe based)
M.2 Form Factor: 2280, 22110
M.2 Key: Onboard M-key
Number of M.2: Single
4. Integrated IPMI 2.0 + KVM with dedicated LAN
• Software Out of Band License
 key (SFT-OOB-LIC) included
 for OOB BIOS management
5. 2x 1GbE LAN ports via Intel® I210
6. 8 hot-swap 3.5" SAS3/SATA3 Drive Bays (on-board Broadcom 3008 IR mode),
1 M.2 NVMe SSD slot Supported
7. 740W Redundant Platinum Level Power Supplies
(Full redundancy based on configuration and application load)

Drivers & Utilities BIOS IPMI Tested Memory Tested M.2 List Tested AOC Manuals OS Certification Matrix Quick-References Guide Drive Options


Product SKUs - Discontinued SKU (EOL). Please contact sales-rep for alternative options.
AS -2013S-C0R
  • A+ Server 2013S-C0R
Motherboard
H11SSL-C
Processor/Chipset
CPU
  • Single AMD EPYC™ 7001/7002* series Processor (*Board revision 2.x required)
  • Socket SP3
  • Supports CPU TDP 225W / cTDP up to 240W*
Cores
  • Up to 32 Cores (Board revision 1.x + 7001 Processors)
  • Up to 64 Cores (Board revision 2.x + 7002 Processors)
Chipset
  • System on Chip (SoC)
System Memory
Memory Capacity
  • 8 DIMM slots
  • Supports up to 1TB Registered ECC DDR4 2666MHz SDRAM (7001 Processors)
  • Supports up to 2TB Registered ECC DDR4 3200MHz SDRAM (Board revision 2.x required + 7002 Processors)
  • 8-channel memory bus
Memory Type
  • DDR4 2666 MHz Registered ECC, 288-pin gold-plated DIMMs
  • DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs (Board revision 2.x required + 7002 Processors)
DIMM Sizes
  • 4GB, 8GB, 16GB, 32GB, 64GB, 128GB, 256GB*
    (* Board revision 2.x required + 7002 Processors)
Memory Voltage
  • 1.2V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
SATA/SAS
  • SATA3 (6 Gbps)
  • Broadcom 3008 SAS3 (12 Gbps) controller
  • IR mode; RAID 0, 1, 10
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2500 BMC
Network Controllers
  • Intel® I210 Controller
VGA
  • ASPEED AST2500 BMC
Expansion Slots
PCI Express
  • 3 PCI-E 3.0 x16 (low profile)
  • 3 PCI-E 3.0 x8 (low profile)
M.2
  • Interface: PCI-E 3.0 x4 (NVMe based)
  • Form Factor: 2280, 22110
  • Key: Onboard M-key
  • Number of M.2: Single
Input / Output
SATA/SAS
  • 8 SATA3 (6 Gbps) /
  • 8 SAS3 ports via Broadcom 3008
LAN
  • 2x 1GbE LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 3 USB 3.0 ports
  • 2 USB 2.0 ports
VGA
  • 1 VGA port
Others
  • 1 COM port (rear)
  • 2 SATA DOM power connector
  • TPM 1.2 header
System BIOS
BIOS Type
  • AMI 128Mb SPI Flash EEPROM
BIOS Features
  • Plug and Play (PnP)
  • DMI 2.3
  • PCI 2.2
  • ACPI 5.1
  • USB Keyboard Support
  • SMBIOS 3.1.1
Chassis
Form Factor
  • 2U
Model
Dimensions
Height
  • 3.5" (89mm)
Width
  • 17.2" (437mm)
Depth
  • 25.5" (647mm)
Weight
  • Net Weight: 35.5 lbs (16.1 kg)
  • Gross Weight: 69 lbs (31.2 kg)
Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power LED
  • Hard drive activity LED
  • 2x Network activity LEDs
  • System Overheat LED / Fan fail LED /
    UID LED
Drive Bays
Hot-swap
  • 8 hot-swap 3.5" SAS3/SATA3 Drive Bays
Peripheral Drives
DVD-ROM
  • Slim DVD-ROM drive (optional)
Backplane
HDD Backplane
  • Supports 8 SAS3/SATA3 3.5" HDD
System Cooling
Fans
  • 3 heavy-duty PWM fans with optimal fan speed control
Power Supply with Power Distributor
740W Redundant high-efficiency power supply with PMBus
AC Input
  • 100-240 V, 50-60 Hz, 9-3.5 Amp
DC Output
  • 4 Amp @ +5V standby
  • 61.7 Amp @ +12V
Certification Platinum Level Certified
Platinum Certified
[ Test Report ]
PC Health Monitoring
CPU
  • Monitors CPU Core Voltages, +12V, +3.3V, +5V, +5V standby, 3.3V standby, VBAT
  • CPU switching voltage regulator
FAN
  • Fan status tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • CPU Thermal Trip Support
  • Thermal control for 8x Fan connectors
  • I²C Temperature Sensing Logic
LED
  • CPU / System Overheat LED
Other Features
  • Chassis Intrusion Detection
  • Chassis Intrusion Header
Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
    10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature:
    -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
    8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
    5% to 95% (non-condensing)
Parts List - (Items Included)
Part Number Qty Description
Motherboard MBD-H11SSL-C 1 Super H11SSL-C Motherboard
Chassis CSE-825TQ-R740LPB 1 Black 2U SC825TQ LP chassis w/ Red. 740W PWS
HD Backplane BPN-SAS3-825TQ 1 8-port 2U SAS3 12Gbps TQ backplane, support up to 8x 3.5-inch SAS3/SATA3 HDD/SSD
Cable CBL-SAST-0948 2 MINI SAS HD-4 SATA,12G,INT,60CM,60CM SB,30AWG
Heat Sink SNK-P0063P 1 2U Passive CPU Heat Sink for AMD Socket SP3 Processors
Software SFT-OOB-LIC 1 License key for enabling OOB BIOS management

Optional Parts List
Part Number Qty Description
Network Card(s) AOC-S40G-i2Q - Standard LP 2-port 40GbE controller, based on Intel Fortville XL710
AOC-SGP-i2 - Standard LP, 2x GbE RJ45, PCI-E x4, Intel i350AM2
AOC-SGP-i4 - Standard LP, 4x GbE RJ45, PCI-E x4, Intel i350
AOC-STG-b4S - Standard LP, 4x 10GbE SFP+, PCI-E x8, Broadcom BCM57840S
AOC-STGN-i2S - Standard LP, 2x 10GbE SFP+, PCI-E x8, Intel 82599ES
AOC-STGN-i1S - Standard LP, 1x 10GbE SFP+, PCI-E x8, Intel 82599EN
AOC-STG-i2T - Standard LP, 2x 10GbE RJ45, PCI-E x8, Intel X540
AOC-STG-i2 - Standard LP, 2x 10GbE CX4, PCI-E x8, Intel 82598EB
Hot-swap 3.5" to 2.5" Hard Disk Drive Tray MCP-220-00043-0N - STD Black hot-swap screw type 3.5"-to-2.5" converter drive tray
MCP-220-00118-0B - STD Black hot-swap tool-less 3.5"-to-2.5" converter drive tray.
Cable Management Arm MCP-290-00073-0N - Supermicro Cable Management Arm for 2U, 3U and 4U chassis (Extendable Length: 70mm to 830mm)
Storage Controller card & cable AOC-S3008L-L8e
& 2x CBL-SAST-0699
AOC-S3008L-L8i
& 2x CBL-SAST-0699
AOC-S3108L-H8iR
& 2x CBL-SAST-0699
-

-

-

Std LP, 8 WIO L ports, 12Gb/s per port- Gen3, 122HDD, HBA
MINI SAS HD-4 SATA,12G,INT,75/75/90/90CM,75CM SB,28/30AWG
Std LP, 8 WIO L ports, 12Gb/s per port- Gen3, 63HDD, RAID 0,1,1E
MINI SAS HD-4 SATA,12G,INT,75/75/90/90CM,75CM SB,28/30AWG
Std LP, 8 WIO L ports, 12Gb/s per port- Gen3, 240HDD, RAID 0, 1, 5, 6, 10, 50, 60
MINI SAS HD-4 SATA,12G,INT,75/75/90/90CM,75CM SB,28/30AWG
CacheVault BTR-TFM8G-LSICVM02
& BKT-BBU-BRACKET-05
BTR-TFM8G-LSICVM02
& MCP-240-00127-0N
& MCP-220-00043-0N
-

-


CacheVault for Broadcom 3108,
Supercap mounting bracket for PCI-E location
CacheVault for Broadcom 3108,
Supercap mounting bracket for 2.5" HDD location,
STD Black hot-swap screw type 3.5"-to-2.5" converter drive tray
Adapter Bracket MCP-120-82503-0N - Cable arm adapter for SC825LP,213LP (MCP-290-00073-0N required),HF,RoHS/REACH,PBF
SATA DVD Kit MCP-220-81502-0N - Slim SATA DVD mounting kit for SC213,219,813,815,818,819,825,828,829,836,842
TPM AOM-TPM-9655V - Vertical TPM with Infineon 9655 TCG 1.2
AOM-TPM-9665V - AOM-TPM-9665V using SLB9665 Chipset supporing TPM2.0,RoHS/REACH
Global Services & Support OS4HR3/2/1 - 3/2/1-year onsite 24x7x4 service
OSNBD3/2/1 - 3/2/1-year onsite NBD service
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
Hide Parts List
