Key Features
- Compute Intensive Application
- HPC, Data Center, Enterprise
Server
- Hyperscale / Hyperconverged

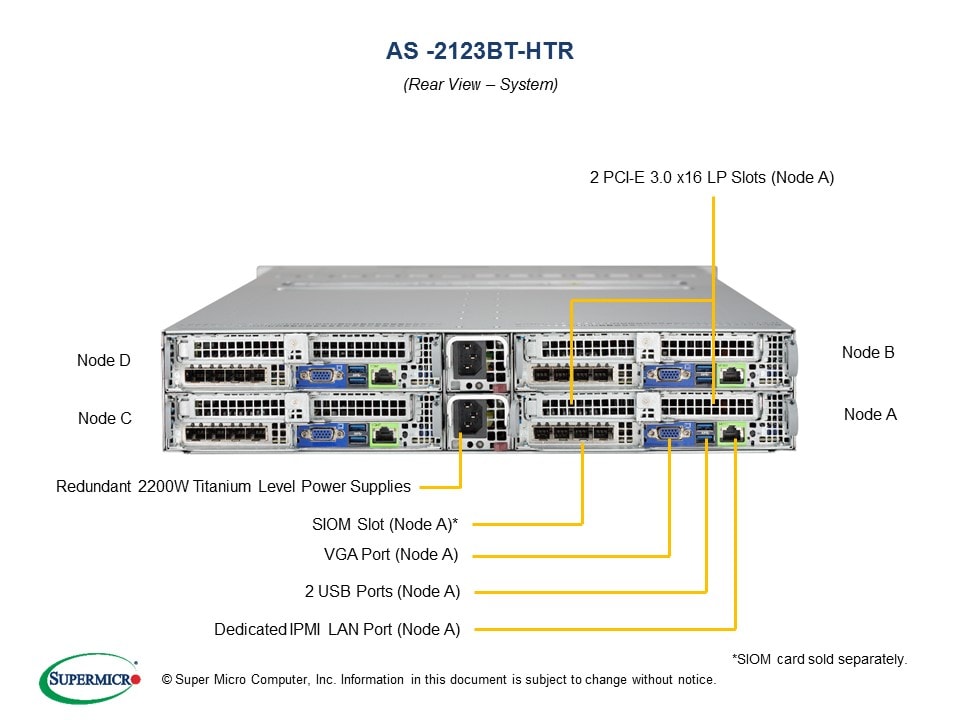

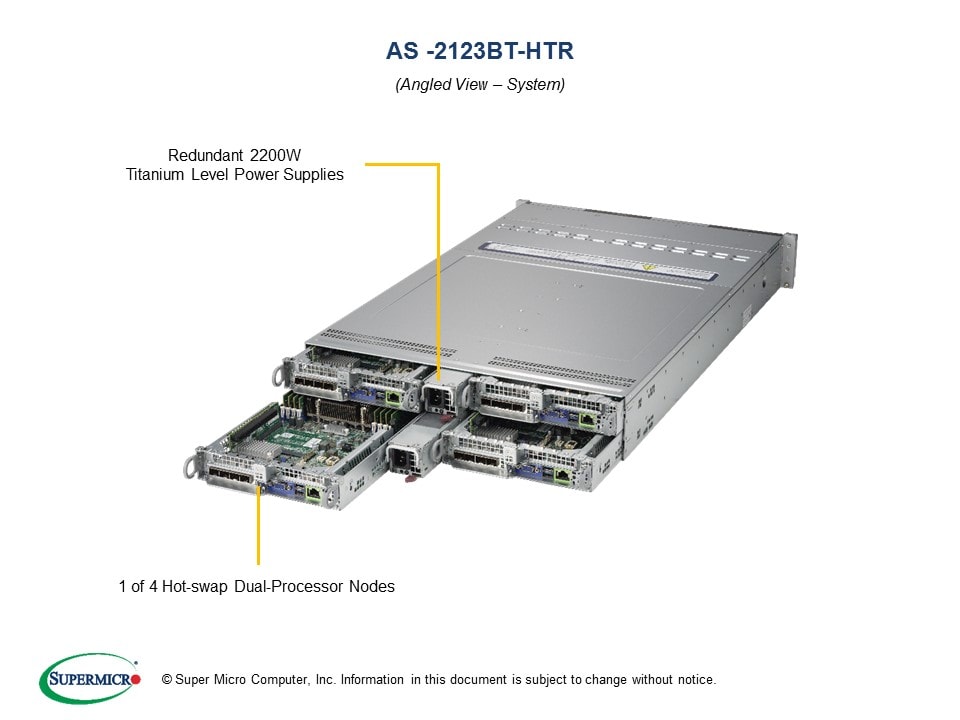

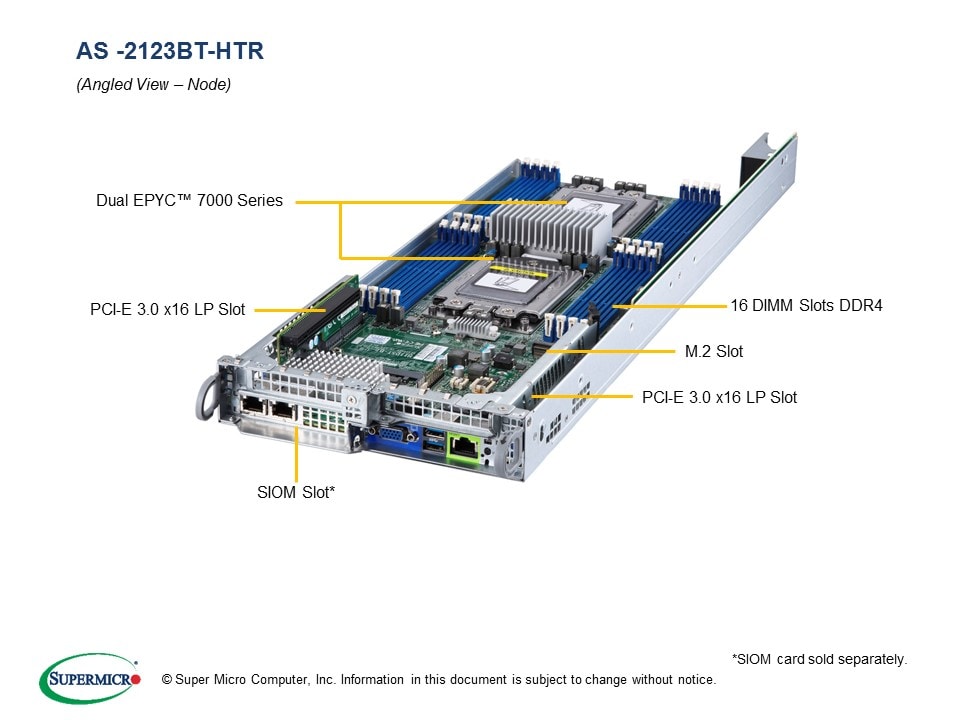

Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:1. Dual AMD EPYC™ 7001/7002* Series Processors (*AMD EPYC 7002 series drop-in support requires board revision 2.x)
2. 2TB Registered ECC DDR4 2666MHz SDRAM in 16 DIMMs (7001 Processors) 4TB Registered ECC DDR4 3200MHz SDRAM in 16 DIMMs (Board revision 2.x required + 7002 Processors)3. 2 PCI-E 3.0 x16 (LP) slot; 1
SIOM card support (flexible networking)
Note: must bundle with Network card4. Integrated IPMI 2.0 + KVM with dedicated LAN
• Software Out of Band License
key (SFT-OOB-LIC) included

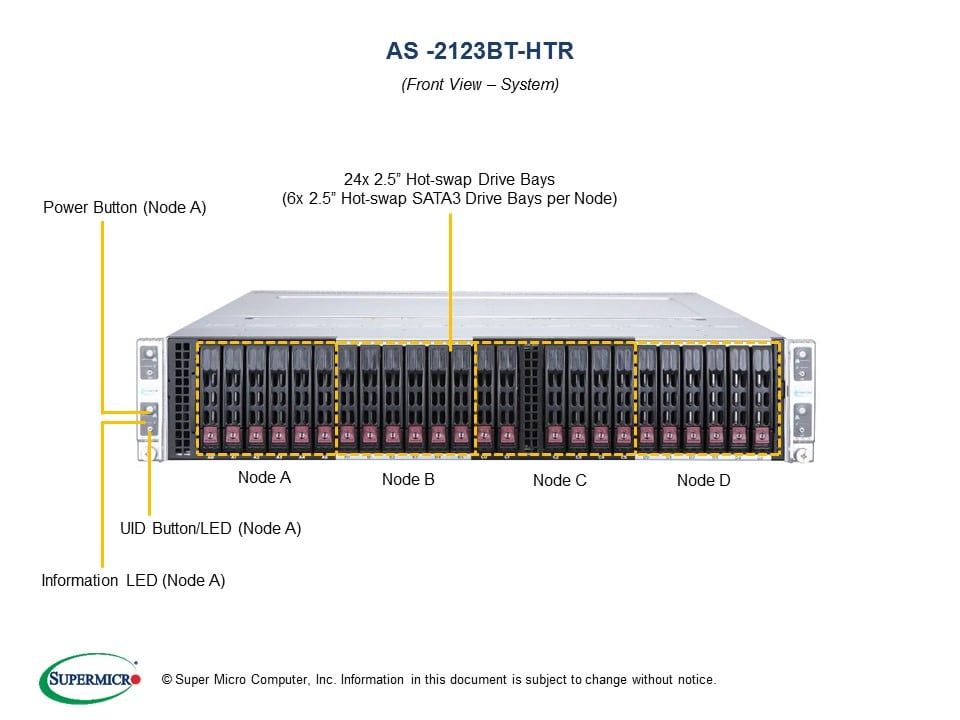

for OOB BIOS management5. 6 Hot-swap 2.5" SATA3 drive bays M.2 Interface: 1 SATA/PCI-E 3.0 x4 M.2 Form Factor: 2280, 22110 M.2 Key: M-key6. Video via Aspeed AST2500 BMC7. 2200W Redundant Power Supplies Titanium Level (96%) (Full redundancy based on configuration and application load)
Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system
(with minimum 2 CPUs, 8 DIMMs, 1 HDD/NVMe and 1 SIOM card per node).
Up to 32 Cores (Board revision 1.x + 7001 Processors)
Up to 64 Cores (Board revision 2.x + 7002 Processors)
Note
** Certain CPUs with high TDP may be supported only under specific conditions. Please contact Supermicro Technical Support for additional information about specialized system optimization
System Memory
(per Node)
Memory Capacity
16 DIMM slots
Supports up to 2TB Registered ECC DDR4 2666MHz SDRAM (7001 Processors)
Supports up to 4TB Registered ECC DDR4 3200MHz SDRAM (Board revision 2.x required + 7002 Processors)
8-channel memory bus
For Dual CPUs: Recommended that memory be populated equally in adjacent memory banks
1 PCI-E 3.0 x16 SIOM LAN Networking Slot for flexible networking, see
SIOM
LAN options support matrix (Must bundle with at least one SIOM network card)
IPMI
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Operating Temperature:
10°C ~ 30°C (50°F ~ 86°F) * Support for operating above 30°C is available in certain system configurations. Contact your Supermicro sales rep or Technical Support for more details.
Non-operating Temperature:
-40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity:
8% to 90% (non-condensing)
Non-operating Relative Humidity:
5% to 95% (non-condensing)
