| SYS-1028R-WC1RT |
- SuperServer 1028R-WC1RT (Black)
|
|
|
CPU |
- Intel® Xeon® processor E5-2600
v4†/
v3 family
(up to 145W TDP)
*
- Dual Socket R3 (LGA 2011)
|
Cores / Cache |
- Up to 22 Cores† / Up to 55MB† Cache
|
System Bus |
|
Note |
† BIOS version 2.0 or above is required |
Note |
* Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization.
|
|
|
Memory Capacity |
- 16x 288-pin DDR4 DIMM slots
- Up to 2TB† ECC 3DS LRDIMM/RDIMM
|
Memory Type |
- 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
|
DIMM Sizes |
- RDIMM:
32GB, 16GB, 8GB, 4GB
- LRDIMM: 64GB, 32GB
- 3DS LRDIMM: 128GB
|
Memory Voltage |
|
Error Detection |
- Corrects single-bit errors
|
|
|
Chipset |
|
SATA |
- SATA3 via Intel® C610; RAID 0, 1
|
SAS |
- SAS3 (12Gbps) via Broadcom 3108
- RAID 0, 1, 5, 6, 10, 50, 60 support
- 2GB DDR3 Cache
|
IPMI |
- Support for Intelligent Platform Management Interface v.2.0
- IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
- ASPEED AST2400 BMC
|
Network Controllers |
- Intel® X540 Dual Port 10GBase-T
- Virtual Machine Device Queues reduce I/O overhead
- Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
- 1x Realtek RTL8211E PHY (dedicated IPMI)
|
Graphics |
|
|
|
Serial ATA |
|
SAS |
|
LAN |

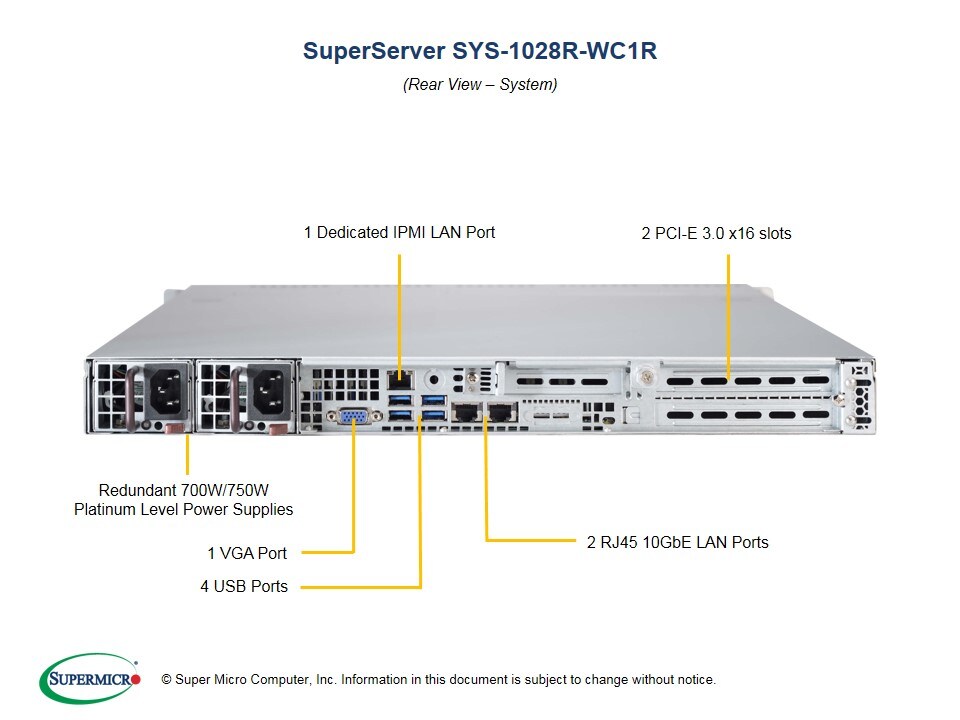

- 2x RJ45 10GBase-T ports
- 1x RJ45 Dedicated IPMI LAN port
|
USB |
- 6x USB 3.0 ports (4 rear + 2 via header)
|
VGA |
|
Serial Port / Header |
- 1x Fast UART 16550 header
|
DOM |
- 2x SuperDOM (Disk on Module) ports
|
|
|
Voltage |
- Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory Voltages.
- 5+1 Phase-switching voltage regulator
|
FAN |
- 6x 4-pin fan headers (up to 6 fans)
- 6x fans with tachometer monitoring
- Status monitor for speed control
- Pulse Width Modulated (PWM) fan connectors
|
Temperature |
- Monitoring for CPU and chassis environment
- CPU thermal trip support
- Thermal Control for 8x Fan Connectors
- Thermal Monitor 2 (TM2) support
- PECI
|
LED |
- System Information LED
- Suspend static indicator LED
- UID/Remote UID
|
Other Features |
- Chassis intrusion detection
- Chassis intrusion header
- SDDC Support
- RoHS
|
|
|
| |
| Form Factor |
|
Model |
|
| |
| Width |
|
Height |
|
Depth |
|
Weight |
- Net Weight: 25.5 lbs (11.6 kg)
- Gross Weight: 39 lbs (17.7 kg)
|
Available Colors |
|
| |

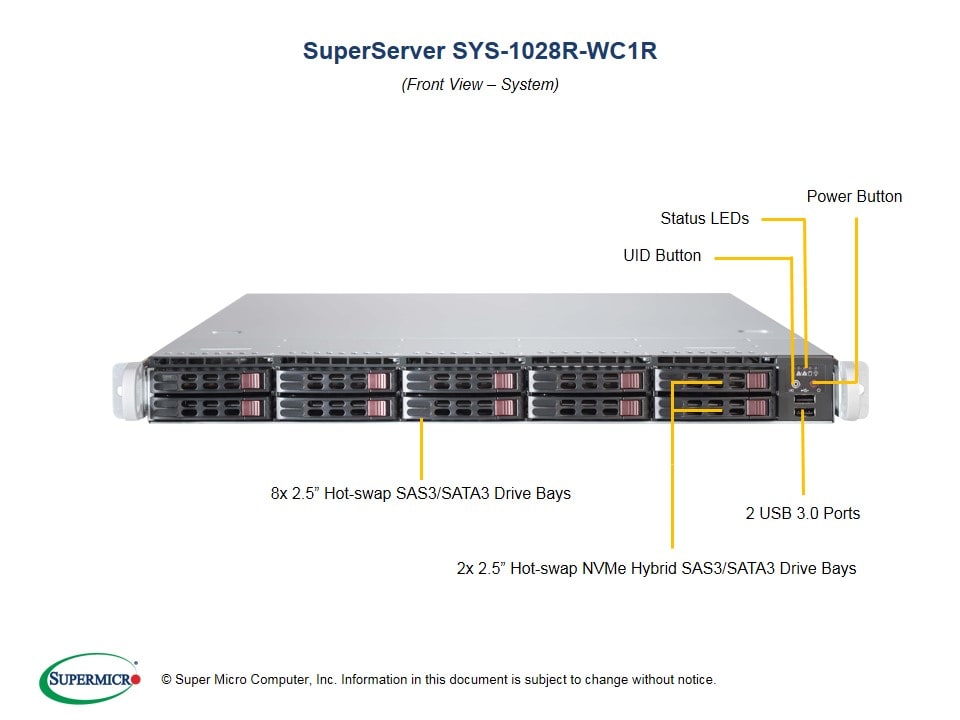

| Buttons |
- Power On/Off button
- UID button
|
LEDs |
- Power status LED
- HDD activity LED
- 2x Network activity LEDs
- Universal Information (UID) LED
|
|
|
PCI-Express |
- 2 PCI-E 3.0 x16 full-height, Half-length slots
|
| |
| Hot-swap |

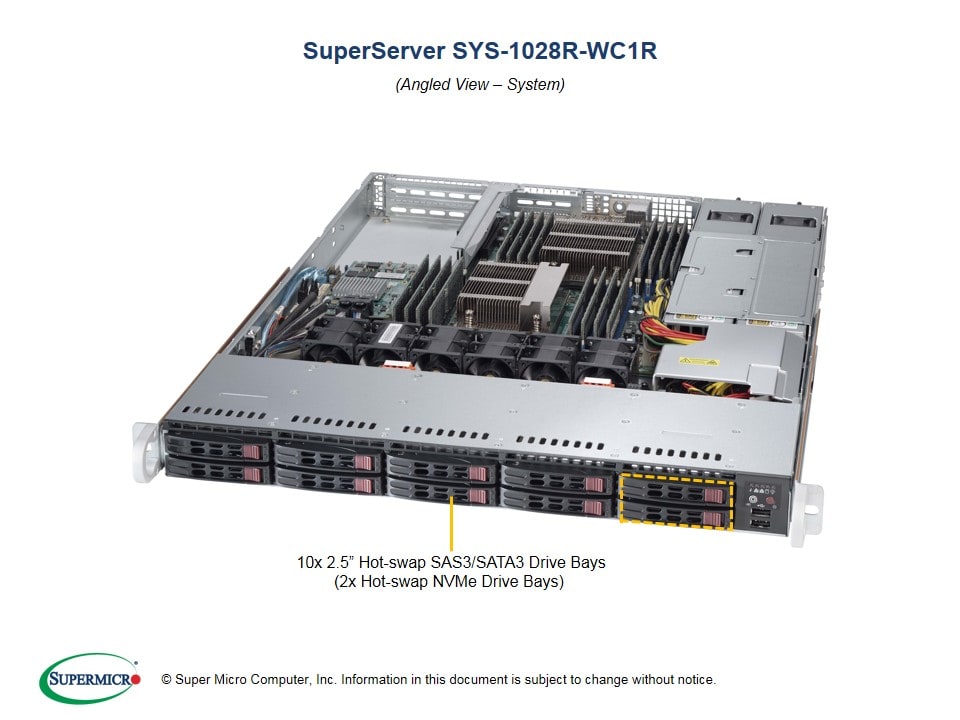

- 10 Hot-swap 2.5" SAS/SATA HDD trays (Default 8 SAS3, 2 SATA3)
|
| |
| SAS/SATA HDD Backplane Optional 2x 2.5" NVMe drives |
| |
| Fans |

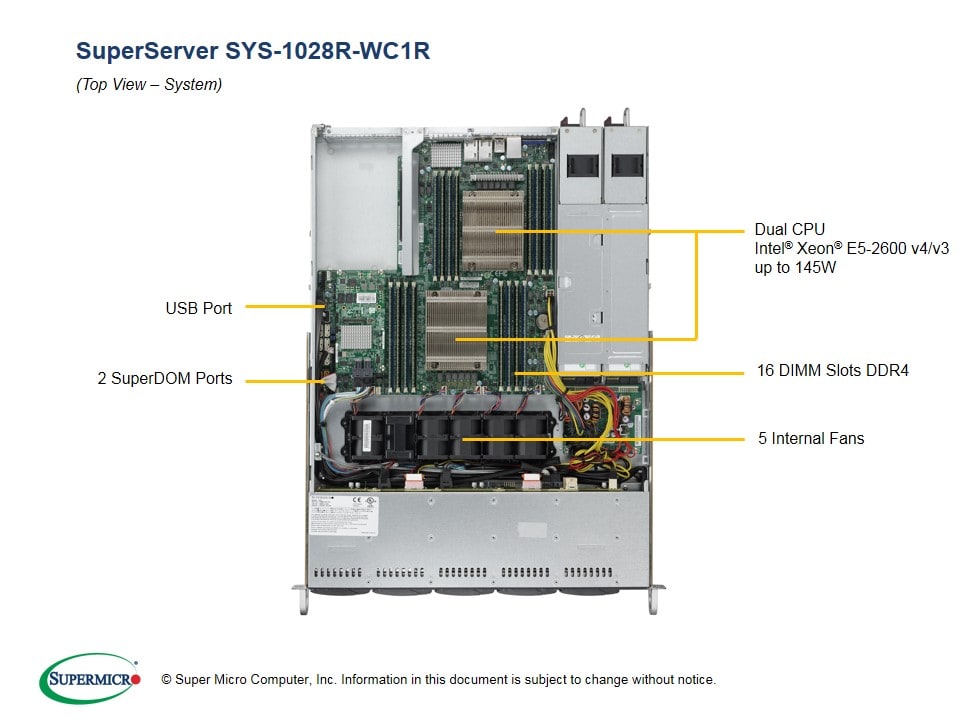

- 5x 4cm heavy-duty counter-rotating fans w/ air shroud and optimal fan speed control
|
| |
| 700W/750W Redundant Power Supplies with PMBus |
Total Output Power |
|
Dimension (W x H x L) |
|
Input |
- 100 - 140Vac / 8 - 6A / 50-60Hz
- 200 - 240Vac / 4.5 - 3.8A / 50-60Hz
- 200 - 240Vdc / 4.5 - 3.8A (CCC Only)
|
+12V |
- Max: 58A / Min: 0.5A (100 - 140Vac)
- Max: 62A / Min: 0.5A (200 - 240Vac)
- Max: 62A / Min: 0.5A (200 - 240Vdc)
(CB/CCC Only)
|
+5V sb |
|
Output Type |
- Gold Finger Connector Mating with Molex 45984-4343
|
Certification |
Platinum Certified [ Test Report ]
|
|
|
BIOS Type |
- 128Mb SPI Flash EEPROM with AMI BIOS
|
BIOS Features |
- Plug and Play (PnP)
- APM 1.2
- PCI 2.3
- ACPI 1.0 / 2.0 / 3.0 / 4.0
- BIOS resuce hot keys
- USB Keyboard support
- SMBIOS 2.7.1
- UEFI 2.3.1
|
|
|
Software |
|
Power Configurations |
- ACPI / APM Power Management
- Power-on mode for AC power recovery
|
| |
| RoHS
|
|
Environmental Spec. |
- Operating Temperature:
10°C to 35°C (50°F to 95°F)
- Non-operating Temperature:
-40°C to 70°C (-40°F to 158°F)
- Operating Relative Humidity:
8% to 90% (non-condensing)
- Non-operating Relative Humidity:
5% to 95% (non-condensing)
|
|
|
|
| |
|
See Parts List
|
|
| |
|
|
Part Number
|
Qty
|
Description
|
Motherboard / Chassis |
MBD-X10DRW-iT
CSE-116AC2-R706WB |
1 1 |
Super X10DRW-iT Motherboard
1U Chassis |
Add-on Card / Module |
AOM-S3108M-H8 |
1 |
LSI3108, SAS-3/Gen-3 12Gb/ROC |
Backplane |
BPN-SAS3-116A-N2 |
1 |
10-port 1U SAS3 12Gbps Hybrid backplane, support up to 8x 2.5-inch SAS3/SATA3 HDD/SSD and 2x SAS3/SATA3/NVMe Storage Devices |
Cable 1 |
CBL-SAST-0550 |
1 |
MINI SAS HD,12G,INT,25CM,30AWG |
Cable 2 |
CBL-0484L |
2 |
SATA,INT,ROUND,ST-ST,55CM,30AWG |
Cable 3 |
CBL-SAST-0568 |
1 |
MINI SAS HD,12G,INT,35CM,30AWG |
Cable 4 |
CBL-CDAT-0662 |
1 |
CBL,SGPIO,2X4F TO 2X4F,P2.54,ROUND CABLE,61.5CM,28AWG |
Label |
LBL-0108 |
1 |
CAUTION LABEL FOR REDUNDANT PWR SYSTEMS |
Manual |
MNL-1637-QRG |
1 |
1028R-WC1R(T) QRG,HF |
Riser Card |
RSC-R1UW-2E16 |
1 |
1U LHS WIO Riser card with two PCI-E x16 slots |
Heatsink / Retention |
SNK-P0047PSC |
1 |
1U Passive Front CPU Heat Sink w/ a Side Air Channel for X9, X10 Systems Equipped with a Narrow ILM MB |
Heatsink / Retention |
SNK-P0057PS |
1 |
1U High Performance Passive CPU Heat Sink for X9, X10 Systems Equipped w/ a Narrow ILM MB |
Power Supply |
PWS-706P-1R |
2 |
1U 750W redundant power width 54.5mm(Platinum),HF,RoHS/REACH,PBF |
Fan |
FAN-0101L4 |
5 |
40x56mm, 4 Pin PWM Fan |
Rail Set |
MCP-290-00063-0N |
1 set |
Rail set, quick/quick, default for 1U 17.2"W for SC113/SC116,RoHS/REACH |
|
|
|
| |
| |
Part Number |
Qty |
Description |
NVMe Tray with Lock |
MCP-220-00127-0B |
- |
Black gen-3 2.5" NVMe drive tray, Orange tab with lock (for hotswap NVMe drive),HF,RoHS/REACH |
NVMe Controller Card & Cable |
AOC-SLG3-2E4R & 2x CBL-SAST-0590 |
- |
Supermicro 6.4GB/s dual-Port Gen-3 Internal NVMe Host Bus Adapter |
CacheVault(s) |
BTR-CV3108-1U1
BTR-TFM8G-LSICVM02 & BKT-BBU-BRACKET-05 BTR-TFM8G-LSICVM02 & MCP-240-00127-0N |
1 -
-
|
CacheVault for Broadcom 3108 with SuperCap mounting in 1U 40x56 fan tray CacheVault for Broadcom 3108; SuperCap mounting bracket for PCI-E location CacheVault for Broadcom 3108; SuperCap mounting bracket for 2.5" HDD location |
Network Card(s) |
AOC-SGP-i2
AOC-SGP-i4
AOC-SG-i2
AOC-SG-i4
AOC-STG-b4S
AOC-STGN-i2S
AOC-STG-i2T
AOC-STG-i2
|
- |
Standard LP, 2x GbE RJ45, PCI-E x4, Intel® i350AM2
Standard LP, 4x GbE RJ45, PCI-E x4, Intel® i350
Standard LP, 2x GbE RJ45, PCI-E x4, Intel® 82575EB
Standard LP, 4x GbE RJ45, PCI-E x8, Intel® 82576EB
Standard LP, 4x 10GbE SFP+, PCI-E x8, Broadcom® BCM57840S
Standard LP, 2x 10GbE SFP+, PCI-E x8, Intel® 82599ES
Standard LP, 2x 10GbE RJ45, PCI-E x8, Intel® X540
Standard LP, 2x 10GbE CX4, PCI-E x8, Intel® 82598EB
|
Front Bezel |
MCP-210-11601-0B |
1 |
Black Front Bezel for SC113, SC113M, SC116, SC119, SC119U, SC514 (No LED indicator support) |
Global Services & Support |
OS4HR3/2/1 OSNBD3/2/1 |
- - |
3/2/1-year onsite 24x7x4 service 3/2/1-year onsite NBD service |
Software |
SFT-OOB-LIC • |
1 |
OOB Management Package (per node license) |
Software |
SFT-DCMS-Single |
1 |
DataCenter Management Package (per node license) |
