Key Features
Qualified low latency NICs here
Financial Analysis
Business Critical Applications
Enterprise Server 1. Dual Socket P (LGA 3647) support

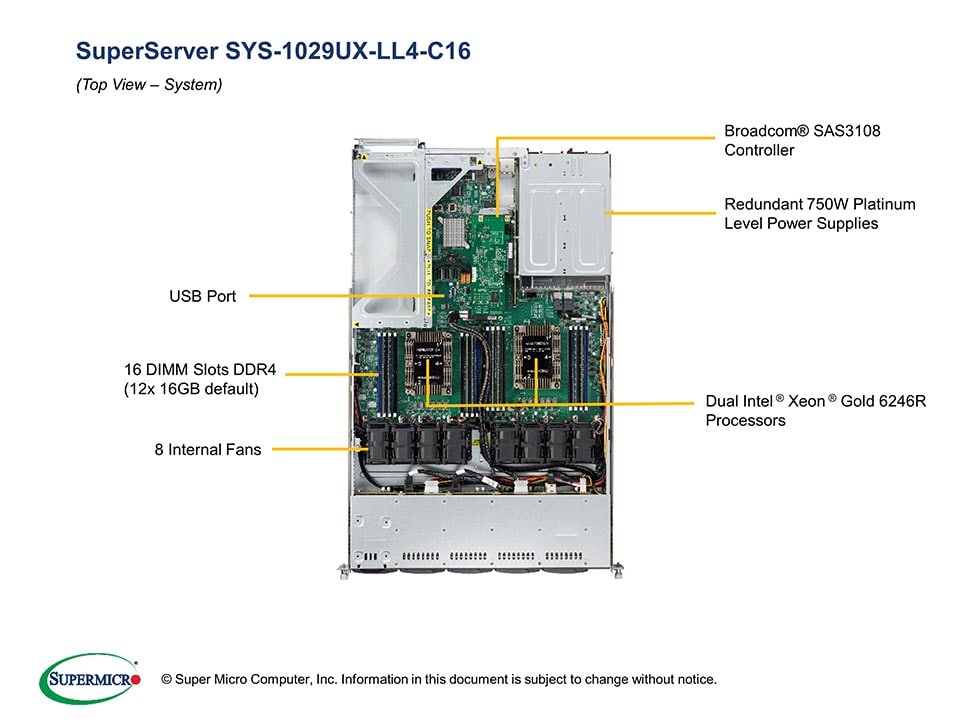

(Intel® Xeon® Gold 6246R included)2. 16 DIMMs; up to 4TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM, (12x 16GB DDR4-2933MHz included)3. 2 PCI-E 3.0 x16 slots (FH, 10.5"/10" L),
1 PCI-E 3.0 x8 (LP), 1 PCI-E 3.0 x8

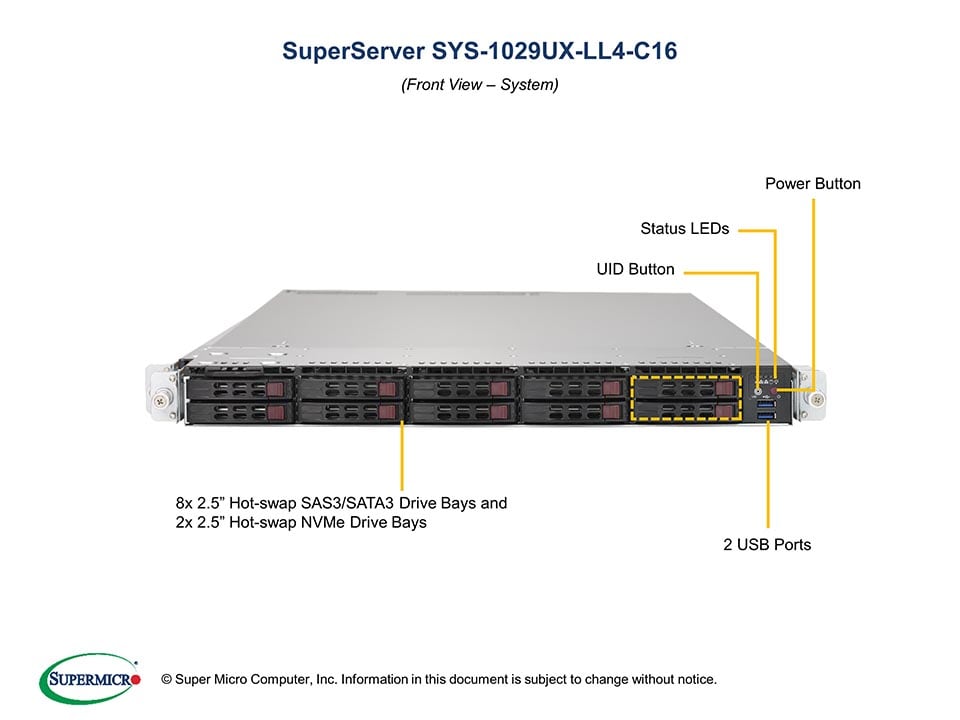

(internal SAS3 integrated 3108)4. 4 Gigabit Ethernet ports5. 8 Hot-swap 2.5" SAS3 drive Bays;
2 Hot-swap NVMe bays6. 8 heavy duty fans w/ optimal
fan speed control7. 750W Redundant Power Supplies Platinum Level (94%+)
Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system
(including but not limited to CPU, memory, and SSD). At least one low-latency NIC from this list must be selected and installed into the system.
† 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro †† Cascade Lake only. Contact your Supermicro sales rep for more info.
On-Board Devices
Chipset
Intel® C621 chipset
SATA
SATA3 (disabled)
SAS
Broadcom 3108 controller for 8 SAS3 ports
Network Connectivity

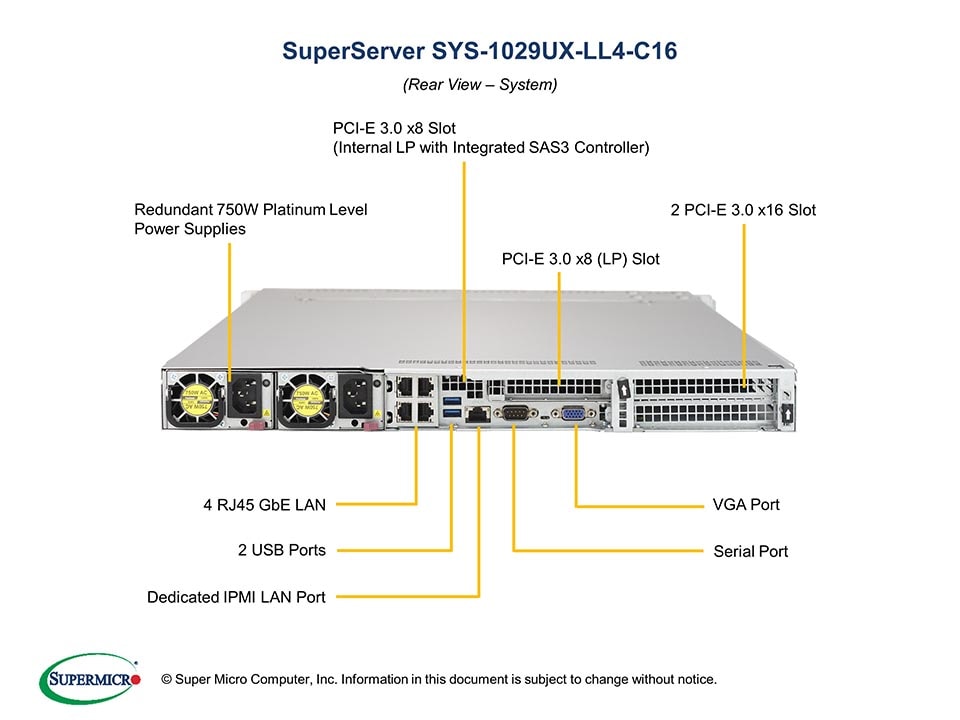

4 Gigabit Ethernet ports via AOC-UR-i4G (Intel® i350AM4)
IPMI
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics
ASPEED AST2500 BMC
Input / Output
SAS
8 SAS3 ports support via integrated 3108 Add-on Card
